Choosing the right notched trowel for your subway tile installation is the single most critical step in ensuring a professional, long-lasting finish. The size and shape of the trowel notch directly influence the amount of thinset mortar applied, the tile’s ability to bond securely, and the overall evenness of the surface. Get this wrong, and you risk everything from uneven grout lines to complete tile failure; get it right, and you set the stage for a flawless installation that will last for years.
Understanding Notched Trowel Sizes and Dimensions
Notched trowels are categorized by the height of their teeth (the "notch depth") and the width of those teeth. These dimensions are measured in inches or millimeters and are printed directly on the trowel’s handle. The standard sizing system refers to the notch dimension, so a 1/4" x 1/4" trowel has square notches that are both 1/4 of an inch tall and wide. The key is to match these dimensions to the size of your tile and the specific substrate you are working with.
The 1/4" x 1/4" Notched Trowel: The Industry Standard

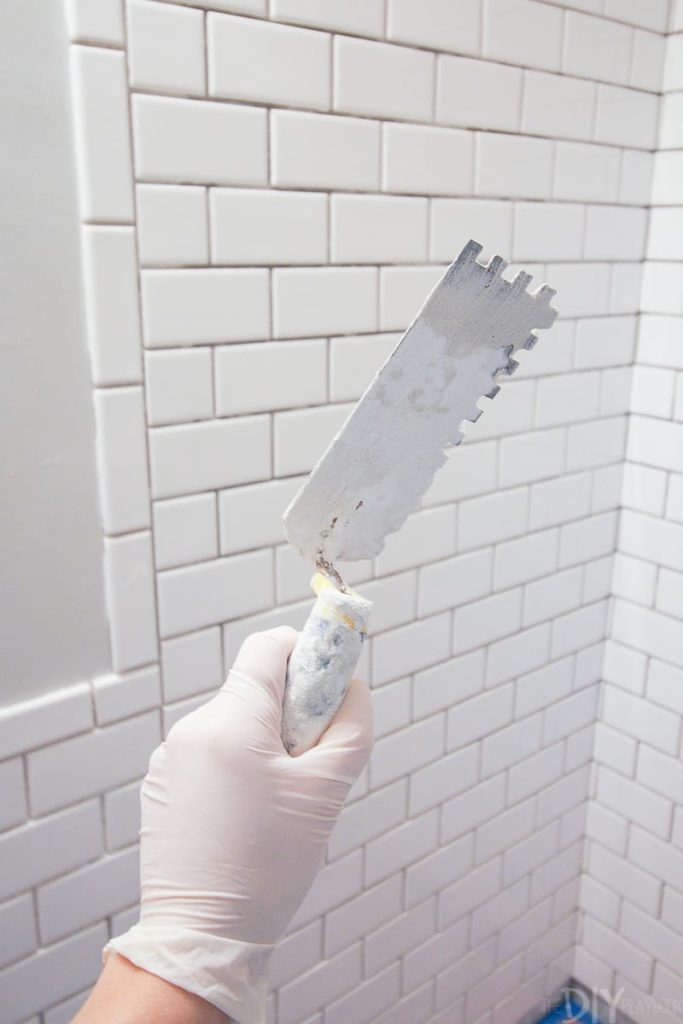

For the vast majority of subway tile projects, the 1/4" x 1/4" notched trowel is the undisputed gold standard. This size provides an excellent balance of mortar coverage and manageability. The square notch creates a consistent, ridged bed that allows air to escape as the tile is pressed down, which is essential for a strong bond. It is the perfect choice for classic 3x6 subway tiles, as well as smaller mosaics up to 4x4 inches, providing the right amount of adhesive without creating excessive "squeeze-out" that is difficult to clean.
When to Use Larger Notches: 1/2" and Beyond
You will need to step up to a larger notched trowel when working with wider-format subway tiles or porous substrates. A 1/2" x 1/2" trowel is the go-to choice for 4x12" or 6x12" subway tiles. The increased volume of mortar is necessary to support the tile's larger surface area and ensure it adheres evenly to the wall. Similarly, if you are tiling over concrete, plywood, or existing tile, a larger notch may be required to compensate for the irregular surface and provide a sufficient thickness of adhesive for a reliable bond.
Matching Trowel Size to Tile Format
The physical dimensions of your subway tile should be your primary guide when selecting a trowel. A visual guide can help you quickly determine the right tool for the job, ensuring proper mortar coverage for optimal adhesion.
| Tile Size | Recommended Notched Trowel Size | Notes |
|---|---|---|
| Small (1x3", 2x6", 3x6") | 1/4" x 1/4" | Standard for most residential applications. |
| Medium (4x10", 4x12") | 1/4" x 1/4" or 3/16" x 3/16" | 3/16" can be used to manage excess mortar on dense tiles. |
| Large (6x12", 8x16") | 1/2" x 1/2" | Required for adequate mortar bed under larger tiles to prevent lippage and bond failure. |
The Role of Notch Shape
The shape of the notch—whether square, V-notch, or diamond—affects the movement of mortar and the final appearance of the grout lines. A square notch is the most versatile and is recommended for almost all subway tile jobs, as it creates consistent, parallel ridges of mortar. A V-notch trowel displaces less mortar, which can be beneficial for large-format tiles on steep walls to reduce the weight of the adhesive. Reserve diamond-notched trowels for specific applications involving very large, heavy tiles, as they are less common in typical bathroom or wall work.
Considering Substrate and Tile Material
Beyond tile size, the surface you are tiling on plays a huge role in your trowel selection. A smooth cement board or glass tile will require a different approach than a rough plywood backer or a heavily textured concrete wall. For smooth substrates, a slightly smaller notch can work, as the mortar doesn't need to fill as many gaps. For porous or uneven surfaces, a larger notch is necessary to "peak" the mortar, ensuring it fills all the irregularities and creates a completely flat surface for the tile to adhere to.
The material of the tile itself also matters. Natural stone and thicker porcelain tiles are heavy and require a stronger bond, which necessitates a larger notch size to apply a thicker mortar bed. Conversely, lightweight ceramic subway tiles offer more flexibility, but using the correct trowel size remains essential for achieving the proper "slip bond" that prevents the tile from sliding into fresh mortar before it sets.
Professional Tips for a Flawless Finish
Even with the correct trowel size, technique is paramount. Always hold the trowel at a consistent 45-degree angle to the wall when applying mortar. This angle ensures the notches create a perfectly uniform bed. As you spread the mortar, use the notched edge to create even, straight ridges without dragging the trowel back and forth, which can create swirls and reduce the adhesive's effectiveness.
Another crucial tip is to "backbutter" your tiles. This involves applying a thin layer of mortar to the back of the tile itself in addition to the mortar on the wall. Using the corner edge of your chosen trowel, spread this mortar in a circular pattern. This dual-layer application provides an extra-strong bond, significantly reduces the risk of hollow spots, and is a non-negotiable step for ensuring your subway tile installation remains flat and secure for decades.
