Understanding the Maytag Epic Z Washer Control Board
The Maytag Epic Z washer is a high-efficiency, front-loading washing machine known for its durability and performance. At the heart of its operation lies the control board, a crucial component that manages various functions to ensure your laundry is clean and fresh. This article delves into the intricacies of the Maytag Epic Z washer control board, its functions, common issues, and troubleshooting tips.
Functions of the Maytag Epic Z Washer Control Board
The control board in your Maytag Epic Z washer is responsible for coordinating the machine's operations. It communicates with other components, such as the motor, water inlet valve, and drain pump, to ensure they work in harmony. Some of the key functions of the control board include:
- Controlling the washing cycles and options (e.g., normal, heavy duty, delicates, spin speed, temperature, etc.)
- Monitoring and adjusting water levels based on the selected cycle and load size
- Managing the machine's drainage process
- Displaying error codes and alerts when issues arise
- Operating the control panel, including buttons, display, and LED lights
Common Issues with the Maytag Epic Z Washer Control Board
While the Maytag Epic Z washer control board is designed for longevity, it may encounter issues over time. Some common problems include:
- Washing machine not starting or turning on
- Incorrect cycle selection or machine not responding to control panel inputs
- Excessive water usage or poor drainage
- Display or LED lights not functioning properly
- Error codes or alerts appearing on the display (e.g., F21, F22, F23, etc.)
Troubleshooting Maytag Epic Z Washer Control Board Issues
Before attempting any troubleshooting steps, ensure the washing machine is unplugged from the power source to prevent electrical shock. If you're unsure about any of the following steps, consult a professional appliance repair technician.
Checking for Power and Proper Connection
First, verify that the washing machine is properly plugged into a functioning power outlet. You can test the outlet using a multimeter or by plugging in another appliance. Additionally, check the power cord for any signs of damage or wear.
Inspecting the Control Panel and Display
Ensure the control panel and display are clean and free of debris. If the display is blank or not responding, try pressing the 'Power' button to see if the machine turns on. If the display is still unresponsive, the control board may be at fault.
Resetting the Control Board
Performing a power reset on the control board can sometimes resolve minor issues. To do this, unplug the washing machine from the power source, wait for about 60 seconds, and then plug it back in. If the machine still doesn't function properly, proceed to the next steps.
Diagnosing Error Codes
If an error code appears on the display, consult the Maytag Epic Z washer user manual or the official Maytag website to determine the cause of the issue. Some common error codes and their solutions include:
| Error Code | Possible Cause | Solution |
|---|---|---|
| F21 | Water level sensor issue | Replace the water level sensor |
| F22 | Drain pump issue | Inspect and replace the drain pump if necessary |
| F23 | Motor issue | Check the motor and replace it if required |
Replacing the Control Board
If none of the above troubleshooting steps resolve the issue, the control board may need to be replaced. Before purchasing a new control board, ensure you have the correct part number for your specific Maytag Epic Z washer model. Once you have the new control board, follow these steps to replace it:
- Unplug the washing machine from the power source.
- Remove the control panel screws and carefully lift the panel off.
- Disconnect the control board's electrical connectors.

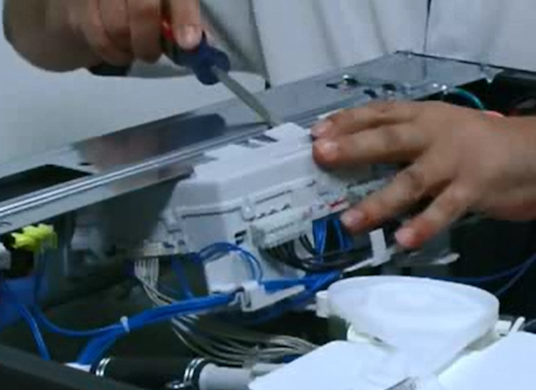

- Remove the mounting screws and carefully lift the control board out of its position.
- Install the new control board, ensuring it's properly seated and secured.
- Reconnect the electrical connectors and replace the control panel.
- Plug the washing machine back into the power source and test its functionality.
In conclusion, understanding the Maytag Epic Z washer control board and its functions can help you diagnose and troubleshoot common issues. Always prioritize safety when working with appliances and consult a professional if you're unsure about any repair steps. Regular maintenance and proper usage can extend the lifespan of your Maytag Epic Z washer and its control board.
