Diagnosing a Faulty Whirlpool Dryer Start Switch: A Comprehensive Guide
If your Whirlpool dryer isn't starting, the issue might lie with the start switch. This component, also known as the door switch, is responsible for ensuring the dryer runs only when the door is securely closed. In this guide, we'll walk you through a step-by-step process to test the start switch and determine if it needs replacement.
Understanding the Whirlpool Dryer Start Switch
Before we dive into the testing process, let's understand what the start switch does. Located near the dryer door, this switch completes an electrical circuit when the door is closed, allowing power to flow to the dryer's motor and other components. When the door is open, the switch breaks this circuit, preventing the dryer from operating for safety reasons.
Tools Needed for the Start Switch Test
- Multimeter
- Screwdriver (Philips or flathead, depending on your dryer model)
- Wire strippers
- Wire connectors (if replacing the switch)
Testing the Whirlpool Dryer Start Switch
Step 1: Unplug the Dryer and Disassemble the Control Panel
Before you begin, ensure the dryer is unplugged from the power source to prevent electrical shock. Then, remove the control panel by prying off the retaining clips with a flathead screwdriver. This will expose the wiring harness connected to the start switch.
Step 2: Locate the Start Switch
The start switch is usually a small, rectangular component with two or three terminals. It's typically located near the door, either on the control panel or the dryer's body. Consult your dryer's repair manual for the exact location if you're unsure.
Step 3: Inspect the Switch for Visible Damage
Before testing the switch, visually inspect it for any signs of damage, such as burnt terminals or a broken body. If you notice any visible damage, replace the switch immediately.

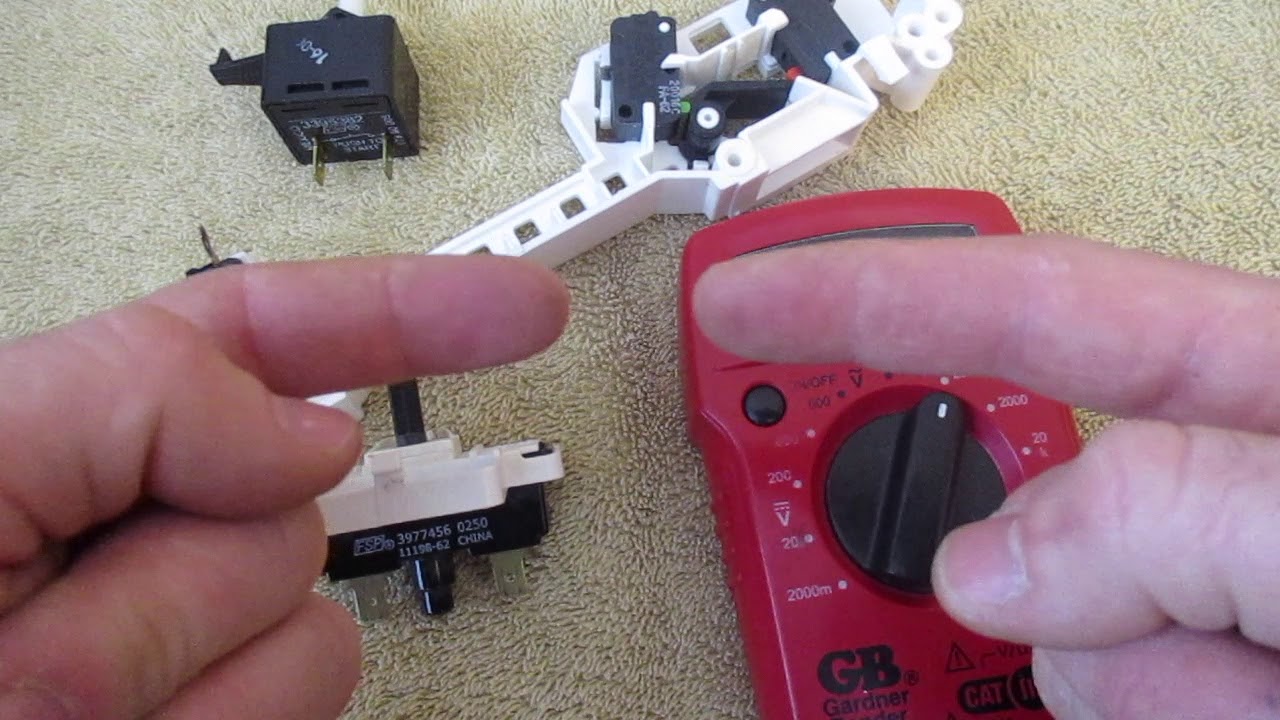

Step 4: Test the Switch with a Multimeter
Set your multimeter to the continuity setting (usually represented by a diode symbol or the Greek letter omega). Touch one probe to each terminal on the switch. If the switch is functioning correctly, the multimeter should beep or display a reading close to 0 ohms when the door is closed and open the circuit when the door is open.
| Switch Status | Expected Multimeter Reading |
|---|---|
| Door closed | Close to 0 ohms (or beeping) |
| Door open | Infinite resistance (or no beeping) |
Step 5: Test the Switch's Wiring Harness
If the switch tests okay but the dryer still isn't starting, the issue might be with the wiring harness. Carefully inspect the wires for any breaks, frays, or corrosion. If you find any damaged wires, replace the harness or repair the individual wires as needed.
Replacing the Whirlpool Dryer Start Switch
If your tests indicate that the start switch is faulty, follow these steps to replace it:
- Disconnect the wiring harness from the old switch.
- Remove the switch from its mounting location using a screwdriver.
- Attach the wiring harness to the new switch, ensuring the wires are connected to the correct terminals.
- Secure the new switch in place using screws.
- Reassemble the control panel and plug in the dryer.
- Test the dryer by closing the door and turning it on. The dryer should now start as expected.
If you've followed these steps and the dryer still isn't starting, there may be another issue at play. In this case, consult a professional appliance repair technician for further diagnosis and repair.
