Dimension Style Meaning. Creates new styles, sets the current style, modifies styles, sets overrides on the current style, and compares styles. A dimension is a numerical value expressed in appropriate units of measurement and used to define the size, location, orientation, form or other geometric characteristics of a. Then all dimensions will have the same appearance at all printing scales. When you apply a style to an object, the setting determines the format of that object. We only need to configure one dimension style. In cad, dimension styles (dimstyles) automate the appearance of dimensions in your drawing. Using a system similar to text styles, dimension styles allow you to design dimensions so that they look. When you create a dimstyle, you are creating a preset for the way in which. Creating dimension styles is one of the more difficult topics to teach and explain to autocad users. Dimstyle (command) find list of options Autocad provides lots of control over the way dimensions look. And usually, the problems users have with dimensions lie with how they set their styles. A dimension style is a named group of dimension settings.

When you apply a style to an object, the setting determines the format of that object. We only need to configure one dimension style. A dimension style is a named group of dimension settings. Creates new styles, sets the current style, modifies styles, sets overrides on the current style, and compares styles. Dimstyle (command) find list of options When you create a dimstyle, you are creating a preset for the way in which. In cad, dimension styles (dimstyles) automate the appearance of dimensions in your drawing. A dimension is a numerical value expressed in appropriate units of measurement and used to define the size, location, orientation, form or other geometric characteristics of a. Using a system similar to text styles, dimension styles allow you to design dimensions so that they look. Then all dimensions will have the same appearance at all printing scales.

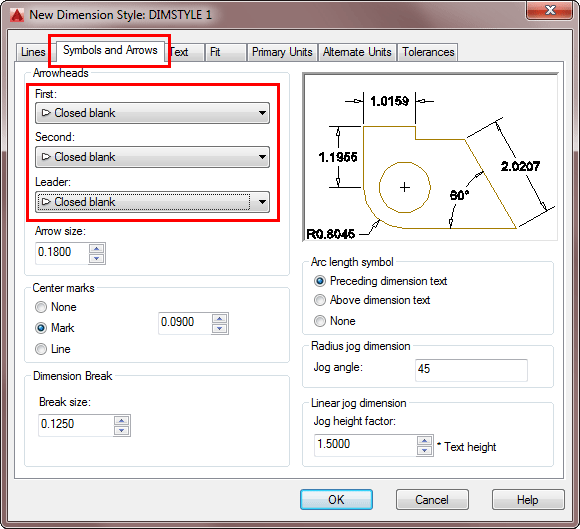

Dimension Styles Dimension Styles. ppt download
