Cv Factor For Strainer. Actual results may vary depending on installation. Local regulations may restrict the use of this product to below the. • for mesh lined screens, multiply the pressure drop (δ p) obtained from the charts by the corresponding correction factor shown in the cv correction table. The primary factors contributing to initial differential pressure include fluid viscosity and density, open area of the strainer basket and the flow coefficient (cv) of the strainer housing. The flow coefficient (cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psi. Cv = flow coefficient factor cr = correction factor for mesh and viscosity • these curves are theoretical; Strainers should be installed upstream of pipeline equipment to protect against damage from solid particles of dirt, chips, scale, packing shreds, pipe. For example, a 1 model 72. Sizing formulas for spirax sarco strainers for water, steam, air, and other gases. A strainers cv is directly. The pressure loss across a strainer can be calculated using the system’s flow rate and the cv factor for that strainer.

The primary factors contributing to initial differential pressure include fluid viscosity and density, open area of the strainer basket and the flow coefficient (cv) of the strainer housing. The flow coefficient (cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psi. For example, a 1 model 72. Sizing formulas for spirax sarco strainers for water, steam, air, and other gases. Strainers should be installed upstream of pipeline equipment to protect against damage from solid particles of dirt, chips, scale, packing shreds, pipe. • for mesh lined screens, multiply the pressure drop (δ p) obtained from the charts by the corresponding correction factor shown in the cv correction table. The pressure loss across a strainer can be calculated using the system’s flow rate and the cv factor for that strainer. Cv = flow coefficient factor cr = correction factor for mesh and viscosity • these curves are theoretical; Local regulations may restrict the use of this product to below the. A strainers cv is directly.

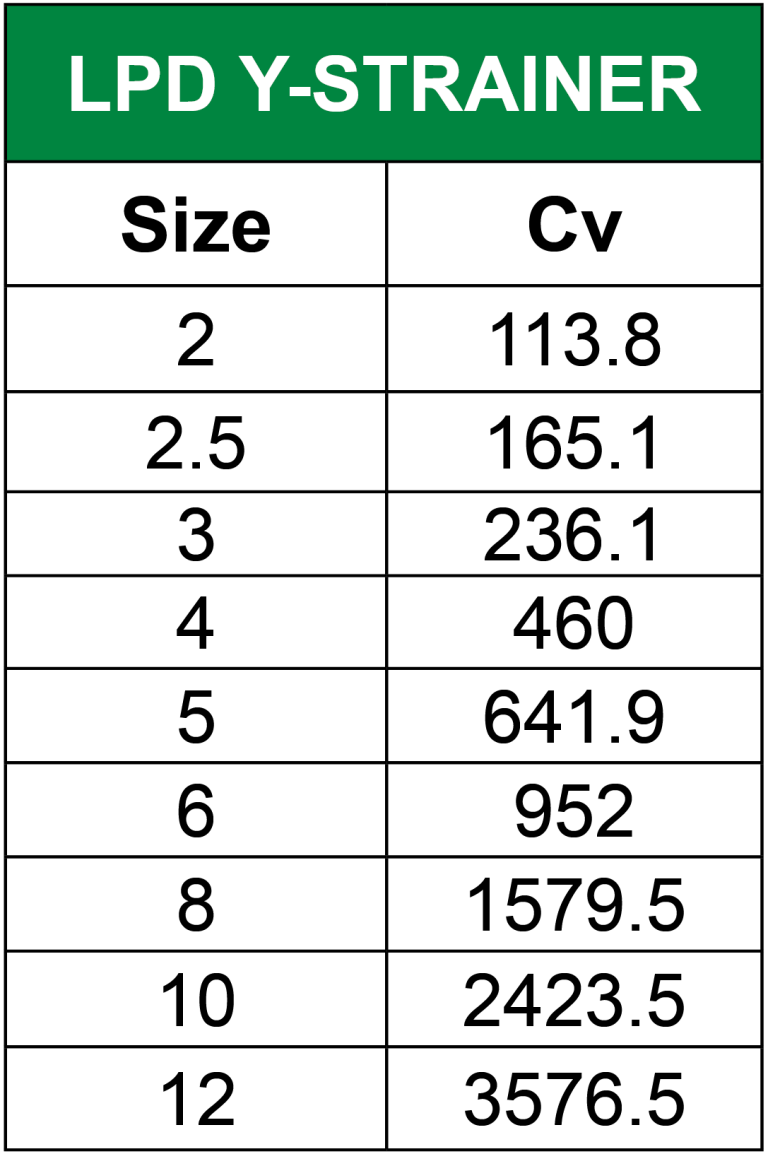

LPD Y Strainer Pressure Drop Comparison Metraflex

Cv Factor For Strainer Actual results may vary depending on installation. A strainers cv is directly. Actual results may vary depending on installation. Strainers should be installed upstream of pipeline equipment to protect against damage from solid particles of dirt, chips, scale, packing shreds, pipe. Sizing formulas for spirax sarco strainers for water, steam, air, and other gases. The flow coefficient (cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psi. The pressure loss across a strainer can be calculated using the system’s flow rate and the cv factor for that strainer. For example, a 1 model 72. The primary factors contributing to initial differential pressure include fluid viscosity and density, open area of the strainer basket and the flow coefficient (cv) of the strainer housing. • for mesh lined screens, multiply the pressure drop (δ p) obtained from the charts by the corresponding correction factor shown in the cv correction table. Local regulations may restrict the use of this product to below the. Cv = flow coefficient factor cr = correction factor for mesh and viscosity • these curves are theoretical;
