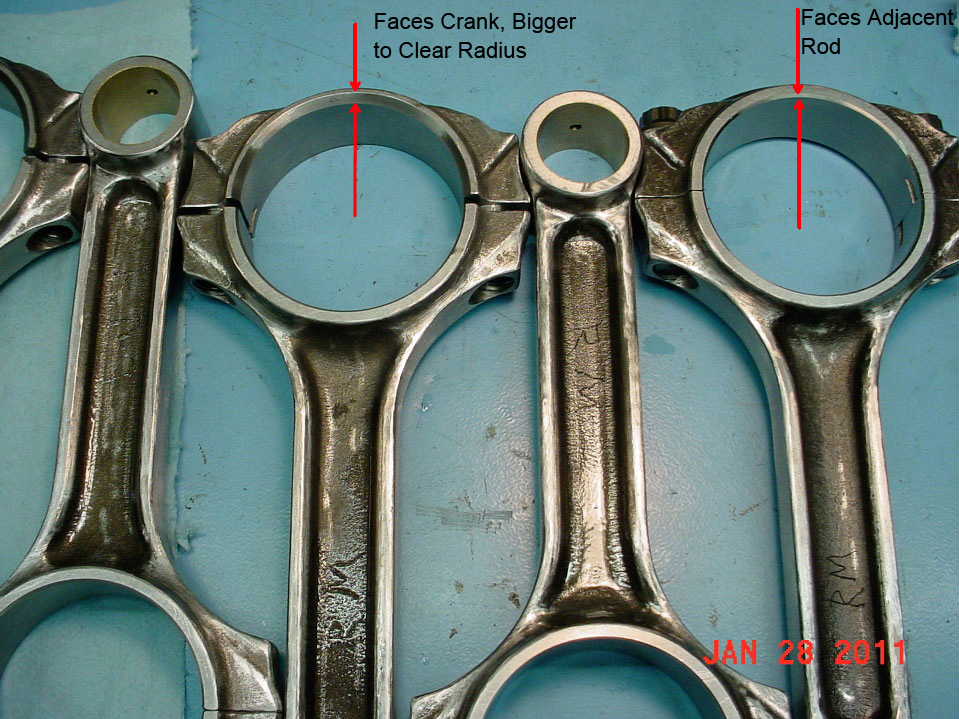

Connecting Rod Chamfer. This eliminates potential stress risers typically found on the flats that normally seat the rod bolt heads. • to install the summit pro ls connecting rod the side with the large chamfer on the big end of the rod must be facing the fillet of the crank’s rod. The big end bore of the connecting rod has a chamfer on one side and not the other. An oil squirt hole at the rod small end serves to provide lubrication to the wrist pin. View of a small end squirt hole at the exterior of the small end. The pistons go with the intake valve notch up. Most connecting rods are machined with a chamfer that is designed to clear the radius fillet at the edge of the crankshaft rod journal (photoa). The rods go with the bearing tangs inside towards the cam. Larger chamfered oil hole at the top of the small end on. Rod bearings are designed to clear this radii. The only way you can install the chamfers on the rods to crank wrong is if the machine shop installed the pistons on the rods. The chamfered side must face the outside of the.

The rods go with the bearing tangs inside towards the cam. View of a small end squirt hole at the exterior of the small end. The pistons go with the intake valve notch up. Rod bearings are designed to clear this radii. The big end bore of the connecting rod has a chamfer on one side and not the other. The only way you can install the chamfers on the rods to crank wrong is if the machine shop installed the pistons on the rods. Most connecting rods are machined with a chamfer that is designed to clear the radius fillet at the edge of the crankshaft rod journal (photoa). Larger chamfered oil hole at the top of the small end on. The chamfered side must face the outside of the. An oil squirt hole at the rod small end serves to provide lubrication to the wrist pin.
