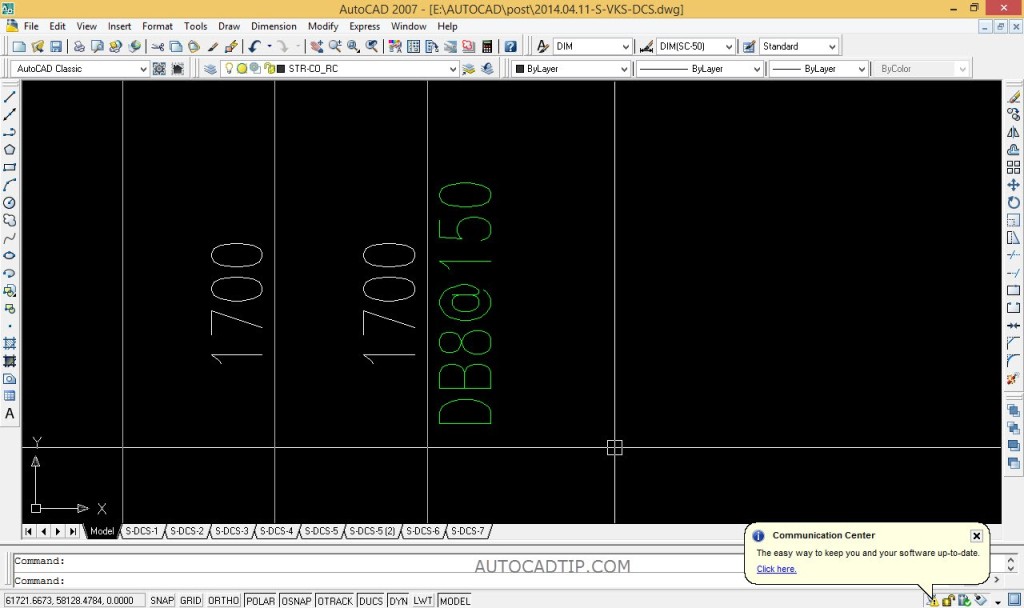

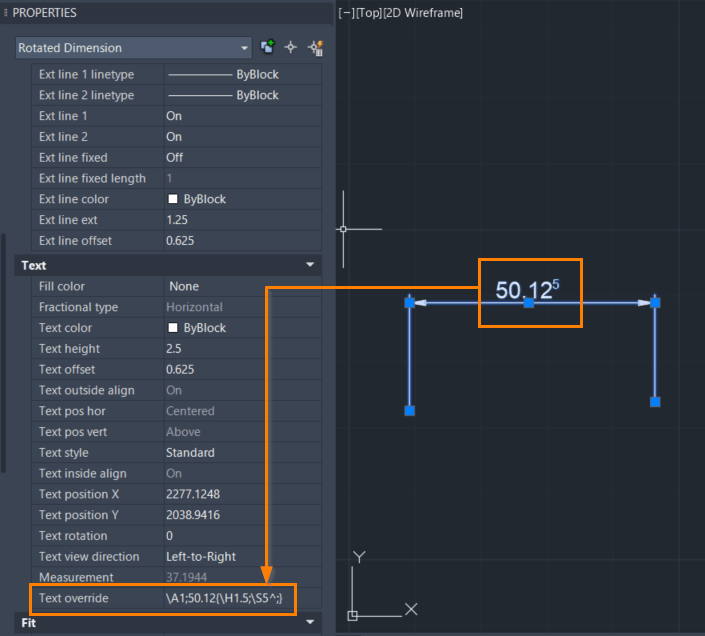

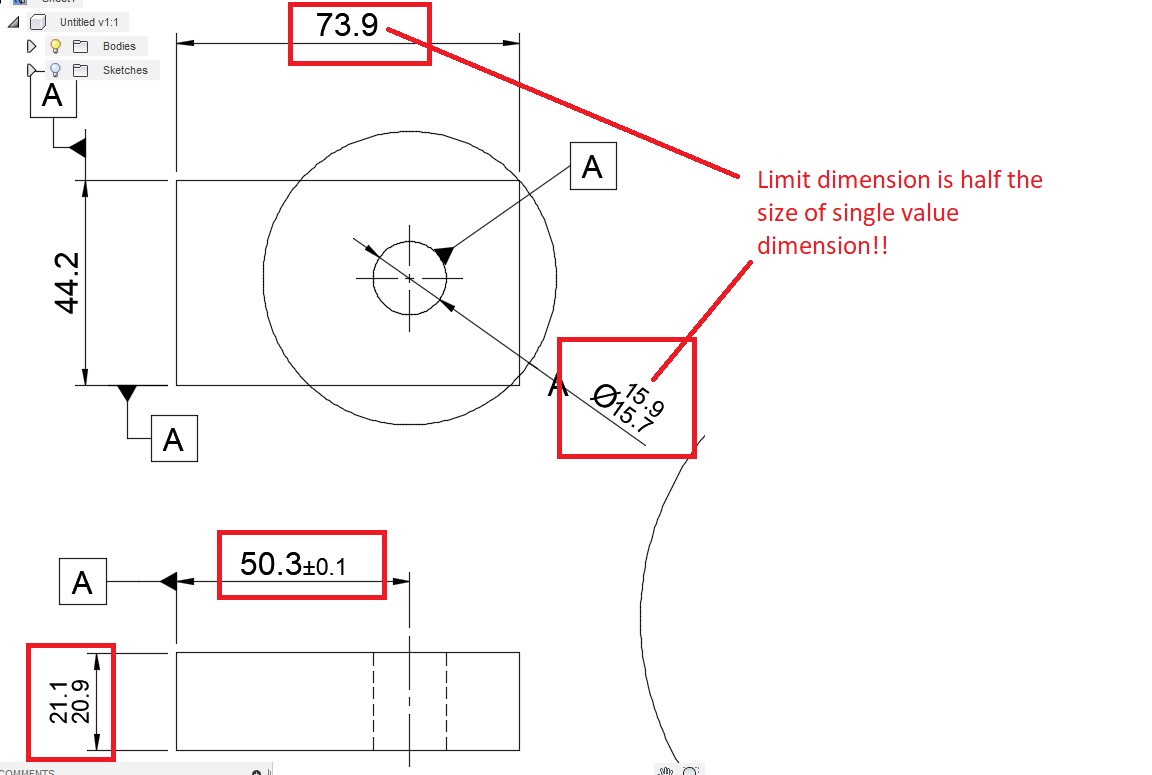

How To Put Text Under Dimension In Autocad. Note, it must be a capital x. Click the dimension value or equality text label. Pick the primary units tab, then in the suffix box type, \xoverall frame size. I want the regular dimension distance, then i want to add text below the line. In the drawing area, select the dimension to edit. Make a new dimstyle called window or whatever. Learn in just a few simple steps how to add text below your dimension in autocad.for computer hardware and software. In the dimension text dialog, for dimension value,. Learn how to display specific text below the dimension line in autocad using the text override option in the properties palette. Dimension styles let you choose one or the other, but not both, so how. One way that text can be split above and below the dimension line by adding \x where you want the break. Ever need text to display both above and below a dimension line? How do i add text below the dimension line?
