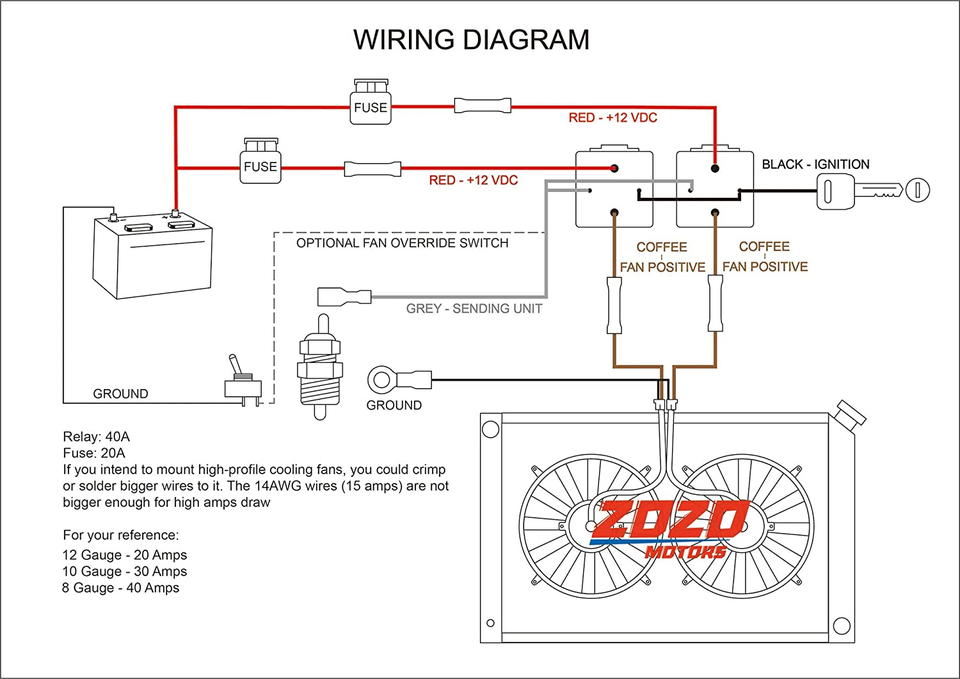

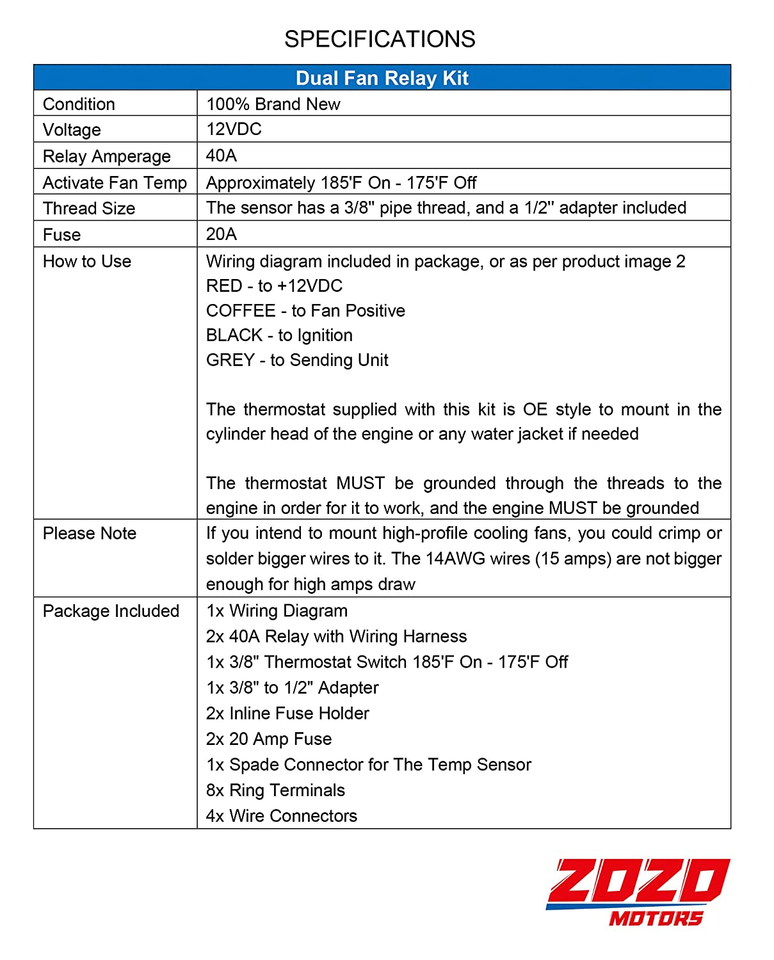

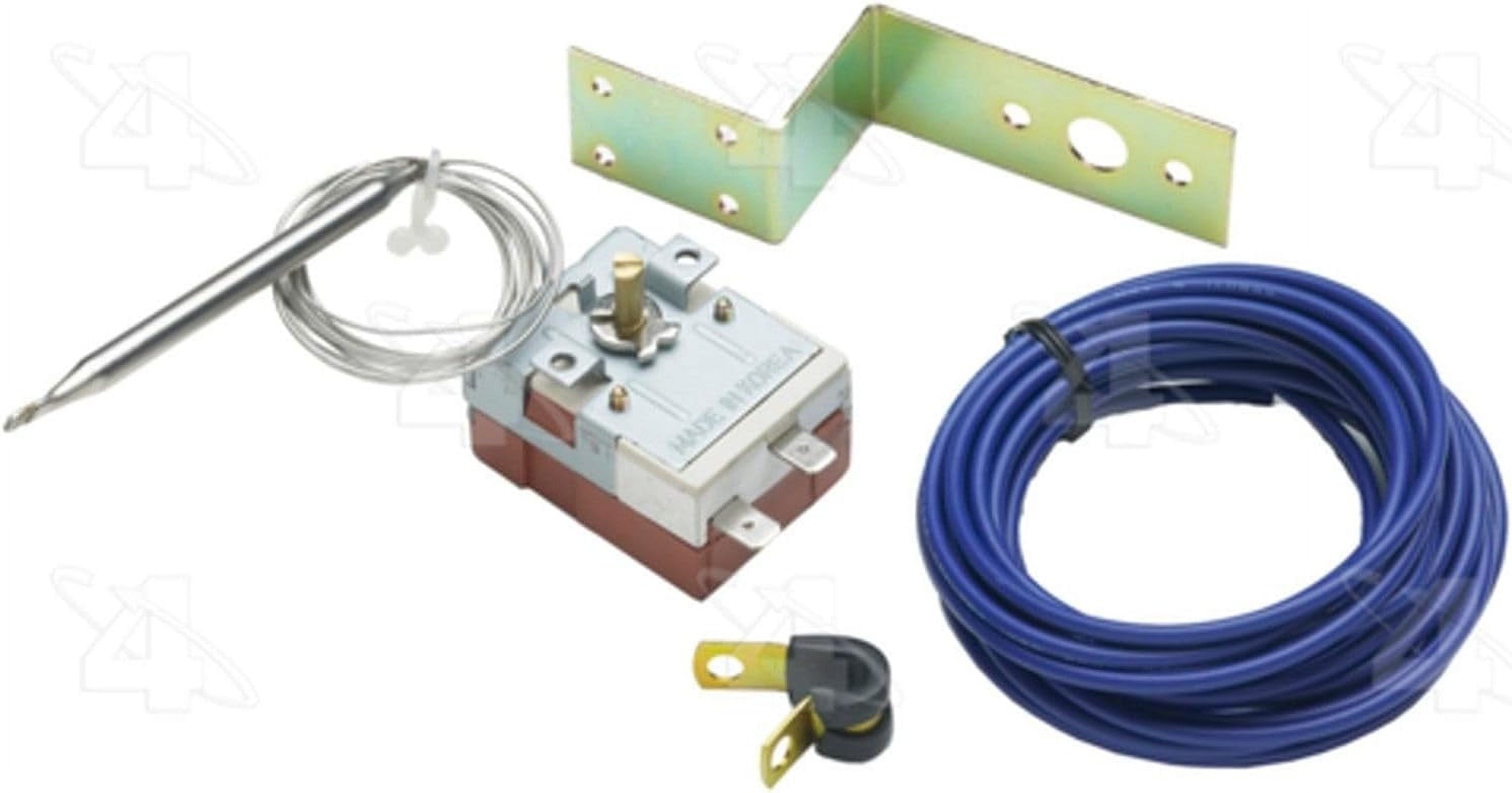

Relays Electric Fans. This will provide protection in case of electrical faults. With dual cooling fans, there are two methods for wiring up the relay kit. This is based on the draw from the fans, if the fans are larger and draw more than 15 amps each, it's recommended. With the wiring prepared, the next step in wiring an electric fan with a relay is to connect the relay to the power source. The supplied diagram below using dual relays with a single temp sensor is both the most reliable and easiest method we've found for wiring dual fans. The relay isolates the high amp load of the fan circuit. The fan and away from ground. Most modern vehicles use electric cooling fans to help pull air through the radiator so that it can keep the engine cool. In the painless performance electric fan relay kit we got from speedway motors, a circuit breaker is supplied if you wanted to safely get power directly from the battery. We opted to tap into our. Here are the steps to connect the relay: The relay will serve as the control center for the electric fan, allowing it to receive power and operate efficiently. The cooling fan wiring diagram below is what we’ve found to be the simplest and most reliable method. Use the wire cutter/stripper to cut another length of wire that will connect the relay to the fan.

Here are the steps to connect the relay: With the wiring prepared, the next step in wiring an electric fan with a relay is to connect the relay to the power source. The fan and away from ground. The supplied diagram below using dual relays with a single temp sensor is both the most reliable and easiest method we've found for wiring dual fans. Use the wire cutter/stripper to cut another length of wire that will connect the relay to the fan. The relay isolates the high amp load of the fan circuit. With dual cooling fans, there are two methods for wiring up the relay kit. This will provide protection in case of electrical faults. We opted to tap into our. In the painless performance electric fan relay kit we got from speedway motors, a circuit breaker is supplied if you wanted to safely get power directly from the battery.
