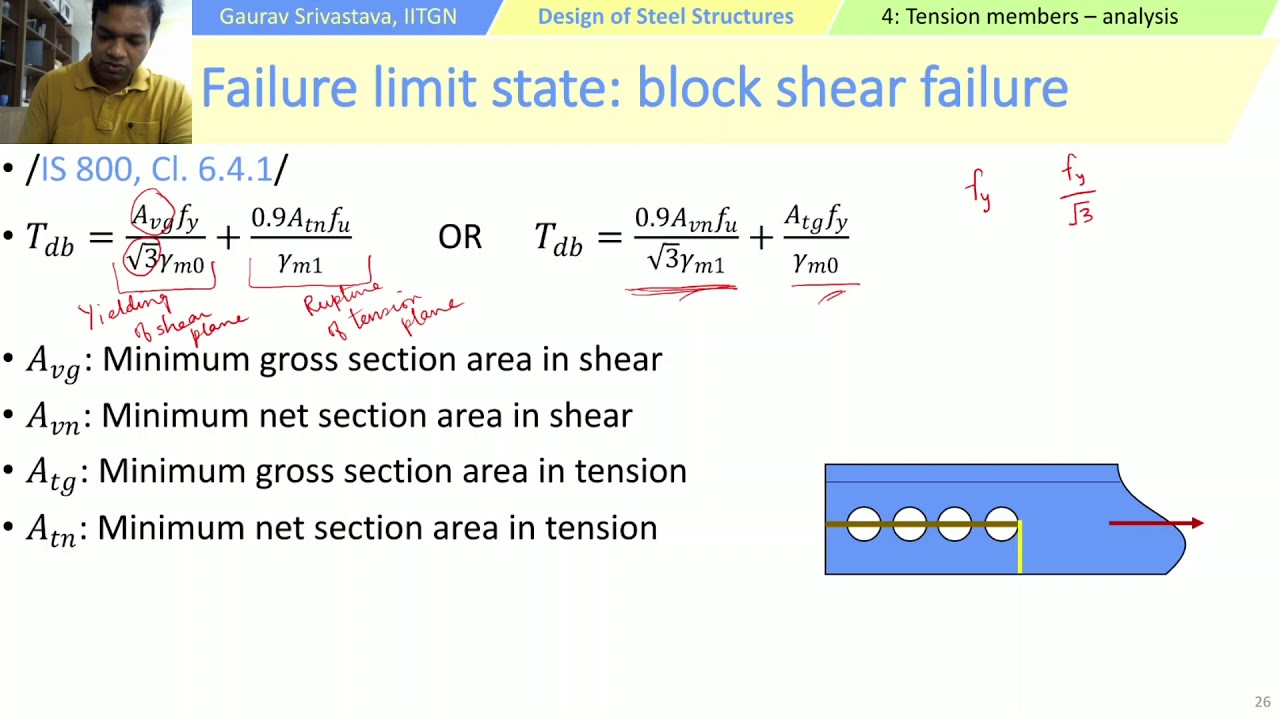

Block Shear Failure Calculation. Block shear failure of beam ends. Anv + fu.ant ) ] where: Engineers use the following aisc formula to calculate it: The provisions for block shear are found in scm. Φ.rn = min [ ϕ (0.6 fu.agv + fy.ant ), ϕ (0.6 fu. Block shear is the tearing out of a block of material at a connection as shown in figure 2. The applied load in the case of the beam will be the vertical reaction, so shear will occur along line. Block shear is, in some ways, similar to tensile rupture in that the main part of the member tears away from the connection. Numerically, it is the sum of shear yield or shear rupture on a failure path parallel to the load and tension. Block shear failure is a limit state that combines tension failure on one plane and shear failure on a perpendicular plane (fig. In a related observation, block shear is likely to be the controlling limit state when you have a large number of bolts with a fairly tight spacing on relatively thin material.

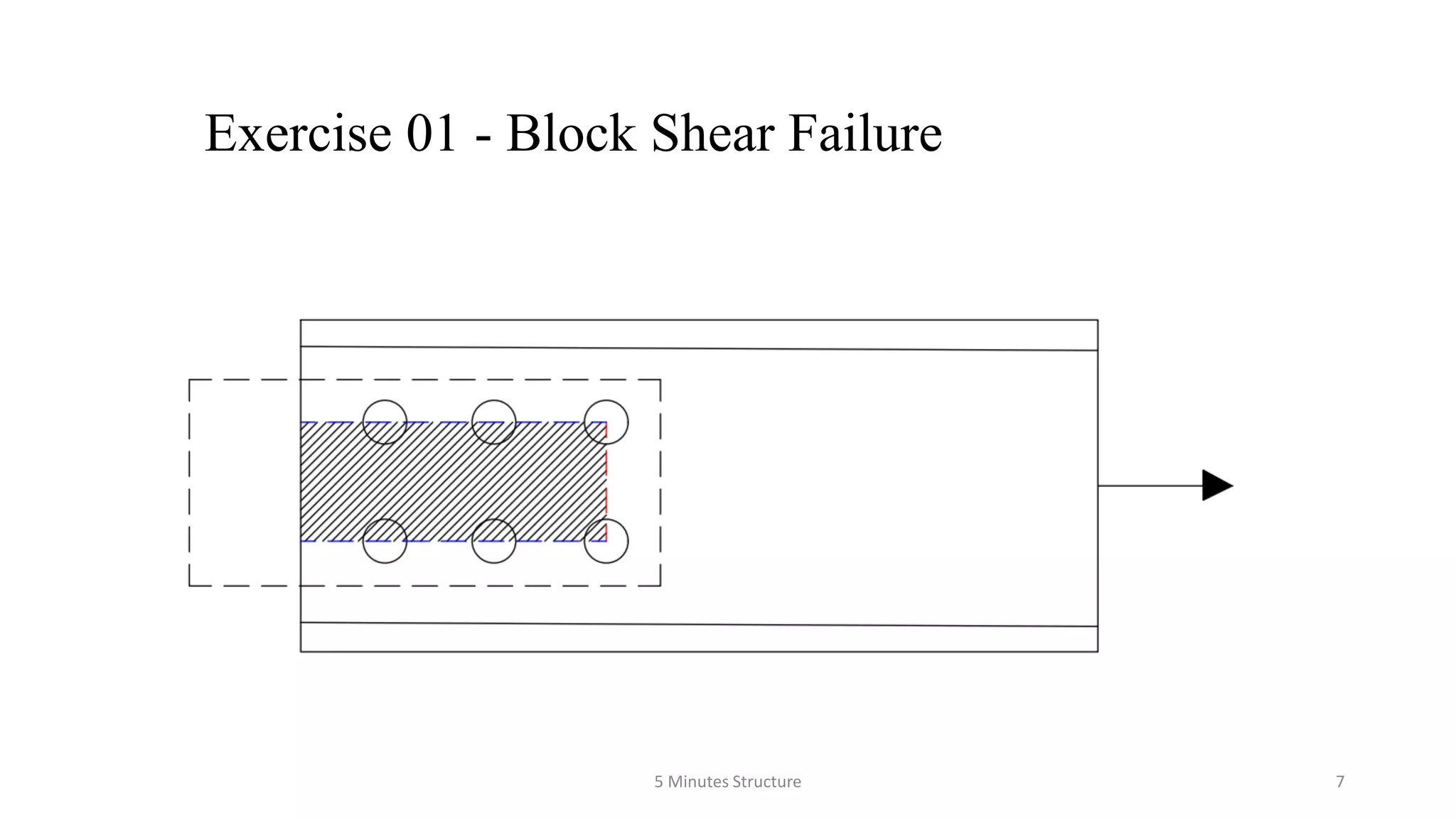

Block shear failure of beam ends. Block shear failure is a limit state that combines tension failure on one plane and shear failure on a perpendicular plane (fig. The provisions for block shear are found in scm. The applied load in the case of the beam will be the vertical reaction, so shear will occur along line. Anv + fu.ant ) ] where: In a related observation, block shear is likely to be the controlling limit state when you have a large number of bolts with a fairly tight spacing on relatively thin material. Block shear is, in some ways, similar to tensile rupture in that the main part of the member tears away from the connection. Block shear is the tearing out of a block of material at a connection as shown in figure 2. Engineers use the following aisc formula to calculate it: Numerically, it is the sum of shear yield or shear rupture on a failure path parallel to the load and tension.

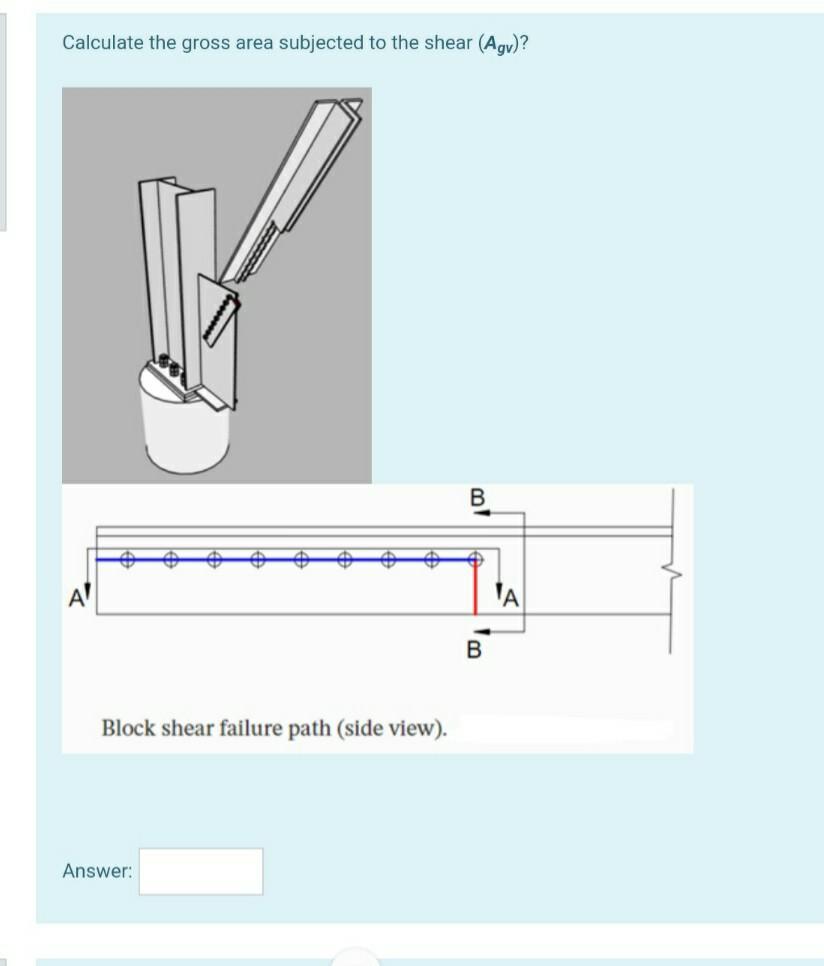

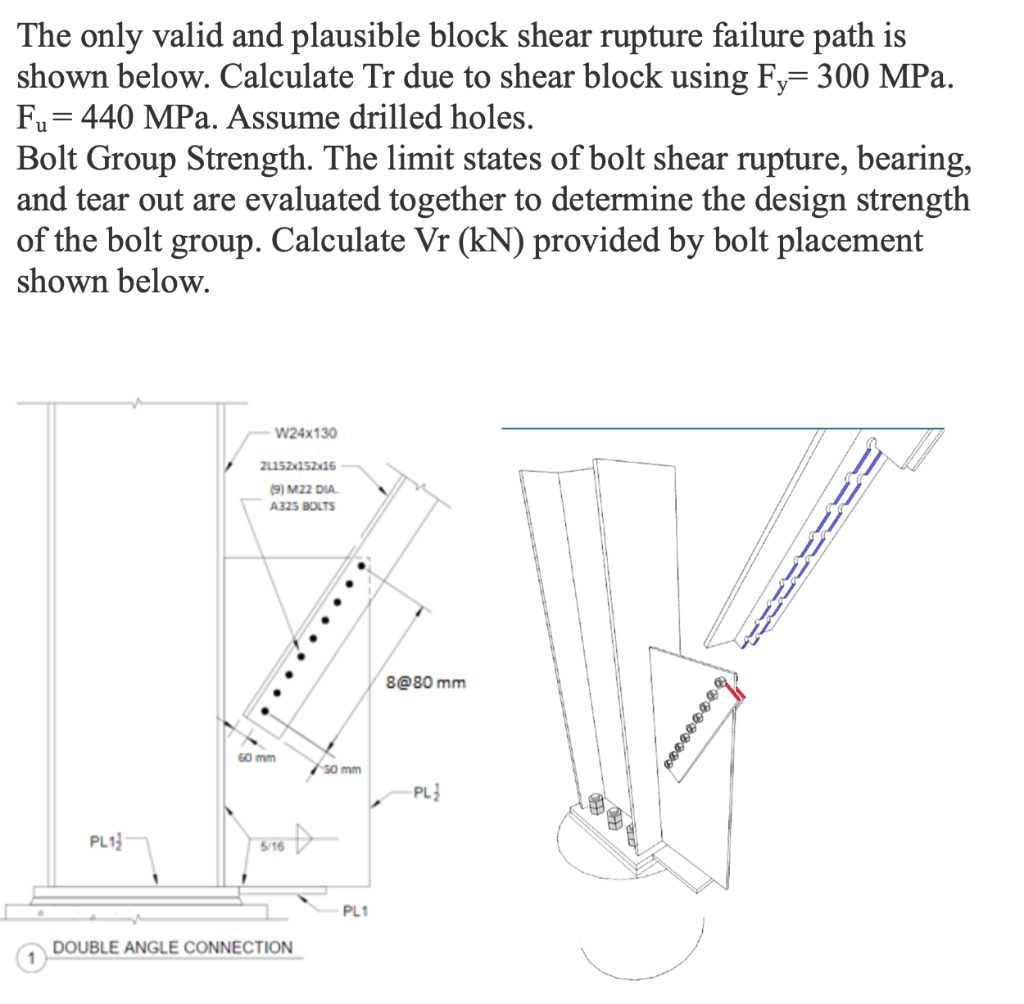

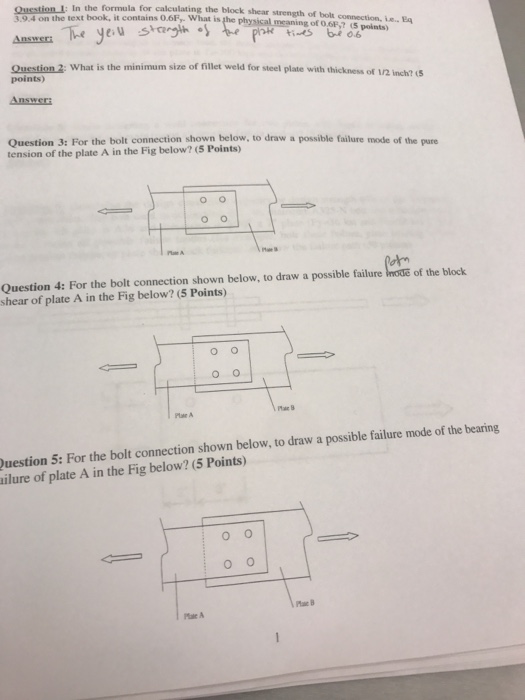

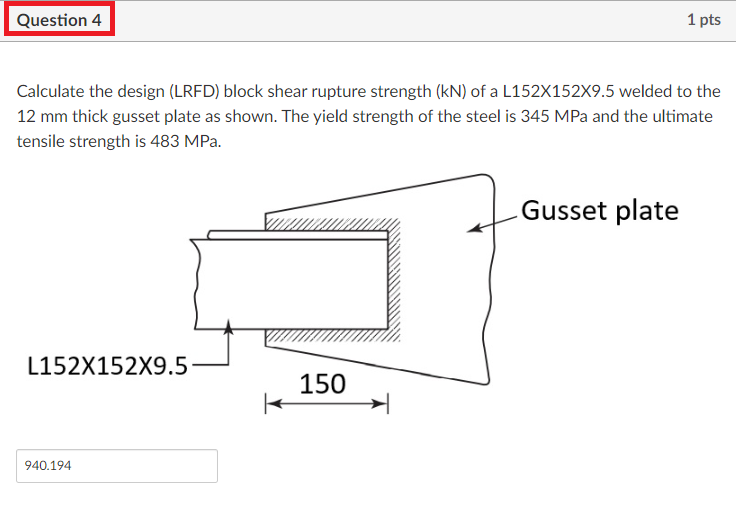

Solved Calculate the gross area subjected to the shear
