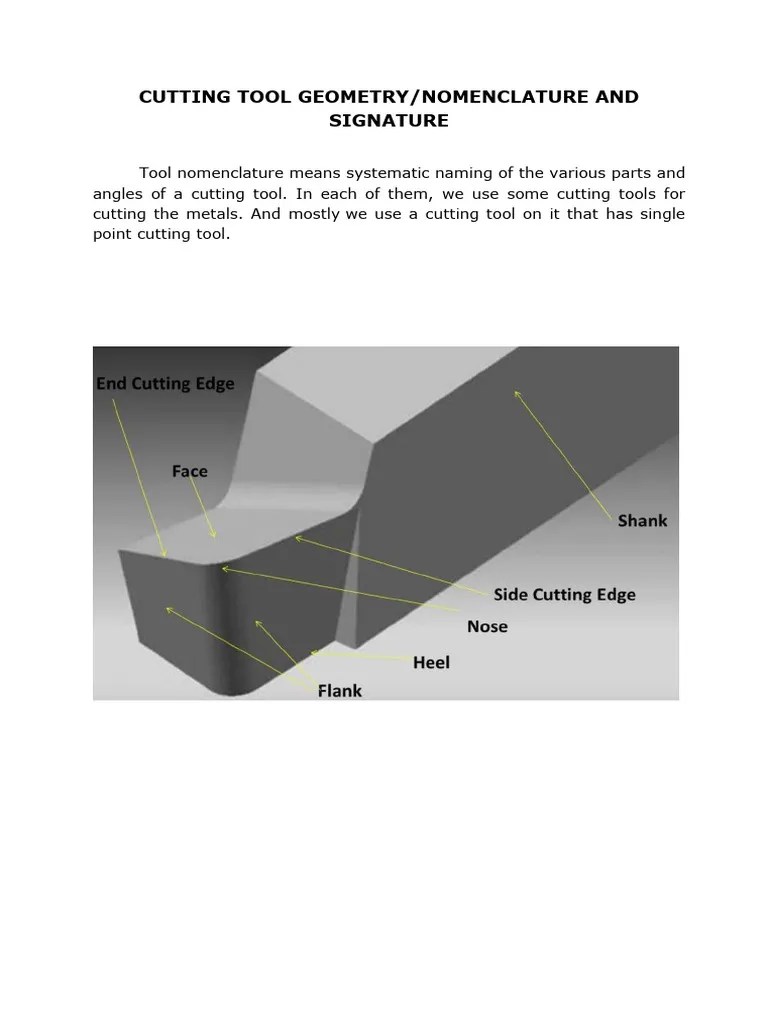

Cutting Tool Geometry Youtube. Here this tool signature indicates that the tool has 0, 7, 6, 8, 15, 16 degree back rake, side rake, end relief, side relief, end cutting edge, side cutting edge angle and 0.8 mm nose radius. This type of tool is often used on a. For better explanation watch the video given below: Rake angle affects the values of cutting angle and the shear angle. Smaller nose radii produce a smooth surface finish. To remove a metal chip from a work piece you have to cut along at least 2 surfaces; Lathe tool angles lip angle: This tool is used in lathe, shaper machine. Surface below the cutting edge. Lower parts of the tool. Larger the rake angle, smaller the cutting angle (and larger the shear angle). The nose is the junction where major and minor cutting edge meet. Please support us at patreon.com !. A single point cutting tool is the type of cutting tool or cutter that removes material by means of one cutting edge during a single stroke of movement. Turning, facing, slotting, planning, shaping, etc.

Here this tool signature indicates that the tool has 0, 7, 6, 8, 15, 16 degree back rake, side rake, end relief, side relief, end cutting edge, side cutting edge angle and 0.8 mm nose radius. Surface below the cutting edge. Larger the rake angle, smaller the cutting angle (and larger the shear angle). The nose is the junction where major and minor cutting edge meet. For better explanation watch the video given below: This tool is used in lathe, shaper machine. To remove a metal chip from a work piece you have to cut along at least 2 surfaces; Please support us at patreon.com !. This type of tool is often used on a. The rake angles may be positive, zero or negative.

Cutting tool geometry Download Scientific Diagram

Cutting Tool Geometry Youtube Here this tool signature indicates that the tool has 0, 7, 6, 8, 15, 16 degree back rake, side rake, end relief, side relief, end cutting edge, side cutting edge angle and 0.8 mm nose radius. An increased rake angle will reduce the strength of the cutting edge. Surface below the cutting edge. Angle between the top face and the end flank. Smaller nose radii produce a smooth surface finish. Larger the rake angle, smaller the cutting angle (and larger the shear angle). The nose is the junction where major and minor cutting edge meet. For manufacturinget.orgthis video highlights the important geometry of a single point cutting tool. To remove a metal chip from a work piece you have to cut along at least 2 surfaces; The rake angles may be positive, zero or negative. Here this tool signature indicates that the tool has 0, 7, 6, 8, 15, 16 degree back rake, side rake, end relief, side relief, end cutting edge, side cutting edge angle and 0.8 mm nose radius. Turning, facing, slotting, planning, shaping, etc. Lower parts of the tool. Rake angle affects the values of cutting angle and the shear angle. A main cutting edge and an auxiliary. Help us to make future videos for you.
