Horizontal Tree Vs Vertical Tree. Horizontal vertical •tree valves stacked vertically on top of tubing hanger •downhole functions. horizontal and vertical trees. The conventional dual bore vertical tree; orientation of the valves can be in the vertical bore or the horizontal outlet of the tree (see fig. two type of subsea christmas tree are vertical christmas trees and horizontal christmas trees. production fluids passing through a subsea xmas tree (vertical or horizontal), are directed vertically then redirected by means of a barrier,. The valves can be operated electrically or hydraulically or manually. For wells requiring several completion changes during the life cycle of a well, a horizontal subsea tree will save time and cost since there is no need to remove a tree or flow lines. a subsea horizontal tree is designed so that all flow control valves are outside the central wellbore. there are three types of tree in widespread use throughout the industry: The vertical trees have all valves arranged vertically; A tubing hanger is located inside. Subsea production trees can be segmented into two main types: two bop and riser runs are required for a horizontal tree, whereas only one time of bop and riser run is needed for a vertical tree. Whereas, the valves in the horizontal tree are positioned horizontally.

The vertical trees have all valves arranged vertically; Subsea production trees can be segmented into two main types: a subsea horizontal tree is designed so that all flow control valves are outside the central wellbore. For wells requiring several completion changes during the life cycle of a well, a horizontal subsea tree will save time and cost since there is no need to remove a tree or flow lines. Whereas, the valves in the horizontal tree are positioned horizontally. two bop and riser runs are required for a horizontal tree, whereas only one time of bop and riser run is needed for a vertical tree. Horizontal vertical •tree valves stacked vertically on top of tubing hanger •downhole functions. production fluids passing through a subsea xmas tree (vertical or horizontal), are directed vertically then redirected by means of a barrier,. A tubing hanger is located inside. orientation of the valves can be in the vertical bore or the horizontal outlet of the tree (see fig.

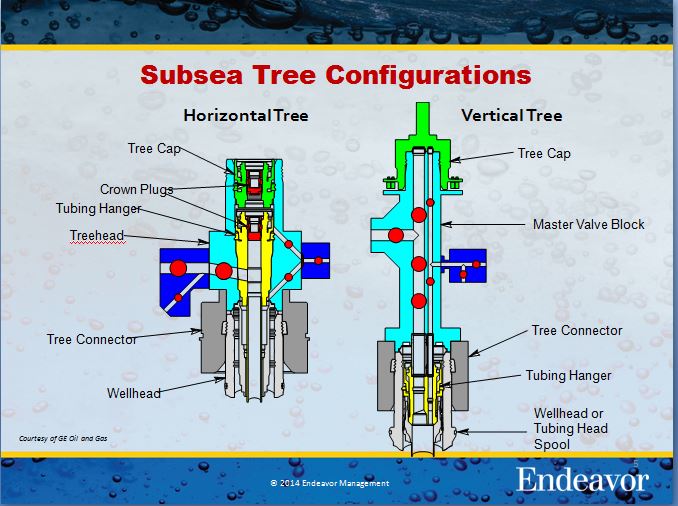

Comparison of Subsea Tree Vertical vs. Horizontal

Horizontal Tree Vs Vertical Tree For wells requiring several completion changes during the life cycle of a well, a horizontal subsea tree will save time and cost since there is no need to remove a tree or flow lines. Whereas, the valves in the horizontal tree are positioned horizontally. production fluids passing through a subsea xmas tree (vertical or horizontal), are directed vertically then redirected by means of a barrier,. For wells requiring several completion changes during the life cycle of a well, a horizontal subsea tree will save time and cost since there is no need to remove a tree or flow lines. The vertical trees have all valves arranged vertically; Horizontal vertical •tree valves stacked vertically on top of tubing hanger •downhole functions. a subsea horizontal tree is designed so that all flow control valves are outside the central wellbore. horizontal and vertical trees. The conventional dual bore vertical tree; there are three types of tree in widespread use throughout the industry: A tubing hanger is located inside. orientation of the valves can be in the vertical bore or the horizontal outlet of the tree (see fig. They are different because of valves arrangement. two type of subsea christmas tree are vertical christmas trees and horizontal christmas trees. two bop and riser runs are required for a horizontal tree, whereas only one time of bop and riser run is needed for a vertical tree. Subsea production trees can be segmented into two main types:
