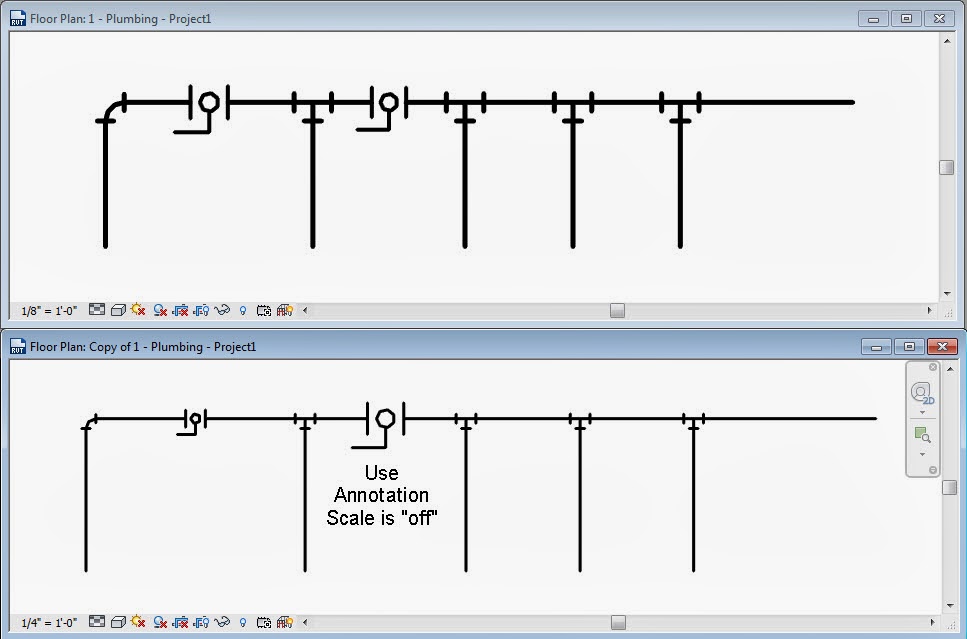

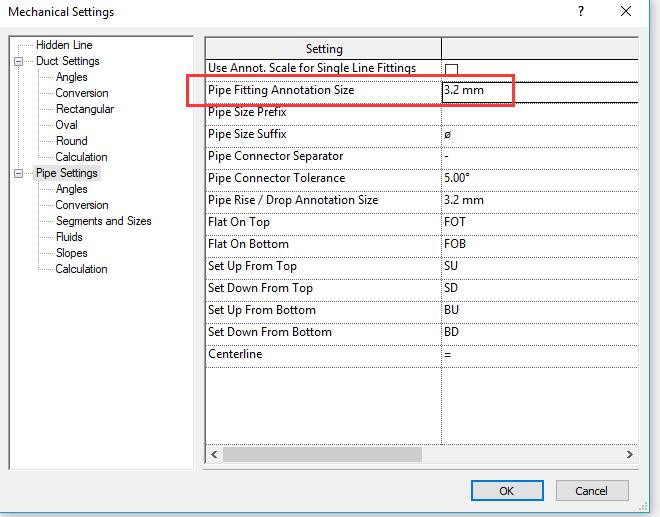

Revit Pipe Fitting Annotation Size. The size of the symbol is defined in mechanical settings > pipe settings > pipe rise / drop annotation size. Go to systems > plumbing & piping > mechanical settings; I have received an update stating that at this time, annotation symbols won't scale in section or elevation views. Deselect the value use annot. I'm getting really inconsistent behavior with use annotation scale for single line fittings, pipe fitting annotation size, and pipe rise / drop. The reason i ask is that i would like to assign the annotation symbol size at the family level and the model lines within the family are. All pipe sizes will use the. To change the size of single line fitting or rise/drop symbols, follow the steps bellow: I gave up trying to control revit pipe fitting symbols, they suck. The size of the annotation symbol is determined by the distance from the family insertion point to the primary connector. In lieu of the ootb symbols, i started using static nested.

I gave up trying to control revit pipe fitting symbols, they suck. The size of the annotation symbol is determined by the distance from the family insertion point to the primary connector. The reason i ask is that i would like to assign the annotation symbol size at the family level and the model lines within the family are. I have received an update stating that at this time, annotation symbols won't scale in section or elevation views. The size of the symbol is defined in mechanical settings > pipe settings > pipe rise / drop annotation size. Deselect the value use annot. In lieu of the ootb symbols, i started using static nested. I'm getting really inconsistent behavior with use annotation scale for single line fittings, pipe fitting annotation size, and pipe rise / drop. Go to systems > plumbing & piping > mechanical settings; To change the size of single line fitting or rise/drop symbols, follow the steps bellow:
