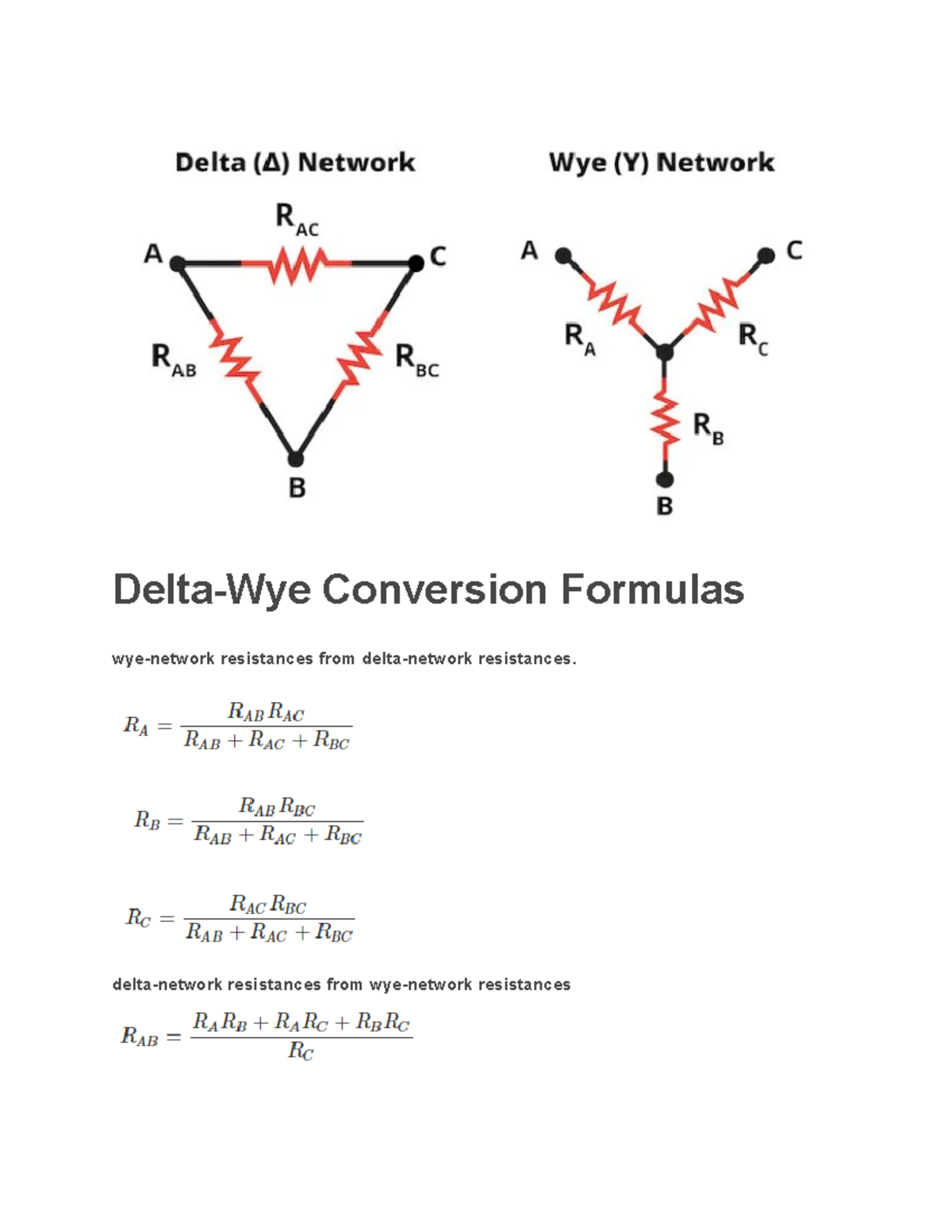

Star Delta Conversion Formula For Resistor. To get the equivalent resistances for each resistor in the star network (q, r, and p), use the given formulas (see the previous section for the precise formulas). How to remember the formula for delta to star conversion. To convert delta to star, use the formula where the star resistance at a terminal equals the product of the delta resistances at that. In electrical & electronics engineering, the below mathematical formula is used to convert the star resistance to. Delta to star conversion formula: To obtain the delta resistor connected between any two terminals, divide the y resistor connected to the terminal opposite those two (terminal c for the resistor between a and b). In this section we will convert delta formation of resistances to star formation resistances. Looking at r 1, we can see that the node at the top of r 1 has two. The formula for delta to star conversion. So let’s recall this formula by starting with r 1. Recall that the denominator of each of these formulas is equal. Formula for star to delta resistance conversion.

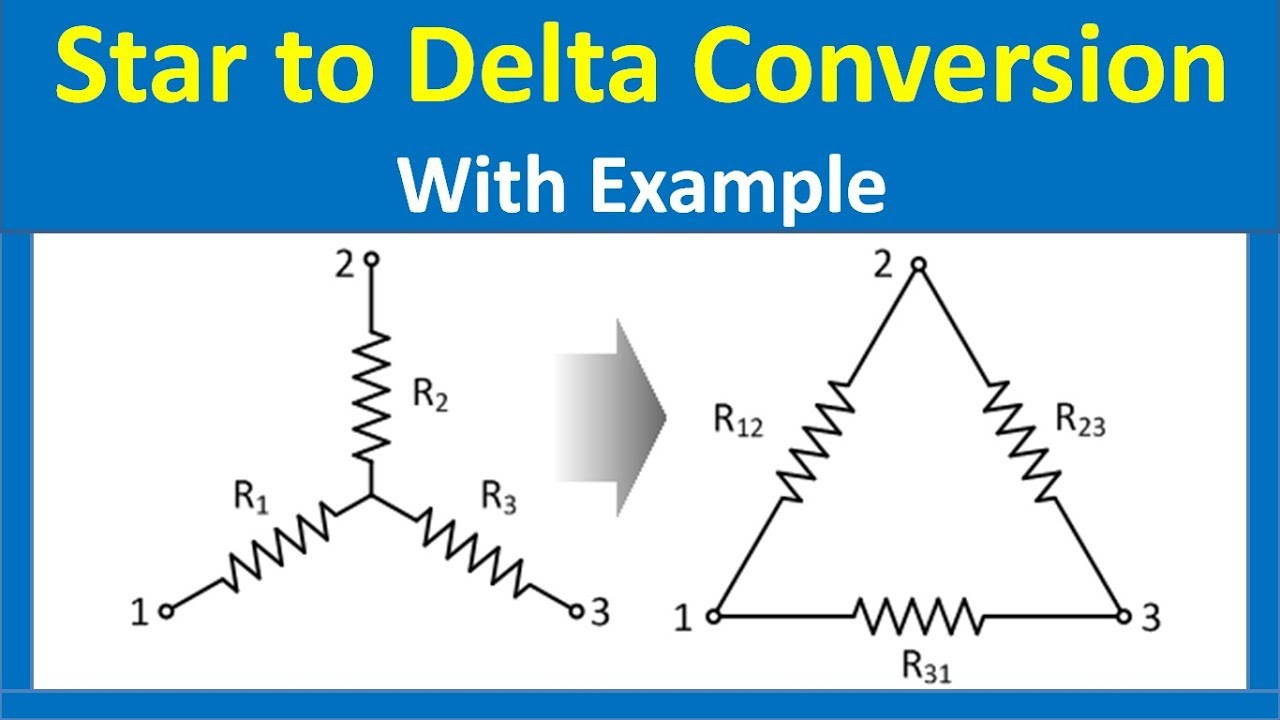

So let’s recall this formula by starting with r 1. How to remember the formula for delta to star conversion. To obtain the delta resistor connected between any two terminals, divide the y resistor connected to the terminal opposite those two (terminal c for the resistor between a and b). In electrical & electronics engineering, the below mathematical formula is used to convert the star resistance to. Recall that the denominator of each of these formulas is equal. To convert delta to star, use the formula where the star resistance at a terminal equals the product of the delta resistances at that. Looking at r 1, we can see that the node at the top of r 1 has two. To get the equivalent resistances for each resistor in the star network (q, r, and p), use the given formulas (see the previous section for the precise formulas). The formula for delta to star conversion. Delta to star conversion formula:

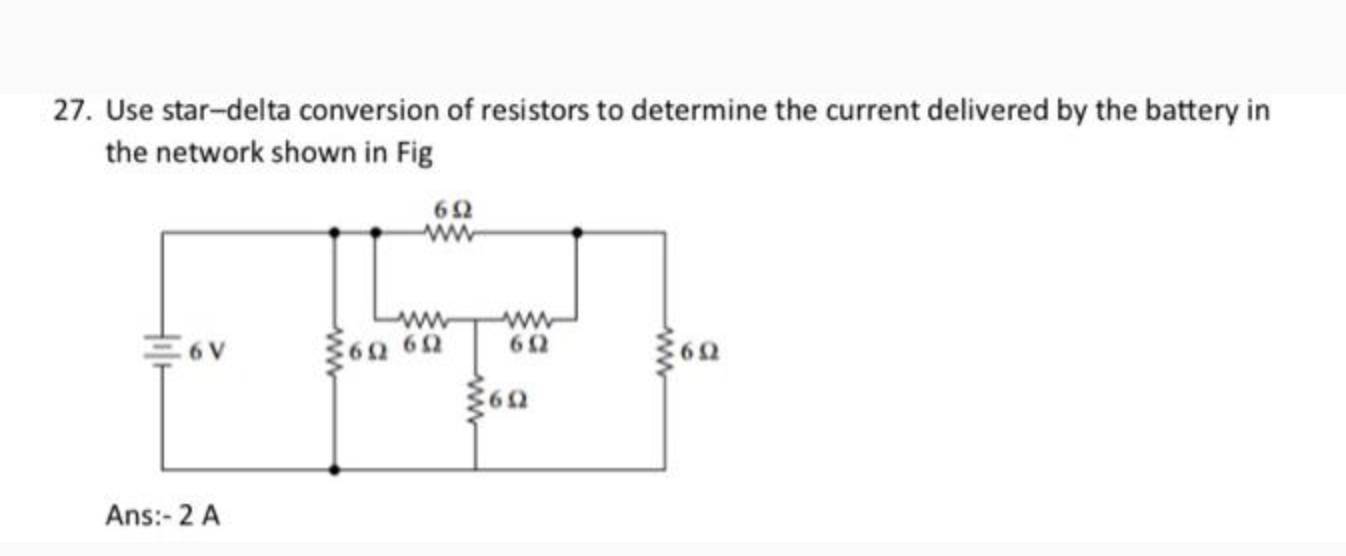

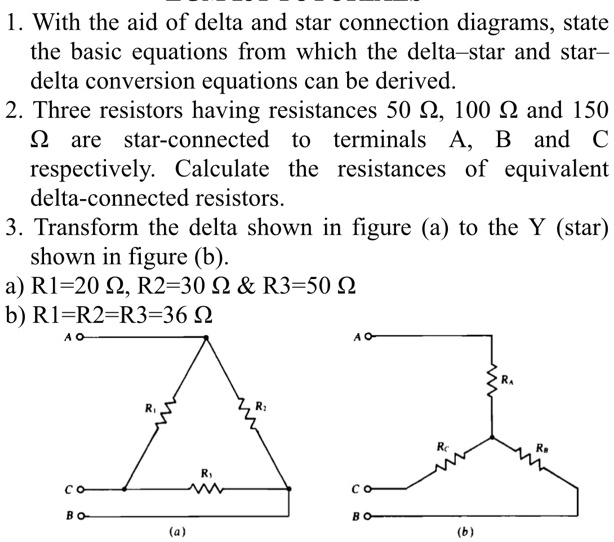

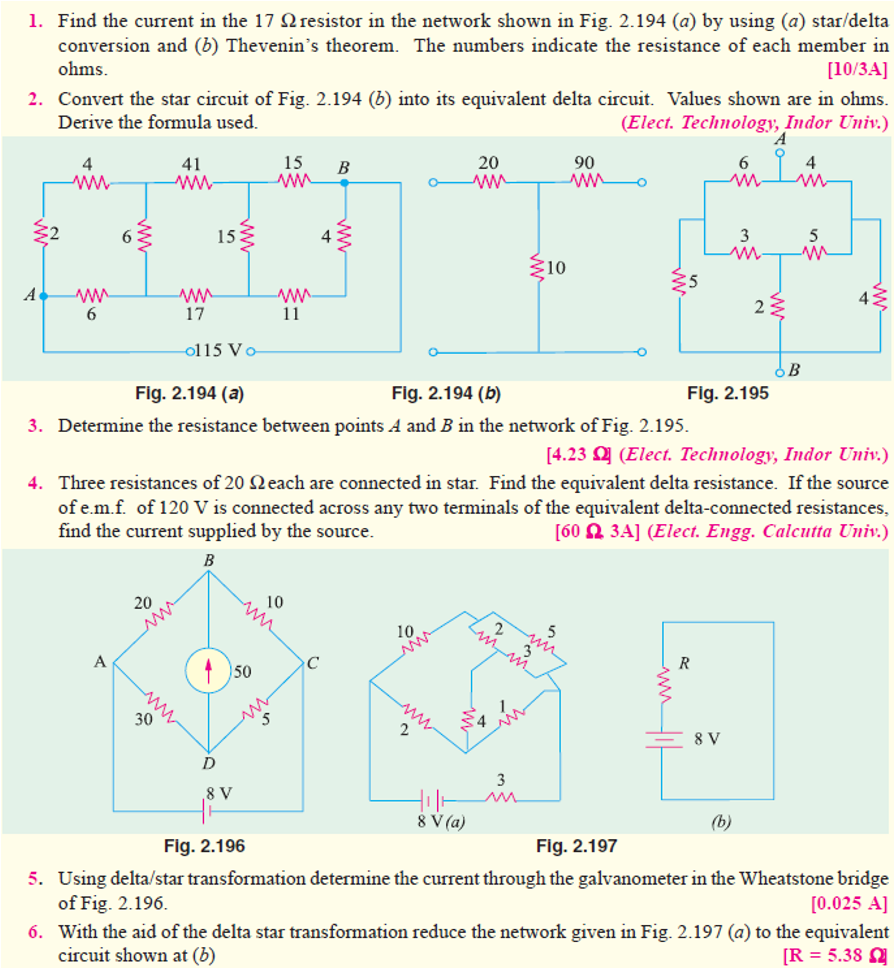

SOLVED 1. With the aid of delta and star connection diagrams, state
