How To Determine Turn On Voltage Of Diode. This same question also asks for the current. the question asks for the minimum vs voltage to cause the diode to be on (current flowing through diode). once the voltage reaches a certain threshold, the diode “turns on”, and it conducts almost like a short circuit. to go even further, you can add a voltage between the diode and ground to shift where the clipping occurs on the input signal. You can also do both positive and. in order to satisfy kvl, the diode voltage will equal the source of 20 volts (+ to − from cathode to anode). The only time this would not be the case is if. This equation is also known as ideal. When in the turned on state, voltage across the diode is. in order to “turn on” and conduct current in the forward direction, a diode requires a certain amount of positive voltage to be applied across it. This is done by first writing kvl around the circuit loop of.

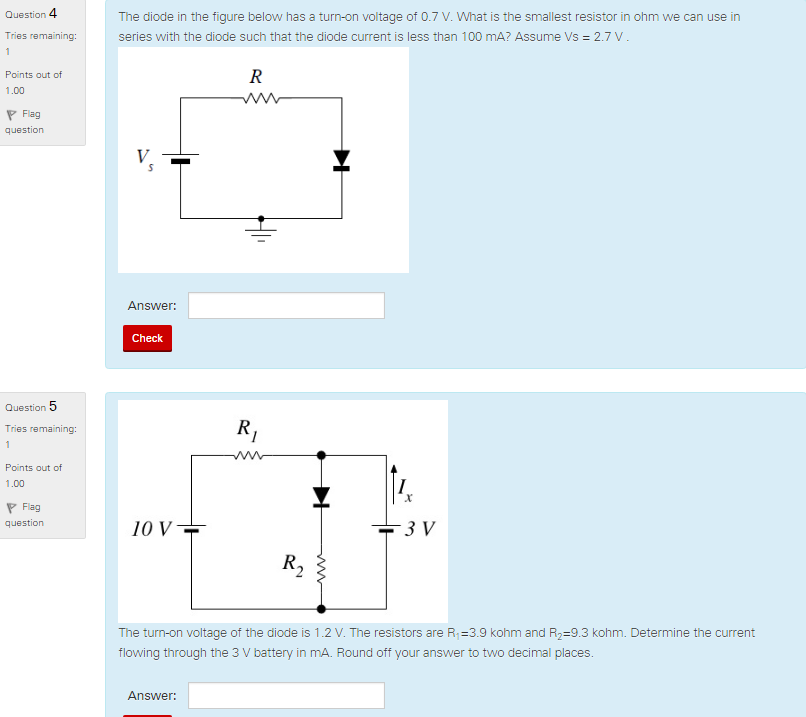

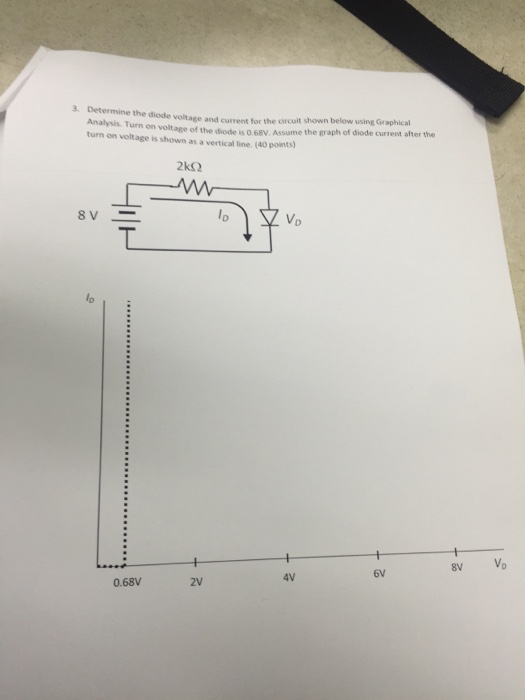

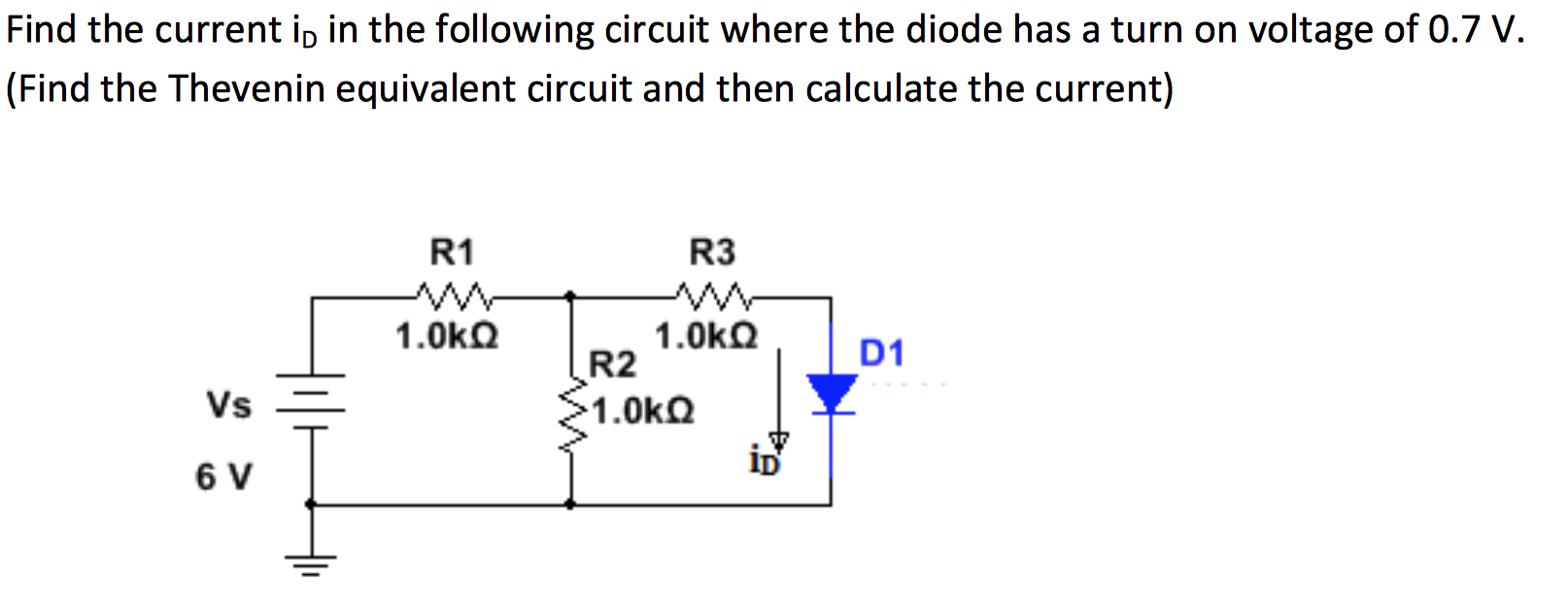

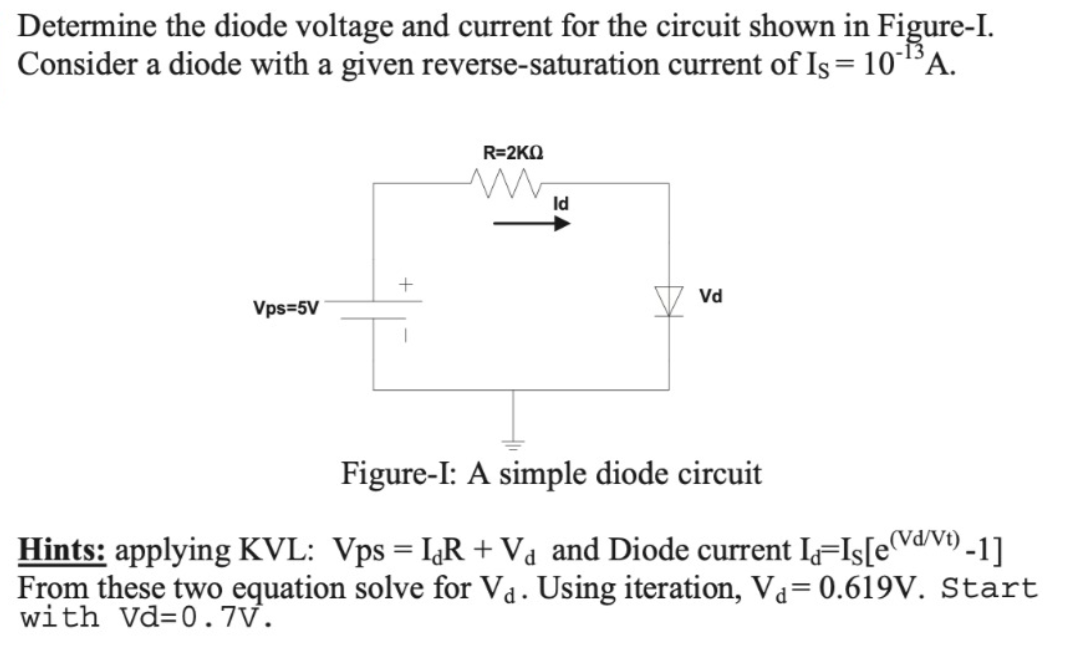

Solved Determine the diode voltage and current for the
from www.chegg.com

once the voltage reaches a certain threshold, the diode “turns on”, and it conducts almost like a short circuit. This same question also asks for the current. You can also do both positive and. This equation is also known as ideal. This is done by first writing kvl around the circuit loop of. in order to satisfy kvl, the diode voltage will equal the source of 20 volts (+ to − from cathode to anode). in order to “turn on” and conduct current in the forward direction, a diode requires a certain amount of positive voltage to be applied across it. to go even further, you can add a voltage between the diode and ground to shift where the clipping occurs on the input signal. The only time this would not be the case is if. When in the turned on state, voltage across the diode is.

Solved Determine the diode voltage and current for the

How To Determine Turn On Voltage Of Diode This equation is also known as ideal. in order to “turn on” and conduct current in the forward direction, a diode requires a certain amount of positive voltage to be applied across it. once the voltage reaches a certain threshold, the diode “turns on”, and it conducts almost like a short circuit. to go even further, you can add a voltage between the diode and ground to shift where the clipping occurs on the input signal. This is done by first writing kvl around the circuit loop of. the question asks for the minimum vs voltage to cause the diode to be on (current flowing through diode). The only time this would not be the case is if. You can also do both positive and. in order to satisfy kvl, the diode voltage will equal the source of 20 volts (+ to − from cathode to anode). This same question also asks for the current. This equation is also known as ideal. When in the turned on state, voltage across the diode is.
