What Is Volt/Div And Time/Div In An Oscilloscope at Margaret Yazzie blog

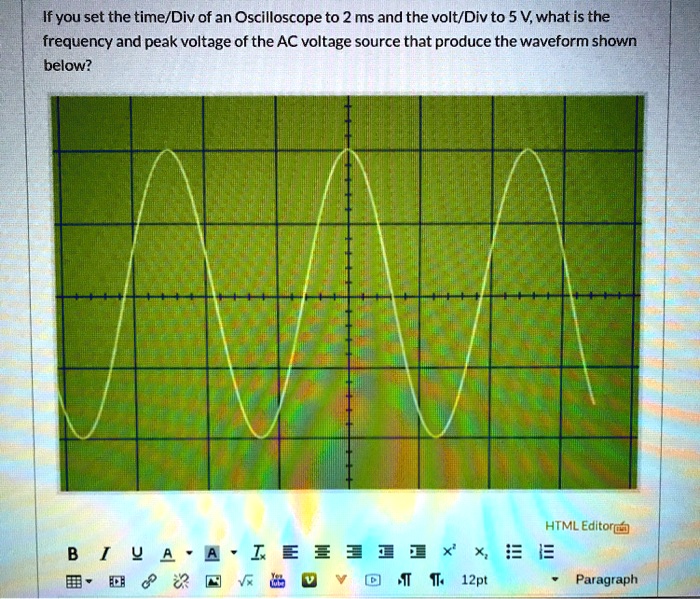

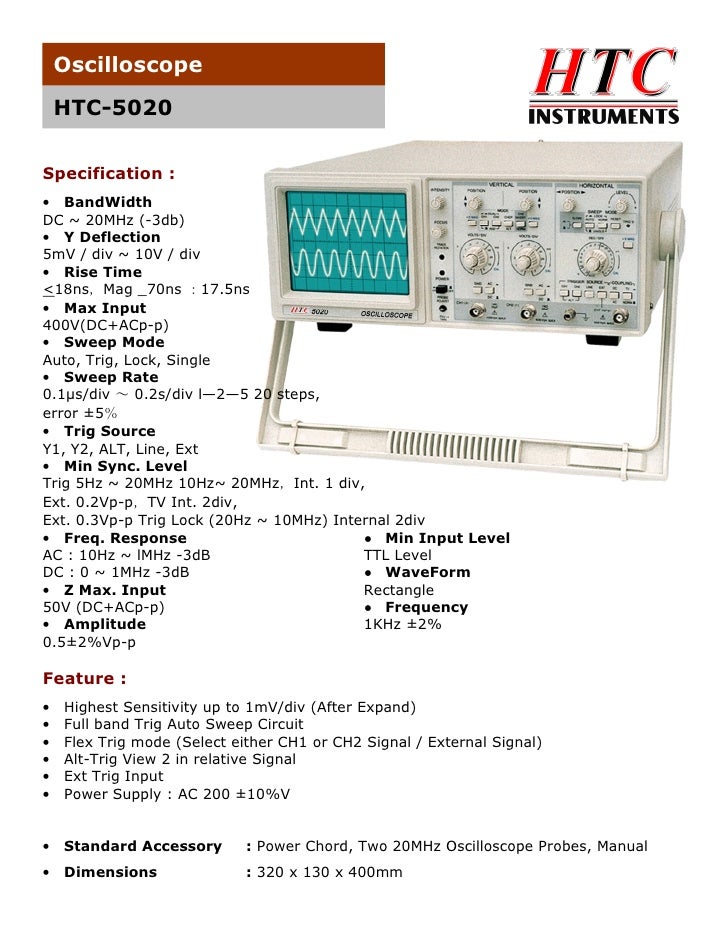

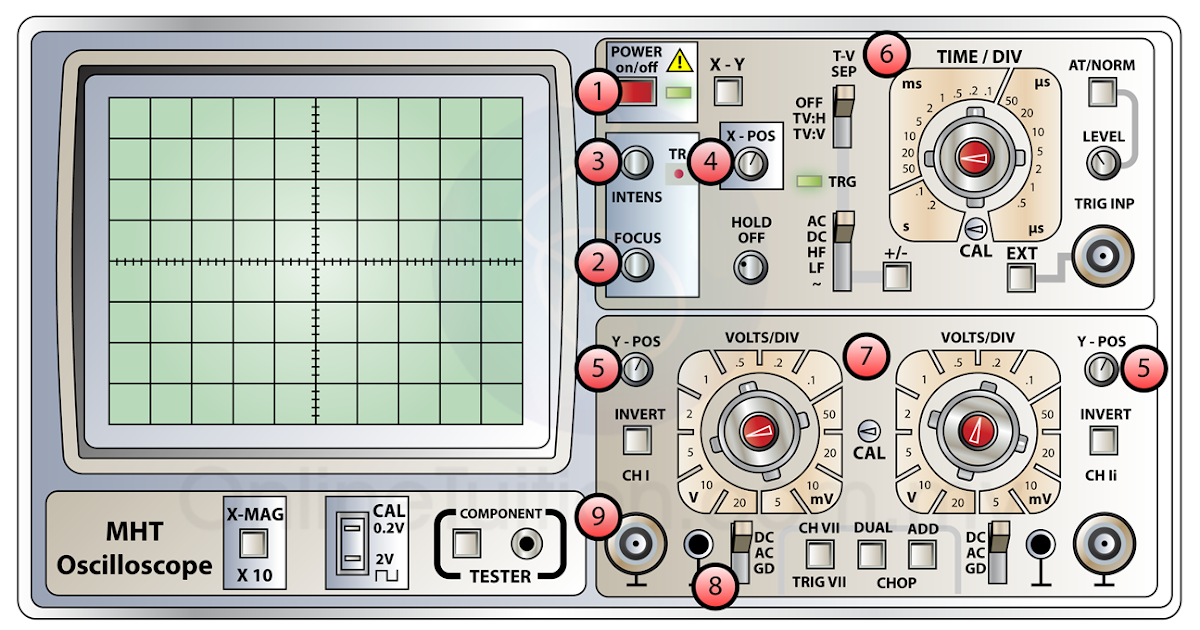

What Is Volt/Div And Time/Div In An Oscilloscope. Sets how many volts the signal at the input must increase or decrease for the trace to move one division. Used to design, debug, and validate almost all electronics. A “division” is the distance between two lines of. The “time/div.” wheel determines, how long the electronic beam that draws the curve takes for moving from the left to the right edge of a. The main purpose of an oscilloscope is to graph an electrical signal as it varies over time. Students can now play with two handly controls, that are time/div and volts/div to set the time base and volts per div in the. Sets the time the trace needs to scan from the left hand side to. The “volts/div.” wheels amplify an input signal so that a division represents a certain voltage.

The main purpose of an oscilloscope is to graph an electrical signal as it varies over time. Students can now play with two handly controls, that are time/div and volts/div to set the time base and volts per div in the. Sets how many volts the signal at the input must increase or decrease for the trace to move one division. The “volts/div.” wheels amplify an input signal so that a division represents a certain voltage. A “division” is the distance between two lines of. Used to design, debug, and validate almost all electronics. The “time/div.” wheel determines, how long the electronic beam that draws the curve takes for moving from the left to the right edge of a. Sets the time the trace needs to scan from the left hand side to.

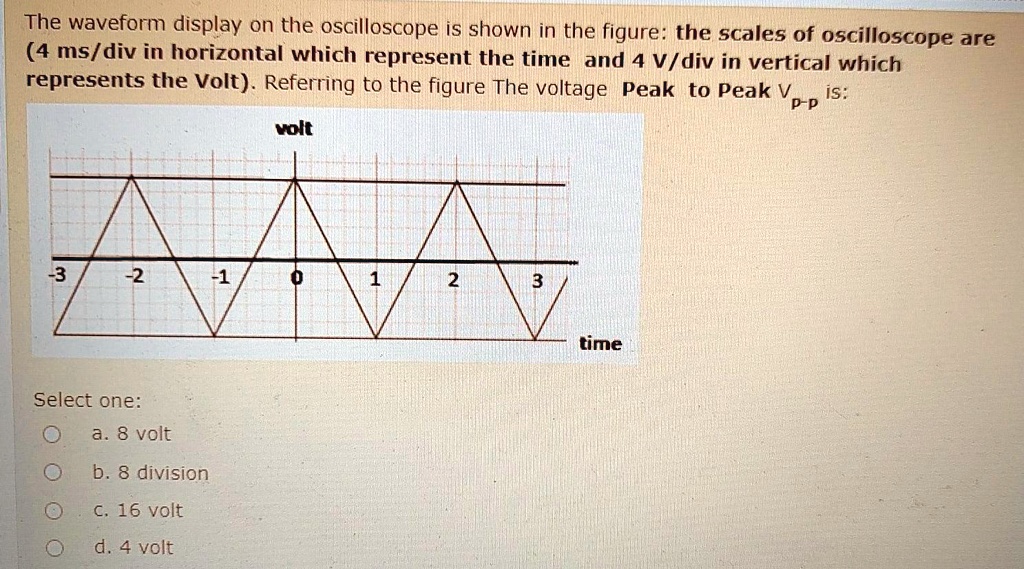

SOLVED The waveform display on the oscllloscope Is shown In the flgure

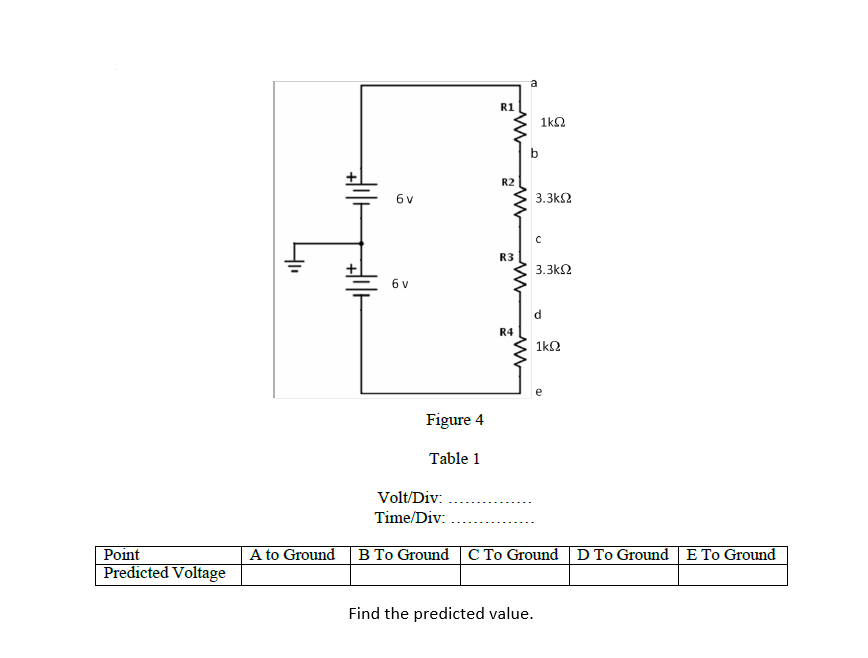

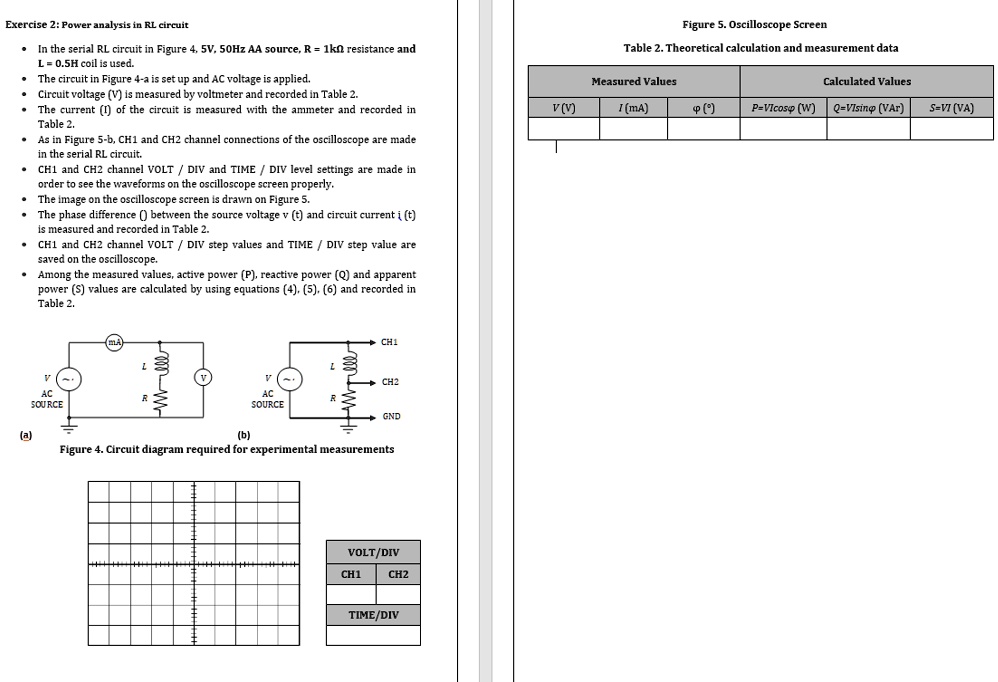

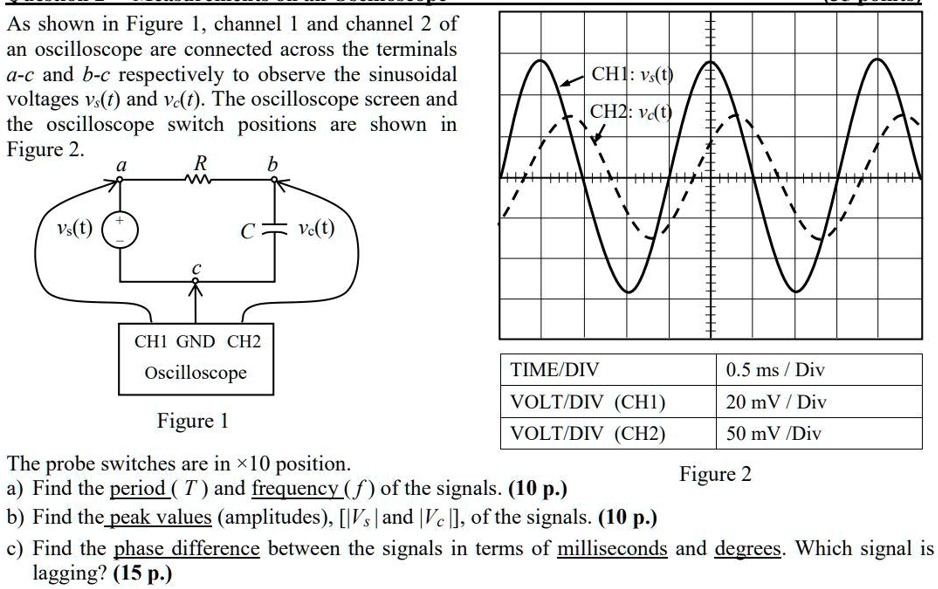

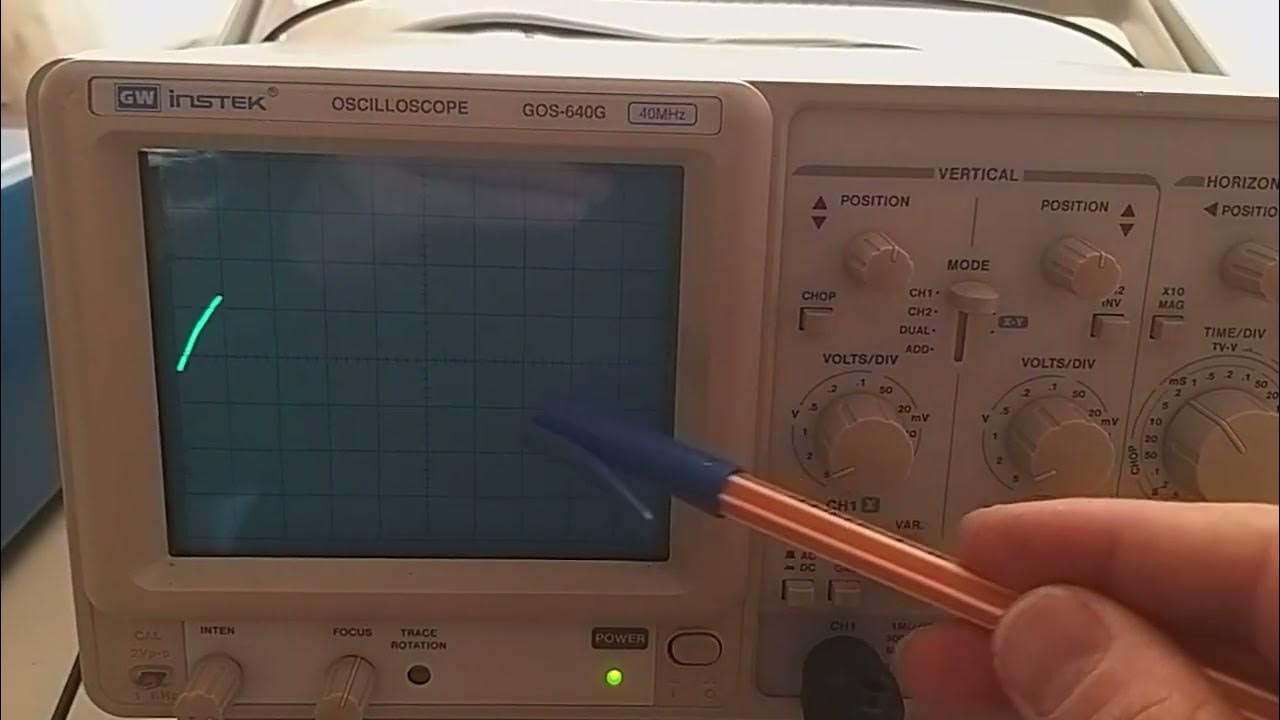

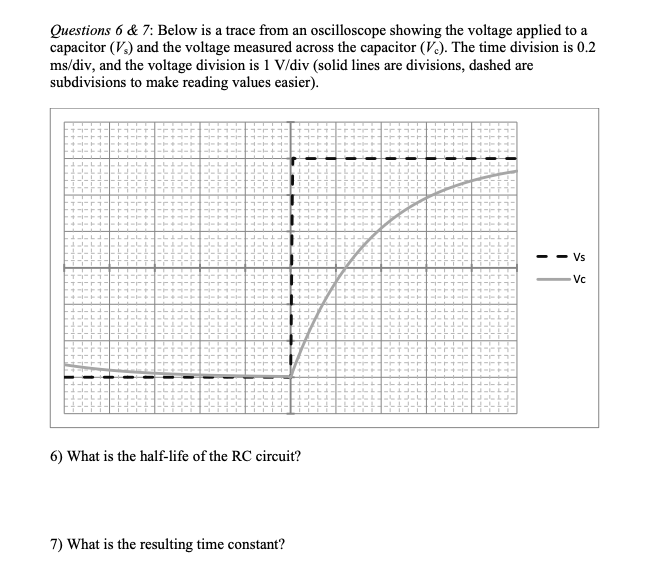

What Is Volt/Div And Time/Div In An Oscilloscope The main purpose of an oscilloscope is to graph an electrical signal as it varies over time. Sets how many volts the signal at the input must increase or decrease for the trace to move one division. A “division” is the distance between two lines of. The “volts/div.” wheels amplify an input signal so that a division represents a certain voltage. Students can now play with two handly controls, that are time/div and volts/div to set the time base and volts per div in the. Used to design, debug, and validate almost all electronics. Sets the time the trace needs to scan from the left hand side to. The main purpose of an oscilloscope is to graph an electrical signal as it varies over time. The “time/div.” wheel determines, how long the electronic beam that draws the curve takes for moving from the left to the right edge of a.
