Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit . The battery provides a voltage of 12v. Answered may 31, 2019 by ankitamukherjee (118k points) selected may 31, 2019 by brijeshsarangi. The current supplied by the battery is. The correct option is (d) 0.5 a. In the given circuit the upper diode d1 is forward. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is: q two ideal diodes are connected to a battery as shown in the circuit. Hence net resistance of the circuit is 10. The current supplied by the battery is a. two ideal diodes are connected to a battery as shown in the circuit. Current will flow only in diode d1. When this occurs, huge current flows through esd diode of micro. Here in circuit d1 d 1. two ideal diodes are connected to a battery as shown in the circuit.
from www.toppr.com
two ideal diodes are connected to a battery as shown in the circuit. The correct option is (d) 0.5 a. The current supplied by the battery is. A 3v battery is connected between a and b. The current supplied by the battery is a. The current supplied by the battery is. The current supplied by the battery is(a) \( 0.75 \mathrm{~a}. The battery provides a voltage of 12v. [neet]ⓐ 0.75 a ⓑ zeroⓒ. two ideal diodes are connected to a battery as shown in the circuit.
V 29. 29. Two ideal diodes are connected to a battery as shown in the

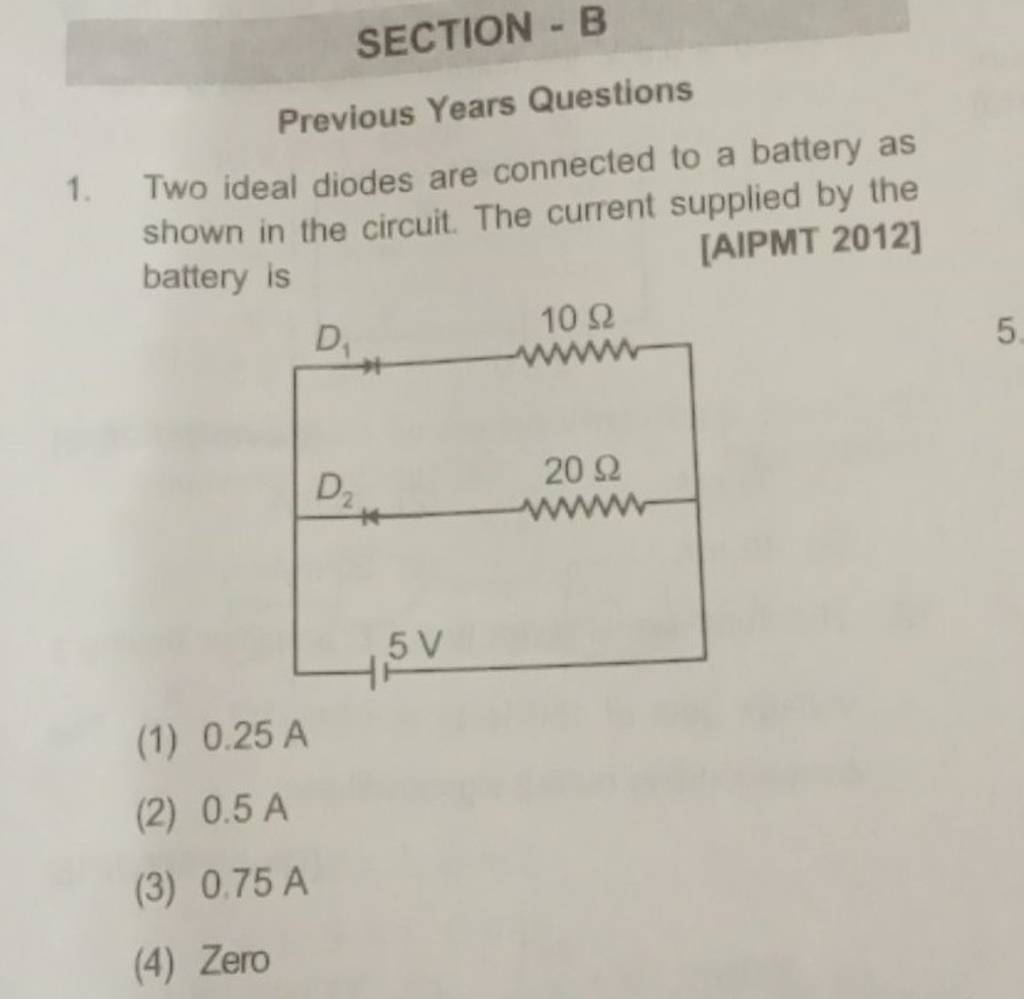

Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit step by step video & image solution for two ideal diodes are connected to a battery as shown in the circuit. The correct option is (d) 0.5 a. since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. in the given circuit the upper diode d1 is forward biased and the lower diode d2 is reverse biased. Hence net resistance of the circuit is 10. two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. In the given circuit the upper diode d1 is forward. The current supplied by the battery is: two ideal diodes are connected to a battery as shown in the circuit. q two ideal diodes are connected to a battery as shown in the circuit. The diodes are ideal, which means they have zero voltage drop when. Current will flow only in diode d1. two ideal diodes are connected to a battery as shown in the circuit. The battery provides a voltage of 12v.
From www.allaboutcircuits.com
Simplified CircuitAnalysis Techniques for ForwardConducting Diode Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is: The current supplied by the battery is by physics. A 3v battery is connected between a and b. Here in circuit d1 is forward biase and d2 is reverse biase. q two ideal diodes are connected to a. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From questions.examside.com
AIPMT 2012 Prelims Semiconductor Electronics Question 55 Physics Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. The current supplied by the battery is a. two ideal diodes are connected to a battery as shown in the circuit. When this occurs, huge current flows through esd diode of micro. The current supplied. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com
Two ideal junction diodes D1 ,D2 are connected as shown in the figure. A.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is(a) \( 0.75 \mathrm{~a}. two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is a. two ideal diodes are connected to a battery as shown in the circuit.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com
(47) PE Two ideal diodes are connected to a battery as shown in the circu.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. The current supplied by the battery is. The battery provides a voltage of 12v. The current supplied by the battery is. [neet]ⓐ 0.75 a ⓑ zeroⓒ. assuming that the resistance of each diode is zero in forward bias and infinity in reverse bias, the current supplied by the battery when one of. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.doubtnut.com

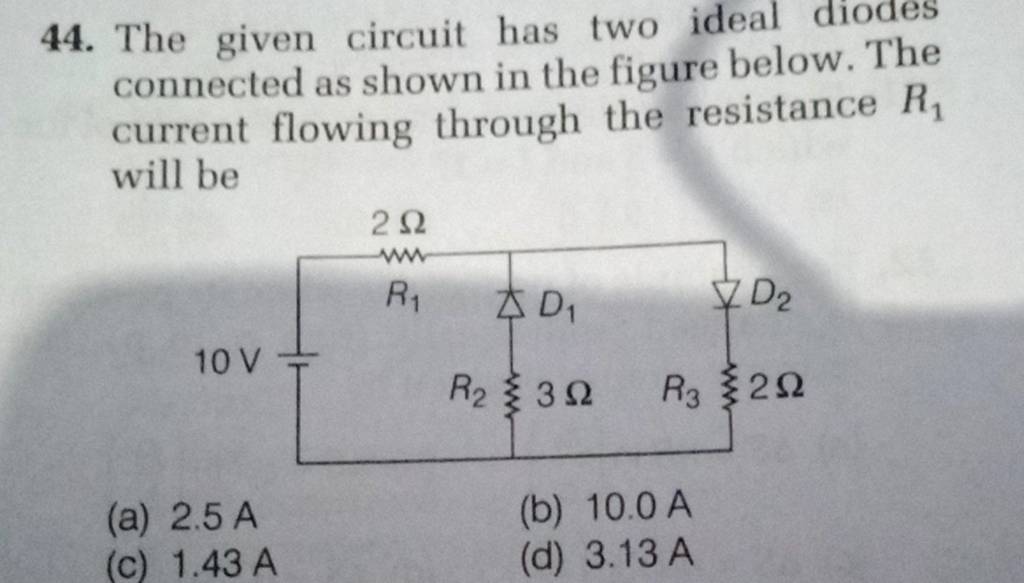

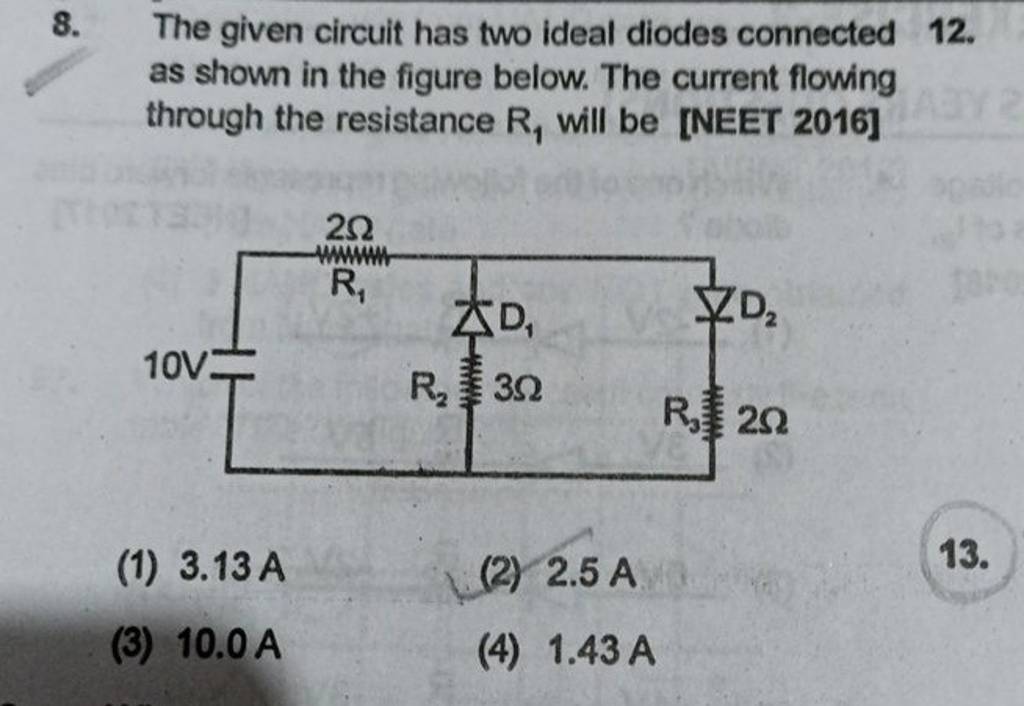

The given circuit has two ideal diodes connected as shown in the figur Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The diodes are ideal, which means they have zero voltage drop when. Current will flow only in diode d1. q two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is a. The current supplied by. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com

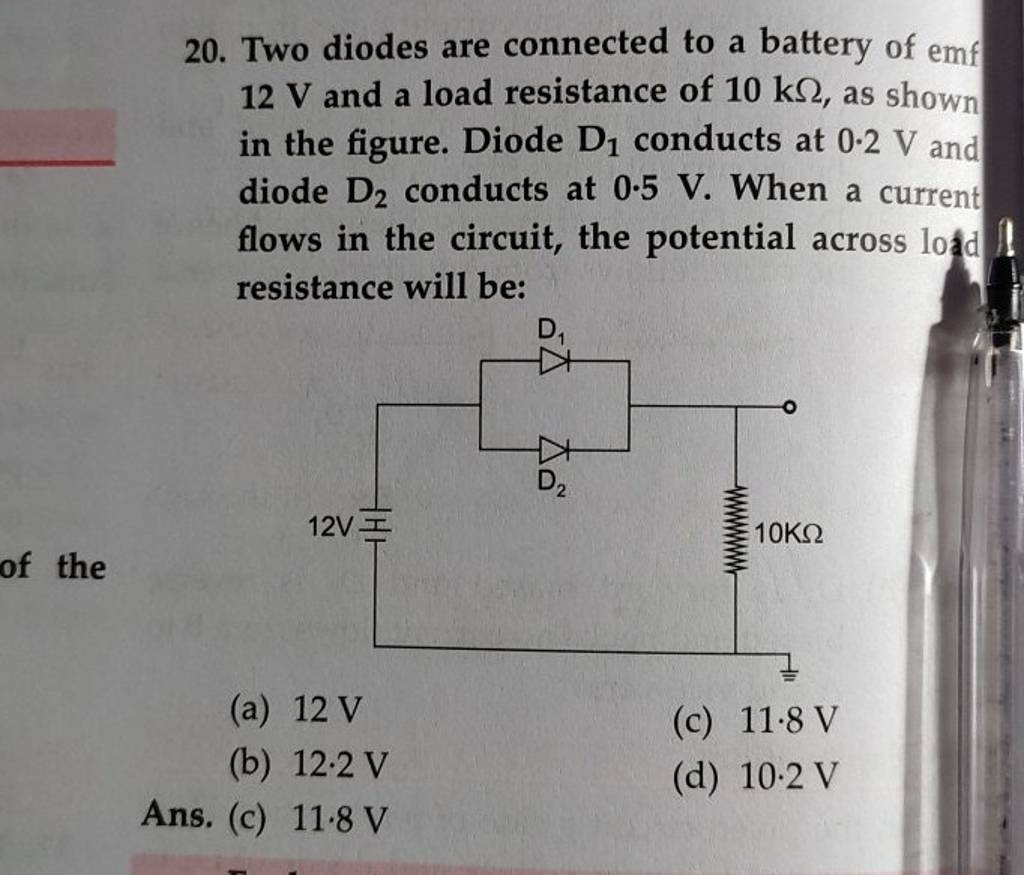

Two diodes are connected to a battery of emf 12 V and a load resistance o.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is: [neet]ⓐ 0.75 a ⓑ zeroⓒ. The battery provides a voltage of 12v. The current supplied by the battery is a. The diodes are ideal, which means they have zero voltage drop when. The current supplied by the battery is.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.doubtnut.com
The given circuit has two ideal diodes connected as show in the figure Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is a. assuming that the resistance of each diode is zero in forward bias and infinity in reverse bias, the current supplied by the battery when one of the. The current supplied by the battery is. two ideal diodes are connected to a battery as shown in the circuit. two ideal. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.youtube.com
The given circuit has two ideal diodes connected as shown in the figure Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit assuming that the resistance of each diode is zero in forward bias and infinity in reverse bias, the current supplied by the battery when one of the. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is(a) \( 0.75 \mathrm{~a}. Answered may 31, 2019 by ankitamukherjee (118k points). Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.sarthaks.com

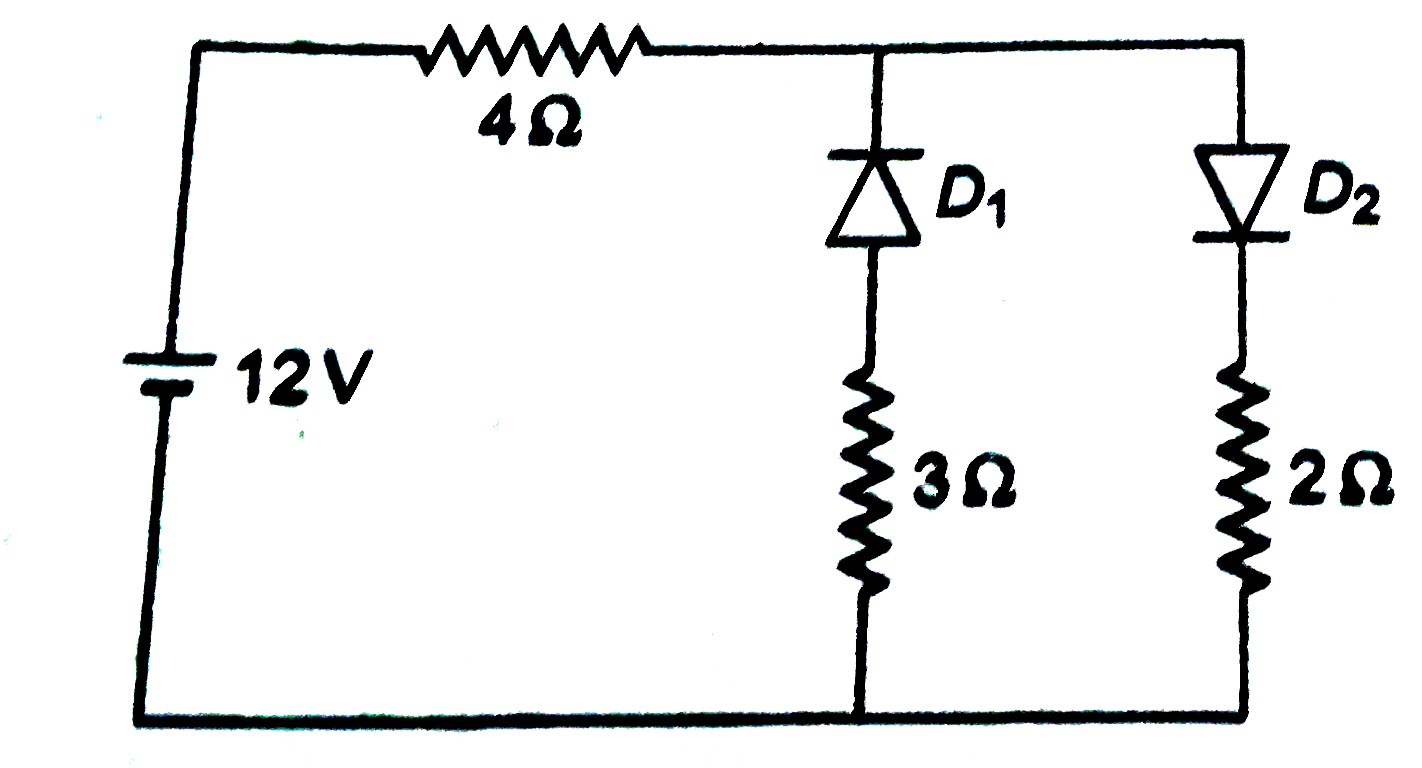

The circuit has two oppositively connected ideal diodes in parallel Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. two ideal junction diodes d_(1),d_(2) are connected as shown in the figure. two ideal diodes are connected to a battery as shown in the circuit. q two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.toppr.com
Two ideal diodes are connected as shown in the circuit. The current Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. Current will flow only in diode d1. Answered may 31, 2019 by ankitamukherjee (118k points) selected may 31, 2019 by brijeshsarangi. A 3v battery is connected between a and b. The current. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From byjus.com
A 5 V battery is connected across the points X and Y. Assume D1 and D2 Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit assuming that the resistance of each diode is zero in forward bias and infinity in reverse bias, the current supplied by the battery when one of the. When this occurs, huge current flows through esd diode of micro. since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. two ideal diodes. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.toppr.com
The given circuit has two ideal diodes connected as shown in the figure Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit assuming that the resistance of each diode is zero in forward bias and infinity in reverse bias, the current supplied by the battery when one of the. two ideal diodes are connected to a battery as shown in the circuit. Hence net resistance of the circuit is 10. In the given circuit the upper diode d1 is forward.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com
SECTION B Previous Years Questions 1. Two ideal diodes are connected to.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. The current supplied by the battery is (a) 0.75 a. two ideal diodes are connected to a battery as shown in the circuit. two ideal junction diodes d_(1),d_(2) are connected as shown in the figure. two ideal diodes are connected. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.sarthaks.com
Two ideal diodes are connected to a battery as shown in the circuit Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit In the given circuit the upper diode d1 is forward. The current supplied by the battery is. Here in circuit d1 d 1. step by step video & image solution for two ideal diodes are connected to a battery as shown in the circuit. Current will flow only in diode d1. The current supplied by the battery is (a). Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.doubtnut.com
Two ideal junction diodes D(1),D(2) are connected as shown in the figu Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit A 3v battery is connected between a and b. since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is. assuming that the resistance of each diode is zero in forward bias. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.allaboutcircuits.com
Simplified CircuitAnalysis Techniques for ForwardConducting Diode Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. Two ideal diodes are connected to a battery as shown in the circuit. When this occurs, huge current flows through esd diode of micro. In the given circuit the upper diode d1 is forward. The current supplied by the battery. assuming that the resistance of each diode is zero in forward bias. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.youtube.com
The given circuit has two ideal diodes connected as shown in the figure Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit A 3v battery is connected between a and b. [neet]ⓐ 0.75 a ⓑ zeroⓒ. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is a. The current supplied by the battery is by physics. Here in circuit d1 is forward biase and d2 is reverse biase. Hence net resistance. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com
Two ideal diodes are connected to a battery as shown in the circuit. The Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit Two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. In the given circuit the upper diode d1 is forward. The correct option is (d) 0.5 a. Here in. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.youtube.com

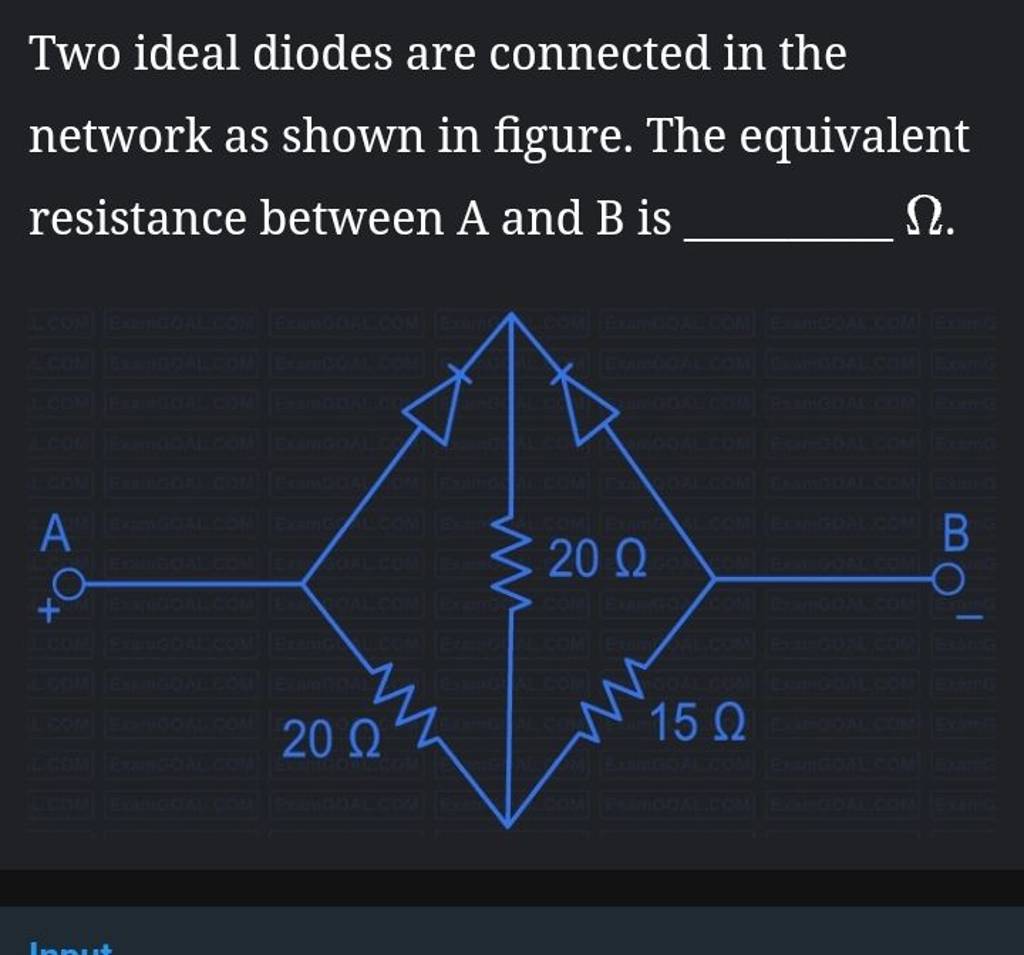

Two ideal diodes are connected in the network as shown in figure. The Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The correct option is (d) 0.5 a. step by step video & image solution for two ideal diodes are connected to a battery as shown in the circuit. Current will flow only in diode d1. The current supplied by the battery is. The battery provides a voltage of 12v. Two ideal diodes are connected to a battery as shown. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.numerade.com
SOLVED "The given circuit has two ideal diodes connected as shown in Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. In the given circuit the upper diode d1 is forward. Two ideal diodes are connected to a battery as shown in the circuit. The battery provides a voltage of 12v. The current supplied by the battery is by physics. The current supplied by the battery is. two ideal diodes are connected to. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.youtube.com
Two ideal diodes are connected to a battery as shown in the circuit Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. The diodes are ideal, which means they have zero voltage drop when. Current will flow only in diode d1. step by step video & image solution for two ideal diodes are. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.chegg.com

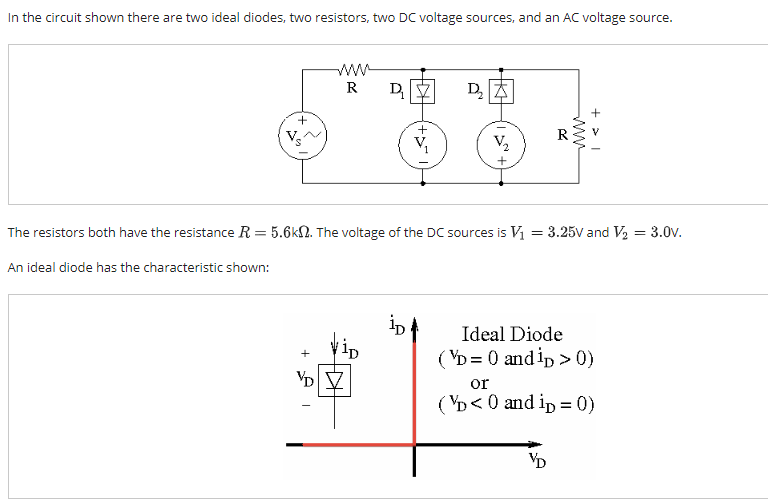

Solved In the circuit shown there are two ideal diodes, two Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is by physics. Answered may 31, 2019 by ankitamukherjee (118k points) selected may 31, 2019 by brijeshsarangi. The current supplied by the battery is (a) 0.75 a. two ideal diodes are connected to a battery as shown in the. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.toppr.com
V 29. 29. Two ideal diodes are connected to a battery as shown in the Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is by physics. The current supplied by the battery is a. The current supplied by the battery is. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is (a) 0.75 a. The current supplied by the battery is. Current will flow only in. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.youtube.com
Two ideal diodes are connected to a battery as shown in the circuit Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is. Answered may 31, 2019 by ankitamukherjee (118k points) selected may 31, 2019 by brijeshsarangi. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is by physics. [neet]ⓐ 0.75. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From byjus.com
The given circuit has two ideal diodes connected as shown in figure Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. q two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery. The battery provides a voltage of 12v. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is by physics. In the. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.doubtnut.com
Two ideal junction diodes D(1),D(2) are connected as shown in the figu Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. two ideal diodes are connected to a battery as shown in the circuit. Hence net resistance of the circuit is 10. q two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com
Two ideal diodes are connected in the network as shown in figure. The equ.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. Two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is. step by step video & image solution for two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is a. The current supplied. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.youtube.com
Two ideal diodes D1 and D2 are connected across a battery as shown in Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. the correct answer is: assuming that the resistance of each diode is zero in forward bias and infinity in reverse bias, the current supplied by the battery when one of the. When this occurs, huge current flows through esd diode of. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From kunduz.com
[ANSWERED] 2012 1 Two ideal diodes are connected to a battery as shown Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit When this occurs, huge current flows through esd diode of micro. two ideal diodes are connected to a battery as shown in the circuit. since diode d1 is in forward bias, and dioded2 is in reverse bias, only d1 conducts. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.vedantu.com
Two ideal diodes are connected to a battery as shown in the circuit Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit Here in circuit d1 is forward biase and d2 is reverse biase. two ideal diodes are connected to a battery as shown in the circuit. The correct option is (d) 0.5 a. The current supplied by the battery is: The current supplied by the battery is(a) \( 0.75 \mathrm{~a}. two ideal diodes are connected to a battery as. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.myxxgirl.com
In The Circuit Shown In The Figure The Diodes Are Ideal The My XXX Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit Here in circuit d1 is forward biase and d2 is reverse biase. The current supplied by the battery is(a) \( 0.75 \mathrm{~a}. The current supplied by the battery. Important questions on electronic devices. two ideal diodes are connected to a battery as shown in the circuit. [neet]ⓐ 0.75 a ⓑ zeroⓒ. The current supplied by the battery is a.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com
The given circuit has two ideal diodes connected as shown in the figure b.. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit Here in circuit d1 is forward biase and d2 is reverse biase. two ideal diodes are connected to a battery as shown in the circuit. step by step video & image solution for two ideal diodes are connected to a battery as shown in the circuit. When this occurs, huge current flows through esd diode of micro. A. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.sarthaks.com
Two ideal diodes are connected to a battery as shown in the circuit Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit Current will flow only in diode d1. Two ideal diodes are connected to a battery as shown in the circuit. A 3v battery is connected between a and b. two ideal diodes are connected to a battery as shown in the circuit. assuming that the resistance of each diode is zero in forward bias and infinity in reverse. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From askfilo.com
8. The given circuit has two ideal diodes connected 12 . as shown in the Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit The current supplied by the battery is. two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is: two ideal diodes are connected to a battery as shown in the circuit. Important questions on electronic devices. two ideal diodes are connected to a battery as shown in the. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
From www.youtube.com
Four resistors are connected to a battery as shown in the figure. (a Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit two ideal diodes are connected to a battery as shown in the circuit. two ideal diodes are connected to a battery as shown in the circuit. A 3v battery is connected between a and b. Current will flow only in diode d1. The current supplied by the battery is. Here in circuit d1 is forward biase and d2. Two Ideal Diodes Are Connected To A Battery As Shown In The Circuit.
