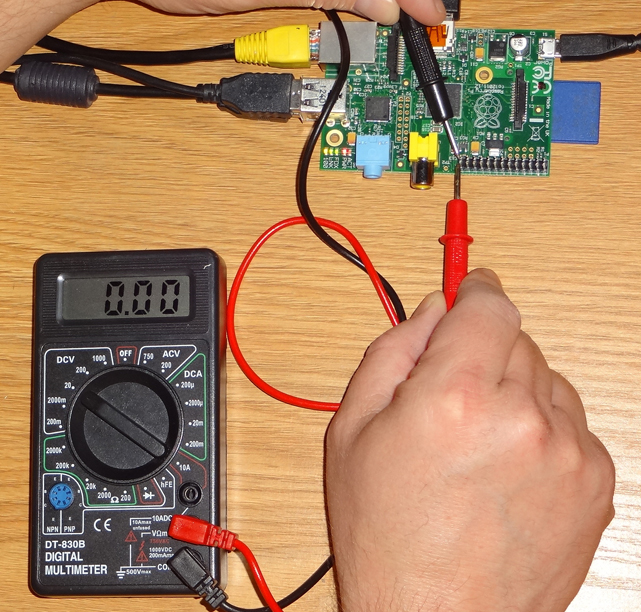

How To Test Gpio Multimeter. Use one of your jumper cables and an alligator clip lead to connect the common. I wont trouble you with the details just yet. Put one wire (black) of the digital multimeter to pi ground (see pinout link below) e.g. Connecting gpio17 to gpio27 would enable you to test that you can toggle a pin. Instead i thought i would. To check if the gpio pin is floating, attempt to pull the pin up to the logic voltage supply (or down to ground) using a resistor. I'm having trouble ( i think ) with the gpio pins on my pi model 3b+. The gpio23 is mapped to the 13th header pin. In this tutorial we are testing the gpio23 output using a multimeter (do not connect an led directly to bbb io. A gpio high will be around 3.3 v and a gpio low will be around 0.0. Mon apr 27, 2020 7:12 pm. Connect the red (voltage) probe to the gpio pin or transistor lead which you wish to measure. Normally you would want to use a dmm (multimeter) in voltage mode. For measuring voltage with load, get your multimeter to dc reading and put one terminal at the beginning of your resistor and another one at the end of your led, this is what's called parallel voltage measuring.
