What Is Pin Joint Structure. A pin joint is a type of kinematic pair, an idealized description of the motion constraints within a machine, which allows motion analysis. There are many ways that pin joints are. Typically reaction forces are either as follows: It transfers vertical and horizontal shear loads and cannot resist any bending or moment (rotational) forces. A pin connection is a type of joint used in structural engineering that allows for rotation but prevents translation between connected members. A pinned and a fixed reaction force together (1 reaction force + 2 reaction forces = 3 restraints) or a fixed beam (2 reaction forces and 1 moment = 3. A pin joint is a type of mechanical connection that allows relative rotation between connected components while restricting. The amount of load to be transferred. A pin connection works essentially like a lapped joint. One of the common types of joints used in machine design is the pin joint, which is a type of fastener that connects two or more parts by passing a.

There are many ways that pin joints are. A pin connection is a type of joint used in structural engineering that allows for rotation but prevents translation between connected members. It transfers vertical and horizontal shear loads and cannot resist any bending or moment (rotational) forces. A pin joint is a type of kinematic pair, an idealized description of the motion constraints within a machine, which allows motion analysis. Typically reaction forces are either as follows: A pin joint is a type of mechanical connection that allows relative rotation between connected components while restricting. One of the common types of joints used in machine design is the pin joint, which is a type of fastener that connects two or more parts by passing a. The amount of load to be transferred. A pinned and a fixed reaction force together (1 reaction force + 2 reaction forces = 3 restraints) or a fixed beam (2 reaction forces and 1 moment = 3. A pin connection works essentially like a lapped joint.

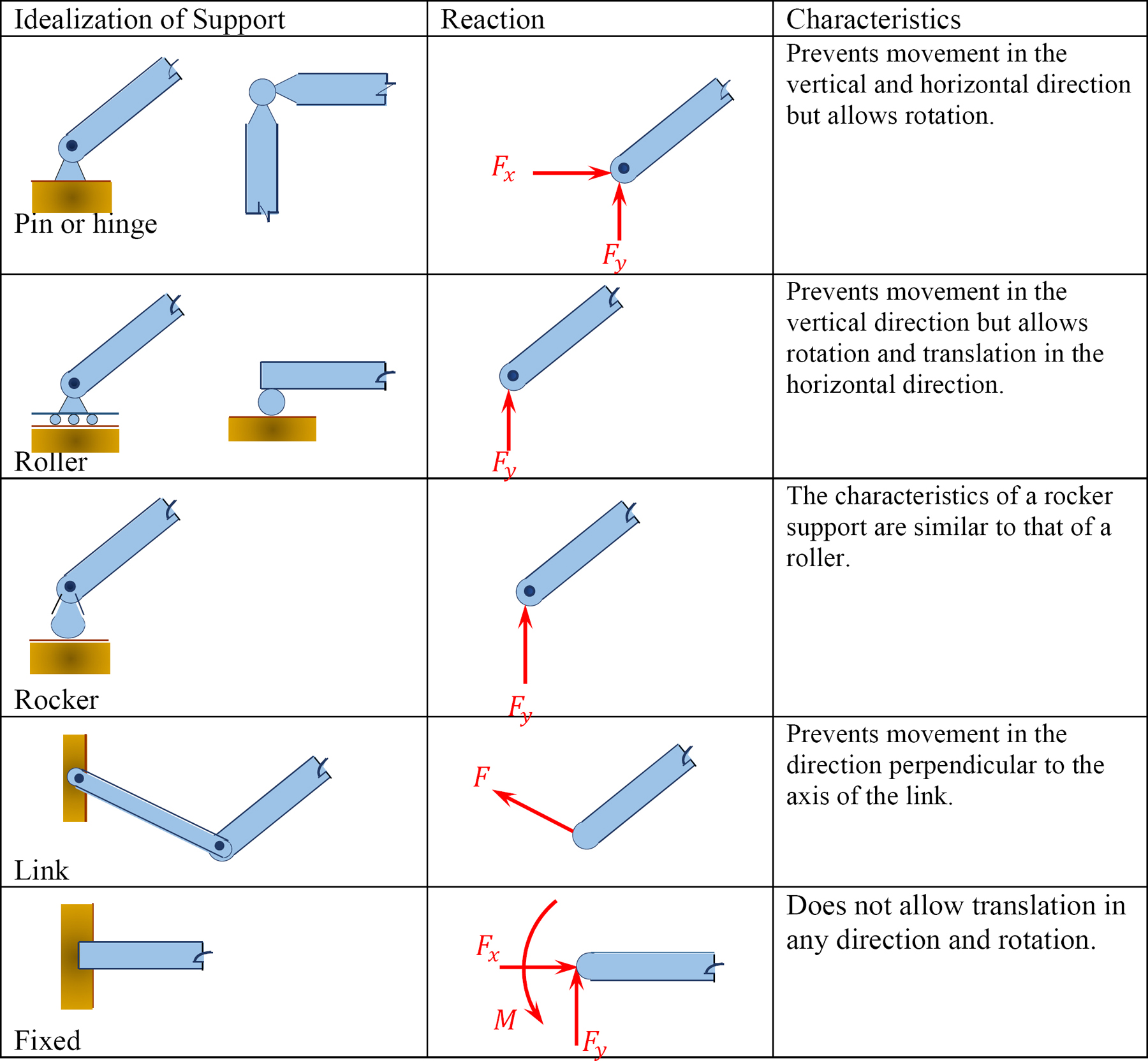

“Chapter 3 Equilibrium Structures, Support Reactions, Determinacy and
