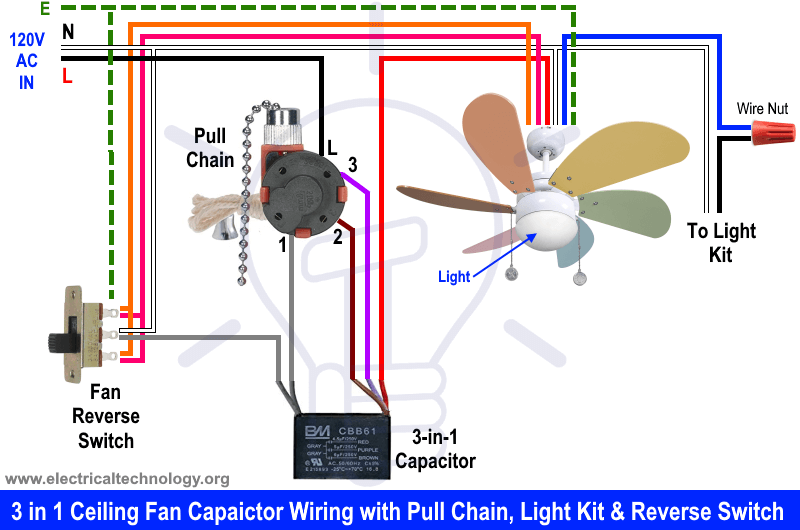

Wiring A Ceiling Fan Pull Switch. In this article, we will discuss the wiring process of a ceiling fan pull switch, guiding you through the steps to successfully replace the switch and. With attention to detail and clear explanations, you’ll be able to: I couldn't find a wiring diagram for the specific fan (and capacitor, which has 4 wires) to confirm the correct. The 3 speed ceiling fan wiring diagram options below make it easy to wire/install a ceiling fan capacitor and fan. In this video you’ll learn how to replace a pull chain switch on a ceiling fan. I'm replacing the fan switch in a hampton bay fan + light combo. The most common wiring configuration for a ceiling fan pull chain switch includes the following wires: The wiring diagrams cover popular models manufactured by hampton bay, harbor breeze and hunter but work for many other brands that also employ a capacitor in order to control fan speed using the pull chain. Black for fan motor, blue for light kit, white as neutral, and green or copper as. The ceiling fan wiring diagram images here show you how to wire a ceiling fan 4 wire setup. However, there are some basic principles and common connections that can help guide you through the process.
