How Does A Trip Circuit Supervision Relay Work. In this post we will be discussing the working principle of trip circuit supervision. The trip circuit supervision relay is used in the ht panel for continuous monitoring of breaker trip circuit healthy. The supervision relay, for its functioning. Tripping or isolation of cb is the most. The trip circuit supervision relay always monitors the healthiness of the trip circuit including a connected trip coil of the cb. It just checks the coil healthiness. Trip circuit supervision relay working function: If the circuit is not healthy or. It injects a very low current of approximately. Relays a and c are. Trip circuit supervision relays are used to monitor the trip coil of the circuit breaker. The trip circuit supervision relay (95) works on the principle of continuous monitoring of the trip circuit and the trip coil of cb. Trip circuit supervision is experienced by relay b with the circuit breaker is open in a similar manner as relay a with the circuit breaker is closed. The supervision relay type tcs is intended for a continuous supervision of circuit breaker trip circuit and gives an alarm for loss of auxiliary supply, faults on the trip coil or its. Basically, a breaker is equipped with two trip.

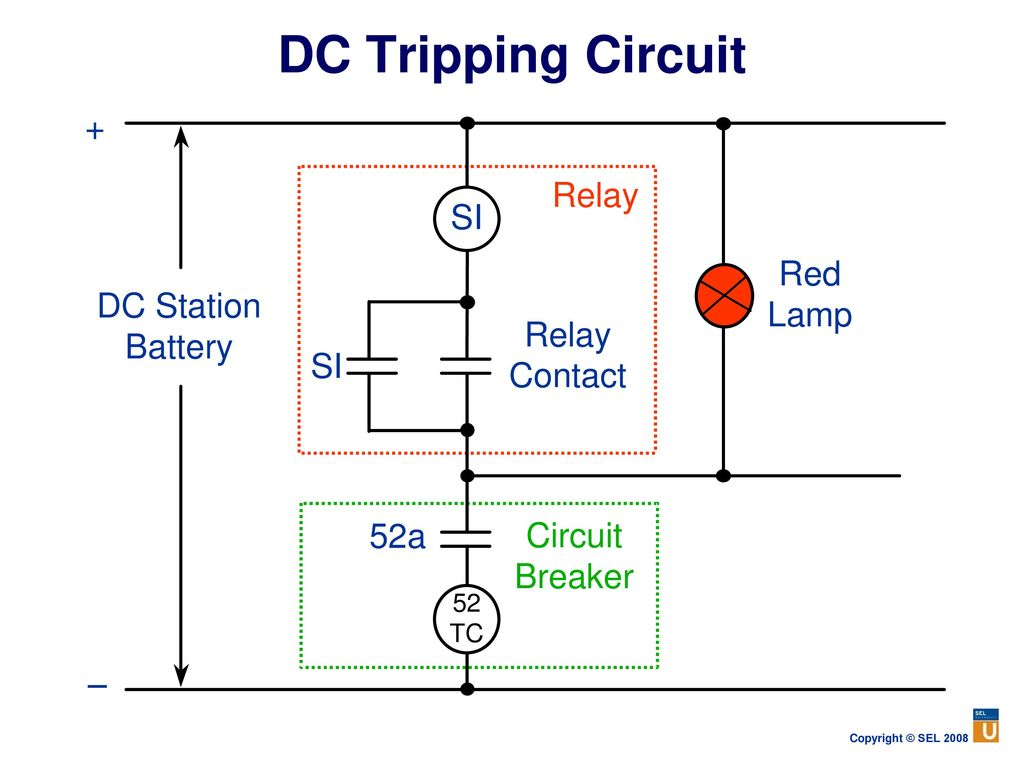

Trip circuit supervision relay diagram, working principle.
from electricaltopic.com

Relays a and c are. The trip circuit supervision relay (95) works on the principle of continuous monitoring of the trip circuit and the trip coil of cb. It just checks the coil healthiness. It injects a very low current of approximately. Trip circuit supervision is experienced by relay b with the circuit breaker is open in a similar manner as relay a with the circuit breaker is closed. Basically, a breaker is equipped with two trip. Trip circuit supervision relay working function: Trip circuit supervision relays are used to monitor the trip coil of the circuit breaker. The supervision relay, for its functioning. The trip circuit supervision relay is used in the ht panel for continuous monitoring of breaker trip circuit healthy.

Trip circuit supervision relay diagram, working principle.

How Does A Trip Circuit Supervision Relay Work The supervision relay type tcs is intended for a continuous supervision of circuit breaker trip circuit and gives an alarm for loss of auxiliary supply, faults on the trip coil or its. In this post we will be discussing the working principle of trip circuit supervision. The trip circuit supervision relay (95) works on the principle of continuous monitoring of the trip circuit and the trip coil of cb. Tripping or isolation of cb is the most. Trip circuit supervision relays are used to monitor the trip coil of the circuit breaker. The trip circuit supervision relay always monitors the healthiness of the trip circuit including a connected trip coil of the cb. Trip circuit supervision is experienced by relay b with the circuit breaker is open in a similar manner as relay a with the circuit breaker is closed. Relays a and c are. Basically, a breaker is equipped with two trip. It just checks the coil healthiness. The supervision relay type tcs is intended for a continuous supervision of circuit breaker trip circuit and gives an alarm for loss of auxiliary supply, faults on the trip coil or its. The trip circuit supervision relay is used in the ht panel for continuous monitoring of breaker trip circuit healthy. If the circuit is not healthy or. The supervision relay, for its functioning. It injects a very low current of approximately. Trip circuit supervision relay working function:
