What Is Mutual Coupling In Transmission Lines. Height at tower = 76ft heigth at midspan = 33 ft horizontal spacing. Abstract—this paper is a tutorial on the protection of mutually coupled transmission lines. Mutual coupling of transmission system segments enables the user to couple (or parallel) multiple transmission segments together, provided that their lengths are all identical. Next, it offers practical advice for identifying situations where mutual coupling must be considered using a case study. Mutual coupling exists between two or more transmission lines that are routed in parallel for a substantial distance due to the magnetic. Mutually coupled transmission lines line 1 500kv line 2 500kv 135ft line 1: Mutual coupling on double circuit line the coupling of positive and negative sequence between the parallel feeders for symmetrical lines is. Bringing the zero sequence current from a parallel line into a distance relay used to protect a power line, can be used to correct the effect of mutual. It discusses how mutual coupling affects the polarizing.

Mutual coupling of transmission system segments enables the user to couple (or parallel) multiple transmission segments together, provided that their lengths are all identical. Next, it offers practical advice for identifying situations where mutual coupling must be considered using a case study. Bringing the zero sequence current from a parallel line into a distance relay used to protect a power line, can be used to correct the effect of mutual. Abstract—this paper is a tutorial on the protection of mutually coupled transmission lines. Mutually coupled transmission lines line 1 500kv line 2 500kv 135ft line 1: Mutual coupling exists between two or more transmission lines that are routed in parallel for a substantial distance due to the magnetic. Height at tower = 76ft heigth at midspan = 33 ft horizontal spacing. Mutual coupling on double circuit line the coupling of positive and negative sequence between the parallel feeders for symmetrical lines is. It discusses how mutual coupling affects the polarizing.

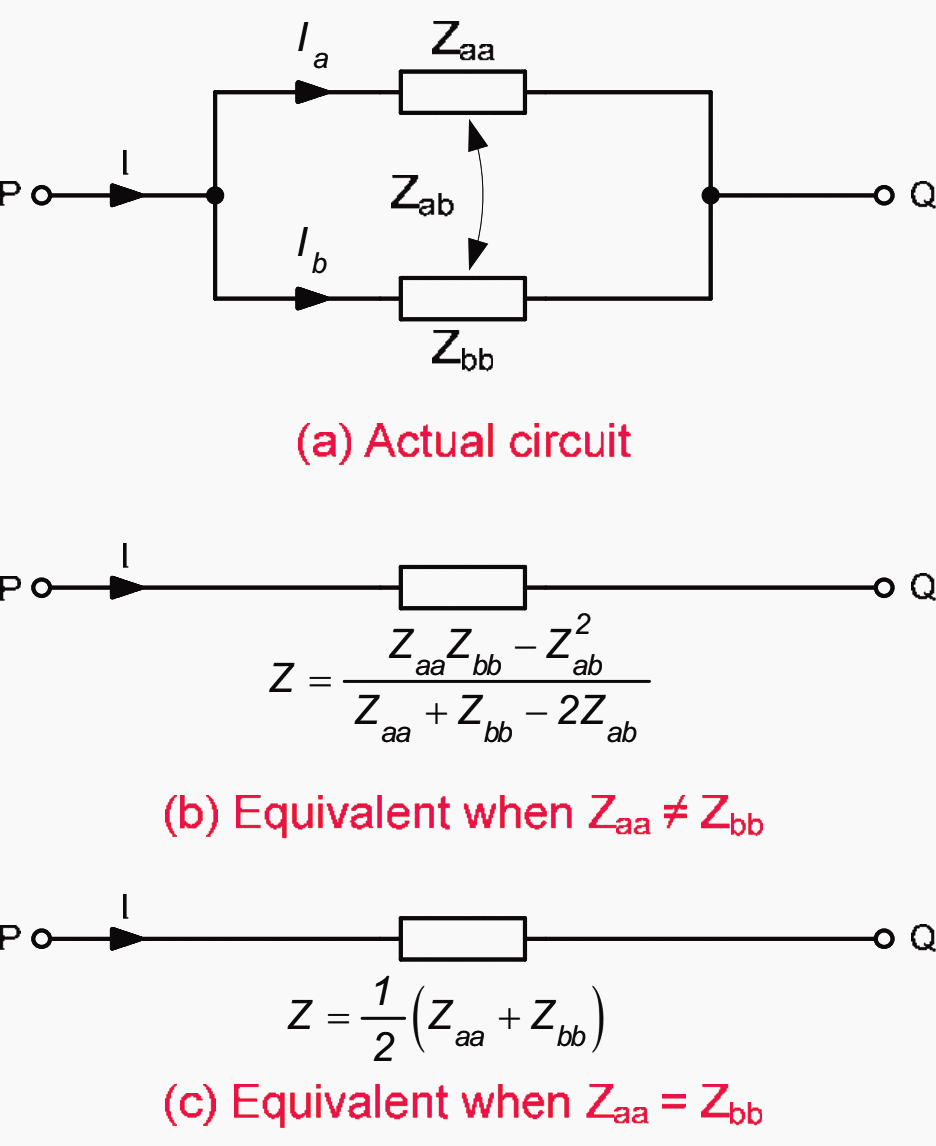

Theorems and network reductions that every electrical engineer MUST
