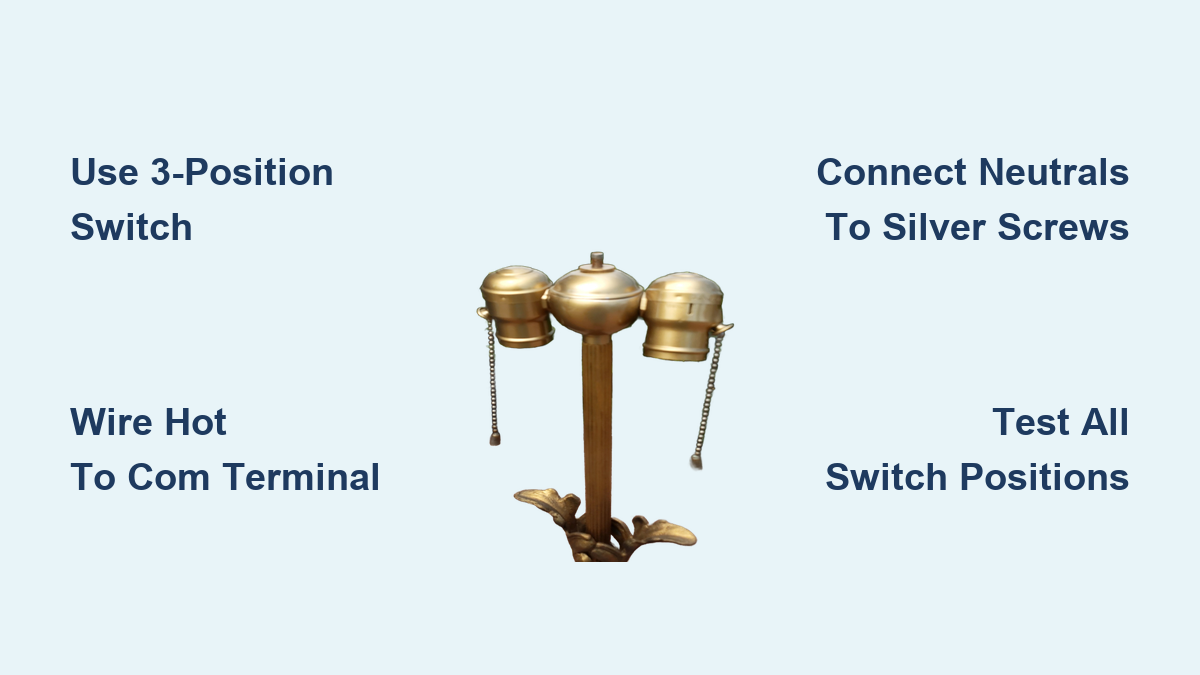

How to Rewire a Lamp with Two Sockets: Step-by-Step Guide

Replacing a worn cord or upgrading a vintage fixture often leads homeowners to tackle the task of how to rewire a lamp with two sockets. This process is more straightforward than it appears, but it demands patience, attention to detail, and a strict commitment to safety. Before you begin, you must de-energize the fixture completely, not just switch it off, but unplug it from the wall or turn off the circuit breaker and verify with a tester that no current is present. Working with a live circuit risks severe injury or death, so treat every wire in the housing as if it is energized until you have taken proper precautions.

Understanding the Components and Safety Basics

To successfully complete this project, you need to recognize the specific parts involved in the electrical path. The primary line cord brings power from the wall into the lamp, and this is where you will make your connections to the internal switch and socket assemblies. Each socket typically has two connection terminals: one for the brass-colored hot wire and one for the silver-colored neutral wire. Mixing up these connections is a common error, so you must keep track of which wire feeds which terminal. Additionally, you will encounter a grounding wire, usually green or bare copper, which is essential for diverting fault current away from the user and should never be ignored or left floating.

The Role of the Switch

Most lamps with two sockets feature a single switch that controls both light sources simultaneously. This switch is usually located in the socket assembly near the base where the socket meets the harp. When you separate the socket halves to access the terminals, you will see two wires feeding into the switch housing. One wire connects to the switch, which then continues to the brass contact inside the socket, while the other wire passes through the switch housing to complete the neutral loop. Understanding this path is critical because you must reconnect the wires exactly as you found them to ensure the switch functions correctly.

Tools Required and Preparation

You do not need a workshop to perform this repair, but you do need the right equipment to handle the task safely and efficiently. Insulated screwdrivers are essential for loosening the terminal screws without risking a slip. Wire strippers are necessary to remove the old insulation cleanly and to prepare the ends for the new connection without nicking the copper strands. Electrical tape is your final line of defense, securing the knots and preventing exposed conductors from touching the socket shell. A multimeter can also be invaluable for confirming that your wiring is continuous and that the correct wires are hot and neutral.

Visual Reference for Connections

Before removing the old wire, it is highly recommended to take a photograph or create a simple diagram of the original configuration. This visual record acts as a blueprint when you are ready to attach the new cord. Below is a table outlining the standard connections found in a two-socket lamp configuration.

Separating the Socket Assembly

With the lamp unplugged and your tools gathered, you can move to the physical disassembly. Start by removing the harp, which is the metal frame that holds the shade and bulb, followed by the socket shell. You will likely encounter a locking mechanism, such as a thumbscrew or a clip, that secures the socket shell to the harp. Unscrew or release this mechanism gently to avoid damaging the plastic housing. Once the shell is off, you will see the internal socket with the wires attached to the bottom terminal block. You will need to loosen the screws—usually by turning them counterclockwise—to release the ends of the wires and pull them out slightly to access the connector.

Removing the Old Wiring and Preparing the New Cord

At this stage, you need to disconnect the old wire completely. If the lamp is old, the wire may be soldered to the terminals or secured with a knot under a screw head. Carefully loosen the screws and free the wires, then pull them out through the central tube of the lamp base. Take note of how the original cord was routed; there is usually a cloth or rubber gland that protects the wire where it exits the base. Next, thread the new two-wire cord through the base and up the tube. Ensure the new cord is long enough to reach the sockets comfortably, with a few extra inches to work with during the connection process. Strip about half an inch of insulation from the end of each wire to expose the copper conductor.

Making the Electrical Connections

This is the most crucial phase of the project, where you physically join the new cord to the internal wiring. First, tie an underwriter’s knot with the new cord just below the socket assembly. This simple loop serves as a strain relief, preventing the wire from being pulled directly on the fragile terminals if the cord is tugged. Feed the ends of the wire up through the socket base and identify the hot and neutral wires. Typically, the smooth or ribbed texture on the cord indicates the neutral (white), while the plain wire is the hot (black). Connect the hot wire to the brass terminal and the neutral wire to the silver terminal on both socket halves. Tighten the screws firmly to grip the wire, but avoid stripping the metal. Secure any loose wires with electrical tape, ensuring that the metal contacts cannot touch the socket casing.

Reassembly and Final Verification

With the connections secure and tucked away neatly, you are ready to reverse the disassembly process. Reattach the socket shells, making sure the underwriter’s knot is positioned correctly to allow the shell to screw on tightly. Replace the harp and the shade, then restore power to the circuit. Before you switch on the lamp, double-check that all terminal screws are tight and that no stray strands of copper are touching the socket interior. Flip the switch and observe the bulbs; if they light up evenly and the switch controls both sockets, you have successfully completed the rewire. Testing with a multimeter can confirm that the correct voltage is present at the sockets and that there are no shorts.
