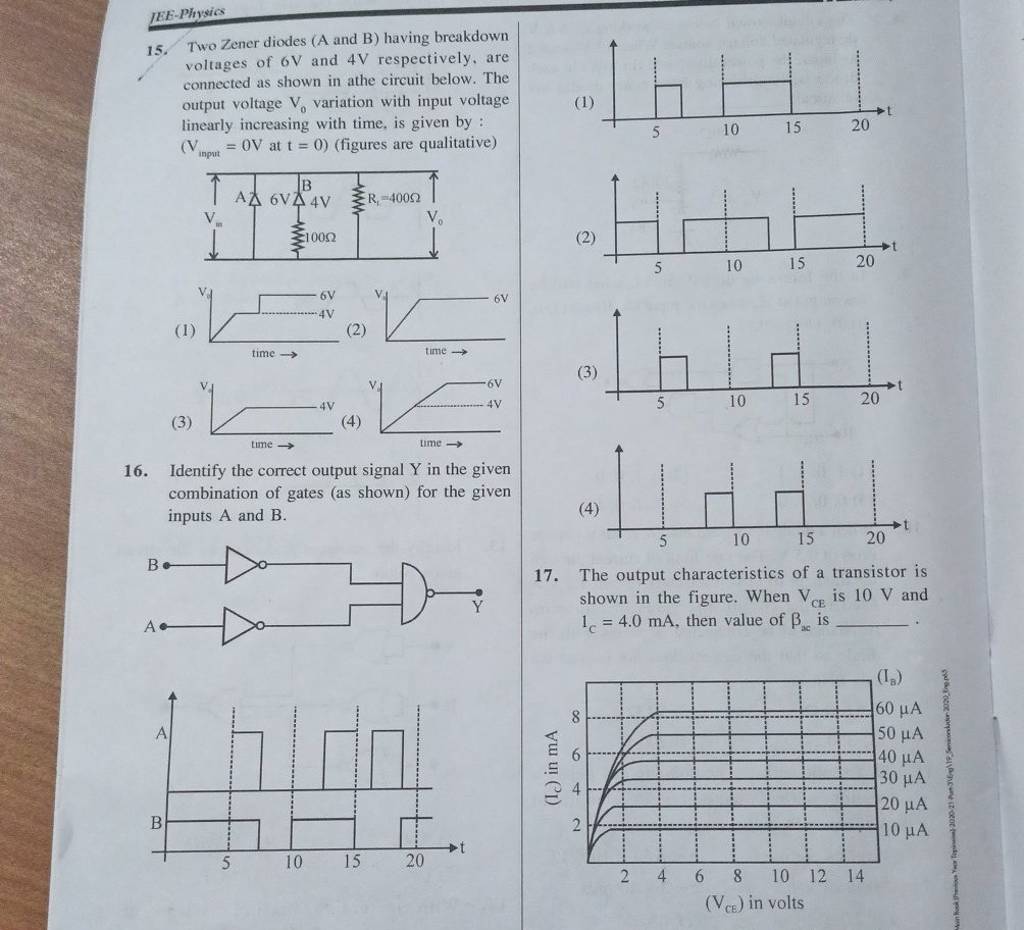

A Zener Diode Having Breakdown Voltage Of 6V. As input voltage varies between 4 − 6 v: A zener diode’s ability to maintain almost constant voltage in its breakdown region makes it suitable for regulating voltage even in. Zener diode with 4 v will break down and. Here we will discuss the concept of using diodes to. A zener diode is a special type of rectifying diode that can handle breakdown due to reverse breakdown voltage without failing completely. It is because multimeters usually do not have enough input voltage to put the zener into breakdown region. Once the reverse voltage applied across the zener diode exceeds the rated voltage of the device, a process called zener breakdown occurs in the semiconductor depletion layer and a current starts to flow through the diode to limit this increase in voltage. Two zener diodes (a and b) having breakdown voltages of $ 6v$ and $ 4v$ respectively, are connected as shown in the circuit below. The first useful application we will consider is voltage regulation. A zener diode in breakdown acts somewhat like a voltage source—the. Zener diodes does not reach breakdown condition. Hence v 0 = v i. (i) if the zener diode is working properly, the voltage v0 across.

As input voltage varies between 4 − 6 v: Zener diode with 4 v will break down and. The first useful application we will consider is voltage regulation. Once the reverse voltage applied across the zener diode exceeds the rated voltage of the device, a process called zener breakdown occurs in the semiconductor depletion layer and a current starts to flow through the diode to limit this increase in voltage. Two zener diodes (a and b) having breakdown voltages of $ 6v$ and $ 4v$ respectively, are connected as shown in the circuit below. It is because multimeters usually do not have enough input voltage to put the zener into breakdown region. Zener diodes does not reach breakdown condition. (i) if the zener diode is working properly, the voltage v0 across. A zener diode is a special type of rectifying diode that can handle breakdown due to reverse breakdown voltage without failing completely. A zener diode’s ability to maintain almost constant voltage in its breakdown region makes it suitable for regulating voltage even in.
