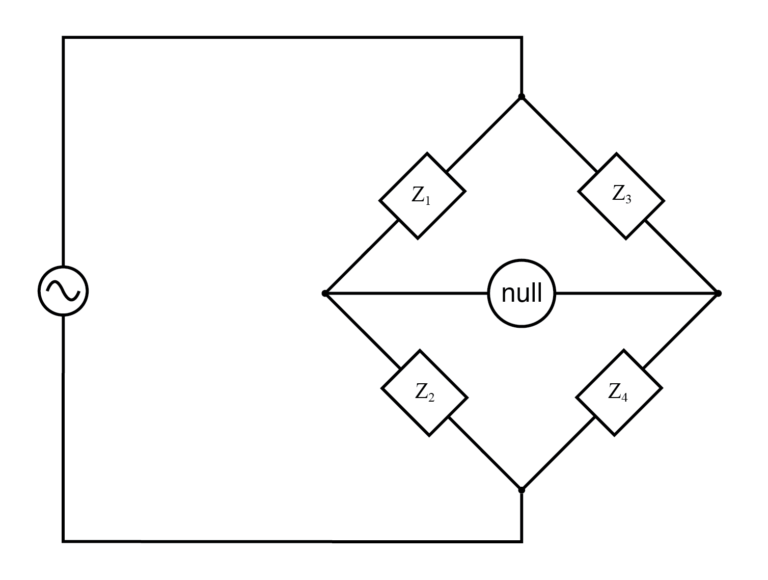

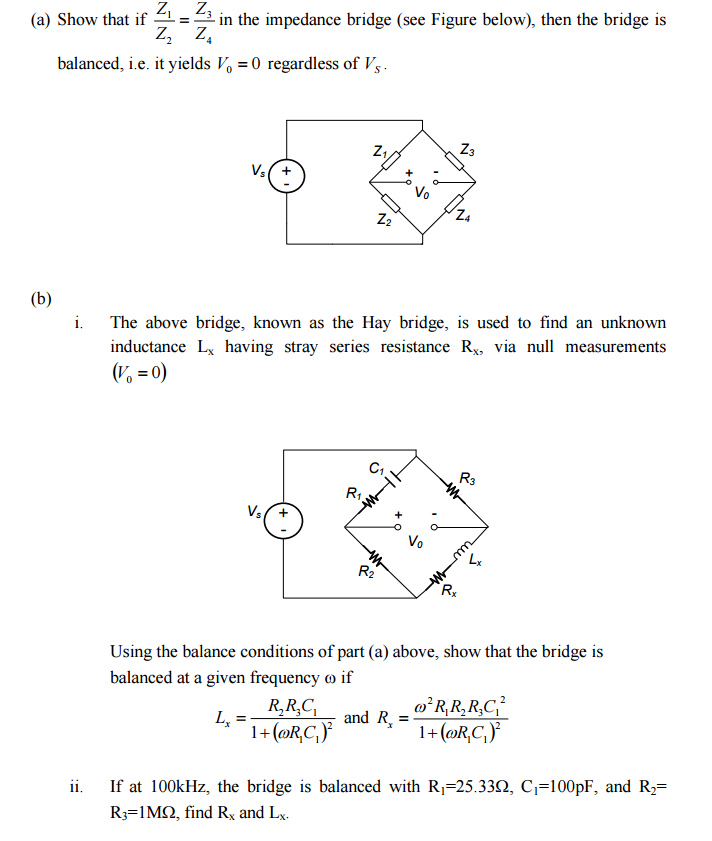

What Is Impedance Bridge. Impedance bridges work the same, only the balance equation is with complex quantities, as both. For this general form of ac bridge to balance, the impedance ratios of. Impedance bridges work the same, only the balance equation is with complex quantities, as both magnitude and phase across the components of the two dividers must be equal in order for the null detector to indicate “zero.” the null detector, of course, must be a device capable of detecting very small ac voltages. generalized ac impedance bridge: inductive impedance bridges are critical instruments used in electronic circuits to measure unknown inductance,. the concept of an impedance bridge is to measure the differential voltage or ua current with decade adjustable components on 1 leg of 4. when describing general ac bridges, where impedances and not just resistances must be in proper ratio for balance, it is. Z = nonspecific complex impedance.

Z = nonspecific complex impedance. when describing general ac bridges, where impedances and not just resistances must be in proper ratio for balance, it is. the concept of an impedance bridge is to measure the differential voltage or ua current with decade adjustable components on 1 leg of 4. For this general form of ac bridge to balance, the impedance ratios of. Impedance bridges work the same, only the balance equation is with complex quantities, as both. inductive impedance bridges are critical instruments used in electronic circuits to measure unknown inductance,. generalized ac impedance bridge: Impedance bridges work the same, only the balance equation is with complex quantities, as both magnitude and phase across the components of the two dividers must be equal in order for the null detector to indicate “zero.” the null detector, of course, must be a device capable of detecting very small ac voltages.
