An Nmos Differential Amplifier Utilizes A Bias Current . #681 an nmos differential amplifier utilizes a bias current of 200ua. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. The nmos transistors are operated at vov=0.2v and. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. An nmos differential amplifier utilizes a bias current of 200µa. Note that this amplifier uses a single 5.
from www.numerade.com
The nmos transistors are operated at vov=0.2v and. Note that this amplifier uses a single 5. #681 an nmos differential amplifier utilizes a bias current of 200ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. An nmos differential amplifier utilizes a bias current of 200µa. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for.
Figure 3 An NMOS differential amplifier employing equal drain resistors
An Nmos Differential Amplifier Utilizes A Bias Current An nmos differential amplifier utilizes a bias current of 200µa. #681 an nmos differential amplifier utilizes a bias current of 200ua. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The nmos transistors are operated at vov=0.2v and. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a bias current of 200µa.
From www.researchgate.net
NMOS input differential Amplifier. Download Scientific Diagram An Nmos Differential Amplifier Utilizes A Bias Current S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. An nmos differential amplifier utilizes a bias current of 200µa. #681 an nmos differential. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com
⏩SOLVEDAn NMOS differential amplifier utilizes a bias current of An Nmos Differential Amplifier Utilizes A Bias Current S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. An nmos differential amplifier utilizes a bias current of 200µa. #681 an nmos differential amplifier utilizes a bias current of 200ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. Note that this amplifier. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

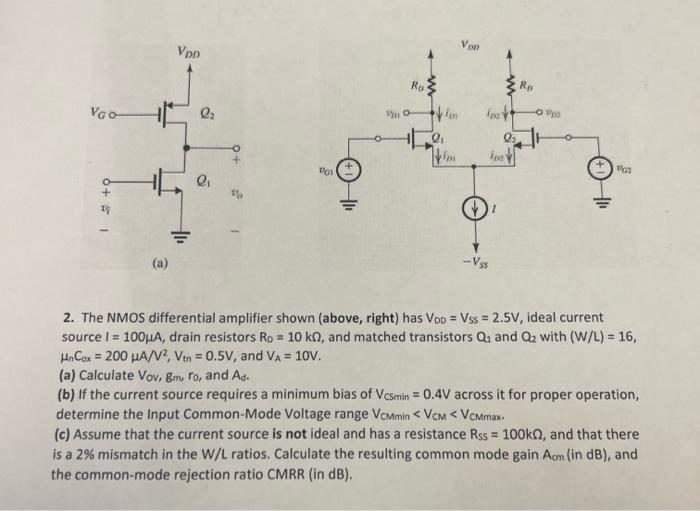

Solved 2. The NMOS differential amplifier shown (above, An Nmos Differential Amplifier Utilizes A Bias Current The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. The nmos transistors are operated at vov=0.2v and. Note that this amplifier uses a. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

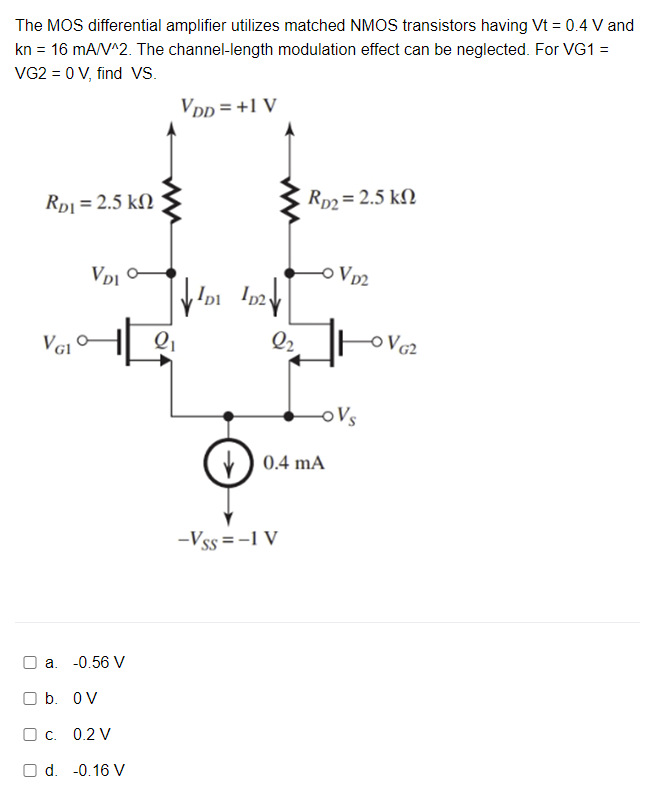

Solved The MOS differential amplifier utilizes matched NMOS An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. Note that this amplifier uses a single 5. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. An nmos differential amplifier utilizes a. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

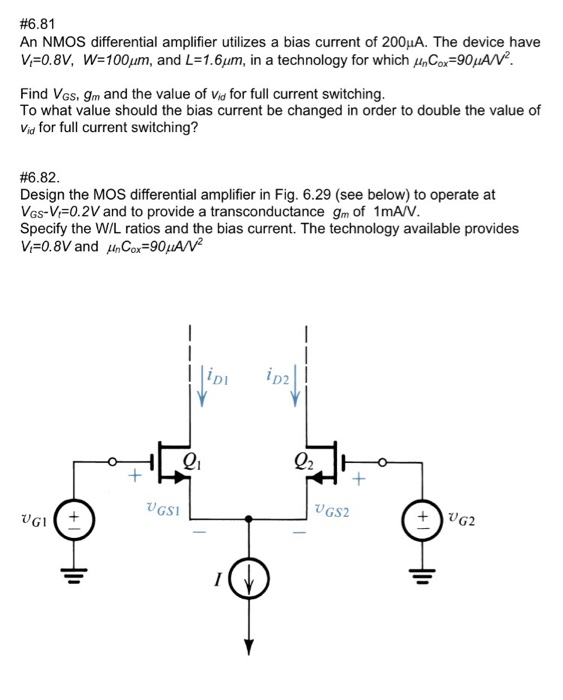

Solved 681 An NMOS differential amplifier utilizes a bias An Nmos Differential Amplifier Utilizes A Bias Current Note that this amplifier uses a single 5. #681 an nmos differential amplifier utilizes a bias current of 200ua. The nmos transistors are operated at vov=0.2v and. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com

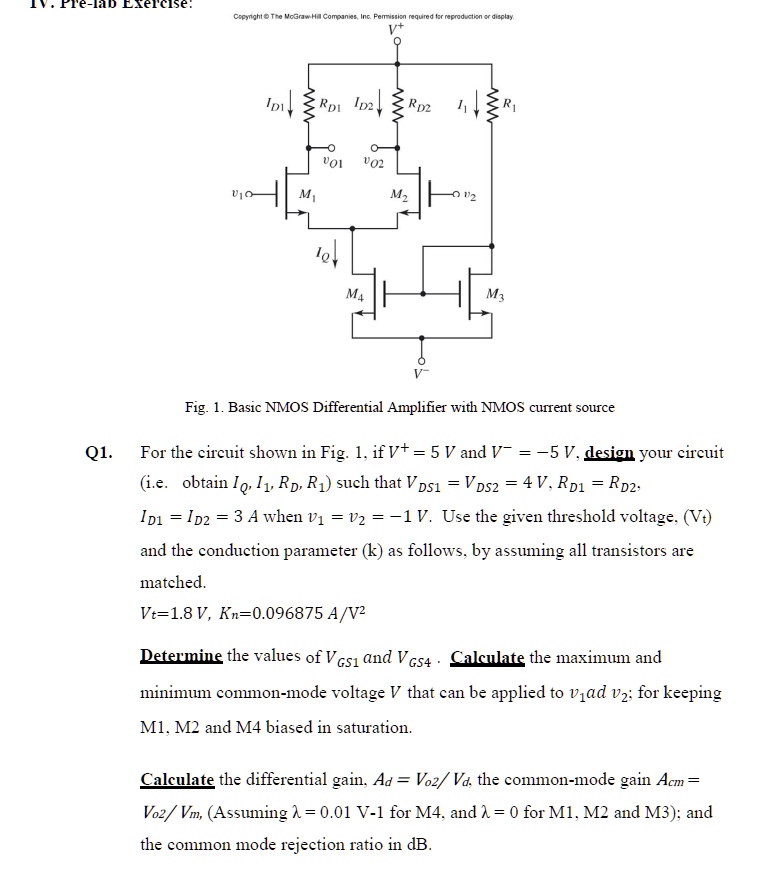

SOLVED I. Prelab Exercise Copyright © The McGrawHill Companies Fig An Nmos Differential Amplifier Utilizes A Bias Current The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The nmos transistors are operated at vov=0.2v and. #681 an nmos differential amplifier utilizes a bias current of 200ua. An nmos differential amplifier utilizes a bias current. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.doubtrix.com
a) Consider the NMOS differential amplifier given in Fig. 2. Assume VD An Nmos Differential Amplifier Utilizes A Bias Current Note that this amplifier uses a single 5. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. An nmos differential amplifier utilizes a bias current of 200µa. #681 an nmos differential amplifier utilizes a. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

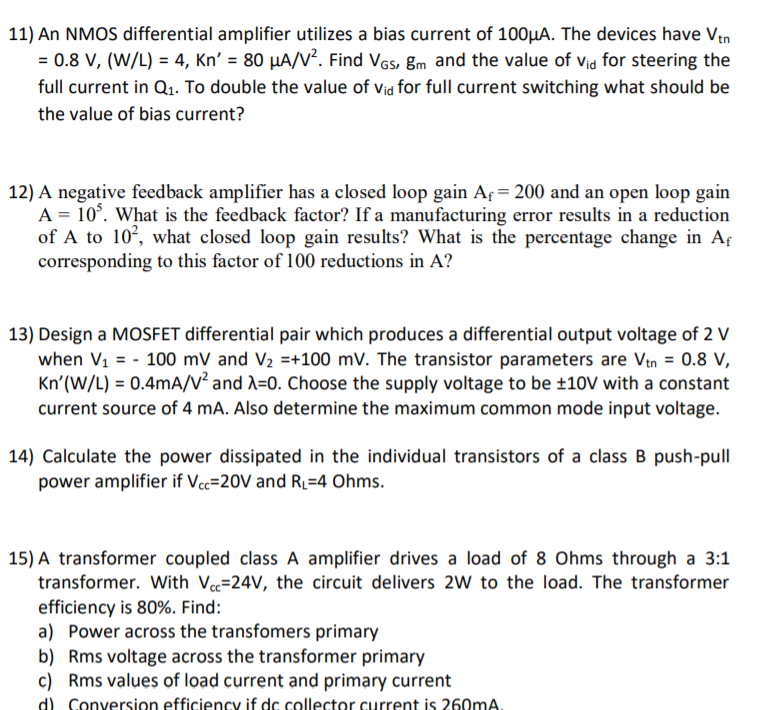

Solved 11) An NMOS differential amplifier utilizes a bias An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. An nmos differential amplifier utilizes a bias current of 200µa. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. Note that this amplifier uses a single 5. #681 an nmos differential amplifier utilizes a bias current. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com
An NMOS amplifier is shown in Figure 1. Transistor M1 is biased in the An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. An nmos differential amplifier utilizes a bias current of 200µa. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. #681 an nmos differential amplifier utilizes a bias current of 200ua. Note that this amplifier. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved a) Consider the NMOS differential amplifier given in An Nmos Differential Amplifier Utilizes A Bias Current An nmos differential amplifier utilizes a bias current of 200µa. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. #681 an nmos differential amplifier utilizes a bias current of 200ua. The nmos transistors are operated at. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com
Figure 3 An NMOS differential amplifier employing equal drain resistors An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. #681 an nmos differential amplifier utilizes a bias current of 200ua. Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

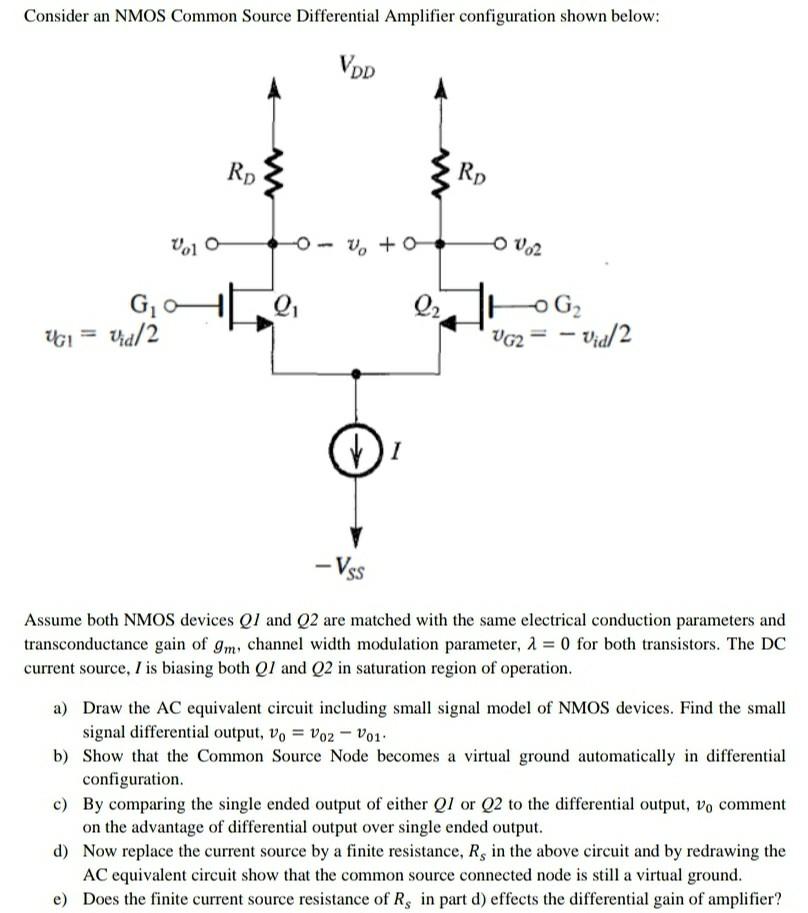

Solved Consider an NMOS Common Source Differential Amplifier An Nmos Differential Amplifier Utilizes A Bias Current The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. #681 an nmos differential amplifier utilizes a bias current of 200ua. An nmos differential amplifier utilizes a bias current of 200µa. Note that this amplifier uses a single 5. A differential amplifier is an amplifier that. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com
SOLVED The differential amplifier shown has a pair of PMOS transistors An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved An NMOS differential pair is biased by a current An Nmos Differential Amplifier Utilizes A Bias Current S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. #681 an nmos differential amplifier utilizes a bias current of 200ua. Note that this amplifier uses a single 5. The nmos transistors are operated at. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com

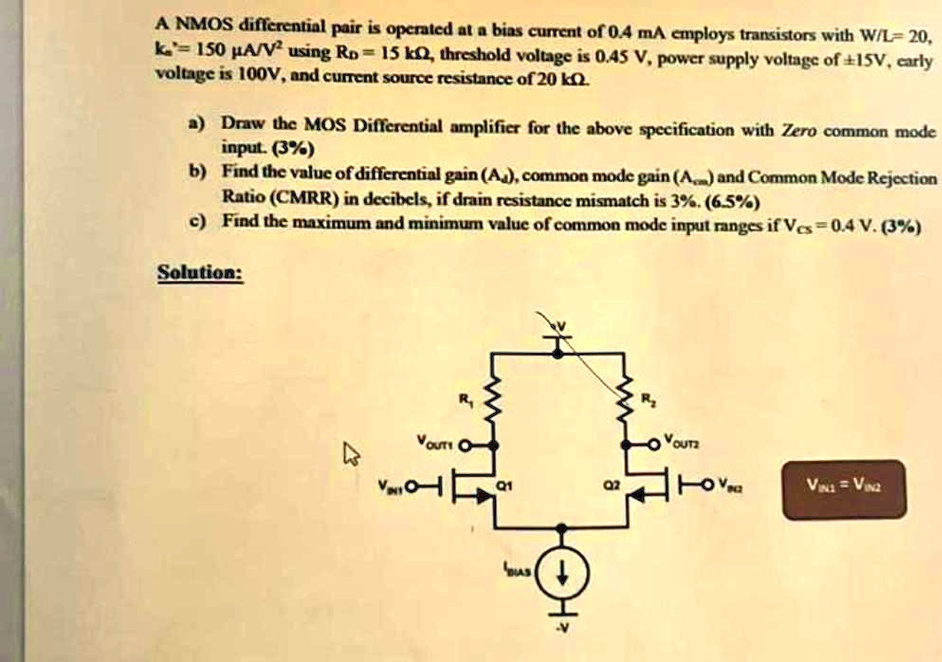

SOLVED A NMOS differential pair is operated at a bias current of 0.4 An Nmos Differential Amplifier Utilizes A Bias Current Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a bias current of 200µa. The nmos transistors are operated at vov=0.2v and. #681 an nmos differential amplifier utilizes a bias current of 200ua. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. A differential amplifier is an amplifier that amplifies the difference between two. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved A conceptual design of an NMOS amplifier is shown An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. Note that this amplifier uses a single 5. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. The nmos transistors are operated at vov=0.2v and. An nmos differential amplifier utilizes a bias current of 200µa. #681. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.coursehero.com
Diffamp simulation For the NMOS differential amplifier below in An Nmos Differential Amplifier Utilizes A Bias Current Note that this amplifier uses a single 5. The nmos transistors are operated at vov=0.2v and. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. An nmos differential amplifier utilizes a bias current of 200µa. S. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved A currentmirrorloaded NMOS differential amplifier An Nmos Differential Amplifier Utilizes A Bias Current S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. The nmos transistors are operated at vov=0.2v and. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. An nmos differential amplifier utilizes a. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved An NMOS differentia] amplifier utilizes a bias An Nmos Differential Amplifier Utilizes A Bias Current The nmos transistors are operated at vov=0.2v and. An nmos differential amplifier utilizes a bias current of 200µa. Note that this amplifier uses a single 5. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved PART1 [15 marks] An NMOS differential amplifier is An Nmos Differential Amplifier Utilizes A Bias Current The nmos transistors are operated at vov=0.2v and. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. An nmos differential amplifier utilizes a bias current of 200µa. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. Note that this amplifier uses a single 5. S. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved a) Consider the NMOS differrential amplifier given in An Nmos Differential Amplifier Utilizes A Bias Current S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. #681 an nmos differential amplifier utilizes a bias current of 200ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. Note that this amplifier uses a single 5. The device have vt=0.8v, w=100µm, and. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

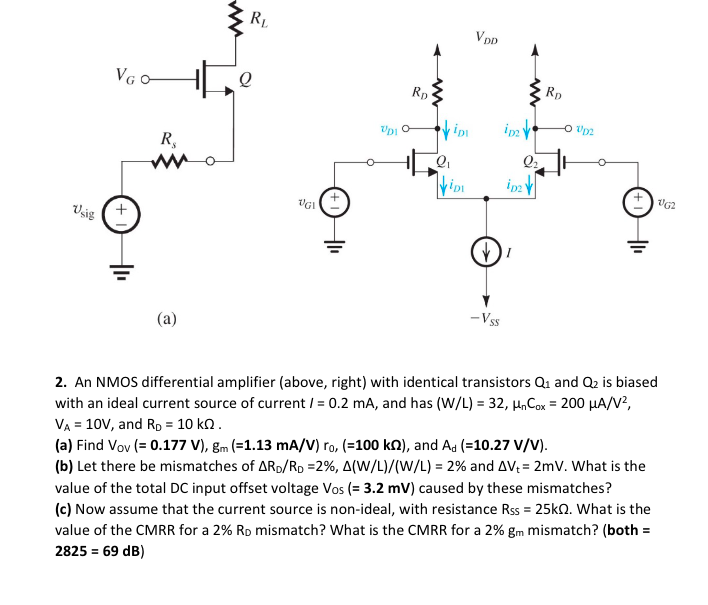

Solved VDD G O RD RD DI R, Sig 2. An NMOS differential An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. #681 an nmos differential amplifier utilizes a bias current of 200ua. Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a bias current of 200µa. The device have vt=0.8v, w=100µm, and l=1.6µm, in a. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com

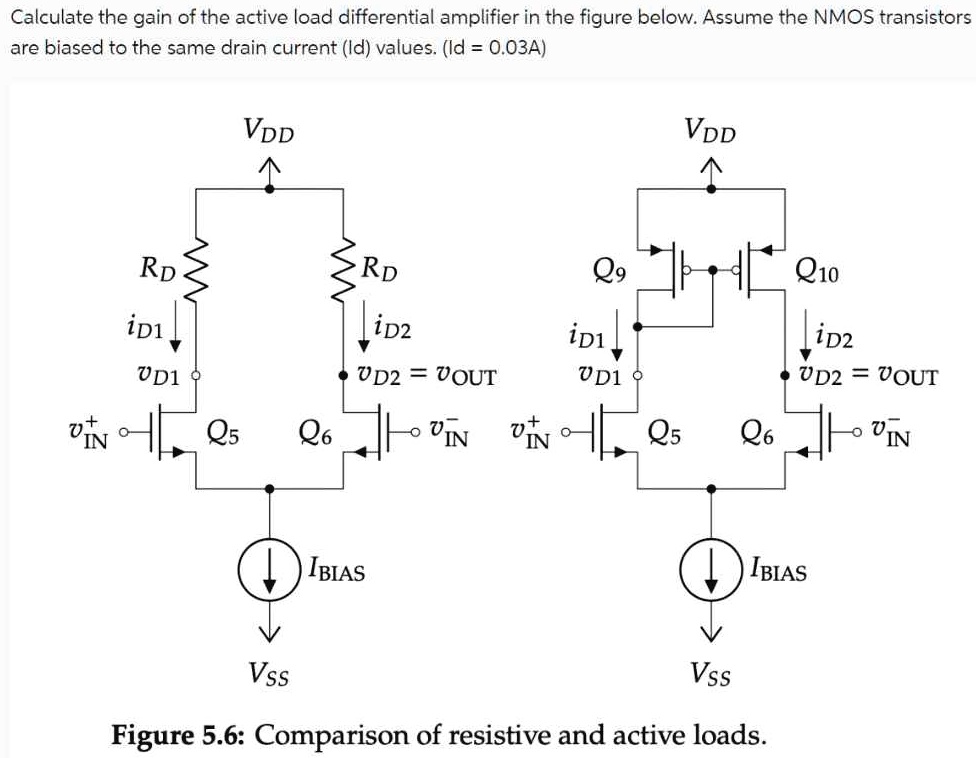

Calculate the gain of the active load differential amplifier in the An Nmos Differential Amplifier Utilizes A Bias Current Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a bias current of 200µa. #681 an nmos differential amplifier utilizes a bias current of 200ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. S 6.81 an nmos differential amplifier utilizes a bias. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com

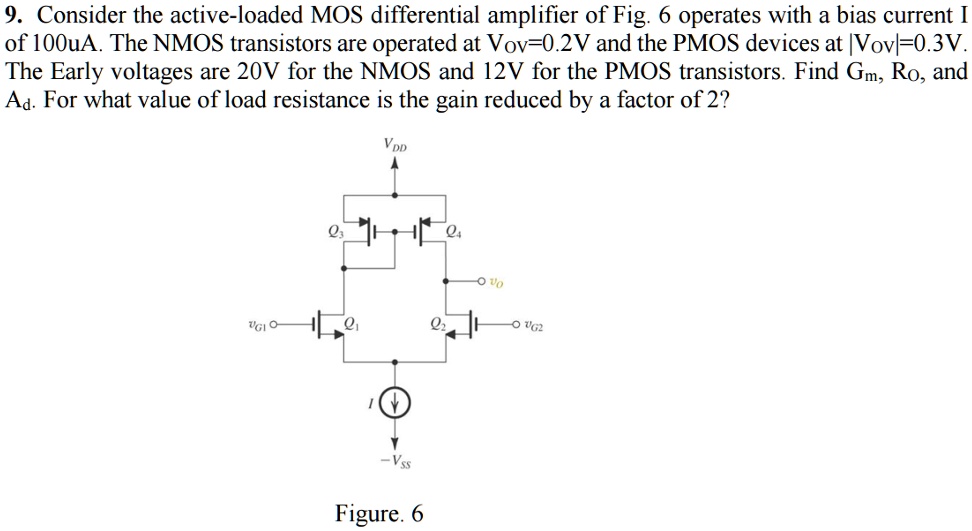

SOLVED 9. Consider the activeloaded MOS differential amplifier of Fig An Nmos Differential Amplifier Utilizes A Bias Current An nmos differential amplifier utilizes a bias current of 200µa. #681 an nmos differential amplifier utilizes a bias current of 200ua. The nmos transistors are operated at vov=0.2v and. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved A NMOS differential pair is operated at a bias An Nmos Differential Amplifier Utilizes A Bias Current The nmos transistors are operated at vov=0.2v and. Note that this amplifier uses a single 5. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. S 6.81 an nmos differential amplifier utilizes a bias current of. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com

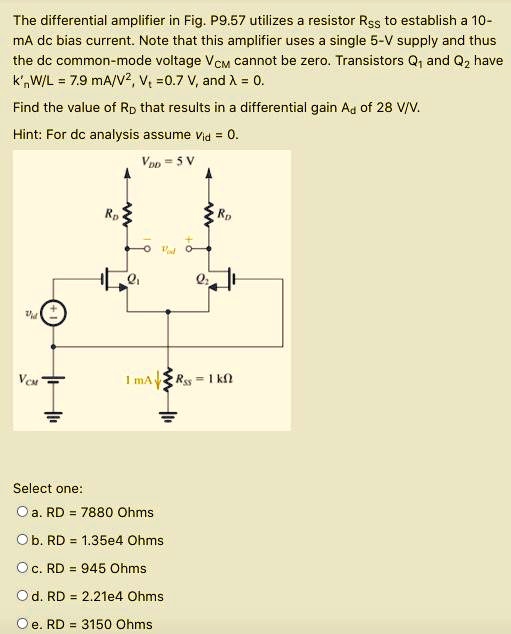

SOLVED The differential amplifier in Fig.P9.57 utilizes a resistor Rss An Nmos Differential Amplifier Utilizes A Bias Current Note that this amplifier uses a single 5. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The nmos transistors are operated at vov=0.2v and. #681 an nmos differential amplifier utilizes a bias current of 200ua.. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved An NMOS differential amplifier, as shown in Fig. 7 An Nmos Differential Amplifier Utilizes A Bias Current The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. Note that this amplifier uses a single 5. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. The nmos transistors are operated at vov=0.2v and. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

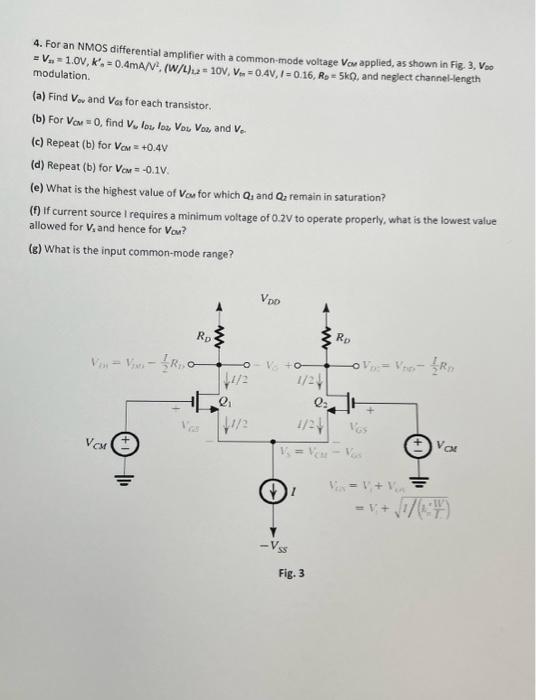

Solved 4. For an NMOS differential amplifier with a An Nmos Differential Amplifier Utilizes A Bias Current The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a bias current of 200µa. The nmos transistors are operated at vov=0.2v and. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. #681. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.numerade.com

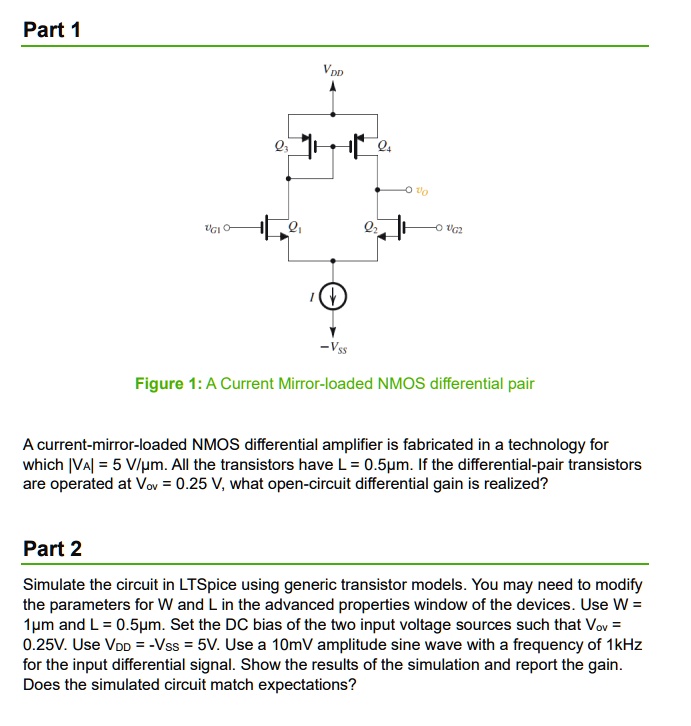

SOLVED Texts Part 1 Figure 1 A Current Mirrorloaded NMOS An Nmos Differential Amplifier Utilizes A Bias Current The nmos transistors are operated at vov=0.2v and. Note that this amplifier uses a single 5. An nmos differential amplifier utilizes a bias current of 200µa. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. #681 an nmos differential amplifier utilizes a bias current of. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
An NMOS differential pair has a tail bias current of An Nmos Differential Amplifier Utilizes A Bias Current A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. The nmos transistors are operated at vov=0.2v and. Note that this amplifier uses a single 5. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. #681 an nmos differential amplifier utilizes a bias current. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

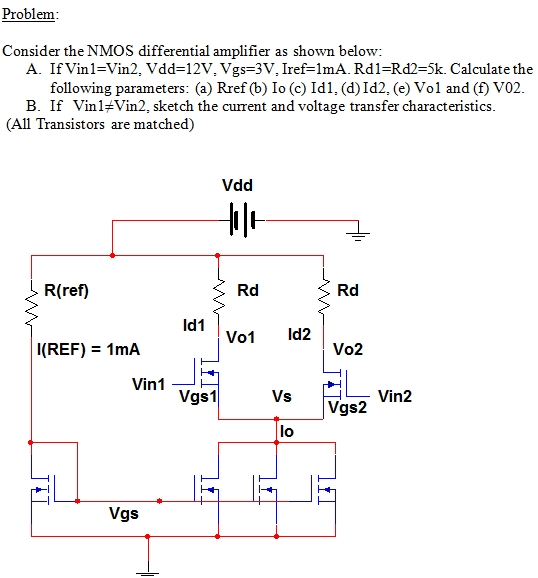

Solved Consider the NMOS differential amplifier as shown An Nmos Differential Amplifier Utilizes A Bias Current The nmos transistors are operated at vov=0.2v and. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. #681 an nmos differential amplifier utilizes a bias current of 200ua. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

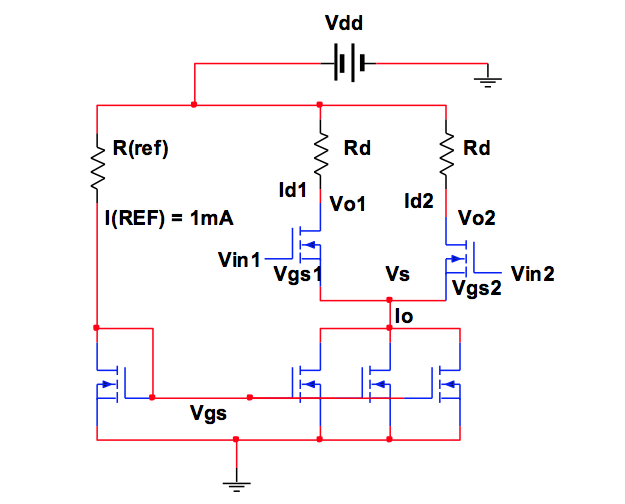

Solved Consider the NMOS differential amplifier as shown An Nmos Differential Amplifier Utilizes A Bias Current #681 an nmos differential amplifier utilizes a bias current of 200ua. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. Note that this amplifier uses a single 5. The nmos transistors are operated at vov=0.2v and. An nmos differential amplifier utilizes a bias current of 200µa. S 6.81 an nmos differential amplifier utilizes a bias current of 200. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com
Solved 1. An NMOS differential amplifier is operated at a An Nmos Differential Amplifier Utilizes A Bias Current #681 an nmos differential amplifier utilizes a bias current of 200ua. An nmos differential amplifier utilizes a bias current of 200µa. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. The nmos transistors are operated at vov=0.2v and. Note that this amplifier uses a single 5. A differential amplifier is an amplifier that amplifies the difference. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

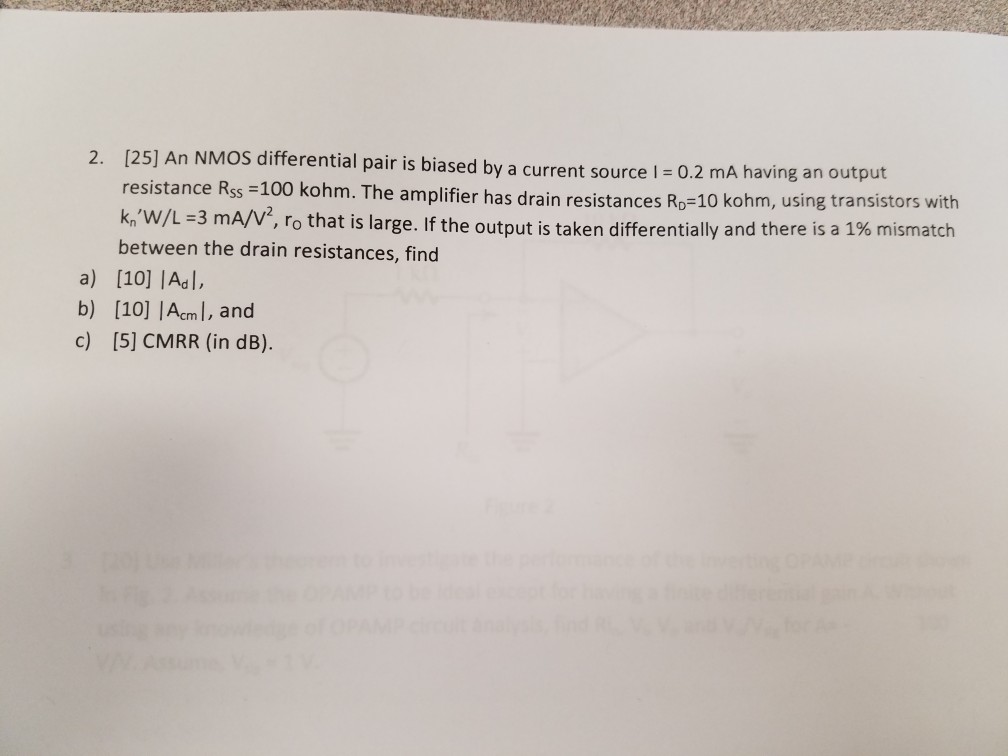

Solved [25] An NMOS differential pair is biased by a current An Nmos Differential Amplifier Utilizes A Bias Current Note that this amplifier uses a single 5. The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. The nmos transistors are operated at vov=0.2v and. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. #681 an nmos differential amplifier utilizes a bias current of 200ua. A differential amplifier is an amplifier that amplifies the. An Nmos Differential Amplifier Utilizes A Bias Current.
From www.chegg.com

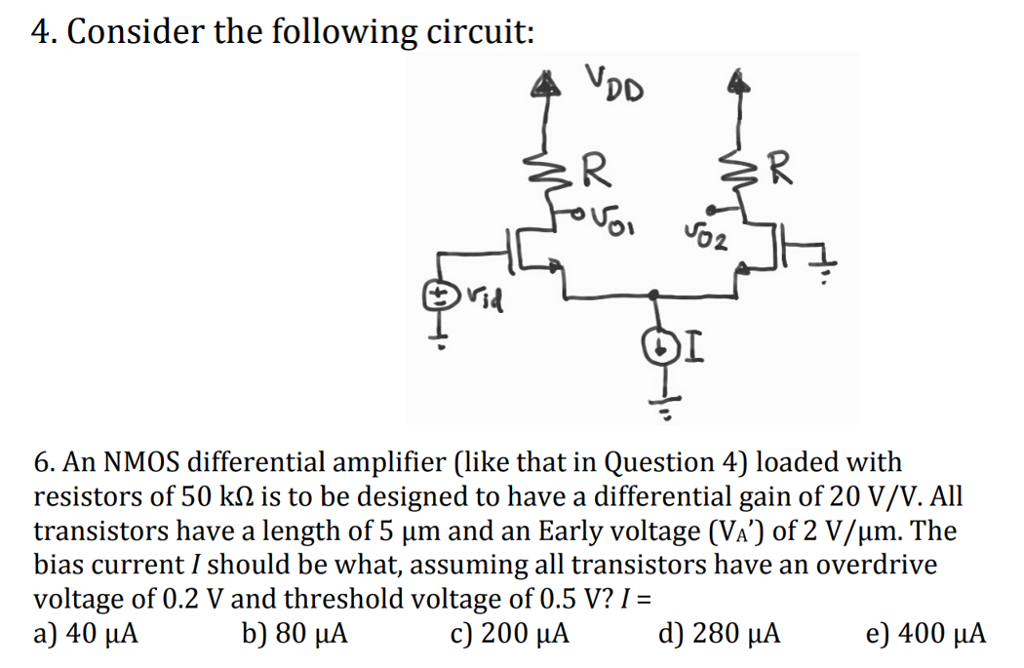

Solved 4. Consider the following circuit 4 Vpo 4 ER ER R An Nmos Differential Amplifier Utilizes A Bias Current The device have vt=0.8v, w=100µm, and l=1.6µm, in a technology for. S 6.81 an nmos differential amplifier utilizes a bias current of 200 ua. A differential amplifier is an amplifier that amplifies the difference between two voltages and rejects the average or common mode value of. An nmos differential amplifier utilizes a bias current of 200µa. #681 an nmos differential. An Nmos Differential Amplifier Utilizes A Bias Current.
