Pinion Depth Adjustment . To correct the pattern, move the pinion toward the ring gear centerline. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. A contact pattern closer to the gear face means the pinion is too far away from the ring gear. A contact pattern closer to the gear flank means the pinion is too close to the ring. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. Setting pinion depth the easy way step 1: Slide the calibration shaft over the gauge shaft and. A contact pattern centered from face to flank indicates the correct pinion depth. Next, check the pinion depth by way of the contact pattern. First, set the backlash using only light carrier bearing preload. For example, if the old pinion marking is (+4) and the. The proper preload can be added closer to final assembly. Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read.
from www.stevesnovasite.com
A contact pattern closer to the gear face means the pinion is too far away from the ring gear. A contact pattern closer to the gear flank means the pinion is too close to the ring. Setting pinion depth the easy way step 1: Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. First, set the backlash using only light carrier bearing preload. The proper preload can be added closer to final assembly. To correct the pattern, move the pinion toward the ring gear centerline. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. For example, if the old pinion marking is (+4) and the. A contact pattern centered from face to flank indicates the correct pinion depth.
Pinion depth adjustment or Backlash? Chevy Nova Forum
Pinion Depth Adjustment Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Slide the calibration shaft over the gauge shaft and. Next, check the pinion depth by way of the contact pattern. To correct the pattern, move the pinion toward the ring gear centerline. Setting pinion depth the easy way step 1: For example, if the old pinion marking is (+4) and the. A contact pattern centered from face to flank indicates the correct pinion depth. Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. First, set the backlash using only light carrier bearing preload. The proper preload can be added closer to final assembly. A contact pattern closer to the gear flank means the pinion is too close to the ring. A contact pattern closer to the gear face means the pinion is too far away from the ring gear.
From www.youtube.com
Contact Patch & Pinion Depth Explained YouTube Pinion Depth Adjustment A contact pattern closer to the gear face means the pinion is too far away from the ring gear. A contact pattern closer to the gear flank means the pinion is too close to the ring. A contact pattern centered from face to flank indicates the correct pinion depth. Make sure you use only real gear marking compound (available from. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment Slide the calibration shaft over the gauge shaft and. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Setting pinion depth the easy way step 1: A contact pattern closer to the gear flank means the pinion is too close to the ring. Make sure you use only real gear marking. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment A contact pattern closer to the gear face means the pinion is too far away from the ring gear. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Make sure you. Pinion Depth Adjustment.
From shop.advanceautoparts.com

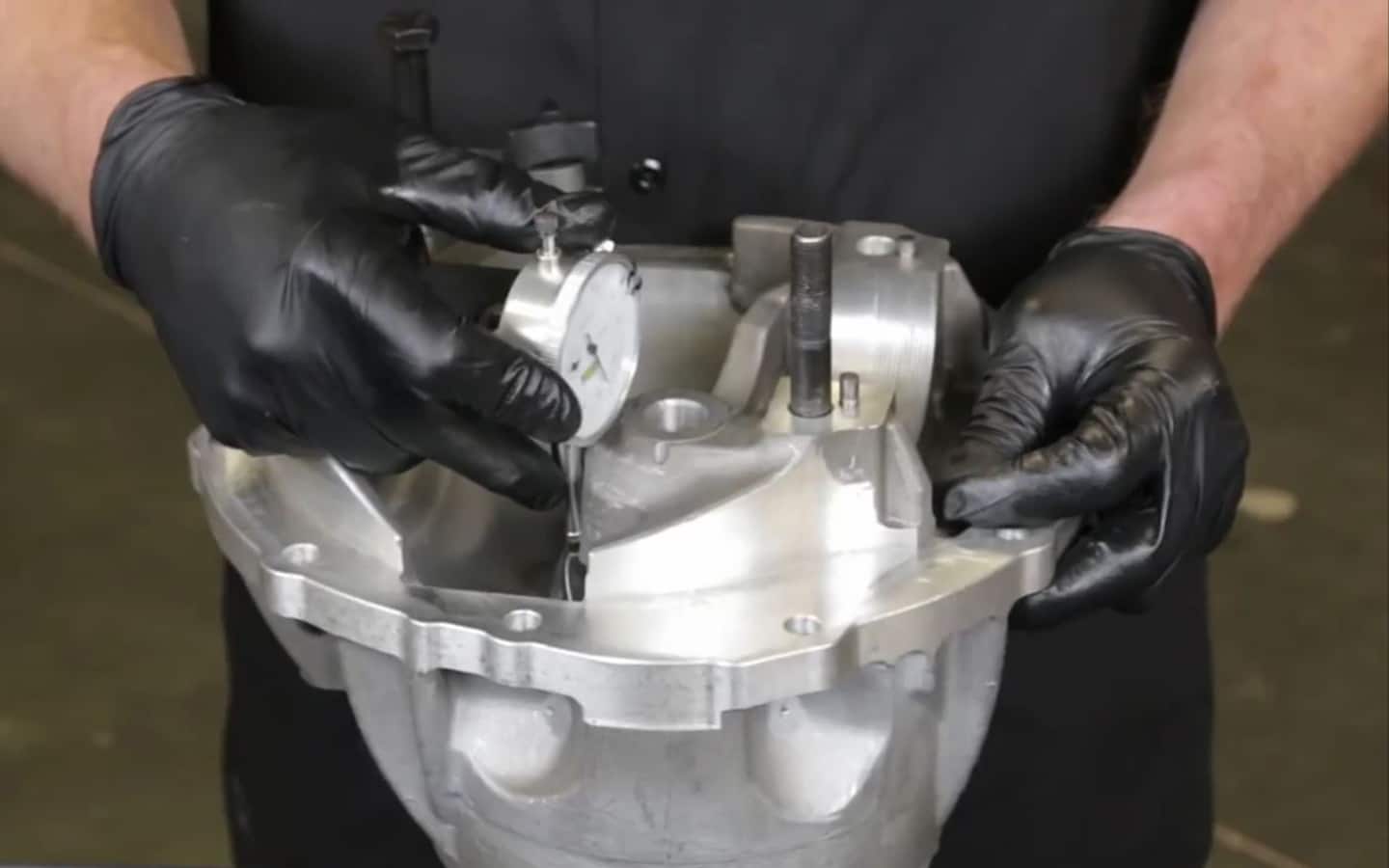

Installing New Gears or a New Third Member Advance Auto Parts Pinion Depth Adjustment The proper preload can be added closer to final assembly. Slide the calibration shaft over the gauge shaft and. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. A contact pattern centered from face to flank indicates the correct pinion depth. Setting pinion depth the easy way step 1:. Pinion Depth Adjustment.
From www.stevesnovasite.com
Pinion depth adjustment or Backlash? Chevy Nova Forum Pinion Depth Adjustment Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. The proper preload can be added closer to final assembly. A contact pattern centered from face to flank indicates the correct pinion depth. A contact pattern closer to the gear flank means the pinion is too. Pinion Depth Adjustment.
From www.youtube.com
Rollix tutorial 3 Installation of your slewing bearing Pinions Pinion Depth Adjustment First, set the backlash using only light carrier bearing preload. For example, if the old pinion marking is (+4) and the. Setting pinion depth the easy way step 1: A contact pattern closer to the gear face means the pinion is too far away from the ring gear. A contact pattern centered from face to flank indicates the correct pinion. Pinion Depth Adjustment.
From garage.grumpysperformance.com
Dana 60 all the same? Page 3 Grumpys Performance Garage Pinion Depth Adjustment Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. For example, if the old pinion marking is (+4) and the. The proper preload can be. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment For example, if the old pinion marking is (+4) and the. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. To correct the pattern, move the pinion. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment A contact pattern closer to the gear face means the pinion is too far away from the ring gear. First, set the backlash using only light carrier bearing preload. A contact pattern closer to the gear flank means the pinion is too close to the ring. For example, if the old pinion marking is (+4) and the. Slide the calibration. Pinion Depth Adjustment.
From www.youtube.com
Dana 44 Rebuild Pinion Depth, Backlash and Shim Setup YouTube Pinion Depth Adjustment Setting pinion depth the easy way step 1: Slide the calibration shaft over the gauge shaft and. First, set the backlash using only light carrier bearing preload. A contact pattern centered from face to flank indicates the correct pinion depth. To correct the pattern, move the pinion toward the ring gear centerline. Calculate the adjustment by subtracting the new pinion. Pinion Depth Adjustment.
From www.youtube.com
How To Install Ring And Pinion Gears YouTube Pinion Depth Adjustment Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. For example, if the old pinion marking is (+4) and the. A contact pattern centered from face to flank indicates the correct pinion depth. To correct the pattern, move the pinion toward the ring gear centerline. A contact pattern closer. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment Next, check the pinion depth by way of the contact pattern. A contact pattern closer to the gear face means the pinion is too far away from the ring gear. First, set the backlash using only light carrier bearing preload. Slide the calibration shaft over the gauge shaft and. A contact pattern centered from face to flank indicates the correct. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment The proper preload can be added closer to final assembly. Next, check the pinion depth by way of the contact pattern. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Setting pinion depth the easy way step 1: Adjusting the pinion depth in your vehicle’s differential can be a crucial step. Pinion Depth Adjustment.
From www.slideserve.com
PPT Ring and Pinion Adjustments PowerPoint Presentation ID351877 Pinion Depth Adjustment A contact pattern centered from face to flank indicates the correct pinion depth. Next, check the pinion depth by way of the contact pattern. Slide the calibration shaft over the gauge shaft and. First, set the backlash using only light carrier bearing preload. For example, if the old pinion marking is (+4) and the. A contact pattern closer to the. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. A contact pattern closer to the gear flank means the pinion is too close to the ring. A contact pattern closer to the gear face means the pinion is too far away from the ring gear. Make sure you use. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment The proper preload can be added closer to final assembly. For example, if the old pinion marking is (+4) and the. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. A. Pinion Depth Adjustment.
From www.carid.com
Ratech® 10006 Pinion Depth Setting Tool Pinion Depth Adjustment Slide the calibration shaft over the gauge shaft and. For example, if the old pinion marking is (+4) and the. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. Next, check the pinion depth by way of the contact pattern. Setting pinion depth the easy way step 1: Calculate. Pinion Depth Adjustment.
From www.youtube.com
HOW TO 3rd/4th Gen FBody Pinion Angle Adjustment YouTube Pinion Depth Adjustment Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. To correct the pattern, move the pinion toward the ring gear centerline. A contact pattern closer to the gear face means the pinion is too far away from the ring gear. A contact pattern closer to the gear flank means. Pinion Depth Adjustment.
From classicautoadvisors.com
Classic Car Pinion Angle Why It Is Important Classic Auto Advisors Pinion Depth Adjustment Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. A contact pattern closer to the gear flank means the pinion is too close to the ring. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and. Pinion Depth Adjustment.
From www.walmart.com
Proform 66516 Differential Pinion Depth Setting Tool, Aluminum Red Pinion Depth Adjustment Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. First, set the backlash using only light carrier bearing preload. A contact pattern centered from face to flank indicates the correct pinion depth. Next, check the pinion depth by way of the contact pattern. To correct. Pinion Depth Adjustment.
From www.slideserve.com
PPT Ring and Pinion Adjustments PowerPoint Presentation, free Pinion Depth Adjustment First, set the backlash using only light carrier bearing preload. Next, check the pinion depth by way of the contact pattern. The proper preload can be added closer to final assembly. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Adjusting the pinion depth in your vehicle’s differential can be a. Pinion Depth Adjustment.
From www.stevesnovasite.com
Pinion depth adjustment or Backlash? Chevy Nova Forum Pinion Depth Adjustment A contact pattern centered from face to flank indicates the correct pinion depth. Next, check the pinion depth by way of the contact pattern. Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. Slide the calibration shaft over the gauge shaft and. Setting pinion depth. Pinion Depth Adjustment.
From mrfiat.com
Fiat 1100 Rear Axle Pinion Depth Adjustment Shim .020 MrFiat Pinion Depth Adjustment Slide the calibration shaft over the gauge shaft and. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. The proper preload can be added closer to final assembly. Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment First, set the backlash using only light carrier bearing preload. For example, if the old pinion marking is (+4) and the. To correct the pattern, move the pinion toward the ring gear centerline. Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. Setting pinion depth. Pinion Depth Adjustment.
From www.stevesnovasite.com
Pinion depth adjustment or Backlash? Chevy Nova Forum Pinion Depth Adjustment Setting pinion depth the easy way step 1: For example, if the old pinion marking is (+4) and the. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. To correct the pattern, move the pinion toward the ring gear centerline. Make sure you use only real gear marking compound. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment A contact pattern closer to the gear flank means the pinion is too close to the ring. Setting pinion depth the easy way step 1: For example, if the old pinion marking is (+4) and the. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Next, check the pinion depth by. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment Next, check the pinion depth by way of the contact pattern. First, set the backlash using only light carrier bearing preload. To correct the pattern, move the pinion toward the ring gear centerline. A contact pattern closer to the gear flank means the pinion is too close to the ring. Adjusting the pinion depth in your vehicle’s differential can be. Pinion Depth Adjustment.
From bernardembden.com
Differential Pinion PreLoad Adjustment. Pinion Depth Adjustment To correct the pattern, move the pinion toward the ring gear centerline. First, set the backlash using only light carrier bearing preload. Slide the calibration shaft over the gauge shaft and. For example, if the old pinion marking is (+4) and the. Next, check the pinion depth by way of the contact pattern. A contact pattern closer to the gear. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment To correct the pattern, move the pinion toward the ring gear centerline. A contact pattern closer to the gear face means the pinion is too far away from the ring gear. Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. First, set the backlash using. Pinion Depth Adjustment.
From www.stevesnovasite.com
Pinion depth adjustment or Backlash? Chevy Nova Forum Pinion Depth Adjustment The proper preload can be added closer to final assembly. First, set the backlash using only light carrier bearing preload. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. Slide the calibration shaft over the gauge shaft and. A contact pattern closer to the gear face means the pinion. Pinion Depth Adjustment.
From www.youtube.com
Differential Service Pinion Depth Measurement YouTube Pinion Depth Adjustment Make sure you use only real gear marking compound (available from gm as part # 1052351), as other marking substances are difficult to read. Slide the calibration shaft over the gauge shaft and. The proper preload can be added closer to final assembly. For example, if the old pinion marking is (+4) and the. Calculate the adjustment by subtracting the. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment Slide the calibration shaft over the gauge shaft and. First, set the backlash using only light carrier bearing preload. A contact pattern closer to the gear flank means the pinion is too close to the ring. The proper preload can be added closer to final assembly. Next, check the pinion depth by way of the contact pattern. A contact pattern. Pinion Depth Adjustment.
From www.racingjunk.com
Setting Pinion Depth and Backlash RacingJunk News Pinion Depth Adjustment A contact pattern closer to the gear flank means the pinion is too close to the ring. Calculate the adjustment by subtracting the new pinion marking from the old, being careful to observe the signs. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and vehicle. Setting pinion depth the easy. Pinion Depth Adjustment.
From exozcxaoz.blob.core.windows.net
Setting Pinion Depth And Backlash at Cameron Cory blog Pinion Depth Adjustment Slide the calibration shaft over the gauge shaft and. A contact pattern closer to the gear face means the pinion is too far away from the ring gear. To correct the pattern, move the pinion toward the ring gear centerline. A contact pattern closer to the gear flank means the pinion is too close to the ring. First, set the. Pinion Depth Adjustment.
From www.onallcylinders.com
Guide to Setting Pinion Angle Pinion Depth Adjustment Setting pinion depth the easy way step 1: The proper preload can be added closer to final assembly. First, set the backlash using only light carrier bearing preload. A contact pattern centered from face to flank indicates the correct pinion depth. Adjusting the pinion depth in your vehicle’s differential can be a crucial step in maintaining optimal gear alignment and. Pinion Depth Adjustment.
