Bathroom Heater Voltage

A bathroom heater is an essential appliance to have, especially during the colder months. It helps keep the bathroom warm and comfortable, making it a more pleasant space to be in. However, installing a bathroom heater requires proper wiring to ensure safety and efficient operation.

The wiring diagram for a bathroom heater may vary depending on the specific model and type of heater you have. The most common voltage options for electric heaters are 120 volt or 240 volt. Higher voltage heaters draw more power from your circuit breaker, so it is important to know how much voltage your circuit breaker can handle.

Specifically, a 240-volt, 2,000-watt heater will use up 8.3 amperes of current but a 120-volt, 2,000-watt device eats up 16.6 amps. If you are just about to install a baseboard heater, then you can determine which model and voltage are most efficient given the space you want to be heated up. Right voltage for replacement heaters If you're replacing an old heater, the new heater needs to be the same voltage as the old heater.

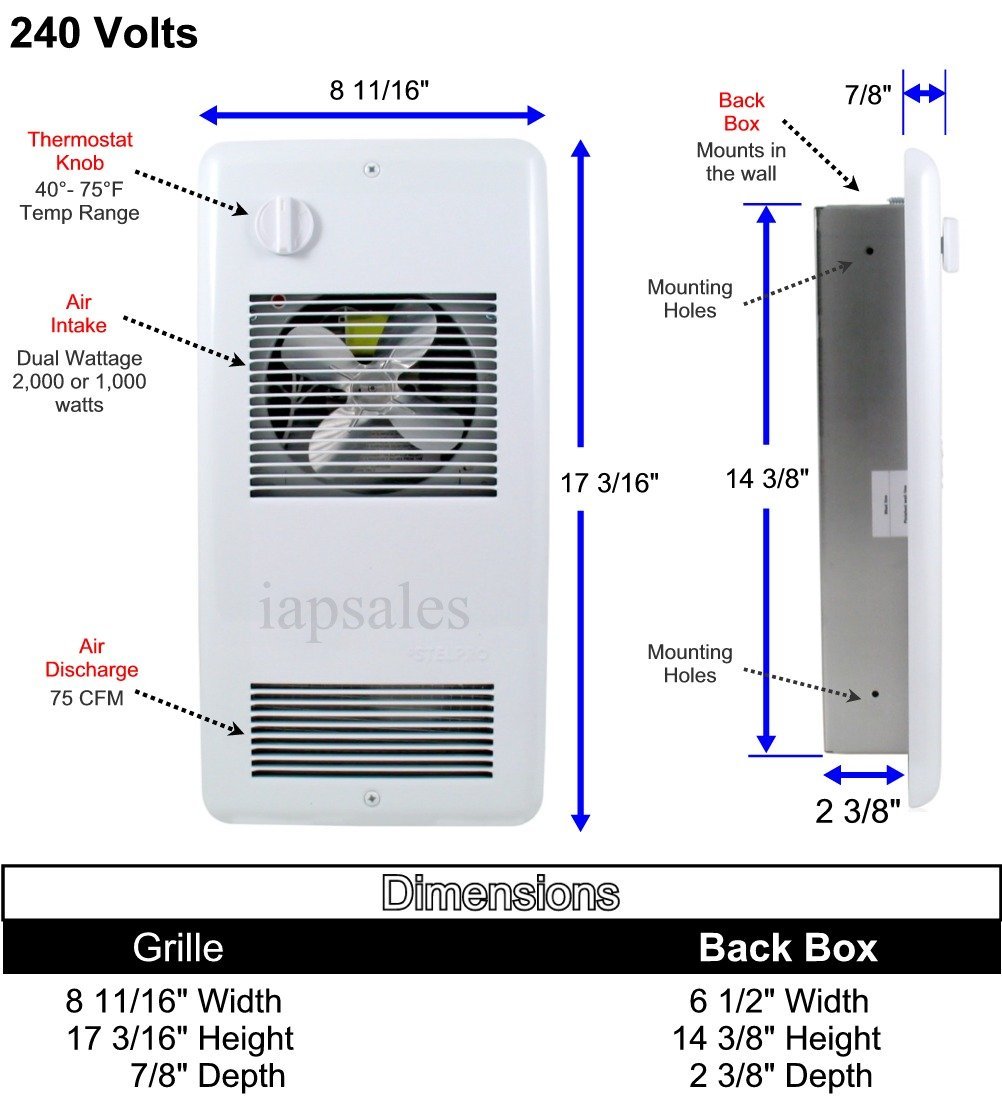

The easiest way to find the voltage of your old heater is to check the product label. You can find the voltage listed on product rating labels. This CS102 is rated for 240/208 volts.

For a bathroom fan/light/heater unit, the manufacturer's directions call for a separate 20-amp circuit. However, the heater is 1300 watts, fan 145 watts, and the maximum bulb wattage is 100, for a total of 1545 watts. Important NEC Bathroom Regulations General lighting/fan circuit required: Each bathroom should have a circuit for lighting and an exhaust fan.

According to the Code, this circuit may be a 15-amp circuit if it serves just lighting, but it should be a 20-amp circuit if it is also serving a vent fan. If the vent fan includes a heat lamp, then a separate 20-amp circuit, in addition to the lighting. 120 and 240 Volt heaters are not interchangeable.

A 240 Volt heater run at 120 Volt will produce 25% of the rated wattage. A 120 Volt heater run at 240 Volt will be 4x 120 Volt rated wattage, destroying the heater which possesses a severe fire hazard. What voltage are my heaters? See Figures 1& 2.

The in-wall electric heaters typically have a built-in thermostat control and is pre-wired, only the main circuit connection is required. Circuit wiring is connected in a built in electrical junction box. When replacing an existing wall heater it is best to purchase a new wall heater with the same voltage and amperage rating as the original heater.

New home construction. When it was built, I requested an extra power box in the wall in each of the 2 bathrooms so I could install in. Sometimes heaters can be operated at a voltage that's different from what they're designed for.

Sometimes they cannot. Learn the consequences of applying a voltage to a heater that's different from what's marked on it.
