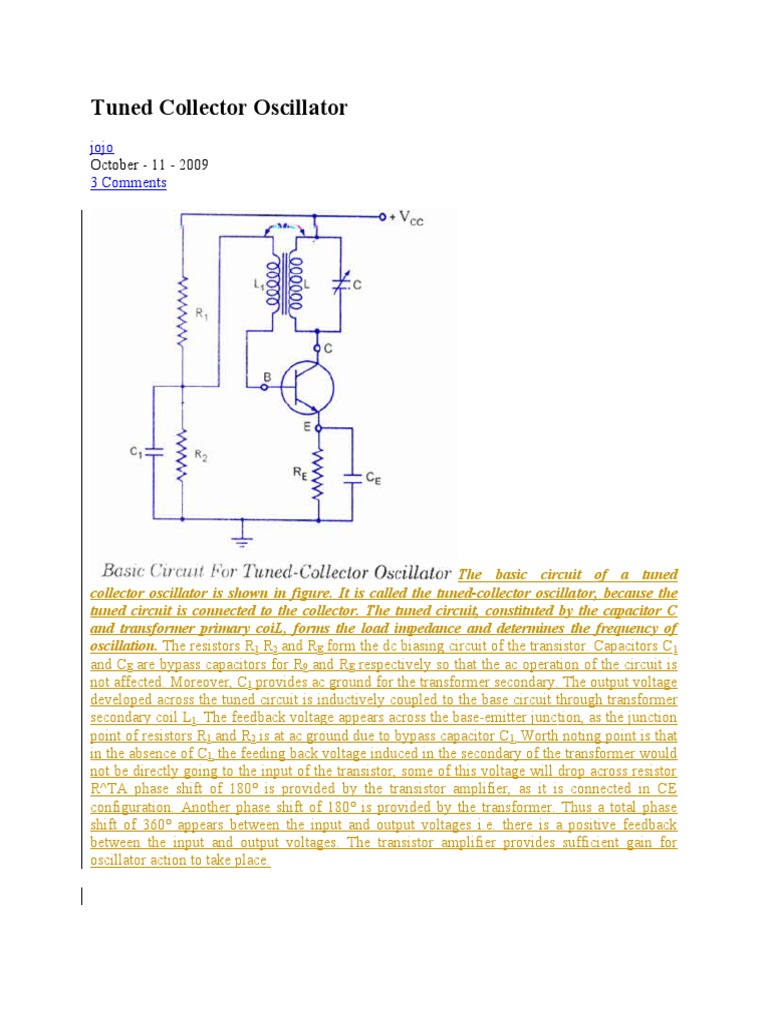

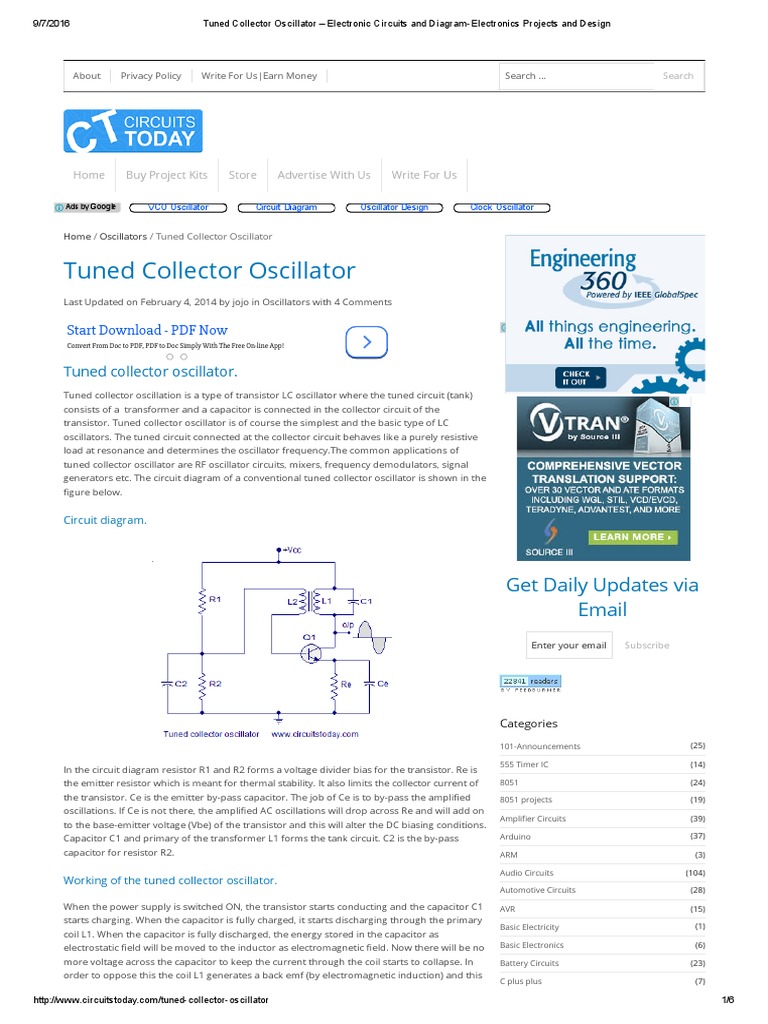

Tuned Collector Oscillator Circuit Diagram. The figure show circuit diagram of tune collector oscillator. R 1 and r 2 form. When the capacitor is fully. It is called the tuned collector oscillator, because the tuned circuit is con­nected to the collector. Tuned collector oscillator circuit diagram. That consist of transformer and the capacitor is connected to the. Oscillators are electronic circuits that generate a continuous periodic waveform at a precise frequency. When the power supply is switched on, the transistor starts conducting and the capacitor c1 starts charging. The circuit diagram shows the tuned collector oscillator. An lc oscillator converts a dc input (the supply voltage) into. The tuned circuit, con­stituted by the capacitor c and transformer pri­mary coil l,. There are two common types: For the transistor, the resistors r1, r2 form a voltage divider bias. The transformer and capacitor are connected to the transistor’s collector, producing a sine wave. The circuit diagram of the tuned collector oscillator is shown below.

An lc oscillator converts a dc input (the supply voltage) into. There are two common types: The tuned circuit, con­stituted by the capacitor c and transformer pri­mary coil l,. That consist of transformer and the capacitor is connected to the. The circuit diagram of the tuned collector oscillator is shown below. For the transistor, the resistors r1, r2 form a voltage divider bias. When the capacitor is fully. It is called the tuned collector oscillator, because the tuned circuit is con­nected to the collector. Tuned collector oscillator circuit diagram. When the power supply is switched on, the transistor starts conducting and the capacitor c1 starts charging.

Sinewave Feedback LC Oscillators Sinewave Feedback LC Oscillators

Tuned Collector Oscillator Circuit Diagram The transformer and capacitor are connected to the transistor’s collector, producing a sine wave. The circuit diagram of the tuned collector oscillator is shown below. Working of the tuned collector oscillator. The circuit diagram shows the tuned collector oscillator. The figure show circuit diagram of tune collector oscillator. That consist of transformer and the capacitor is connected to the. The transformer and capacitor are connected to the transistor’s collector, producing a sine wave. For the transistor, the resistors r1, r2 form a voltage divider bias. There are two common types: When the capacitor is fully. The tuned circuit, con­stituted by the capacitor c and transformer pri­mary coil l,. An lc oscillator converts a dc input (the supply voltage) into. Tuned collector oscillator circuit diagram. Tuned oscillator circuits tuned oscillators use a parallel lc resonant circuit (lc tank) to provide the oscillations. It is called the tuned collector oscillator, because the tuned circuit is con­nected to the collector. When the power supply is switched on, the transistor starts conducting and the capacitor c1 starts charging.
