The Resistive Network Shown Below Is Connected . P = v × i. P = 8r162 = 4 ∴ r = 8ω. The resistive network shown below is connected to a d.c. Applying ohm’s law, i = v/r. A network of resistors is connected to a 16v battery as shown in the following figure. In this chapter, we use these electric components in circuits. The power is given by the formula: The resistive network shown below is connected to a d.c. A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. A circuit is a collection of electrical components connected to accomplish a. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. The internal resistance of the two batteries. The power consumed by the network is 4 watt. The power consumed by the network is 4 watt. If the maximum power can be delivered to the.
from www.coursehero.com
If the maximum power can be delivered to the. The value of r is: Compute the equivalent resistance of the network. The power is given by the formula: The power consumed by the network is 4 watt. The internal resistance of the two batteries. P = v × i. Applying ohm’s law, i = v/r. A network of resistors is connected to a 16v battery as shown in the following figure. A circuit is a collection of electrical components connected to accomplish a.
[Solved] QUESTION 1 (2 marks) Consider the resistive network shown
The Resistive Network Shown Below Is Connected P = 8r162 = 4 ∴ r = 8ω. A circuit is a collection of electrical components connected to accomplish a. The resistive network shown below is connected to a d.c. A network of resistors is connected to a 16v battery as shown in the following figure. P = 8r162 = 4 ∴ r = 8ω. If the maximum power can be delivered to the. The resistive network shown below is connected to a d.c. The value of r is: The power is given by the formula: 12 v and 13 v are connected in parallel across a load resistor of 10 ω. Compute the equivalent resistance of the network. The internal resistance of the two batteries. The power consumed by the network is 4 watt. In this chapter, we use these electric components in circuits. A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. P = v × i.
From www.chegg.com
Solved 2. The three phase unidirectional controller is shown The Resistive Network Shown Below Is Connected In this chapter, we use these electric components in circuits. The resistive network shown below is connected to a d.c. A circuit is a collection of electrical components connected to accomplish a. A network of resistors is connected to a 16v battery as shown in the following figure. The resistive network shown below is connected to a d.c. P =. The Resistive Network Shown Below Is Connected.
From www.toppr.com
The resistive network shown below i connected to a D.C. of 16V. he The Resistive Network Shown Below Is Connected 12 v and 13 v are connected in parallel across a load resistor of 10 ω. The resistive network shown below is connected to a d.c. The power is given by the formula: The resistive network shown below is connected to a d.c. The value of r is: P = v × i. Applying ohm’s law, i = v/r. The. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved 4. In the resistor network shown, what is the The Resistive Network Shown Below Is Connected P = 8r162 = 4 ∴ r = 8ω. The internal resistance of the two batteries. Compute the equivalent resistance of the network. The value of r is: A network of resistors is connected to a 16v battery as shown in the following figure. The power consumed by the network is 4 watt. If the maximum power can be delivered. The Resistive Network Shown Below Is Connected.
From askfilo.com

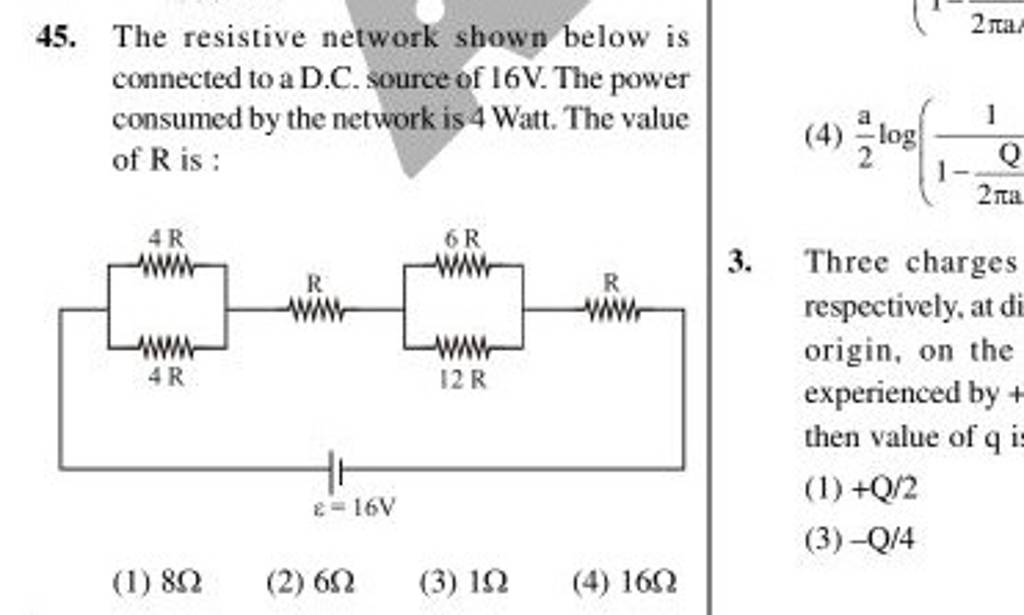

The resistive network shown below is connected to a D.C. source of 16math.. The Resistive Network Shown Below Is Connected A network of resistors is connected to a 16v battery as shown in the following figure. The value of r is: The power consumed by the network is 4 watt. P = 8r162 = 4 ∴ r = 8ω. The resistive network shown below is connected to a d.c. 12 v and 13 v are connected in parallel across a. The Resistive Network Shown Below Is Connected.
From www.coursehero.com
[Solved] In pic shown 1. For the resistive network shown below, a. (10 The Resistive Network Shown Below Is Connected The internal resistance of the two batteries. The power consumed by the network is 4 watt. The power consumed by the network is 4 watt. The resistive network shown below is connected to a d.c. The value of r is: A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. A. The Resistive Network Shown Below Is Connected.
From askfilo.com
25. For the network shown below, the value VB −VA is Filo The Resistive Network Shown Below Is Connected The resistive network shown below is connected to a d.c. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. The power is given by the formula: P = v × i. A circuit is. The Resistive Network Shown Below Is Connected.
From www.toppr.com
The equivalent resistance of the circuit shown in the figure between The Resistive Network Shown Below Is Connected Compute the equivalent resistance of the network. The internal resistance of the two batteries. The resistive network shown below is connected to a d.c. A circuit is a collection of electrical components connected to accomplish a. The power consumed by the network is 4 watt. If the maximum power can be delivered to the. The power is given by the. The Resistive Network Shown Below Is Connected.
From www.numerade.com

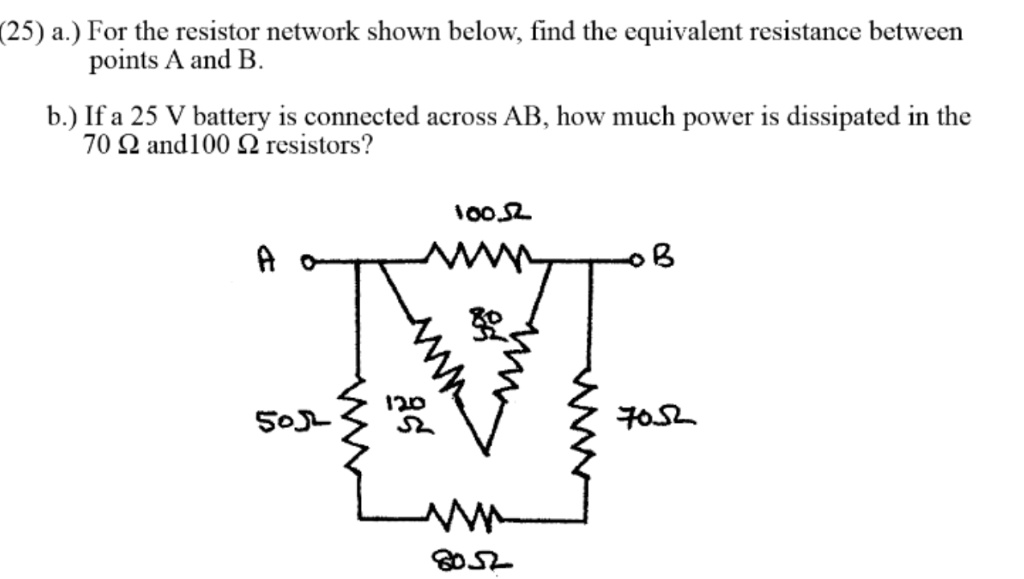

SOLVED a.) For the resistor network shown below, find the equivalent The Resistive Network Shown Below Is Connected 12 v and 13 v are connected in parallel across a load resistor of 10 ω. P = 8r162 = 4 ∴ r = 8ω. The value of r is: The power consumed by the network is 4 watt. The power is given by the formula: In this chapter, we use these electric components in circuits. If the maximum power. The Resistive Network Shown Below Is Connected.
From www.chegg.com

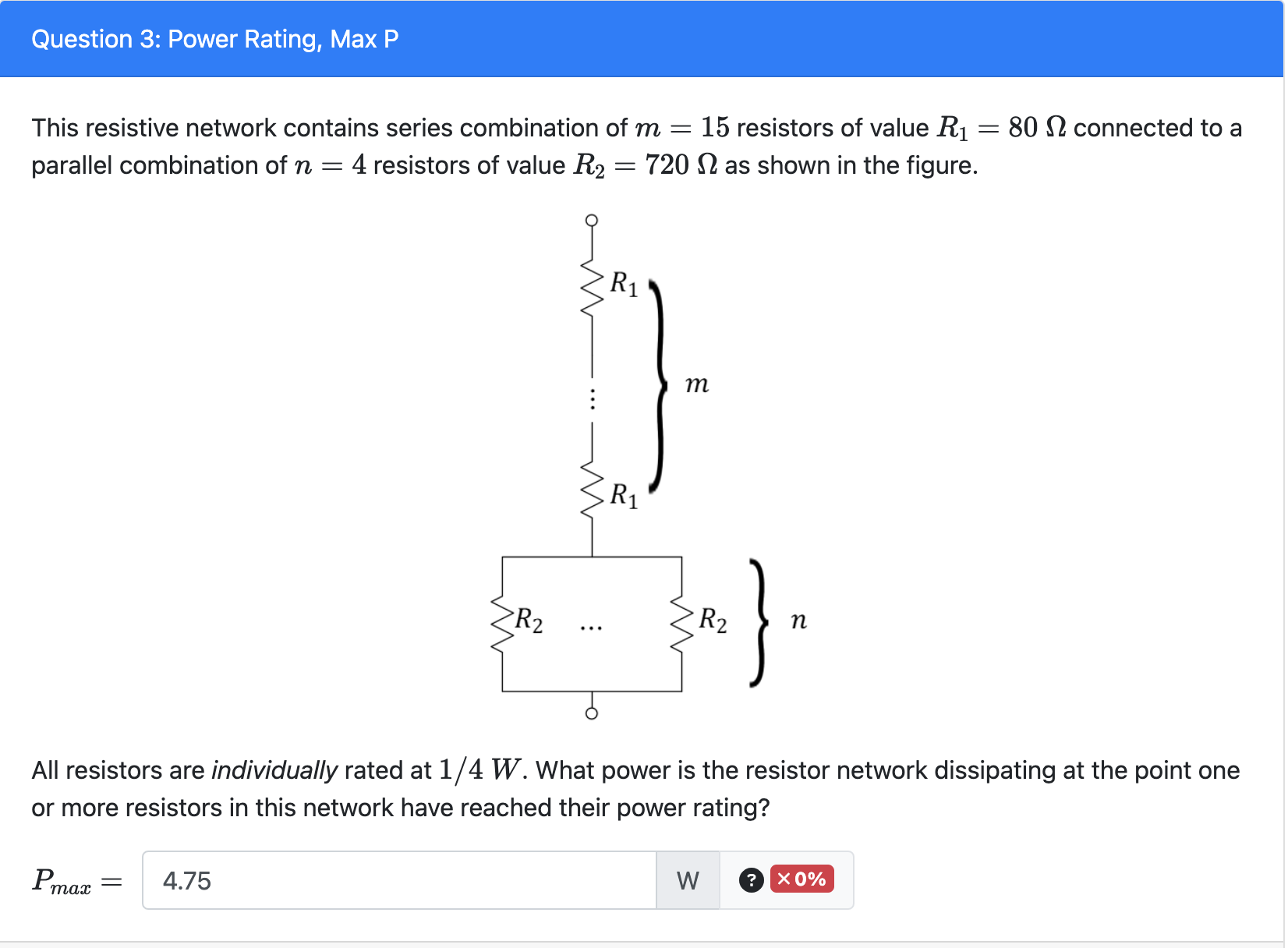

Solved This resistive network contains series combination of The Resistive Network Shown Below Is Connected The resistive network shown below is connected to a d.c. The power consumed by the network is 4 watt. The value of r is: A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. The resistive network shown below is connected to a d.c. The power consumed by the network is. The Resistive Network Shown Below Is Connected.
From www.coursehero.com
[Solved] QUESTION 1 (2 marks) Consider the resistive network shown The Resistive Network Shown Below Is Connected A circuit is a collection of electrical components connected to accomplish a. The resistive network shown below is connected to a d.c. The internal resistance of the two batteries. The power consumed by the network is 4 watt. P = 8r162 = 4 ∴ r = 8ω. The power consumed by the network is 4 watt. 12 v and 13. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved Consider the network of resistors as shown. R1 12 22 The Resistive Network Shown Below Is Connected A network of resistors is connected to a 16v battery as shown in the following figure. The value of r is: Applying ohm’s law, i = v/r. The internal resistance of the two batteries. The resistive network shown below is connected to a d.c. A circuit is a collection of electrical components connected to accomplish a. The power is given. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved (35pts.) The infinite network of resistors shown in The Resistive Network Shown Below Is Connected The internal resistance of the two batteries. In this chapter, we use these electric components in circuits. If the maximum power can be delivered to the. The resistive network shown below is connected to a d.c. Compute the equivalent resistance of the network. The resistive network shown below is connected to a d.c. The power consumed by the network is. The Resistive Network Shown Below Is Connected.
From www.chegg.com

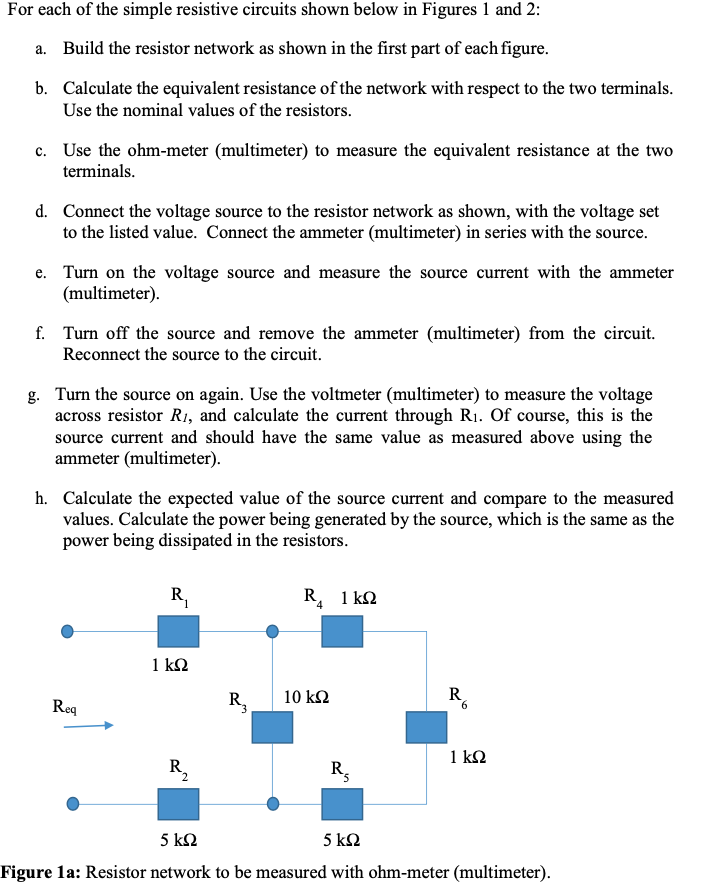

Solved For each of the simple resistive circuits shown below The Resistive Network Shown Below Is Connected The internal resistance of the two batteries. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. Compute the equivalent resistance of the network. In this chapter, we use these electric components in circuits. The value of r is: The resistive network shown below is connected to a d.c. The power is given by. The Resistive Network Shown Below Is Connected.
From irpsiea4schematic.z21.web.core.windows.net
Schematic Diagram Of Resistor The Resistive Network Shown Below Is Connected The internal resistance of the two batteries. P = 8r162 = 4 ∴ r = 8ω. The resistive network shown below is connected to a d.c. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. Compute the equivalent resistance of the network. The value of r is: Applying ohm’s law, i = v/r.. The Resistive Network Shown Below Is Connected.
From www.vrogue.co
Redesign The Circuit Shown Below So That All Resistiv vrogue.co The Resistive Network Shown Below Is Connected A circuit is a collection of electrical components connected to accomplish a. The resistive network shown below is connected to a d.c. The power is given by the formula: The power consumed by the network is 4 watt. If the maximum power can be delivered to the. P = v × i. 12 v and 13 v are connected in. The Resistive Network Shown Below Is Connected.
From www.chegg.com

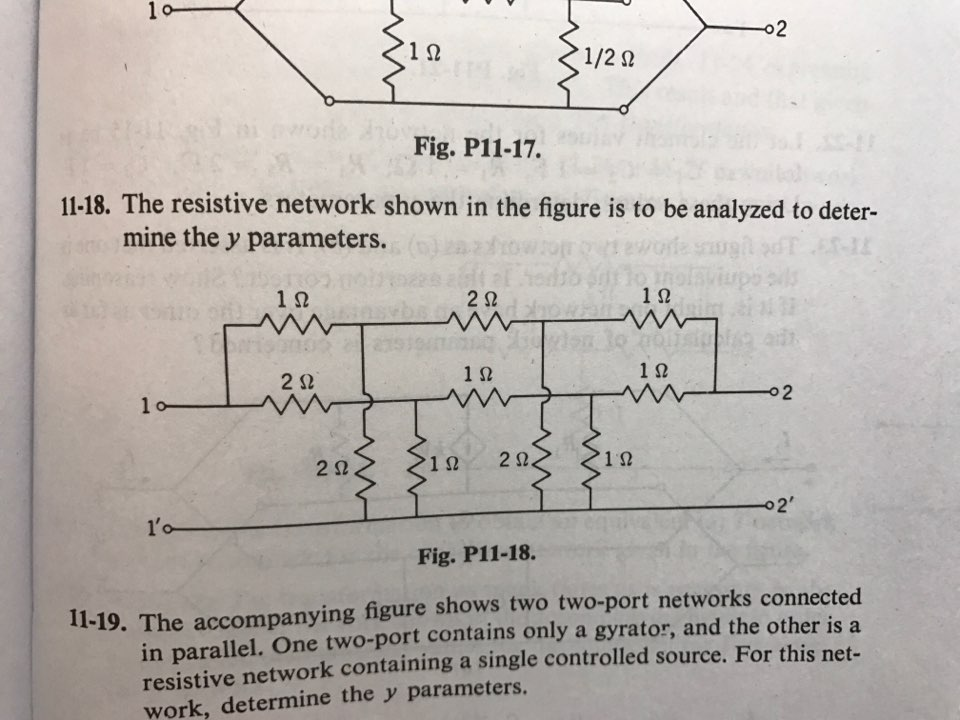

Solved The resistive network shown in the figure is to be The Resistive Network Shown Below Is Connected 12 v and 13 v are connected in parallel across a load resistor of 10 ω. If the maximum power can be delivered to the. The power is given by the formula: The internal resistance of the two batteries. In this chapter, we use these electric components in circuits. A battery of internal resistance 4 ω is connected to the. The Resistive Network Shown Below Is Connected.
From www.youtube.com
The resistive network shown below is connected to a D.C. source of 16V The Resistive Network Shown Below Is Connected A network of resistors is connected to a 16v battery as shown in the following figure. The power consumed by the network is 4 watt. A circuit is a collection of electrical components connected to accomplish a. The power consumed by the network is 4 watt. 12 v and 13 v are connected in parallel across a load resistor of. The Resistive Network Shown Below Is Connected.
From www.coursehero.com
[Solved] . Consider the network of four resistors shown in the diagram The Resistive Network Shown Below Is Connected In this chapter, we use these electric components in circuits. P = v × i. A circuit is a collection of electrical components connected to accomplish a. The power consumed by the network is 4 watt. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. A network of resistors is connected to a. The Resistive Network Shown Below Is Connected.
From www.toppr.com
The resistive network shown below i connected to a D.C. of 16V. he The Resistive Network Shown Below Is Connected A circuit is a collection of electrical components connected to accomplish a. If the maximum power can be delivered to the. The resistive network shown below is connected to a d.c. The value of r is: A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. In this chapter, we use. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved For the resistor network shown below, how much The Resistive Network Shown Below Is Connected The resistive network shown below is connected to a d.c. P = 8r162 = 4 ∴ r = 8ω. The power consumed by the network is 4 watt. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. The power is given by the formula: Compute the equivalent resistance of the network. The resistive. The Resistive Network Shown Below Is Connected.
From www.numerade.com

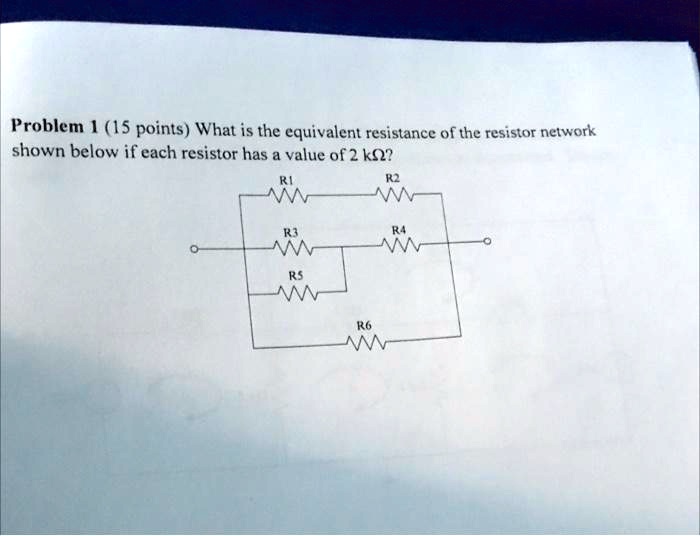

SOLVED Problem (15 points) What is the equivalent resistance Of the The Resistive Network Shown Below Is Connected The value of r is: The power consumed by the network is 4 watt. The power is given by the formula: The resistive network shown below is connected to a d.c. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. The internal resistance of the two batteries. A circuit is a collection of. The Resistive Network Shown Below Is Connected.
From www.doubtnut.com
Five resistors are connected as shown in figure. Find the equivalent The Resistive Network Shown Below Is Connected A network of resistors is connected to a 16v battery as shown in the following figure. P = v × i. The value of r is: In this chapter, we use these electric components in circuits. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. Compute the equivalent resistance of the network. The. The Resistive Network Shown Below Is Connected.
From www.chegg.com

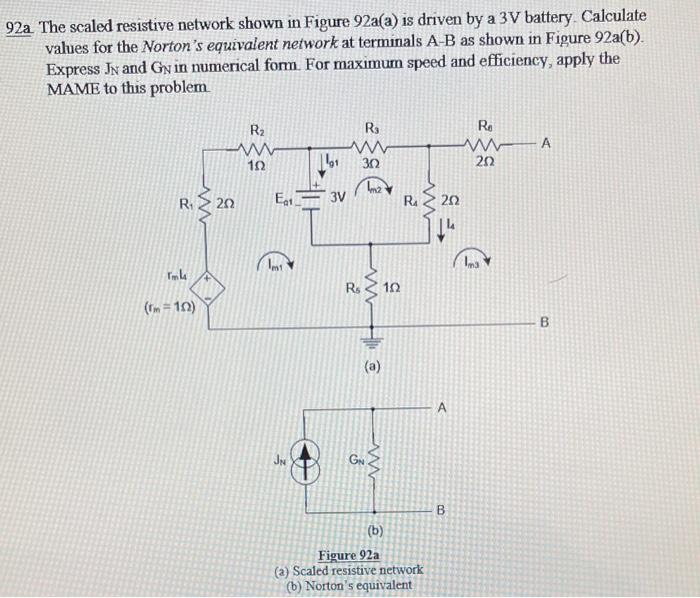

Solved 92a The scaled resistive network shown in Figure The Resistive Network Shown Below Is Connected The resistive network shown below is connected to a d.c. The value of r is: P = v × i. A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. P = 8r162 = 4 ∴ r = 8ω. The power consumed by the network is 4 watt. The power is. The Resistive Network Shown Below Is Connected.
From www.youtube.com
Four resistors are connected to a battery as shown in the figure below The Resistive Network Shown Below Is Connected The resistive network shown below is connected to a d.c. A network of resistors is connected to a 16v battery as shown in the following figure. The power is given by the formula: The internal resistance of the two batteries. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. Compute the equivalent resistance. The Resistive Network Shown Below Is Connected.
From www.toppr.com
The resistive network shown below i connected to a D.C. of 16V. he The Resistive Network Shown Below Is Connected The power consumed by the network is 4 watt. The resistive network shown below is connected to a d.c. The power is given by the formula: A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. The internal resistance of the two batteries. 12 v and 13 v are connected in. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved Consider the resistor network shown in the figure The Resistive Network Shown Below Is Connected In this chapter, we use these electric components in circuits. Applying ohm’s law, i = v/r. The power is given by the formula: Compute the equivalent resistance of the network. A circuit is a collection of electrical components connected to accomplish a. The resistive network shown below is connected to a d.c. The resistive network shown below is connected to. The Resistive Network Shown Below Is Connected.
From www.numerade.com

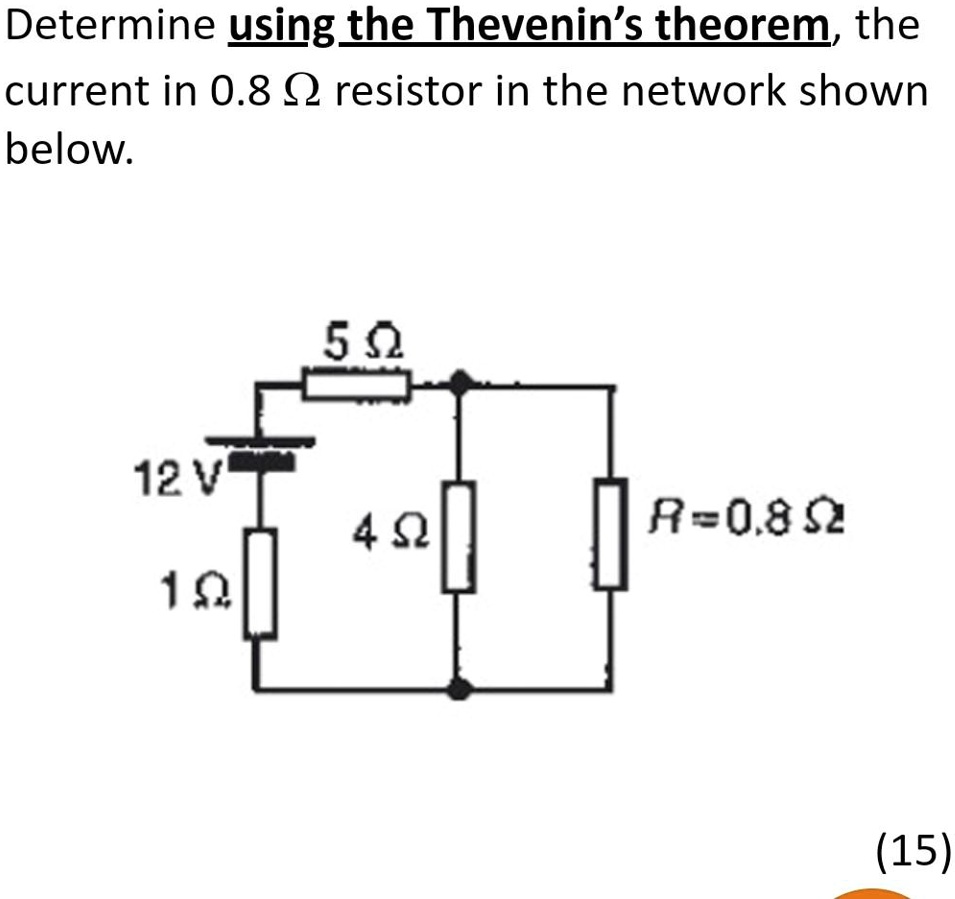

SOLVED Determine, using Thevenin's theorem, the current in the 0.8 Î The Resistive Network Shown Below Is Connected The power consumed by the network is 4 watt. A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. The power consumed by the network is 4 watt. If the maximum power can be delivered to the. The resistive network shown below is connected to a d.c. A network of resistors. The Resistive Network Shown Below Is Connected.
From www.chegg.com

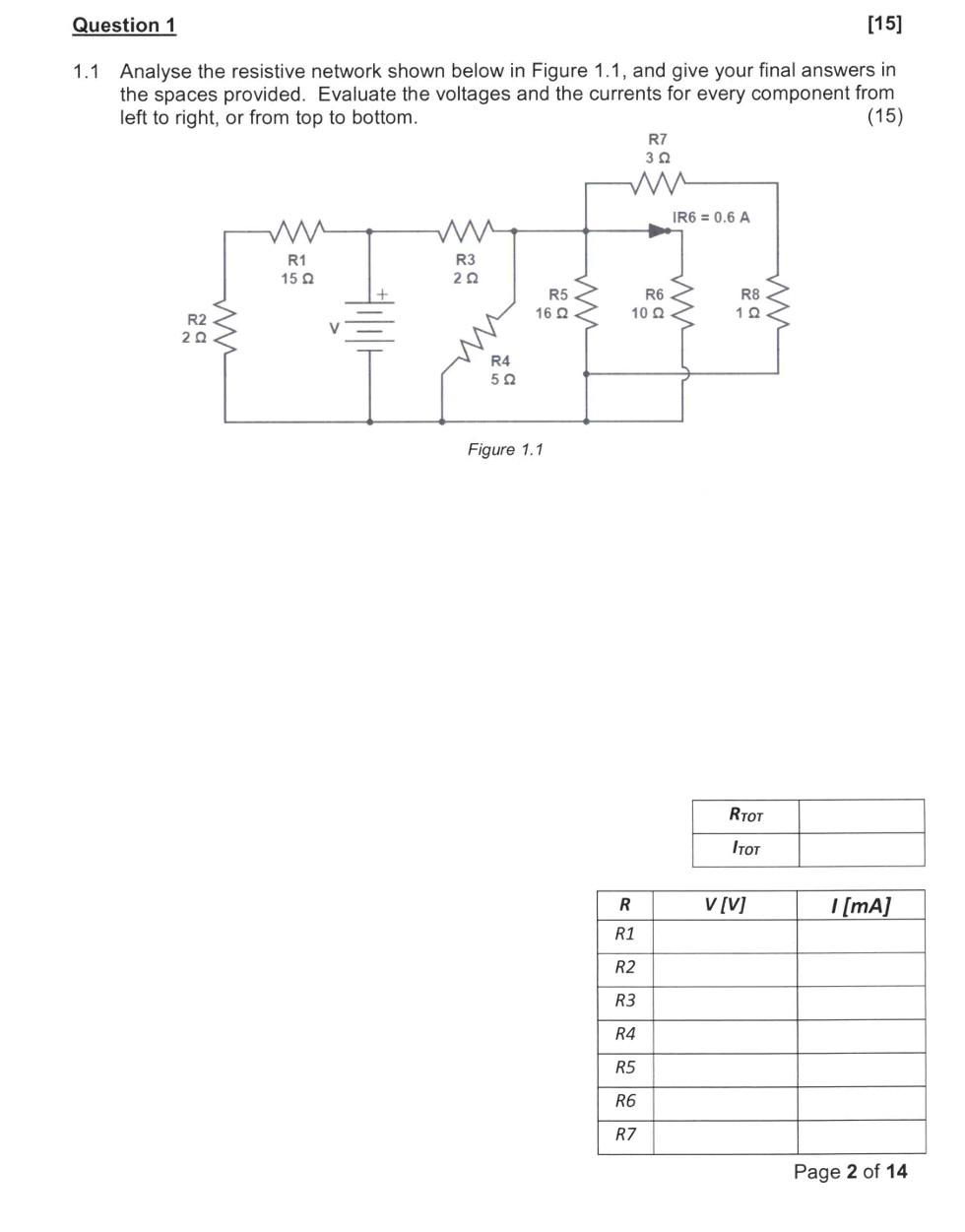

Solved 1.1 Analyse the resistive network shown below in The Resistive Network Shown Below Is Connected 12 v and 13 v are connected in parallel across a load resistor of 10 ω. Applying ohm’s law, i = v/r. P = v × i. The power consumed by the network is 4 watt. Compute the equivalent resistance of the network. If the maximum power can be delivered to the. A circuit is a collection of electrical components. The Resistive Network Shown Below Is Connected.
From askfilo.com
QuestionThe resistive network shown below is connected to a DC source of.. The Resistive Network Shown Below Is Connected The resistive network shown below is connected to a d.c. In this chapter, we use these electric components in circuits. The internal resistance of the two batteries. Applying ohm’s law, i = v/r. Compute the equivalent resistance of the network. The value of r is: A battery of internal resistance 4 ω is connected to the network of the resistance. The Resistive Network Shown Below Is Connected.
From www.doubtnut.com
The resistive network shown below is connected to a D.C. source of 16V The Resistive Network Shown Below Is Connected A circuit is a collection of electrical components connected to accomplish a. The internal resistance of the two batteries. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. The power consumed by the network is 4 watt. Compute the equivalent resistance of the network. The resistive network shown below is connected to a. The Resistive Network Shown Below Is Connected.
From blog.mbedded.ninja
DeltaWye Resistor Networks mbedded.ninja The Resistive Network Shown Below Is Connected In this chapter, we use these electric components in circuits. The resistive network shown below is connected to a d.c. If the maximum power can be delivered to the. P = v × i. The internal resistance of the two batteries. The value of r is: The resistive network shown below is connected to a d.c. A battery of internal. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved For each of the simple resistive circuits shown below The Resistive Network Shown Below Is Connected The internal resistance of the two batteries. The power consumed by the network is 4 watt. P = 8r162 = 4 ∴ r = 8ω. 12 v and 13 v are connected in parallel across a load resistor of 10 ω. The value of r is: P = v × i. A network of resistors is connected to a 16v. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved 58. Find Req for each of the resistive networks shown The Resistive Network Shown Below Is Connected The internal resistance of the two batteries. The power consumed by the network is 4 watt. A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. A network of resistors is connected to a 16v battery as shown in the following figure. P = v × i. Applying ohm’s law, i. The Resistive Network Shown Below Is Connected.
From www.numerade.com

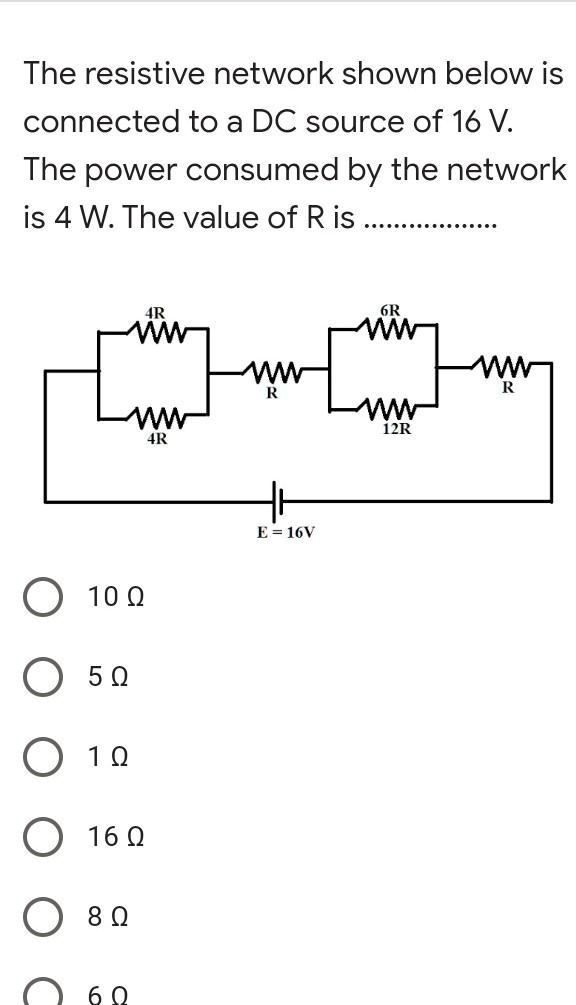

SOLVED The resistive network shown below is connected to a DC source The Resistive Network Shown Below Is Connected The value of r is: If the maximum power can be delivered to the. A network of resistors is connected to a 16v battery as shown in the following figure. The internal resistance of the two batteries. The resistive network shown below is connected to a d.c. Applying ohm’s law, i = v/r. The power consumed by the network is. The Resistive Network Shown Below Is Connected.
From www.chegg.com
Solved For the resistor network shown below, determine (1) The Resistive Network Shown Below Is Connected The power is given by the formula: The power consumed by the network is 4 watt. A battery of internal resistance 4 ω is connected to the network of the resistance as shown in figure. A network of resistors is connected to a 16v battery as shown in the following figure. If the maximum power can be delivered to the.. The Resistive Network Shown Below Is Connected.
