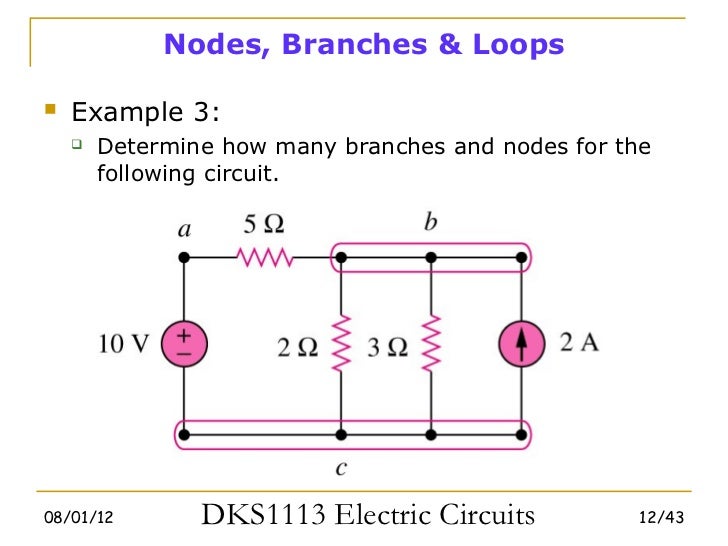

What Is Loop In Electrical Circuit. Any closed path in the circuit is called as a loop. In other words, a loop can encompass multiple meshes, but a single mesh cannot contain more than one loop. A closed path within a circuit containing more than two meshes is referred to as a loop. A loop is formed when a continuous connection of conductive elements such as wires, components, and devices allows electric current to circulate across it. A loop is a closed path in a circuit. So using your two loops, abc and bc as examples: An independent loop contains at least one branch that doesn't belong to another loop. Put simply, a mesh represents a closed path within a circuit. As an example, let us consider a simple circuit. A loop is formed from a node passing through a set of nodes and returning to the. What is a loop in an electrical circuit? Abc contains branch 10v/5 ohm that isn't in bc. A loop is said to be independent if it contains at least one branch which is not a part of any other independent loop. Closed path means that it starts at a node, passes through other nodes, and finishes at the same node without passing through any other node twice. A loop is a closed path formed by starting at a node, passing through a set of nodes, and returning to the starting node without passing through any node more than once.

A loop is formed when a continuous connection of conductive elements such as wires, components, and devices allows electric current to circulate across it. Abc contains branch 10v/5 ohm that isn't in bc. A loop is formed from a node passing through a set of nodes and returning to the. A loop is a closed path in a circuit. A loop is a closed path formed by starting at a node, passing through a. A closed path within a circuit containing more than two meshes is referred to as a loop. Any closed path in the circuit is called as a loop. Put simply, a mesh represents a closed path within a circuit. A loop is a closed path formed by starting at a node, passing through a set of nodes, and returning to the starting node without passing through any node more than once. So using your two loops, abc and bc as examples:

Electric circuitschapter2 Basic Laws

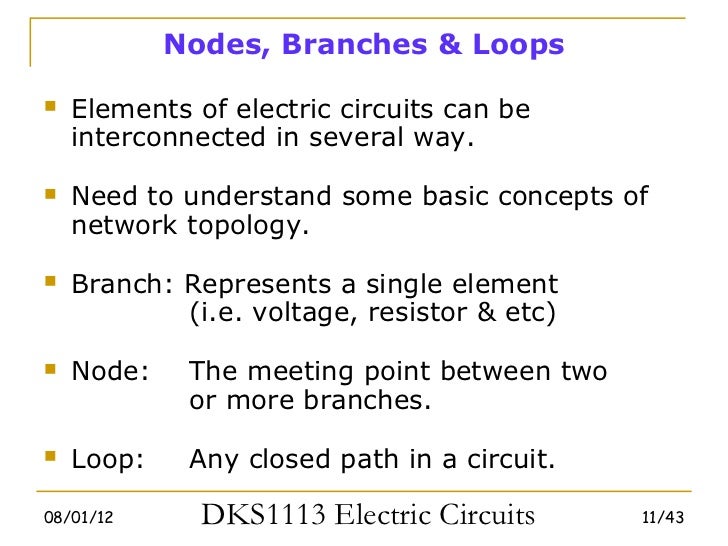

What Is Loop In Electrical Circuit A loop is a closed path formed by starting at a node, passing through a set of nodes, and returning to the starting node without passing through any node more than once. A loop is formed when a continuous connection of conductive elements such as wires, components, and devices allows electric current to circulate across it. Closed path means that it starts at a node, passes through other nodes, and finishes at the same node without passing through any other node twice. A loop is a closed path in a circuit. A loop is a closed path formed by starting at a node, passing through a. Put simply, a mesh represents a closed path within a circuit. In other words, a loop can encompass multiple meshes, but a single mesh cannot contain more than one loop. A closed path within a circuit containing more than two meshes is referred to as a loop. An independent loop contains at least one branch that doesn't belong to another loop. A loop is said to be independent if it contains at least one branch which is not a part of any other independent loop. Any closed path in the circuit is called as a loop. So using your two loops, abc and bc as examples: A loop is formed from a node passing through a set of nodes and returning to the. What is a loop in an electrical circuit? A loop is a closed path formed by starting at a node, passing through a set of nodes, and returning to the starting node without passing through any node more than once. Abc contains branch 10v/5 ohm that isn't in bc.
