Heat Exchanger Bundle Diameter. The tubesheet at the rear header end of the shell is of slightly smaller diameter than the shell, allowing the bundle to be pulled through the. Decide on the type of exchanger. Select a trial value for. The “d” bundle diameter includes baffles and tube supports. An easy way to measure the diameter is to take the circumference of the shell, then divide by. Collect required physical properties (ρ, μ, k). Heat transfer rate, flows, temperatures. Multitherm also offers the same. In the sizing problem, an appropriate heat exchanger type is selected and the size to meet the specified hot and cold fluid inlet and outlet temperatures,. Removable bundle weights are often limited to 20 tons. The most common tube length range is 3600 to 9000 mm for removable bundles and 3600 to 15000 mm for the fixed tube type. We have very few limitations on length or diameter and can size your tank heaters to match your existing tank.

Decide on the type of exchanger. Collect required physical properties (ρ, μ, k). The “d” bundle diameter includes baffles and tube supports. An easy way to measure the diameter is to take the circumference of the shell, then divide by. The most common tube length range is 3600 to 9000 mm for removable bundles and 3600 to 15000 mm for the fixed tube type. We have very few limitations on length or diameter and can size your tank heaters to match your existing tank. The tubesheet at the rear header end of the shell is of slightly smaller diameter than the shell, allowing the bundle to be pulled through the. In the sizing problem, an appropriate heat exchanger type is selected and the size to meet the specified hot and cold fluid inlet and outlet temperatures,. Heat transfer rate, flows, temperatures. Select a trial value for.

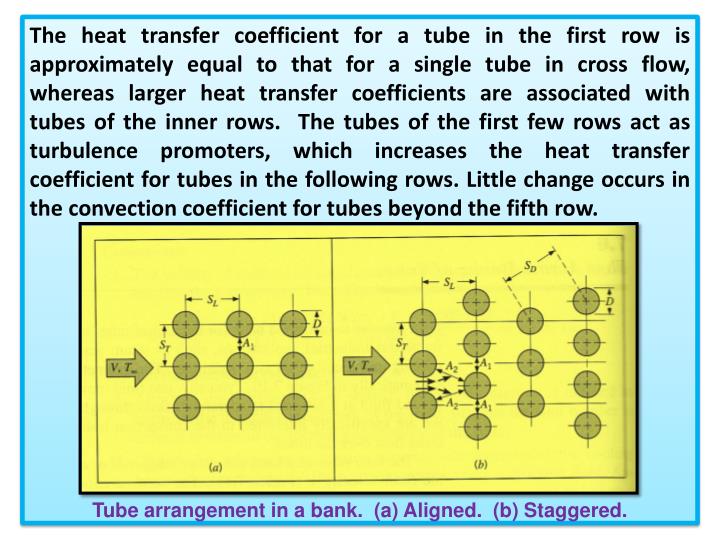

PPT Chapter 4.2 Flow Across a Tube Bundle Heat Exchanger (Tube Bank) PowerPoint Presentation
