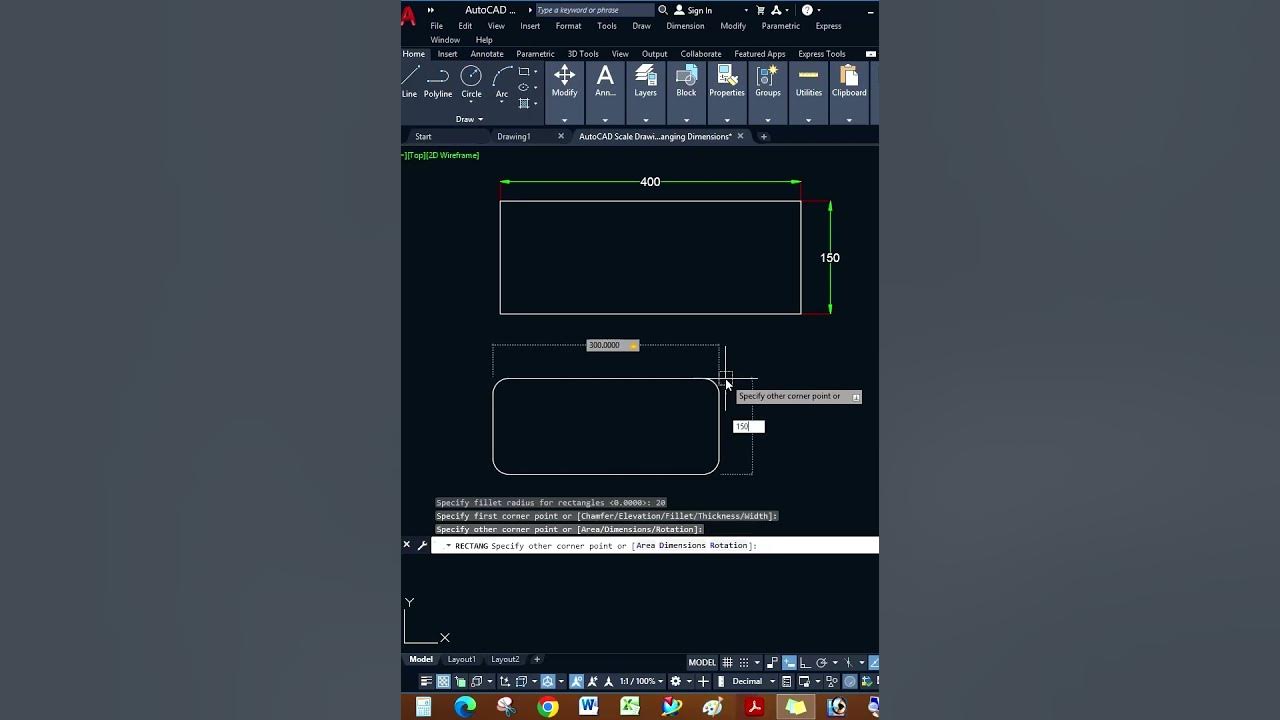

How To Round Corners In Cad. In the world of drafting, these rounded edges are called fillets. A fillet or round connects two objects with a tangent arc in 2d, or creates a rounded transition between the adjacent faces of a 3d solid. Once we specify our corner’s radius, the command will automatically join both lines to. Perhaps they’re included to improve functionality or facilitate design manufacturing processes. In this video, i'll show you how to round corners of a rectangle in autocad. You can also hold down the shift key before selecting the second object or line segment of a 2d polyline to extend or trim the selected objects to. An inside corner is called a fillet and an outside corner is. We can use the fillet command to “cut corners” and “round” our edges without doing any math. In this autocad tutorial, i show you how to make round edges using the fillet command. It could be to eliminate sharp edges or corners that could be vulnerable to stress concentrations. This tutorial shows how to create rectangle with dimensions & rectangle with rounder corners in aut. Here’s how to use fillet in autocad. The fillet command in autocad is a powerful tool that facilitates drawing and designing by creating a round corner or arc between two lines that meet at a point (also known as a vertex).

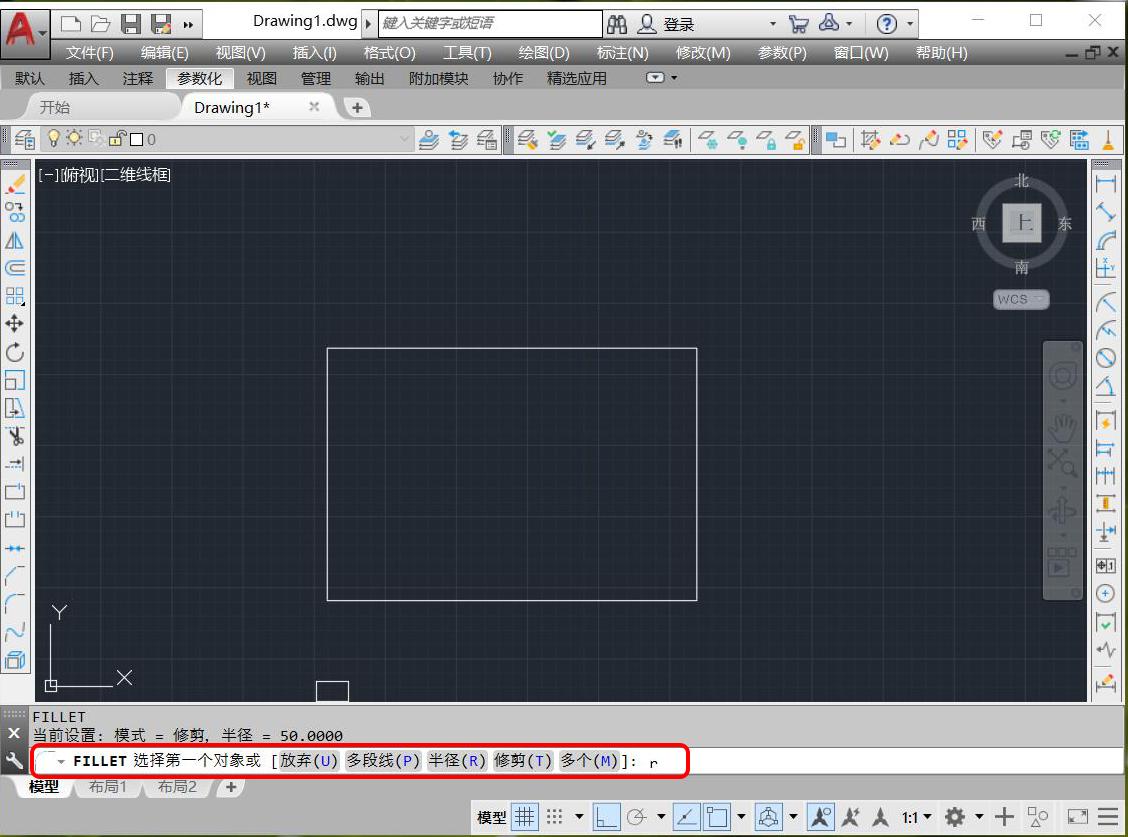

AUTOCAD——Summary of three ways to draw rounded corners in CAD iMedia
from min.news

Once we specify our corner’s radius, the command will automatically join both lines to. Here’s how to use fillet in autocad. The fillet command in autocad is a powerful tool that facilitates drawing and designing by creating a round corner or arc between two lines that meet at a point (also known as a vertex). You can also hold down the shift key before selecting the second object or line segment of a 2d polyline to extend or trim the selected objects to. In this autocad tutorial, i show you how to make round edges using the fillet command. This tutorial shows how to create rectangle with dimensions & rectangle with rounder corners in aut. An inside corner is called a fillet and an outside corner is. It could be to eliminate sharp edges or corners that could be vulnerable to stress concentrations. Perhaps they’re included to improve functionality or facilitate design manufacturing processes. In the world of drafting, these rounded edges are called fillets.

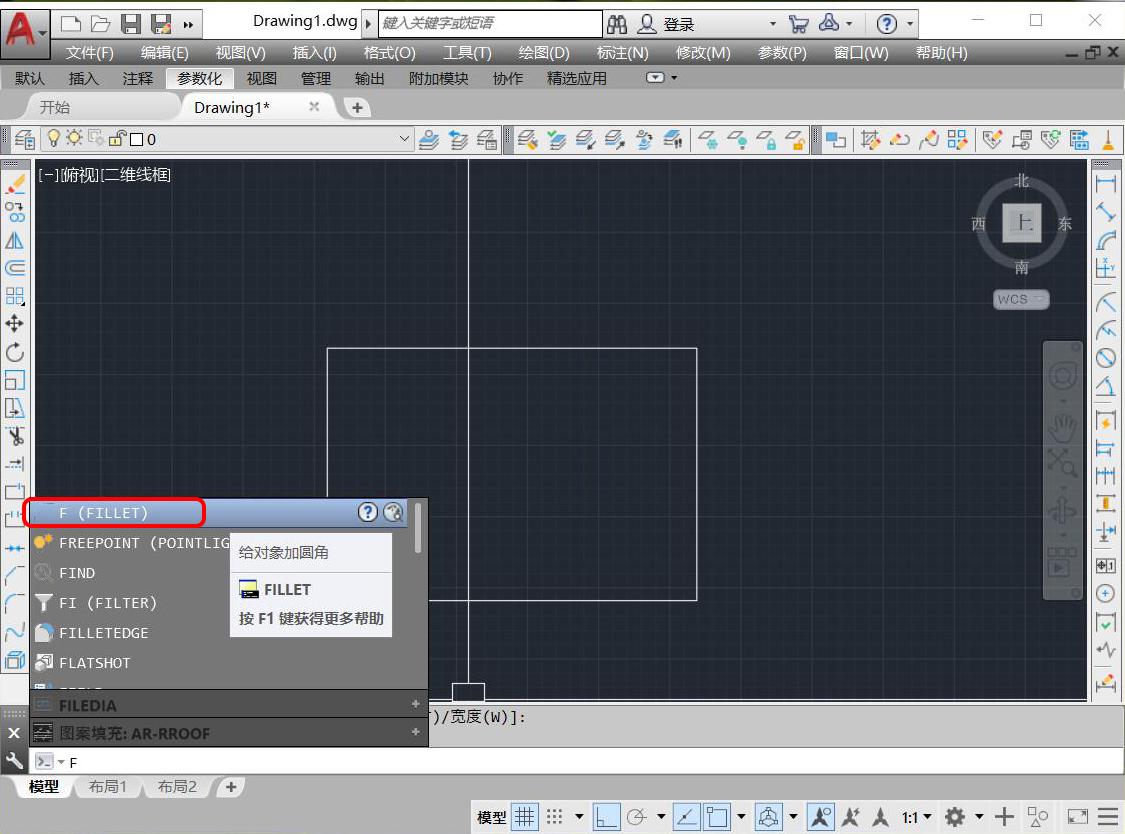

AUTOCAD——Summary of three ways to draw rounded corners in CAD iMedia

How To Round Corners In Cad The fillet command in autocad is a powerful tool that facilitates drawing and designing by creating a round corner or arc between two lines that meet at a point (also known as a vertex). In the world of drafting, these rounded edges are called fillets. The fillet command in autocad is a powerful tool that facilitates drawing and designing by creating a round corner or arc between two lines that meet at a point (also known as a vertex). A fillet or round connects two objects with a tangent arc in 2d, or creates a rounded transition between the adjacent faces of a 3d solid. This tutorial shows how to create rectangle with dimensions & rectangle with rounder corners in aut. It could be to eliminate sharp edges or corners that could be vulnerable to stress concentrations. We can use the fillet command to “cut corners” and “round” our edges without doing any math. In this autocad tutorial, i show you how to make round edges using the fillet command. Perhaps they’re included to improve functionality or facilitate design manufacturing processes. Here’s how to use fillet in autocad. You can also hold down the shift key before selecting the second object or line segment of a 2d polyline to extend or trim the selected objects to. Once we specify our corner’s radius, the command will automatically join both lines to. In this video, i'll show you how to round corners of a rectangle in autocad. An inside corner is called a fillet and an outside corner is.
