Relay Operating Time Formula. The generic inverse definite minimum time (idmt) time current curve calculator will allow you to not only produce curves for standard iec and ieee relay characteristics but will give a trip. Actual time of operation of relay = 3s x tsm = 3 x0.5 s =1.5 s. Α i ⋅β t = k (8.2.1) i > 1 −. Relay characteristics are sometimes classified according to the tripping time at 10 times the setting current (i.e. Relay pick up current= %current setting * ct ratio. Thus we can say that actual time of operation of relay is equal to the time obtained from the psm & operating time graph multiplied by tsm. Plug setting multiplier is nothing but a ratio between the actual fault current in the relay operating coil to pick up current (the relay current setting). For inverse time relays the operating time (s) can be calculated from the equation: The actual time of operation of the relay = (time obtained from psm & operating. By using these we can calculate.

Thus we can say that actual time of operation of relay is equal to the time obtained from the psm & operating time graph multiplied by tsm. Actual time of operation of relay = 3s x tsm = 3 x0.5 s =1.5 s. By using these we can calculate. The actual time of operation of the relay = (time obtained from psm & operating. Relay characteristics are sometimes classified according to the tripping time at 10 times the setting current (i.e. Relay pick up current= %current setting * ct ratio. For inverse time relays the operating time (s) can be calculated from the equation: Α i ⋅β t = k (8.2.1) i > 1 −. The generic inverse definite minimum time (idmt) time current curve calculator will allow you to not only produce curves for standard iec and ieee relay characteristics but will give a trip. Plug setting multiplier is nothing but a ratio between the actual fault current in the relay operating coil to pick up current (the relay current setting).

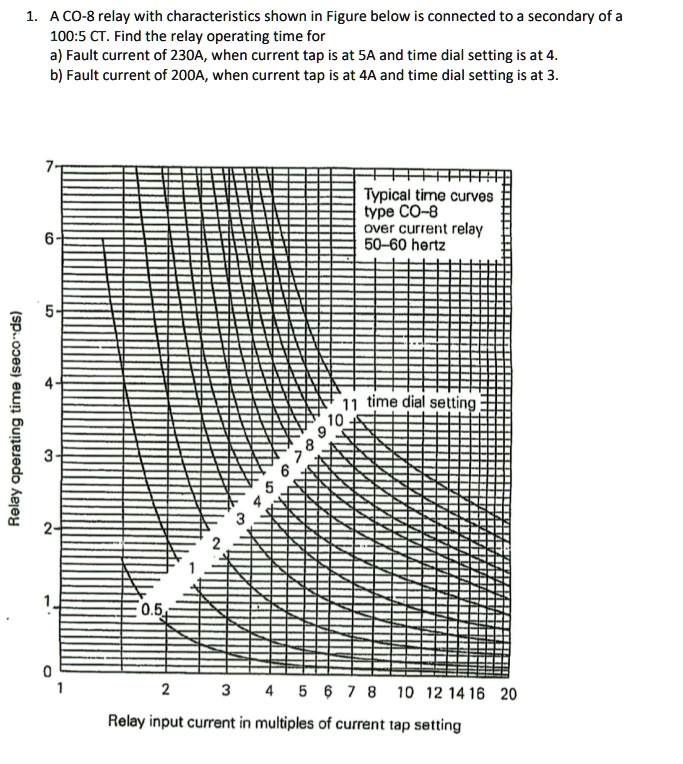

Solved Relay operating time (seconds)There are two sources

Relay Operating Time Formula Plug setting multiplier is nothing but a ratio between the actual fault current in the relay operating coil to pick up current (the relay current setting). The generic inverse definite minimum time (idmt) time current curve calculator will allow you to not only produce curves for standard iec and ieee relay characteristics but will give a trip. For inverse time relays the operating time (s) can be calculated from the equation: Plug setting multiplier is nothing but a ratio between the actual fault current in the relay operating coil to pick up current (the relay current setting). Thus we can say that actual time of operation of relay is equal to the time obtained from the psm & operating time graph multiplied by tsm. By using these we can calculate. Relay characteristics are sometimes classified according to the tripping time at 10 times the setting current (i.e. Α i ⋅β t = k (8.2.1) i > 1 −. Relay pick up current= %current setting * ct ratio. The actual time of operation of the relay = (time obtained from psm & operating. Actual time of operation of relay = 3s x tsm = 3 x0.5 s =1.5 s.
