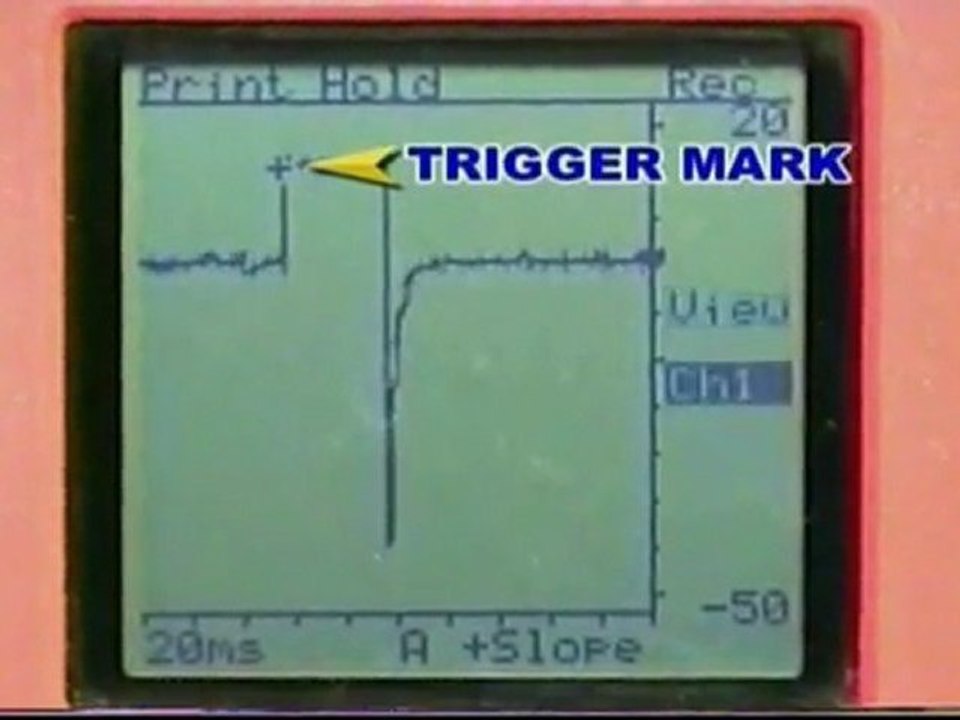

Injector Voltage Waveform. The current starts to flow through the injector winding making counter voltage which causes the voltage drop at the bottom of the waveform. The purpose of this test is to check the gasoline direct injection (gdi) injector control voltage and current from an engine control. Both the injector voltage and current show that the injection duration is about 4.25 ms. You can use channel a for. The waveform below was captured from a vehicle using the setup above: Most injectors use 12 volts to energize the coil, and the driver energizes the circuit by pulling it to ground. When the injector is energized, the voltage drops to almost. The voltage applied to the coil in the waveform under discussion when opening the injector is about 84v, much higher than the 24v available from the battery. The voltage waveform is very different to the current waveform and usually, they are displayed simultaneously. When the injector is switched off at 4.25 ms and the current flow stops, there is a spike in the.

When the injector is energized, the voltage drops to almost. Both the injector voltage and current show that the injection duration is about 4.25 ms. The voltage waveform is very different to the current waveform and usually, they are displayed simultaneously. Most injectors use 12 volts to energize the coil, and the driver energizes the circuit by pulling it to ground. The purpose of this test is to check the gasoline direct injection (gdi) injector control voltage and current from an engine control. When the injector is switched off at 4.25 ms and the current flow stops, there is a spike in the. The current starts to flow through the injector winding making counter voltage which causes the voltage drop at the bottom of the waveform. The waveform below was captured from a vehicle using the setup above: You can use channel a for. The voltage applied to the coil in the waveform under discussion when opening the injector is about 84v, much higher than the 24v available from the battery.

Injector Waveform High Speed with Current Control

Injector Voltage Waveform The waveform below was captured from a vehicle using the setup above: Most injectors use 12 volts to energize the coil, and the driver energizes the circuit by pulling it to ground. When the injector is switched off at 4.25 ms and the current flow stops, there is a spike in the. You can use channel a for. The voltage applied to the coil in the waveform under discussion when opening the injector is about 84v, much higher than the 24v available from the battery. The waveform below was captured from a vehicle using the setup above: When the injector is energized, the voltage drops to almost. The current starts to flow through the injector winding making counter voltage which causes the voltage drop at the bottom of the waveform. The purpose of this test is to check the gasoline direct injection (gdi) injector control voltage and current from an engine control. The voltage waveform is very different to the current waveform and usually, they are displayed simultaneously. Both the injector voltage and current show that the injection duration is about 4.25 ms.
