Two Batteries Connected In Series Of Same Emf 10V. Since the batteries are connected in series, the total voltage drop across the circuit is the sum of the voltages of the two batteries: Three identical cells each of emf 2v and internal resistance 1 ω are connected in series to form a battery. Two batteries a and b each of emf 2 volt are connected in series to external resistance r = 1 ω. ∴ v2 = ε2 −i r2 =10−0.5×5=7.5v the potential. For instance, an led flashlight may have two aaa cell batteries,. ∴ v1 = ε1−ir1 ⇒0=10−i×20 i=0.5a for 10 v, 5ω battery : Internal resistance of a is 1.9 ω The series combination of two batteries, both of the same emf 10 v, but different internal resistance of 20 ω and 5 ω, is connected to the. The battery is then connected to a parallel combination of two identical. We have two batteries, both with an emf (electromotive force) of 10 v: Batteries are connected in series to increase the voltage supplied to the circuit. The correct answer is for 10 v, 20ω battery : We have two batteries with the same emf (10 v) but different internal resistances (10 ω and 5 ω) connected in series.

For instance, an led flashlight may have two aaa cell batteries,. The series combination of two batteries, both of the same emf 10 v, but different internal resistance of 20 ω and 5 ω, is connected to the. ∴ v1 = ε1−ir1 ⇒0=10−i×20 i=0.5a for 10 v, 5ω battery : Batteries are connected in series to increase the voltage supplied to the circuit. We have two batteries with the same emf (10 v) but different internal resistances (10 ω and 5 ω) connected in series. The battery is then connected to a parallel combination of two identical. Since the batteries are connected in series, the total voltage drop across the circuit is the sum of the voltages of the two batteries: Internal resistance of a is 1.9 ω We have two batteries, both with an emf (electromotive force) of 10 v: ∴ v2 = ε2 −i r2 =10−0.5×5=7.5v the potential.

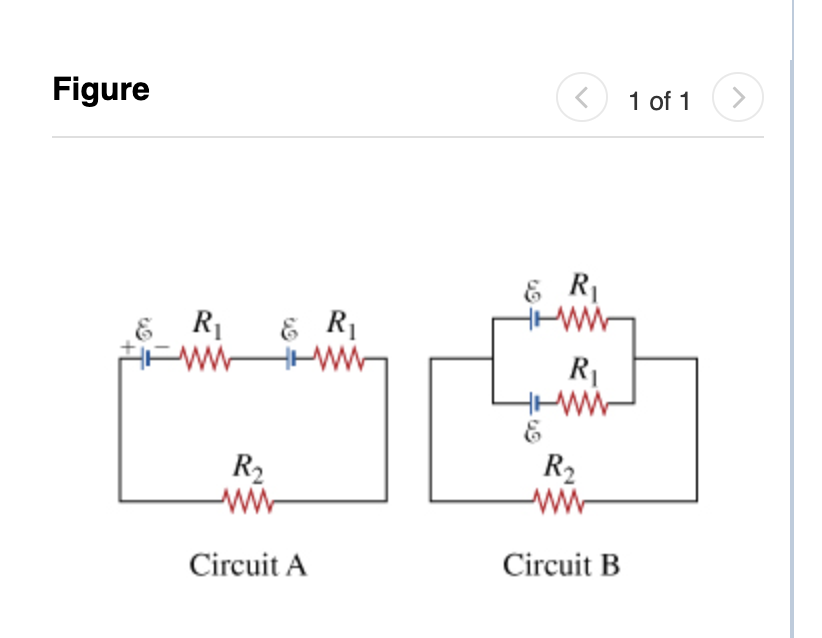

Solved You are given two circuits with two batteries of emf
