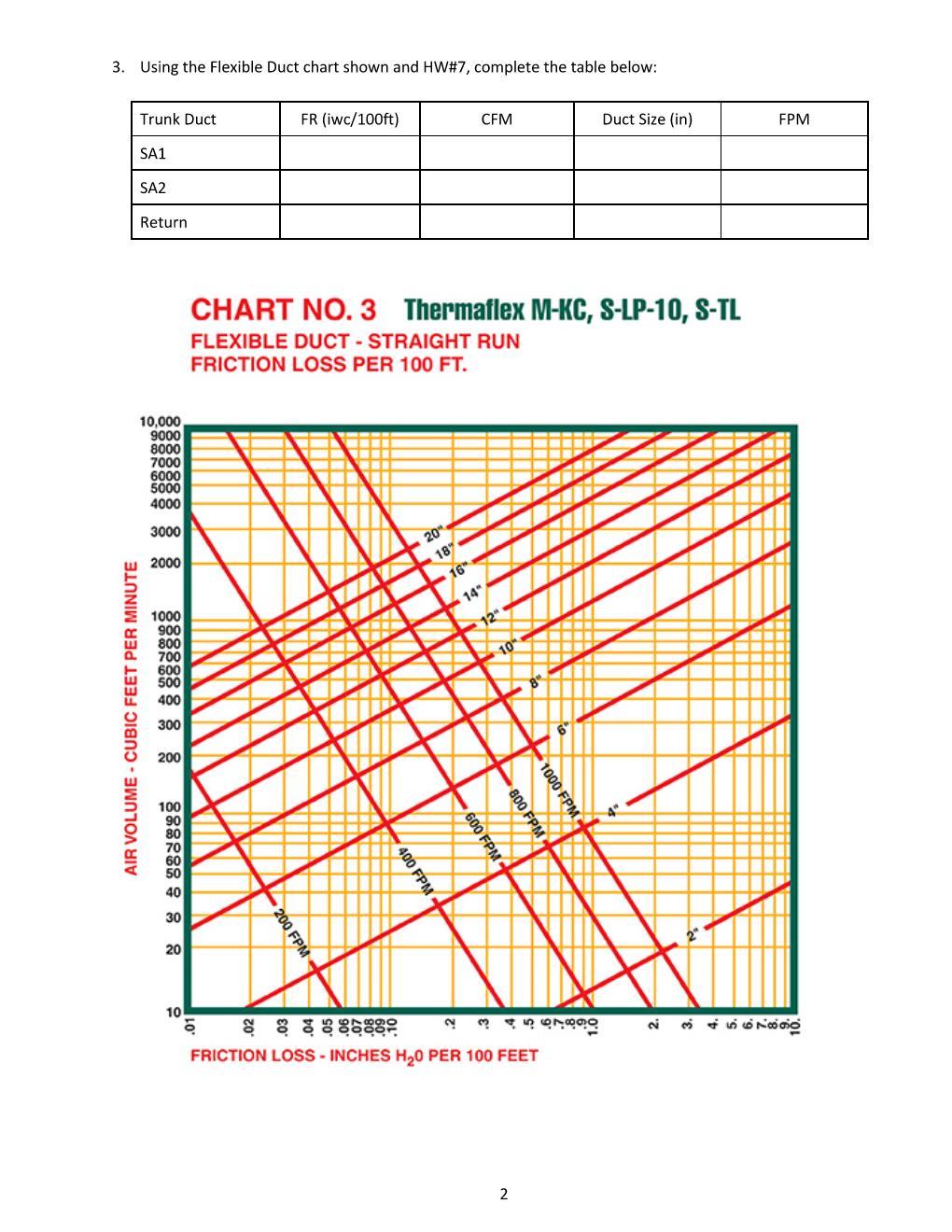

Flex Duct Flow Chart. Typically seen in high rise buildings were no dropped ceilings are. To figure out exactly how big ducts you need for central air conditioning systems, we have prepared complete cfm duct charts for all. Long runs of flex duct and elbows create large pressure drops in your system. Flexible duct diameter (mm) 44 l/s ø 150 92 l/s ø 200 170 l/s ø 250 275 l/s ø 300 385 l/s ø 350 503 l/s ø 400 636 l/s ø 450 785 l/s ø 500 950. Here is the ductwork sizing calculator: Flex duct has a higher pressure drop and as such may require the size shown on this guide be increased by 1 round size for up to 800 cfm. Flex duct =.05 on most metal duct calculator round metal pipe =.06 on most metal duct calculators rectangular sheet metal duct =.07. In this article, we you will find hvac duct size charts that provide guidelines for selecting the appropriate duct size for the.

Flex duct has a higher pressure drop and as such may require the size shown on this guide be increased by 1 round size for up to 800 cfm. In this article, we you will find hvac duct size charts that provide guidelines for selecting the appropriate duct size for the. Flexible duct diameter (mm) 44 l/s ø 150 92 l/s ø 200 170 l/s ø 250 275 l/s ø 300 385 l/s ø 350 503 l/s ø 400 636 l/s ø 450 785 l/s ø 500 950. Here is the ductwork sizing calculator: Typically seen in high rise buildings were no dropped ceilings are. Long runs of flex duct and elbows create large pressure drops in your system. To figure out exactly how big ducts you need for central air conditioning systems, we have prepared complete cfm duct charts for all. Flex duct =.05 on most metal duct calculator round metal pipe =.06 on most metal duct calculators rectangular sheet metal duct =.07.
