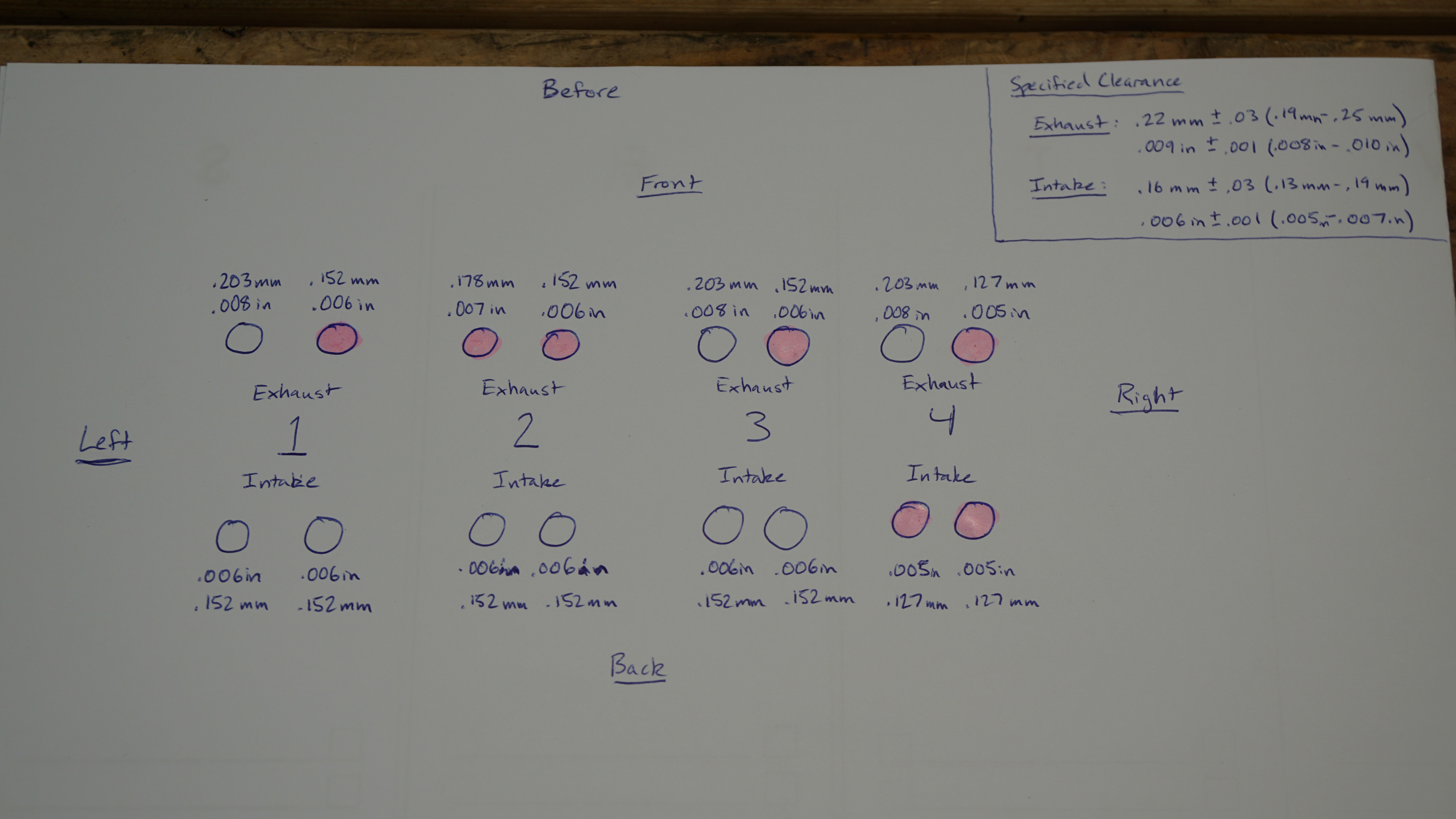

How To Measure Valve Shims. Measure the thicknesses of the valve shims and record their sizes in the table. The valves are angled slightly off the vertical, and to do the measurement accurately, you need to position the flat spot on. Calculate the size valve shims you need to. With the valve cover removed, rotate the engine until the camshaft lobes are facing away from the valves you’re measuring. With these figures, calculate the adjustment needed and determine the new shim size for optimal engine performance. Understanding the precise measurements involves using tools like a feeler gauge and micrometer. 1) look up the spec settings for your bike's intake and exhaust valve clearance ranges. To help keep track of things, draw out a simple cylinder head diagram on a piece of paper so that the lifter buckets and all the measurements can be tracked. Set the bucket and shim down in a clean work area where you can conduct a measurement of the old shim and then calculate the new replacement shim size. Begin by measuring the existing valve clearance, noting the current shim size, and consulting the manufacturer’s specifications. That is a job best left to a garage which has. Using the feeler gauges, measure the gap.

To help keep track of things, draw out a simple cylinder head diagram on a piece of paper so that the lifter buckets and all the measurements can be tracked. That is a job best left to a garage which has. Measure the thicknesses of the valve shims and record their sizes in the table. Using the feeler gauges, measure the gap. Understanding the precise measurements involves using tools like a feeler gauge and micrometer. With these figures, calculate the adjustment needed and determine the new shim size for optimal engine performance. Set the bucket and shim down in a clean work area where you can conduct a measurement of the old shim and then calculate the new replacement shim size. The valves are angled slightly off the vertical, and to do the measurement accurately, you need to position the flat spot on. Begin by measuring the existing valve clearance, noting the current shim size, and consulting the manufacturer’s specifications. 1) look up the spec settings for your bike's intake and exhaust valve clearance ranges.

Checking and Adjusting Valves on Your ShimUnderBucket Style Motorcycle

How To Measure Valve Shims 1) look up the spec settings for your bike's intake and exhaust valve clearance ranges. Begin by measuring the existing valve clearance, noting the current shim size, and consulting the manufacturer’s specifications. 1) look up the spec settings for your bike's intake and exhaust valve clearance ranges. The valves are angled slightly off the vertical, and to do the measurement accurately, you need to position the flat spot on. That is a job best left to a garage which has. With the valve cover removed, rotate the engine until the camshaft lobes are facing away from the valves you’re measuring. Using the feeler gauges, measure the gap. With these figures, calculate the adjustment needed and determine the new shim size for optimal engine performance. Understanding the precise measurements involves using tools like a feeler gauge and micrometer. Calculate the size valve shims you need to. Set the bucket and shim down in a clean work area where you can conduct a measurement of the old shim and then calculate the new replacement shim size. To help keep track of things, draw out a simple cylinder head diagram on a piece of paper so that the lifter buckets and all the measurements can be tracked. Measure the thicknesses of the valve shims and record their sizes in the table.
