Solid Shaft Formula . The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. Further, for any point at. Now, for a solid circular shaft, we have, j = π/32(d) 4. Maximum shear stress, angle of twist, where t = twisting moment. The above equation is called the torsion formula. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. All torsion problems that you are expected to answer can be solved using the following formula: D = diameter of the shaft. Here you can about its calculation and application in both solid and hollow shafts. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces.
from www.numerade.com
Here you can about its calculation and application in both solid and hollow shafts. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. The above equation is called the torsion formula. Now, for a solid circular shaft, we have, j = π/32(d) 4. Maximum shear stress, angle of twist, where t = twisting moment. D = diameter of the shaft. Further, for any point at. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm.
The solid shaft of radius r is subjected to a torque 𝐓. Determine the
Solid Shaft Formula Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. Maximum shear stress, angle of twist, where t = twisting moment. D = diameter of the shaft. All torsion problems that you are expected to answer can be solved using the following formula: Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. Now, for a solid circular shaft, we have, j = π/32(d) 4. Here you can about its calculation and application in both solid and hollow shafts. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. The above equation is called the torsion formula. Further, for any point at. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm.
From www.slideshare.net
Lecture 13 torsion in solid and hollow shafts 1 Solid Shaft Formula All torsion problems that you are expected to answer can be solved using the following formula: A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. Further, for any point at. Now, for a solid circular shaft, we have, j = π/32(d) 4. Understanding torsional shear stress is crucial in engineering, especially for designing. Solid Shaft Formula.
From www.chegg.com
Solved Solid cylindrical shaft with bending moment (M), Solid Shaft Formula All torsion problems that you are expected to answer can be solved using the following formula: The above equation is called the torsion formula. Now, for a solid circular shaft, we have, j = π/32(d) 4. Maximum shear stress, angle of twist, where t = twisting moment. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as. Solid Shaft Formula.
From www.slideshare.net
Lecture 13 torsion in solid and hollow shafts 1 Solid Shaft Formula Maximum shear stress, angle of twist, where t = twisting moment. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. D = diameter of the shaft. The. Solid Shaft Formula.
From mybasicconcepts.blogspot.com
MyBasicConcepts Torsion Formula Solid Shaft Formula D = diameter of the shaft. Further, for any point at. Maximum shear stress, angle of twist, where t = twisting moment. All torsion problems that you are expected to answer can be solved using the following formula: The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. The. Solid Shaft Formula.
From www.chegg.com
Solved A solid circular shaft AB is fixed to rigid walls at Solid Shaft Formula Now, for a solid circular shaft, we have, j = π/32(d) 4. Maximum shear stress, angle of twist, where t = twisting moment. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm.. Solid Shaft Formula.
From www.youtube.com
Hollow vs. Solid Rod TORSIONAL Shearing Stress in 2 Minutes! YouTube Solid Shaft Formula The above equation is called the torsion formula. Maximum shear stress, angle of twist, where t = twisting moment. D = diameter of the shaft. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. The present drive shaft is a solid rod with a circular cross section and. Solid Shaft Formula.
From picswe.net
Hollow Shaft Formula Solid Shaft Formula D = diameter of the shaft. Maximum shear stress, angle of twist, where t = twisting moment. Further, for any point at. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. All. Solid Shaft Formula.
From www.youtube.com
Shear Stress Torque in Shaft YouTube Solid Shaft Formula Now, for a solid circular shaft, we have, j = π/32(d) 4. Further, for any point at. All torsion problems that you are expected to answer can be solved using the following formula: Here you can about its calculation and application in both solid and hollow shafts. The present drive shaft is a solid rod with a circular cross section. Solid Shaft Formula.
From www.youtube.com
Design of shaft subjected to twisting moment and bending moment PART Solid Shaft Formula Maximum shear stress, angle of twist, where t = twisting moment. The above equation is called the torsion formula. All torsion problems that you are expected to answer can be solved using the following formula: T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. Further, for any point at. D = diameter of. Solid Shaft Formula.
From www.pirate4x4.com
Untitled Document Solid Shaft Formula D = diameter of the shaft. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. Now, for a solid circular shaft, we have, j = π/32(d) 4.. Solid Shaft Formula.
From www.chegg.com
Solved The solid shaft of radius r is subjected to a torque Solid Shaft Formula The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Maximum shear stress, angle of twist, where t = twisting moment. Here you can about its calculation and application in both solid and hollow shafts. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia. Solid Shaft Formula.
From www.youtube.com
Find the minimum diameter of a solid circular shaft in torsion YouTube Solid Shaft Formula Further, for any point at. The above equation is called the torsion formula. Maximum shear stress, angle of twist, where t = twisting moment. D = diameter of the shaft. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it. Solid Shaft Formula.
From calculatorgwx.blogspot.com
Bending Moment Shaft Calculation CALCULLATOR GWX Solid Shaft Formula The above equation is called the torsion formula. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Here you can about its calculation and application in both solid and hollow shafts. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. Maximum. Solid Shaft Formula.
From www.chegg.com
Solved Problem 2 The solidcircular shaft DB as shown below Solid Shaft Formula The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Here you can about its calculation and application in both solid and hollow shafts. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. T = torque or. Solid Shaft Formula.
From www.slideshare.net
Lecture 13 torsion in solid and hollow shafts 1 Solid Shaft Formula T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. All torsion problems that you are expected to answer can be solved using the following formula: Here you can about its calculation and application in both solid and hollow shafts. A moment of 1000 nm is acting on a solid cylinder shaft with diameter. Solid Shaft Formula.
From www.numerade.com
The solid shaft of radius r is subjected to a torque 𝐓. Determine the Solid Shaft Formula Now, for a solid circular shaft, we have, j = π/32(d) 4. The above equation is called the torsion formula. Maximum shear stress, angle of twist, where t = twisting moment. All torsion problems that you are expected to answer can be solved using the following formula: T = torque or twisting moment, [n×m, lb×in] j = polar moment of. Solid Shaft Formula.

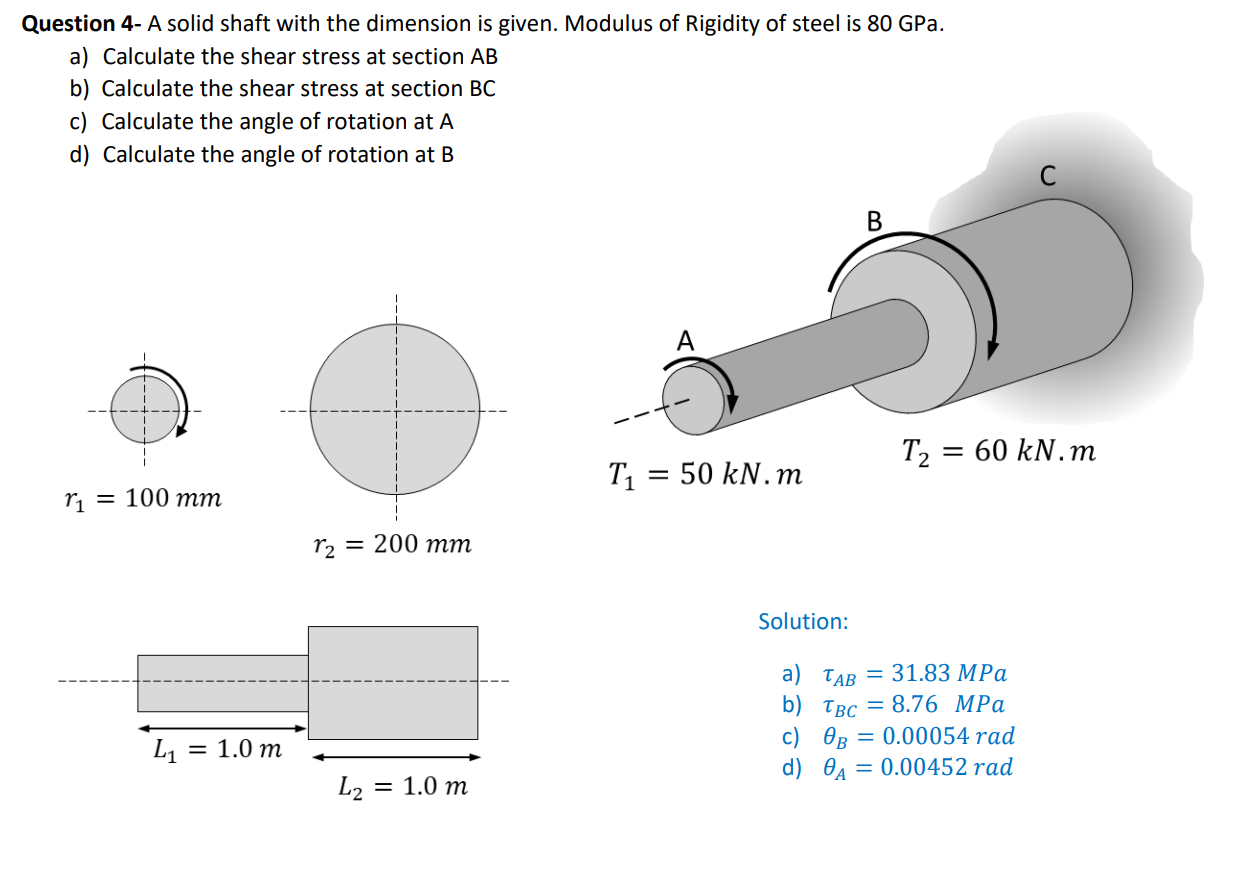

From www.chegg.com
Solved Question 4 A solid shaft with the dimension is Solid Shaft Formula Further, for any point at. Now, for a solid circular shaft, we have, j = π/32(d) 4. Here you can about its calculation and application in both solid and hollow shafts. All torsion problems that you are expected to answer can be solved using the following formula: Maximum shear stress, angle of twist, where t = twisting moment. A moment. Solid Shaft Formula.
From www.numerade.com
6. The solid shaft is subjected to a torque, bending moment, and shear Solid Shaft Formula Maximum shear stress, angle of twist, where t = twisting moment. Now, for a solid circular shaft, we have, j = π/32(d) 4. Here you can about its calculation and application in both solid and hollow shafts. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. Further, for. Solid Shaft Formula.
From www.youtube.com
Torsion Equation for Solid Circular Shaft Strength of Materials YouTube Solid Shaft Formula D = diameter of the shaft. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. Here you can about its calculation and application in both solid and hollow shafts. Further, for any. Solid Shaft Formula.
From www.reddit.com
The solid 30mmdiameter shaft is used to transmit the torques applied Solid Shaft Formula All torsion problems that you are expected to answer can be solved using the following formula: Further, for any point at. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. The above equation is called the torsion formula. Maximum shear stress, angle of twist, where t = twisting. Solid Shaft Formula.
From www.slideserve.com
PPT Chapter 5 Torsion PowerPoint Presentation, free download ID Solid Shaft Formula The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. Now, for a solid circular shaft, we. Solid Shaft Formula.
From slidetodoc.com
Torsional Deformation of a circular shaft Torsion Formula Solid Shaft Formula Maximum shear stress, angle of twist, where t = twisting moment. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. Now, for a solid circular shaft, we. Solid Shaft Formula.
From www.youtube.com
Find the minimum inner diameter of a hollow circular shaft in torsion Solid Shaft Formula The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. D = diameter of the shaft. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. Maximum shear stress, angle of twist, where t = twisting moment. Here you can about its calculation. Solid Shaft Formula.
From www.hkdivedi.com
POLAR MOMENT OF INERTIA FOR VARIOUS SECTIONS ENGINEERING APPLICATIONS Solid Shaft Formula A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. Now, for a solid circular shaft, we have, j = π/32(d) 4. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Further, for any point at. Understanding torsional shear stress is crucial. Solid Shaft Formula.

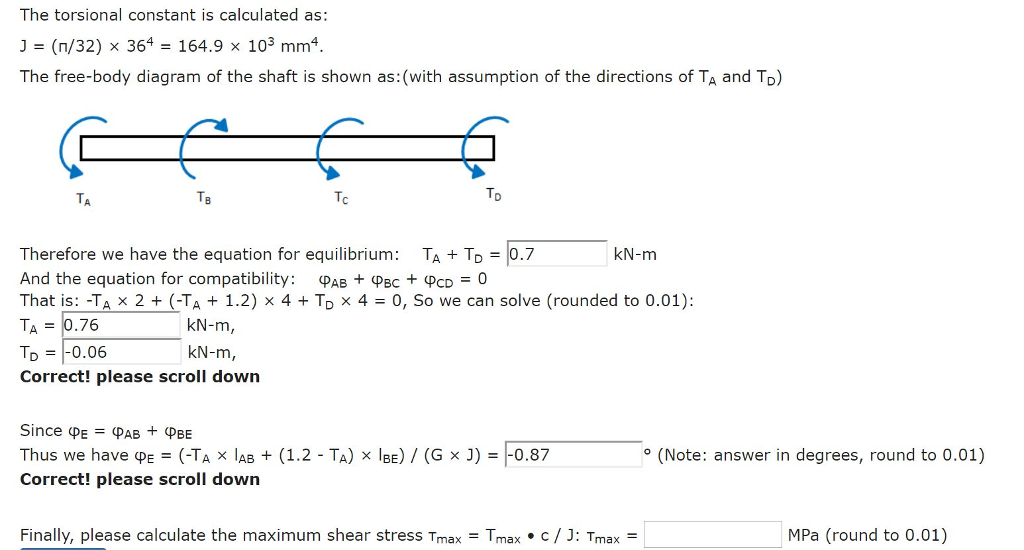

From www.chegg.com
Solved A solid circular shaft with a diameter of 36 mm is Solid Shaft Formula The above equation is called the torsion formula. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. All torsion problems that you are expected to answer can be solved using the following formula: T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or. Solid Shaft Formula.
From www.engineeringcorecourses.com
Example C3.4 Statically Indeterminate Analysis with Torque Solid Solid Shaft Formula Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. D = diameter of the shaft. Here you can about its calculation and application in both solid and. Solid Shaft Formula.
From www.youtube.com
Lesson 11 Shafts Bending Moment YouTube Solid Shaft Formula All torsion problems that you are expected to answer can be solved using the following formula: Now, for a solid circular shaft, we have, j = π/32(d) 4. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar.. Solid Shaft Formula.
From slidesharetrick.blogspot.com
Maximum Shear Stress Formula slidesharetrick Solid Shaft Formula T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. Here you can about its calculation and. Solid Shaft Formula.
From www.chegg.com
Solved Calculate the angle of twist, θ, in a 4in.diameter Solid Shaft Formula A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. Now, for a solid circular shaft, we have, j = π/32(d) 4. The above equation is called the torsion formula. Maximum shear stress, angle of twist, where t = twisting moment. Here you can about its calculation and application in both solid and hollow. Solid Shaft Formula.
From www.engineersedge.com
Cylindrical Shaft Moment of Inertia Equations Solid Shaft Formula The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Now, for a solid circular shaft, we have, j = π/32(d) 4. All torsion problems that you are expected to answer can be solved using the following formula: D = diameter of the shaft. Further, for any point at.. Solid Shaft Formula.
From jahastephenterry.blogspot.com
Angle of Twist Formula Stephen Terry Solid Shaft Formula Now, for a solid circular shaft, we have, j = π/32(d) 4. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. Further, for any point at. All torsion problems that you are. Solid Shaft Formula.
From www.chegg.com
Solved A solid circular shaft has a diameter of 100 mm and Solid Shaft Formula The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Now, for a solid circular shaft, we have, j = π/32(d) 4. A moment of 1000 nm is acting on a solid cylinder shaft with diameter 50 mm. T = torque or twisting moment, [n×m, lb×in] j = polar. Solid Shaft Formula.
From www.chegg.com
Solved 2. The solid shaft shown is formed of a brass for Solid Shaft Formula All torsion problems that you are expected to answer can be solved using the following formula: Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. Maximum shear stress, angle of twist, where t = twisting moment. Further, for any point at. The above equation is called the torsion. Solid Shaft Formula.
From www.youtube.com
2nd civilLec 2 (Shear Stresses due to Torsion ,Torsion of Solid and Solid Shaft Formula Understanding torsional shear stress is crucial in engineering, especially for designing shafts, as it helps determine how materials withstand twisting forces. Further, for any point at. Maximum shear stress, angle of twist, where t = twisting moment. The present drive shaft is a solid rod with a circular cross section and a diameter of \(d = 10\) mm. Here you. Solid Shaft Formula.
From www.youtube.com
Shearing stress due to torsion in a solid circular shaft YouTube Solid Shaft Formula All torsion problems that you are expected to answer can be solved using the following formula: Now, for a solid circular shaft, we have, j = π/32(d) 4. Further, for any point at. T = torque or twisting moment, [n×m, lb×in] j = polar moment of inertia or polar. The above equation is called the torsion formula. Maximum shear stress,. Solid Shaft Formula.
