Diode Exercises With Answers. Given the circuit of figure \(\pageindex{2}\), determine. Refresh the page to get a new problem. Run a transient analysis of the circuit in figure 2.6.3 2.6. At 20 c, voltage v is measured by a very high. Read the diode class notes. For the circuit shown, r1 = 470 ω. These questions & answers will help you master the topic! Run two transient analyses on the clamper circuit of example. The circuit shown in figure (3.2) uses identical diodes for which i d = 1 ma at v d = 0.7 v with n = 1. Use the on/off diode model to find ir1 and ir2. Take the precise diode circuits (analog integrated circuits) worksheet. Repeat problem 1 if the diode is inserted in the opposite orientation. For the circuit shown, r1 = 18 kω. Read the diode class notes. Basic electronics solved problems by sasmita january 9, 2020.

Run two transient analyses on the clamper circuit of example. Repeat problem 1 if the diode is inserted in the opposite orientation. At 20 c, voltage v is measured by a very high. Refresh the page to get a new problem. For the circuit shown, r1 = 470 ω. Use the on/off diode model to find ir1 and ir2. Given the circuit of figure \(\pageindex{2}\), determine. Refresh the page to get a new problem. The circuit shown in figure (3.2) uses identical diodes for which i d = 1 ma at v d = 0.7 v with n = 1. Read the diode class notes.

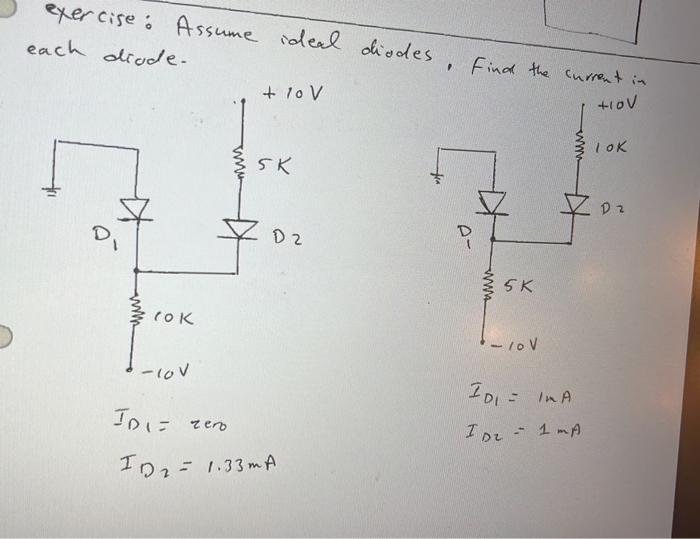

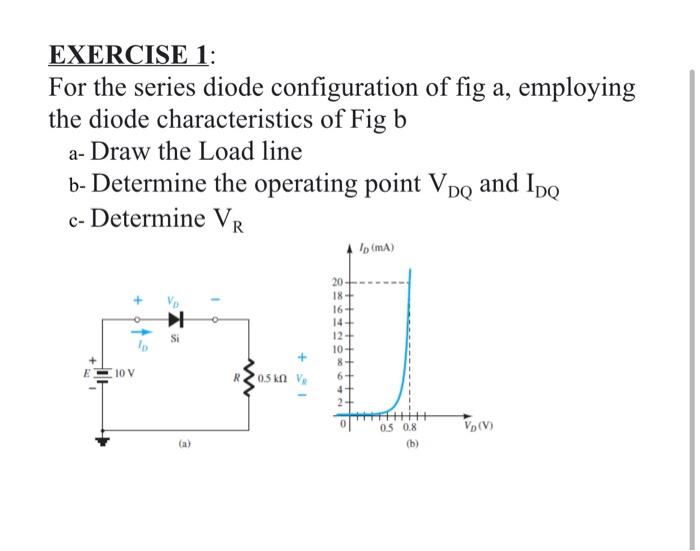

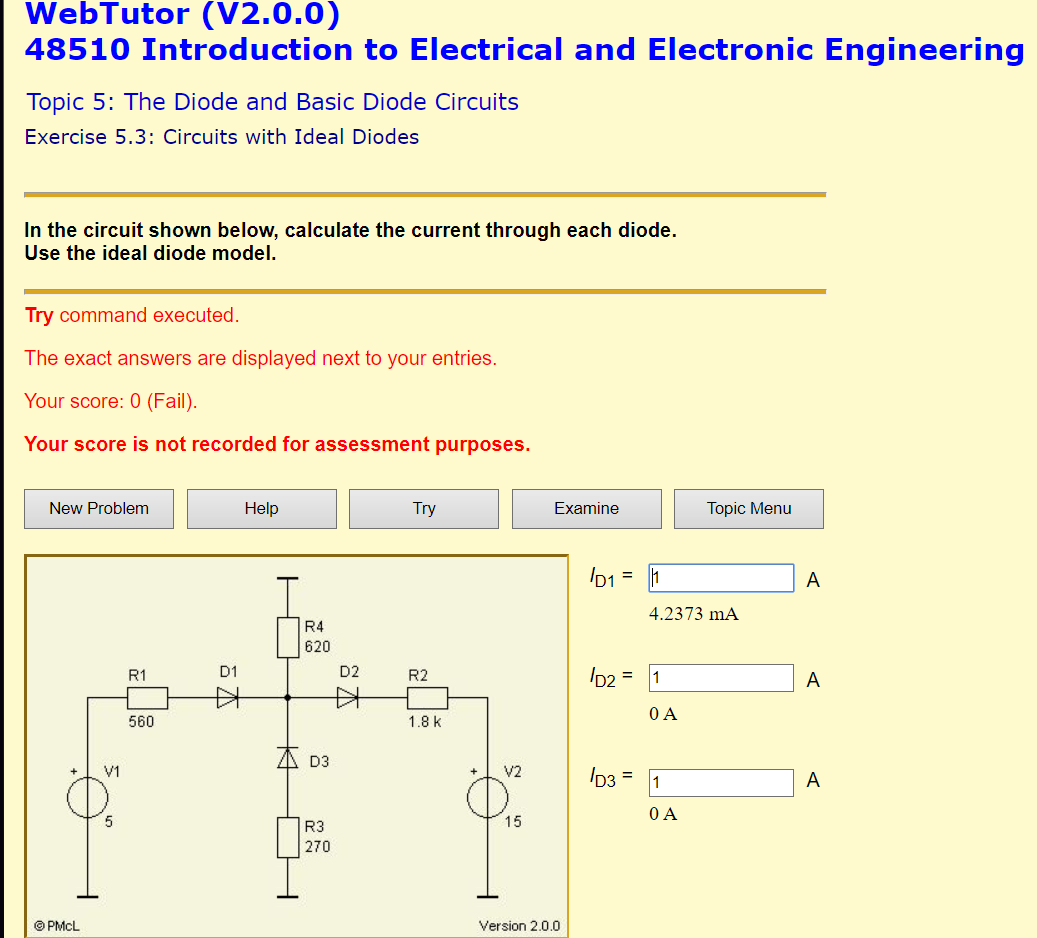

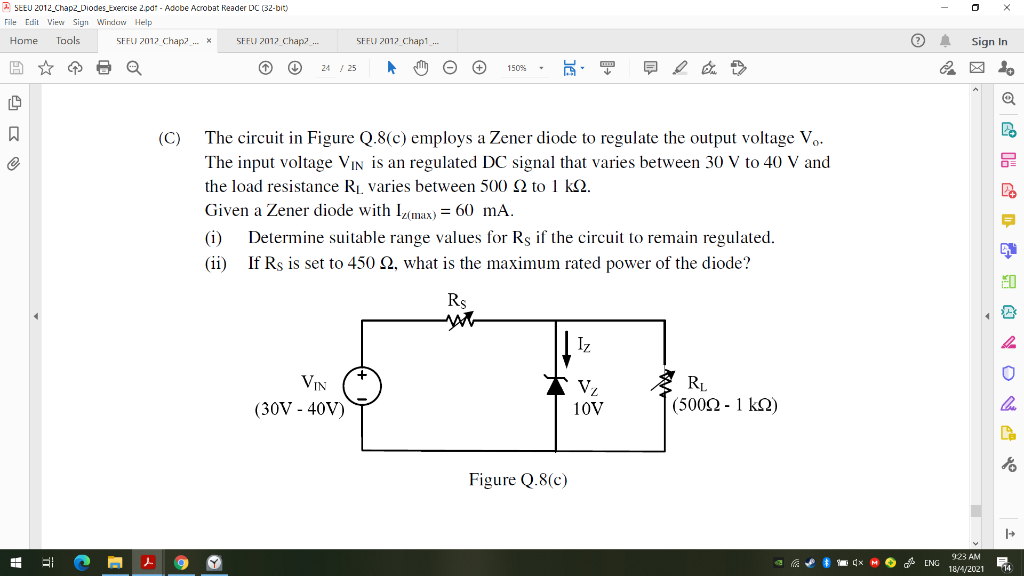

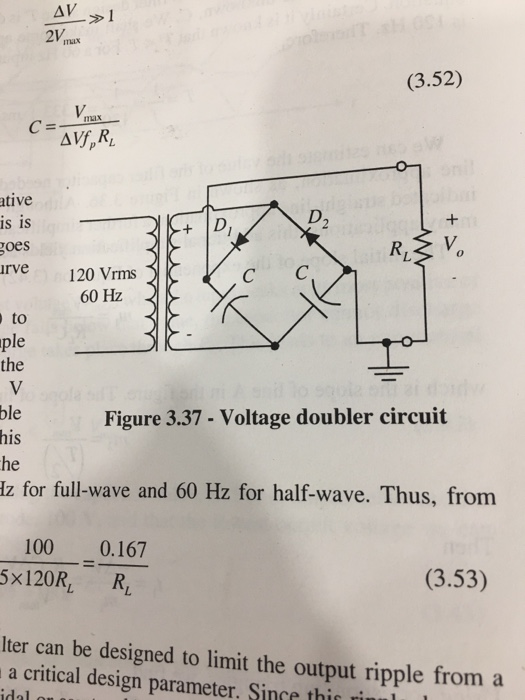

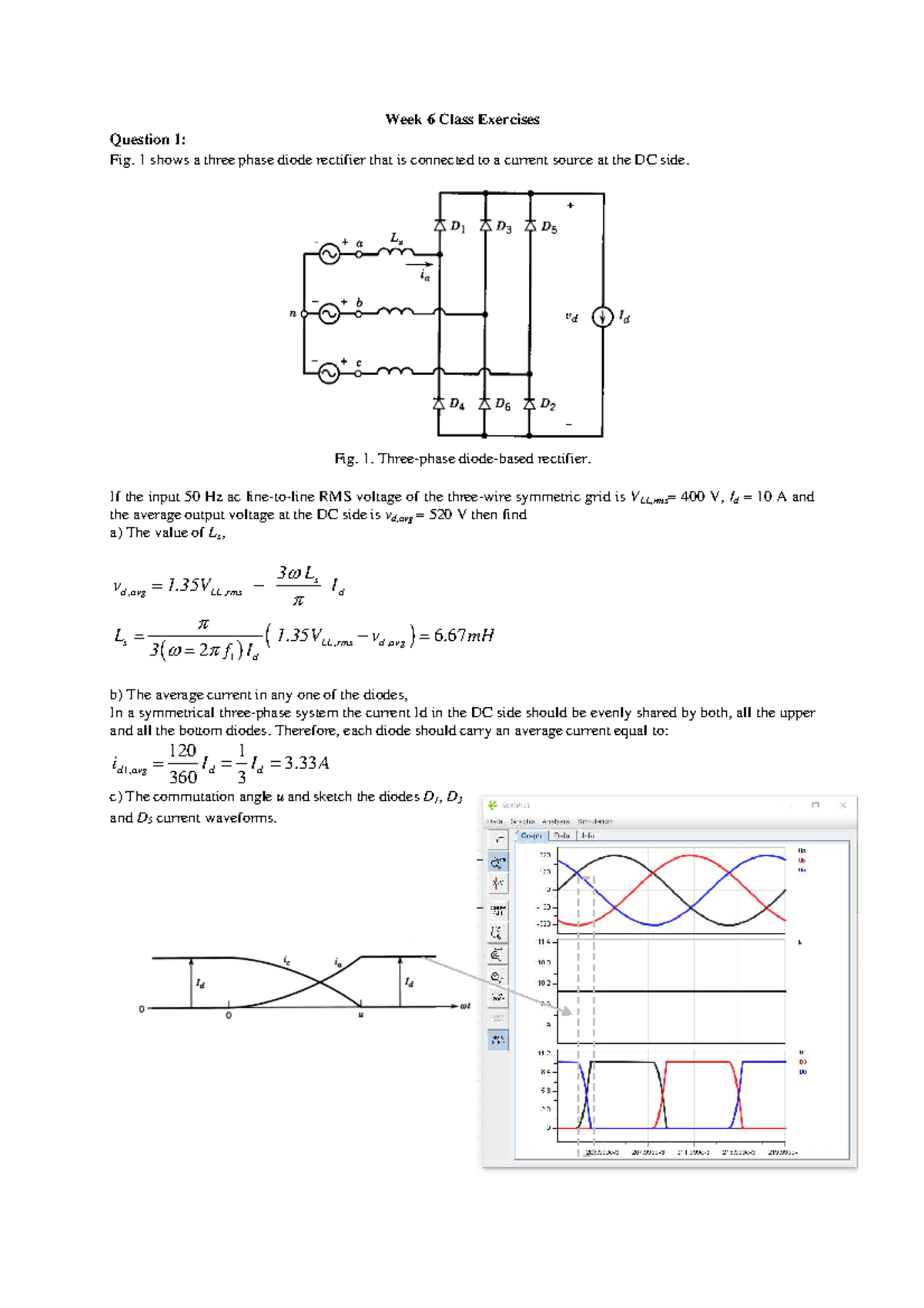

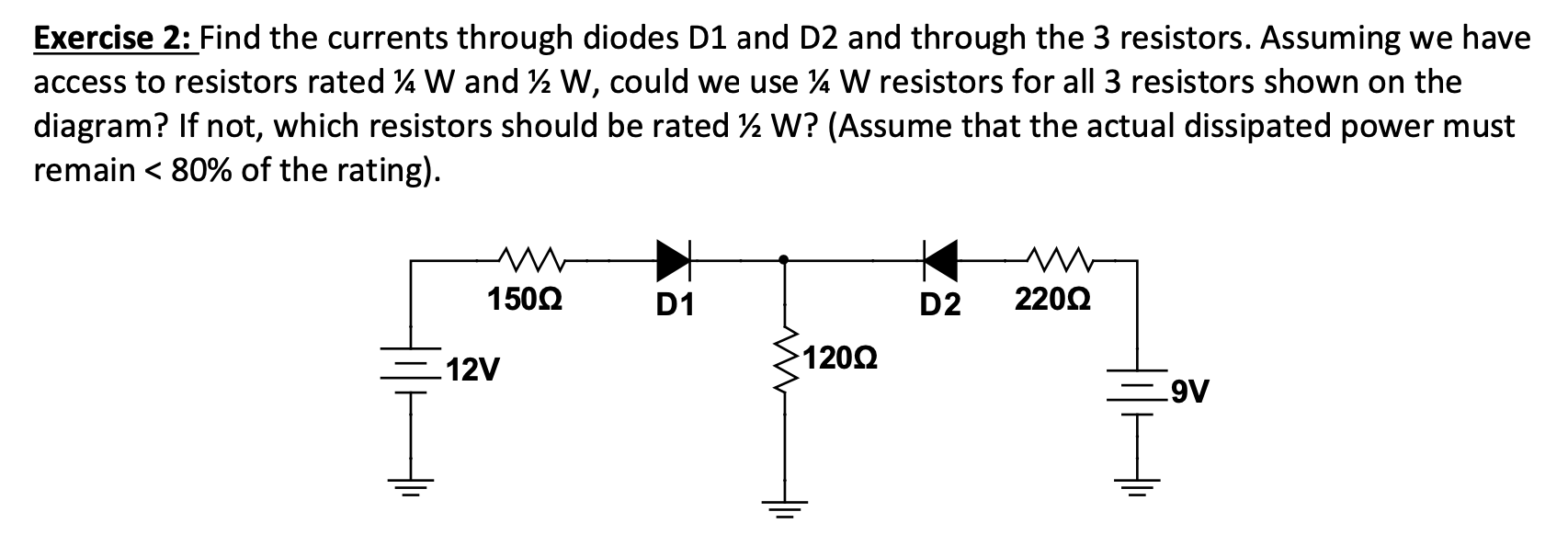

Solved Topic 5 The Diode and Basic Diode Circuits Exercise

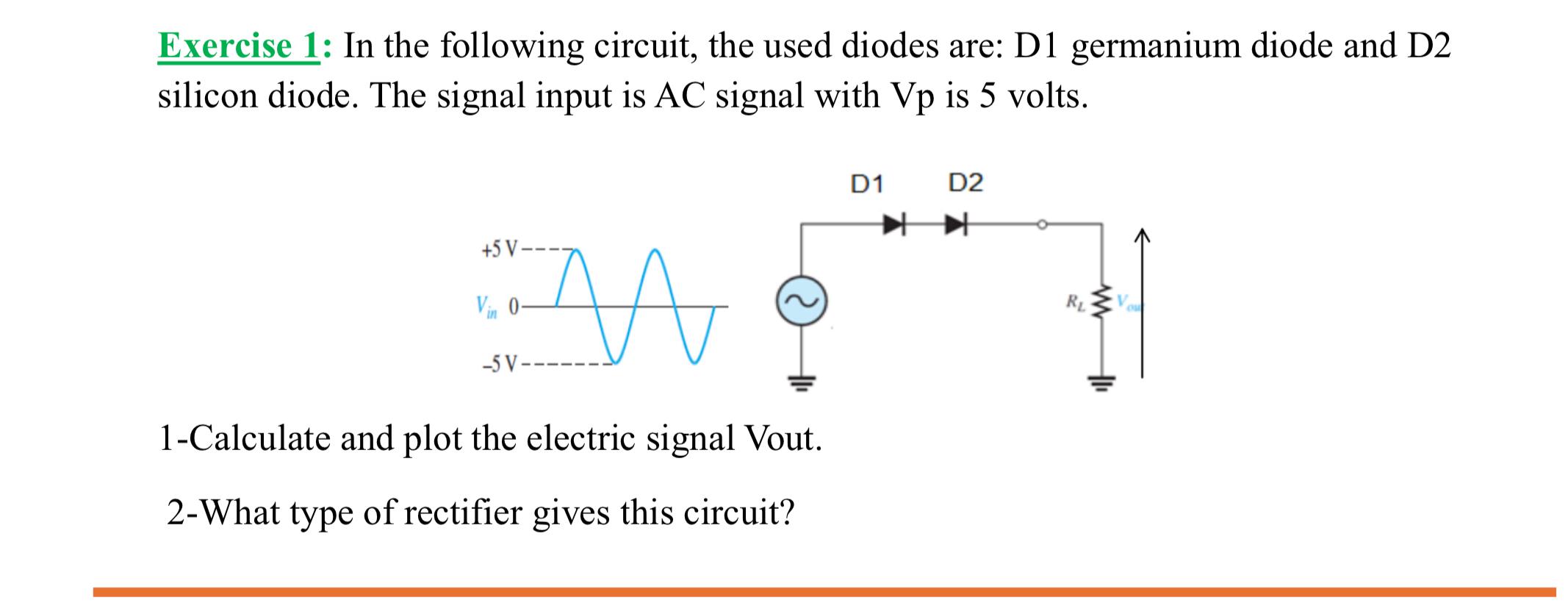

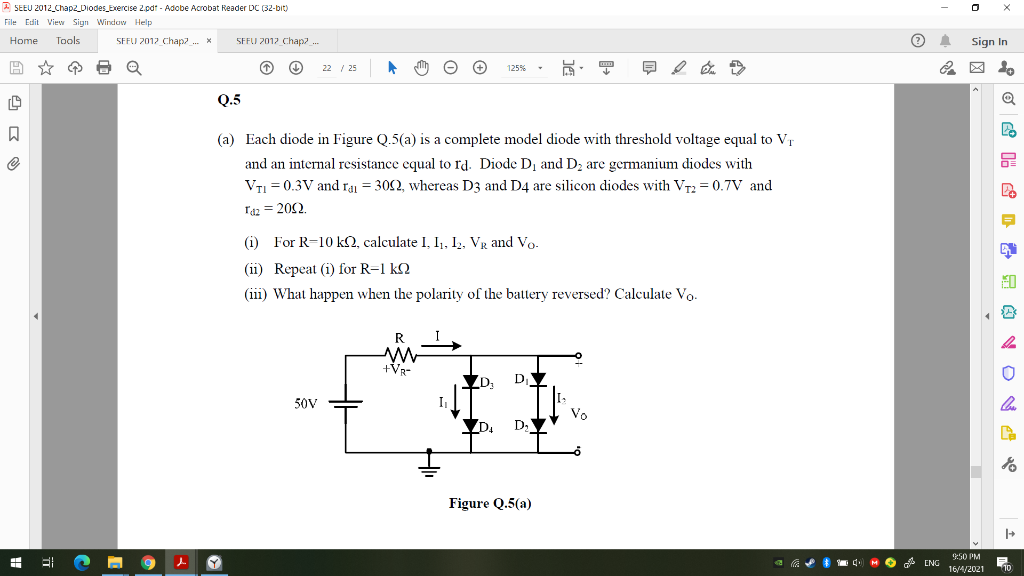

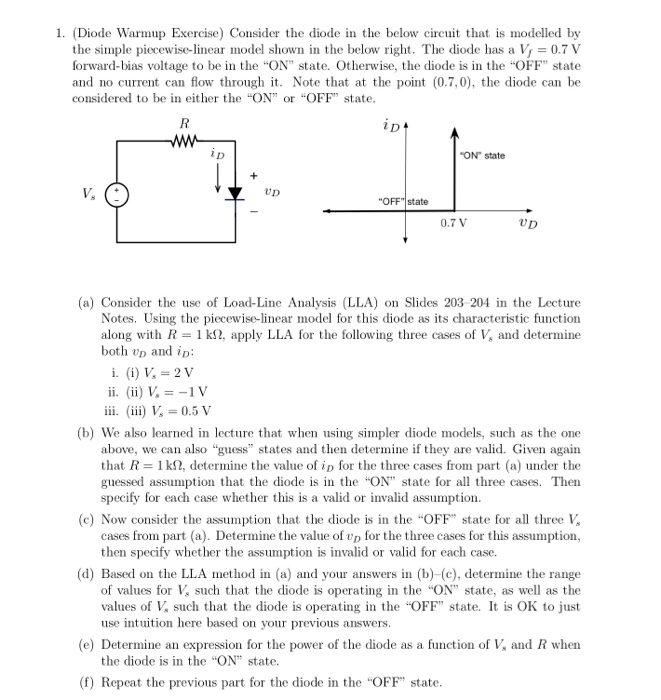

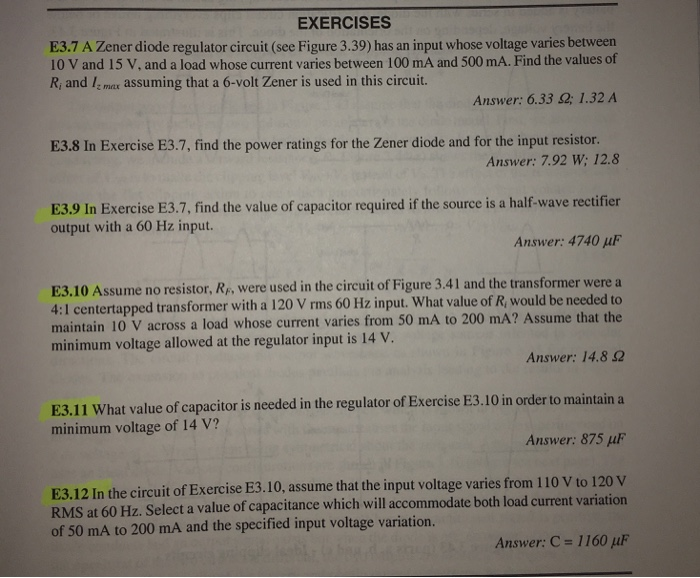

Diode Exercises With Answers Run two transient analyses on the clamper circuit of example. Use the on/off diode model to find ir1 and ir2. Refresh the page to get a new problem. Repeat problem 1 if the diode is inserted in the opposite orientation. These questions & answers will help you master the topic! For the circuit shown, r1 = 18 kω. Given the circuit of figure \(\pageindex{2}\), determine. Basic electronics solved problems by sasmita january 9, 2020. The circuit shown in figure (3.2) uses identical diodes for which i d = 1 ma at v d = 0.7 v with n = 1. Solved problems on semiconductor diode. At 20 c, voltage v is measured by a very high. Run two transient analyses on the clamper circuit of example. Take the precise diode circuits (analog integrated circuits) worksheet. For the circuit shown, r1 = 470 ω. Read the diode class notes. Refresh the page to get a new problem.
