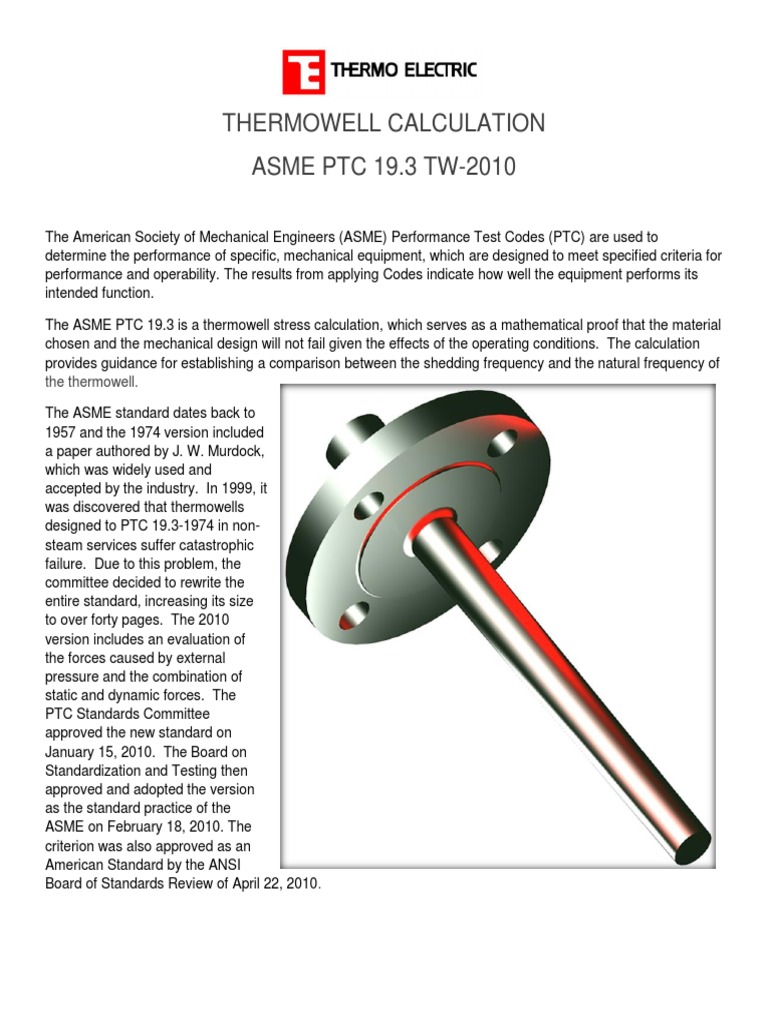

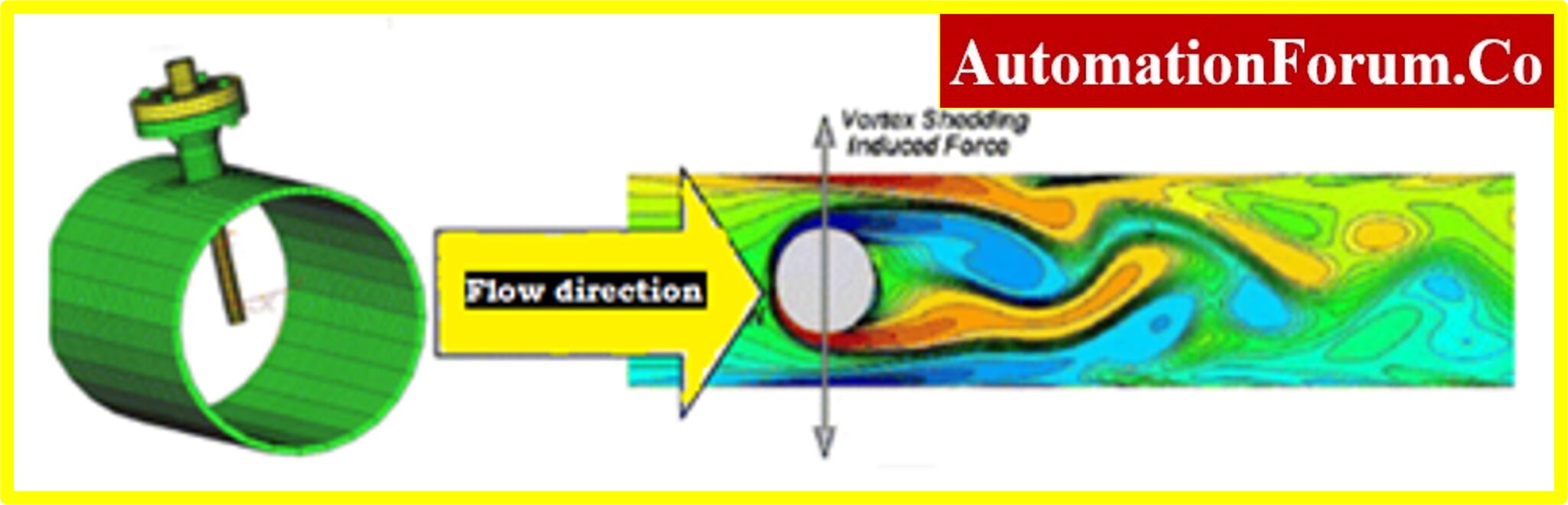

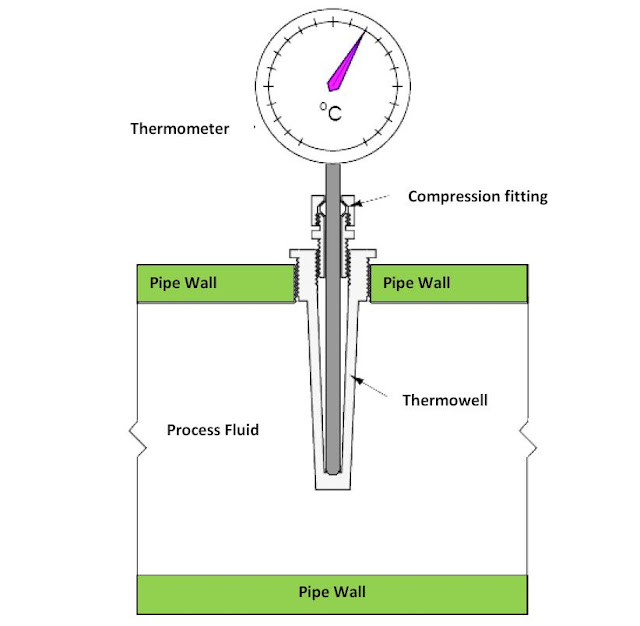

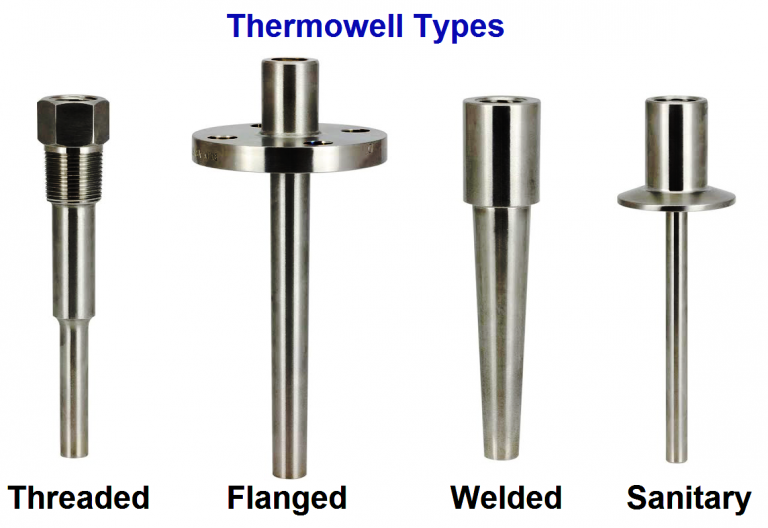

How To Calculate Thermowell Length. the overall length of the thermowell is s + ¼”, since the thermowell is bored within ¼” of the tip. thermowell materials information, calculate the natural and strouhal frequency, compare the ratio to 0.8, calculate the bending. the online thermowell calculation can help with preliminary calculations and official documentation with the r21 report. Thermowell must be inserted into 11/3 (30%) or 1/3 (60%) depth of the fluid stream. the immersion length must be 10 times the diameter of the thermowell. often this is achieved by adherence to the rule that a thermowell length should be based on the degree of insertion relative to pipe wall diameter, e.g. The required immersion length depends on the process conditions, sensor. Thermowell installed perpendicular to the pipe wall must at least have an immersion length of a minimum of 2 inches. how do i determine the required immersion length for my thermowell? Also, this thermowell calculations whitepaper describes the updated standard and calculations in more detail. The hex wrench flats are machined to ¾” in length.

The hex wrench flats are machined to ¾” in length. the immersion length must be 10 times the diameter of the thermowell. The required immersion length depends on the process conditions, sensor. Also, this thermowell calculations whitepaper describes the updated standard and calculations in more detail. how do i determine the required immersion length for my thermowell? Thermowell installed perpendicular to the pipe wall must at least have an immersion length of a minimum of 2 inches. Thermowell must be inserted into 11/3 (30%) or 1/3 (60%) depth of the fluid stream. often this is achieved by adherence to the rule that a thermowell length should be based on the degree of insertion relative to pipe wall diameter, e.g. thermowell materials information, calculate the natural and strouhal frequency, compare the ratio to 0.8, calculate the bending. the online thermowell calculation can help with preliminary calculations and official documentation with the r21 report.
