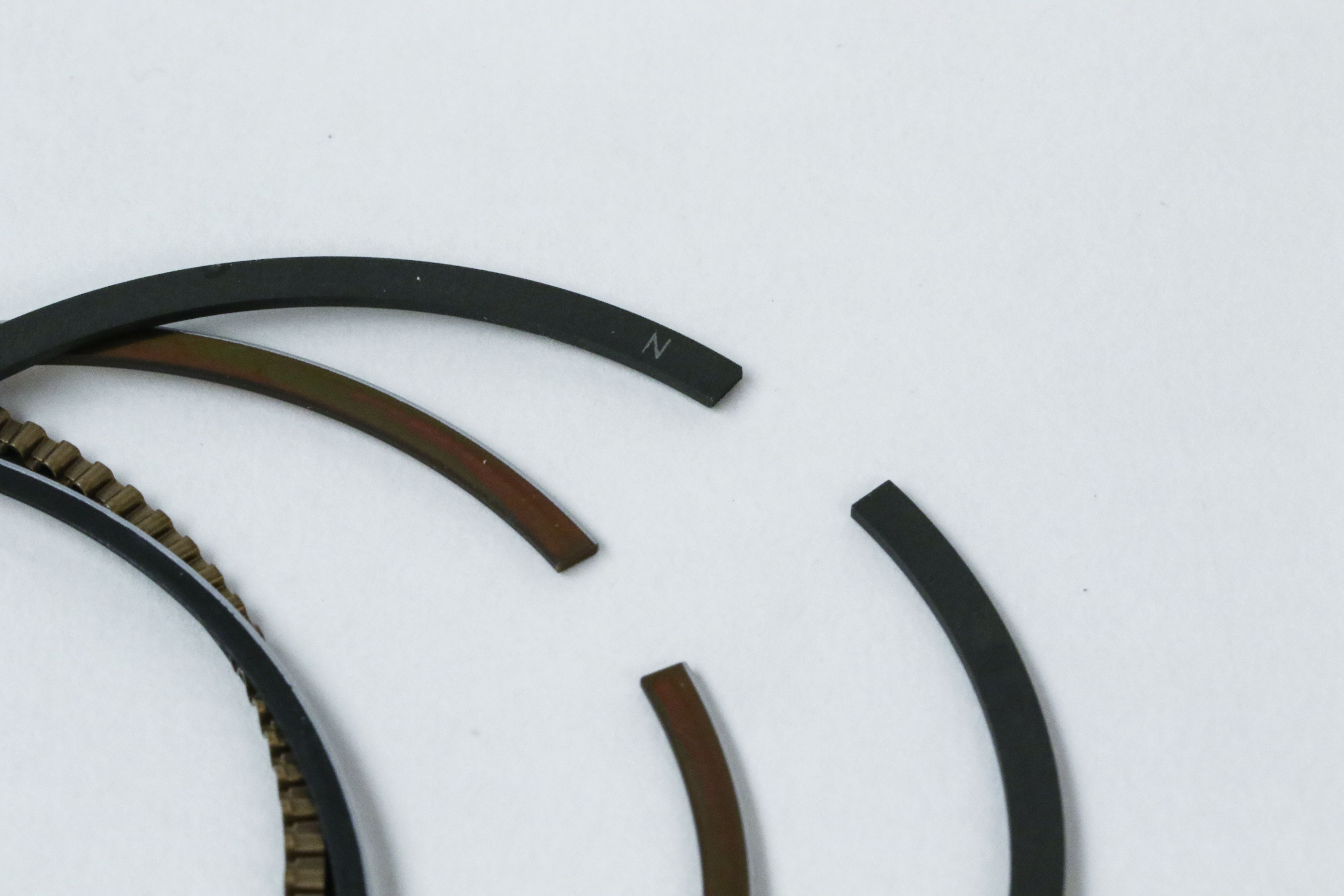

Piston Ring Markings. The top, pip marks or dots need to be installed up towards the top of the piston. There are two styles of torsional rings with inside. Gapping and correctly installing piston rings is one of the most important parts of engine assembly. Any identifying pip marks, dots, letters, or oversize marks go to top of piston. Either way, these markings always face up when installed on the piston. We've put together a guide for all the specific markings and numbers you may find on your je pistons and rings. Piston ring markings are commonly laser markings, like the n100 you see here, or small dimples (pictured). Here’s how to do it right. Piston rings may not be the most exciting part of an engine build, but knowing how to clock piston rings and how to install rings on a piston is critical to your engine performing properly. This guide will help you. Piston rings perform a number of duties in an. Rings having a “pip” mark or dot on the side of the ring must always be installed with the “pip” mark or dot toward the top of the piston. Install the coil expander into the groove first, followed by the. Ring with one dot goes in top groove, ring with two dots.

Piston ring markings are commonly laser markings, like the n100 you see here, or small dimples (pictured). The top, pip marks or dots need to be installed up towards the top of the piston. Rings having a “pip” mark or dot on the side of the ring must always be installed with the “pip” mark or dot toward the top of the piston. Either way, these markings always face up when installed on the piston. Ring with one dot goes in top groove, ring with two dots. Install the coil expander into the groove first, followed by the. This guide will help you. Here’s how to do it right. Gapping and correctly installing piston rings is one of the most important parts of engine assembly. There are two styles of torsional rings with inside.

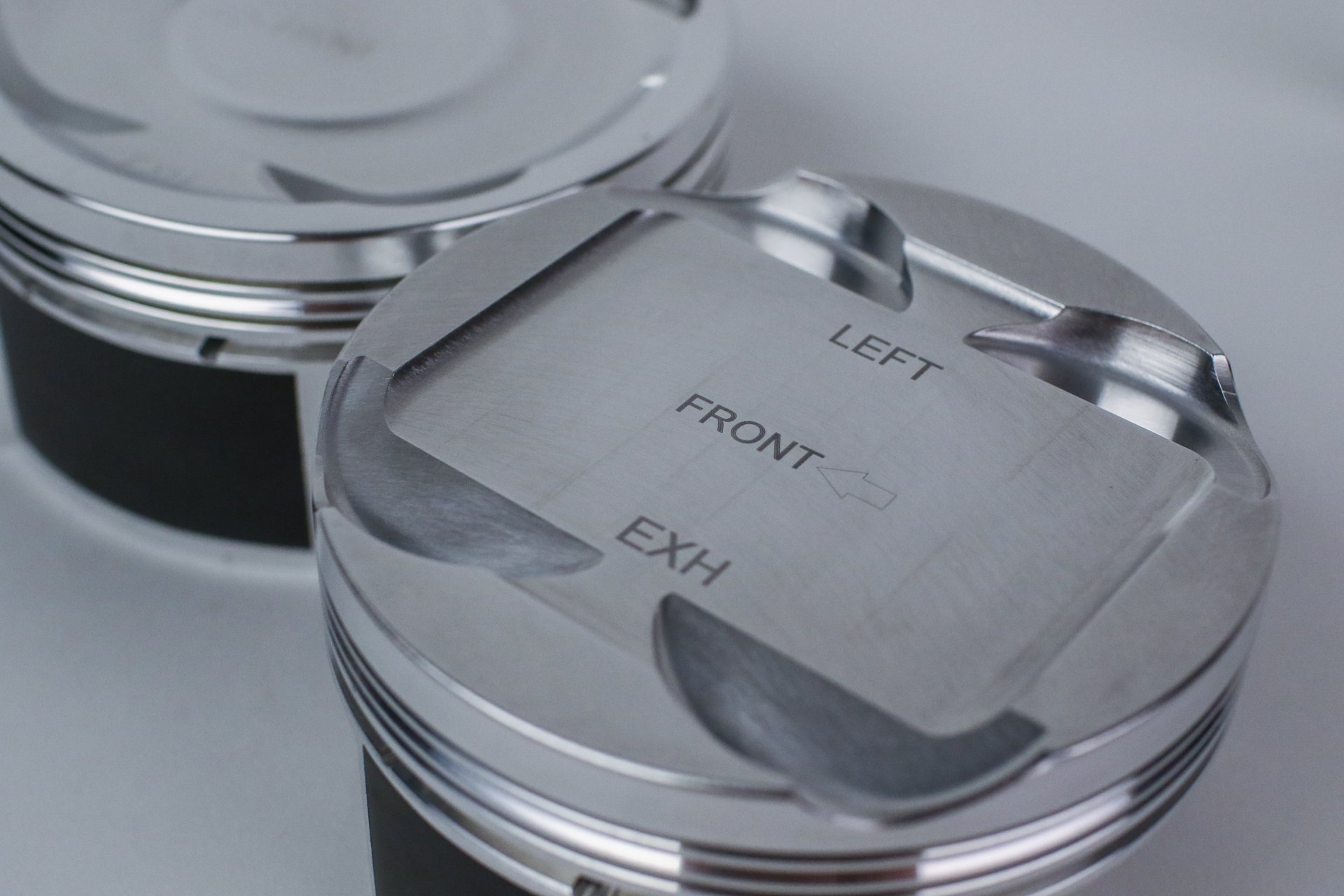

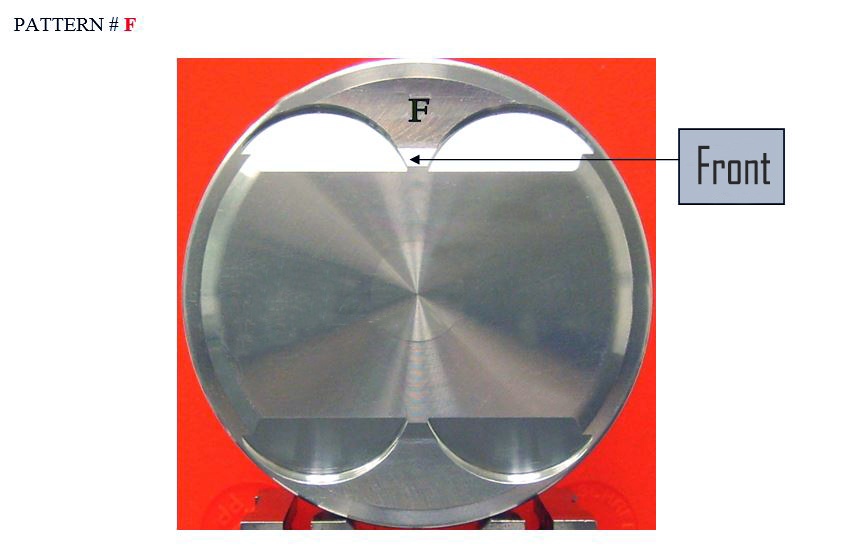

A Reference Guide to JE Powersports Piston and Ring Markings

Piston Ring Markings Piston ring markings are commonly laser markings, like the n100 you see here, or small dimples (pictured). The top, pip marks or dots need to be installed up towards the top of the piston. There are two styles of torsional rings with inside. Piston rings may not be the most exciting part of an engine build, but knowing how to clock piston rings and how to install rings on a piston is critical to your engine performing properly. We've put together a guide for all the specific markings and numbers you may find on your je pistons and rings. This guide will help you. Any identifying pip marks, dots, letters, or oversize marks go to top of piston. Install the coil expander into the groove first, followed by the. Piston rings perform a number of duties in an. Gapping and correctly installing piston rings is one of the most important parts of engine assembly. Either way, these markings always face up when installed on the piston. Here’s how to do it right. Ring with one dot goes in top groove, ring with two dots. Rings having a “pip” mark or dot on the side of the ring must always be installed with the “pip” mark or dot toward the top of the piston. Piston ring markings are commonly laser markings, like the n100 you see here, or small dimples (pictured).
