Pump Discharge Check Valve Location. Under normal operation the discharge pressure of the pump will keep the check valve in closed position. Check valves are commonly installed on the discharge side of the pump. However if any pump fails then. The second check valve should be placed above the pump and no more than 25 feet above the water pumping level in a well. An essential element in the design of water and wastewater pumping systems is the proper selection of the pump discharge check valve, whose purpose is to automatically open to allow forward flow and. Placing the check valve directly after the pump ensures that the water flows in the desired direction and prevents any backflow when the pump is turned off. Both a check and gate valve should be installed in the discharge piping with the check valve placed between the pump and the stop valve to protect the pump from reverse flow and excessive. The most important role of a check valve is to act as the automatic shut. This check valve will be the first check valve installed. Most high quality submersible pumps will have a check valve built in from the manufacturer at the discharge. The most common and recommended location for installing a check valve is on the outlet side of the water pump. Swing check valves are commonly used for pump discharge applications due to control options that accommodate varying forward and.

Placing the check valve directly after the pump ensures that the water flows in the desired direction and prevents any backflow when the pump is turned off. This check valve will be the first check valve installed. The most important role of a check valve is to act as the automatic shut. The most common and recommended location for installing a check valve is on the outlet side of the water pump. Swing check valves are commonly used for pump discharge applications due to control options that accommodate varying forward and. Under normal operation the discharge pressure of the pump will keep the check valve in closed position. An essential element in the design of water and wastewater pumping systems is the proper selection of the pump discharge check valve, whose purpose is to automatically open to allow forward flow and. The second check valve should be placed above the pump and no more than 25 feet above the water pumping level in a well. Check valves are commonly installed on the discharge side of the pump. However if any pump fails then.

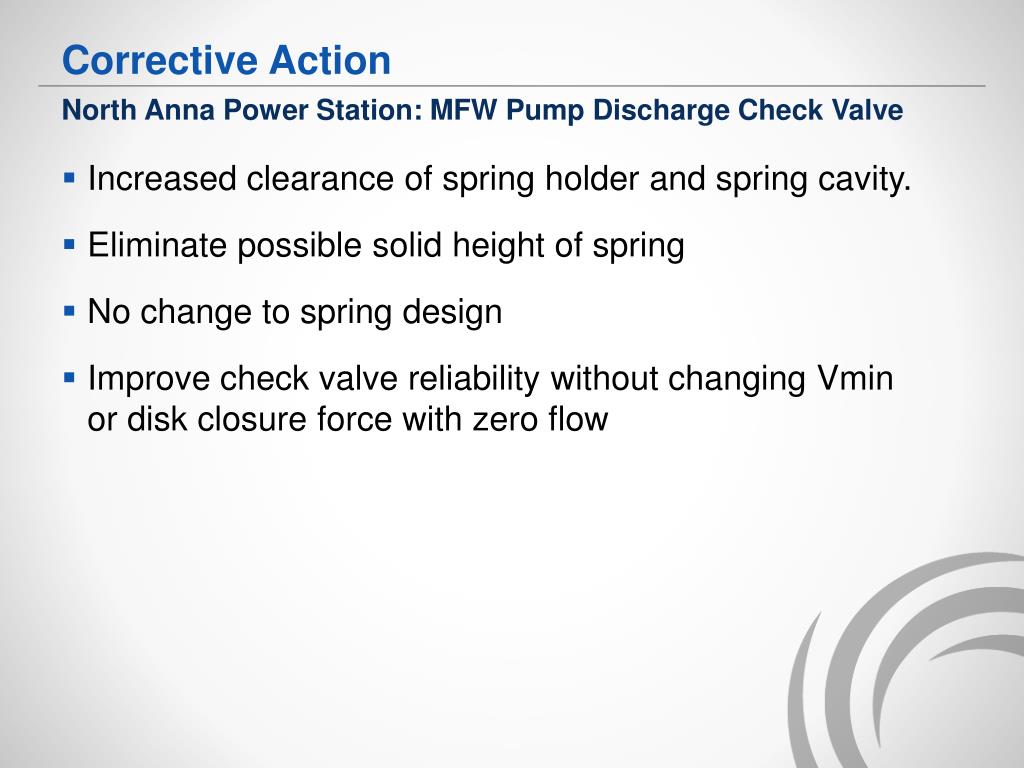

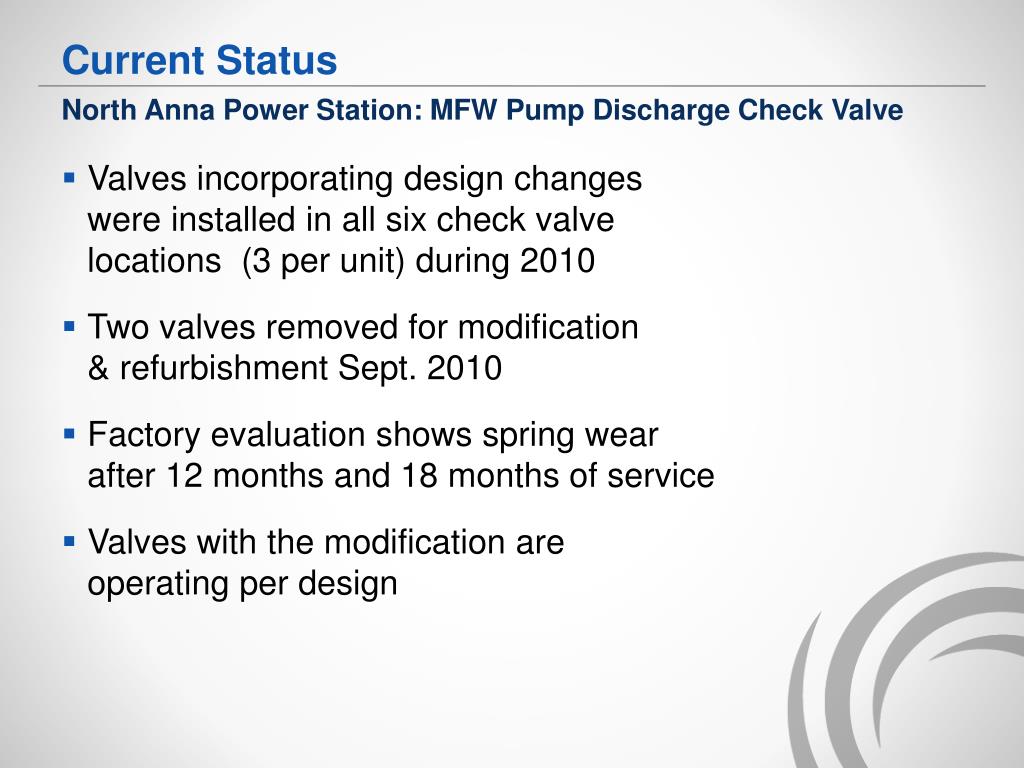

PPT MFW Pump Discharge Check Valve OE Follow Up PowerPoint

Pump Discharge Check Valve Location Both a check and gate valve should be installed in the discharge piping with the check valve placed between the pump and the stop valve to protect the pump from reverse flow and excessive. Swing check valves are commonly used for pump discharge applications due to control options that accommodate varying forward and. Placing the check valve directly after the pump ensures that the water flows in the desired direction and prevents any backflow when the pump is turned off. Under normal operation the discharge pressure of the pump will keep the check valve in closed position. The second check valve should be placed above the pump and no more than 25 feet above the water pumping level in a well. The most common and recommended location for installing a check valve is on the outlet side of the water pump. This check valve will be the first check valve installed. Both a check and gate valve should be installed in the discharge piping with the check valve placed between the pump and the stop valve to protect the pump from reverse flow and excessive. The most important role of a check valve is to act as the automatic shut. Most high quality submersible pumps will have a check valve built in from the manufacturer at the discharge. However if any pump fails then. An essential element in the design of water and wastewater pumping systems is the proper selection of the pump discharge check valve, whose purpose is to automatically open to allow forward flow and. Check valves are commonly installed on the discharge side of the pump.
