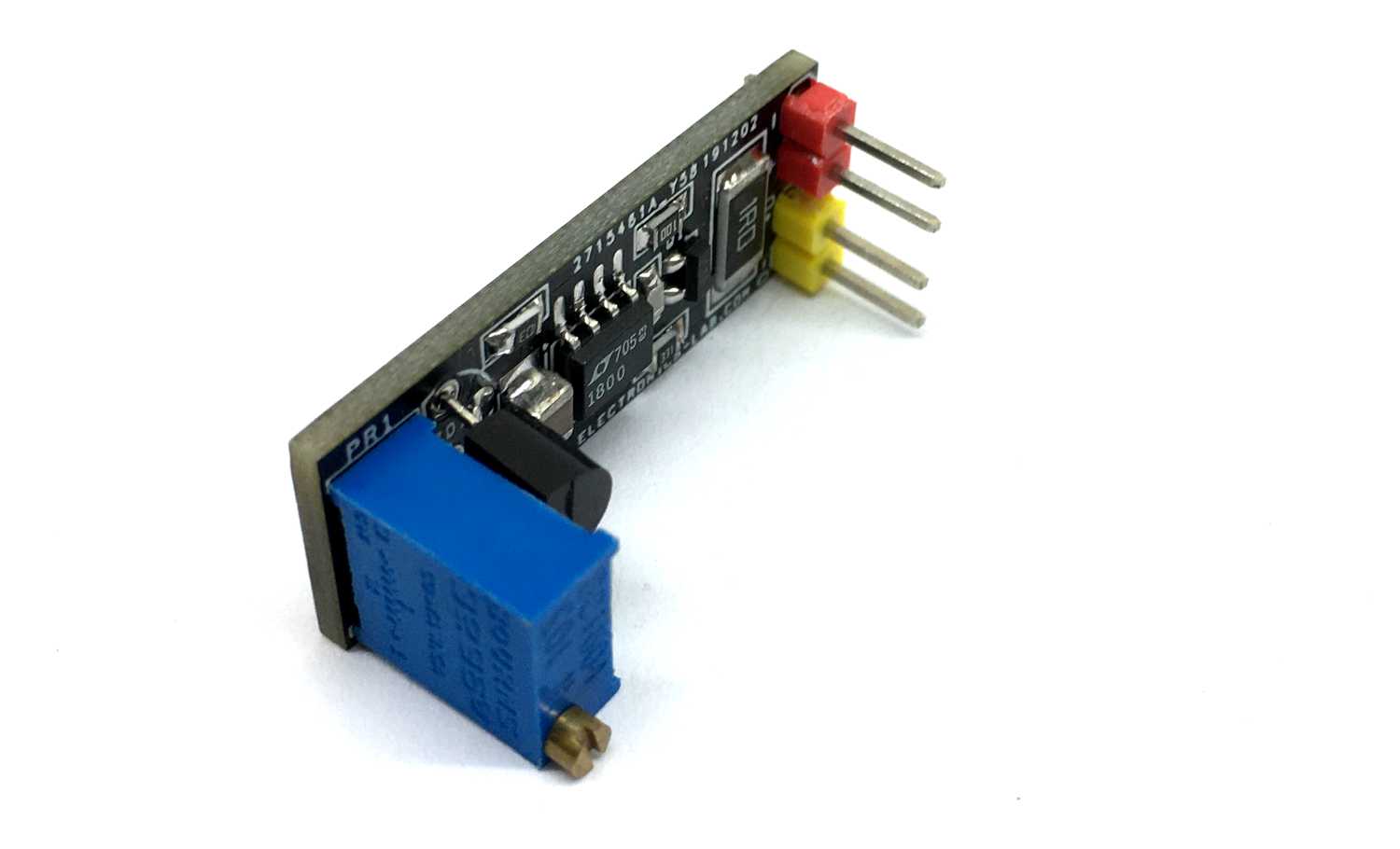

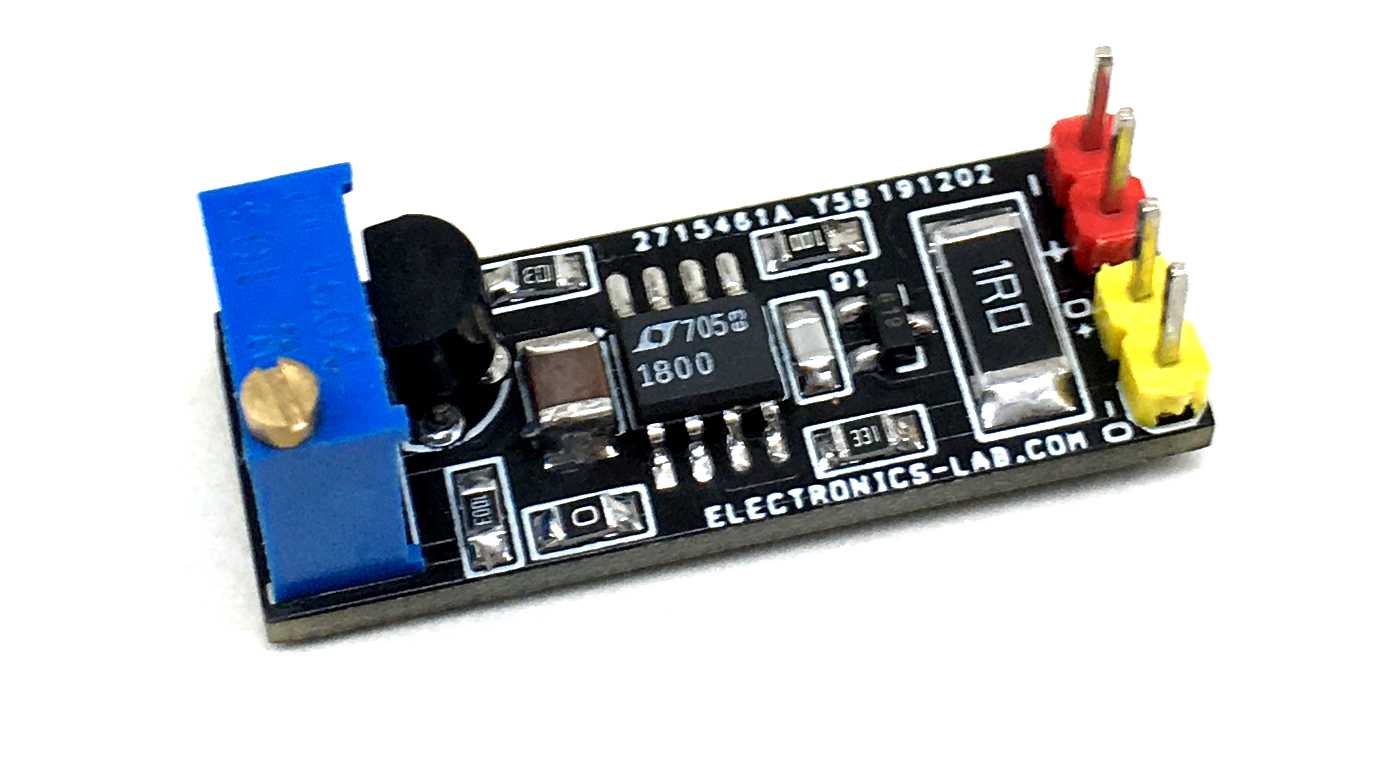

Constant Current Laser Diode Driver Circuit. A laser diode needs a driver circuit to work properly, and the driver circuit needs to give the laser a constant current. The optical output of the laser diode varies largely by the ambient temperature even when using a constant current. The majority of the diy circuits are based on. A laser diode driver is a constant current source. In the most ideal form, it is a constant current source, linear, noiseless, and accurate, that delivers exactly the current to the laser diode that it needs to. This simple linear driver provides a. 2) produce constant current driven through the ld load. The function of the laser diode driver is to provide a constant current to the laser diode. This circuit is suitable for constant and continuous glowing of laser diode, we can adjust the intensity of light by. Therefore an apc circuit (as. Here we design a laser diode driver circuit with adjustable voltage regulator lm317 to drive red color 650nm 50mw laser diode. 1) produce constant regulated voltage; What is a laser diode driver? For the driving of the laser diodes (ld) special drivers circuits are used. The second type is more easy to design and use and different circuits for their implementation exist.

This simple linear driver provides a. This circuit is suitable for constant and continuous glowing of laser diode, we can adjust the intensity of light by. What is a laser diode driver? The second type is more easy to design and use and different circuits for their implementation exist. A laser diode driver is a constant current source. For the driving of the laser diodes (ld) special drivers circuits are used. Here we design a laser diode driver circuit with adjustable voltage regulator lm317 to drive red color 650nm 50mw laser diode. Here is a helpful short video on youtube explaining constant current and constant voltage sources, and why current. Therefore an apc circuit (as. A laser diode needs a driver circuit to work properly, and the driver circuit needs to give the laser a constant current.

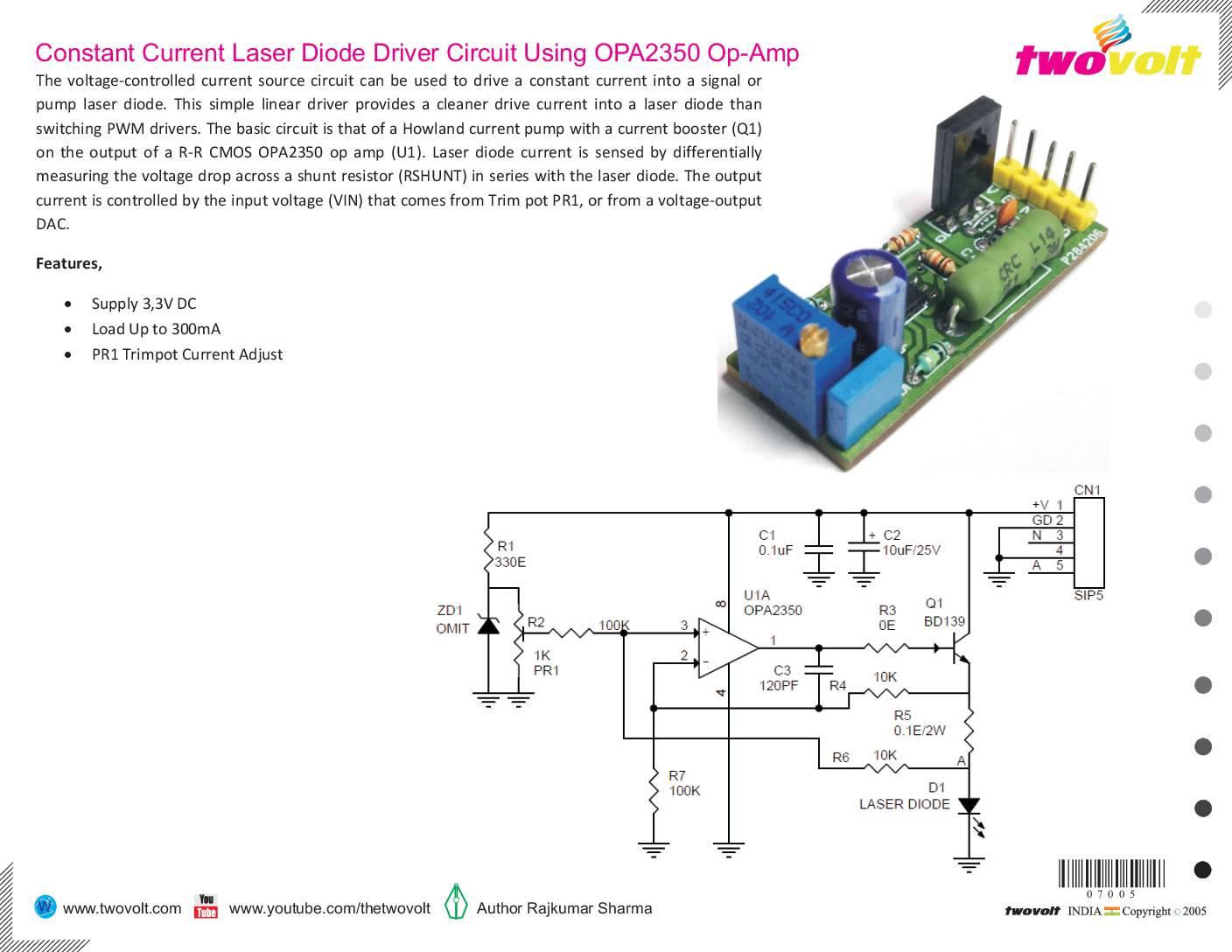

LaserDiodeDriverusingOPA2350
