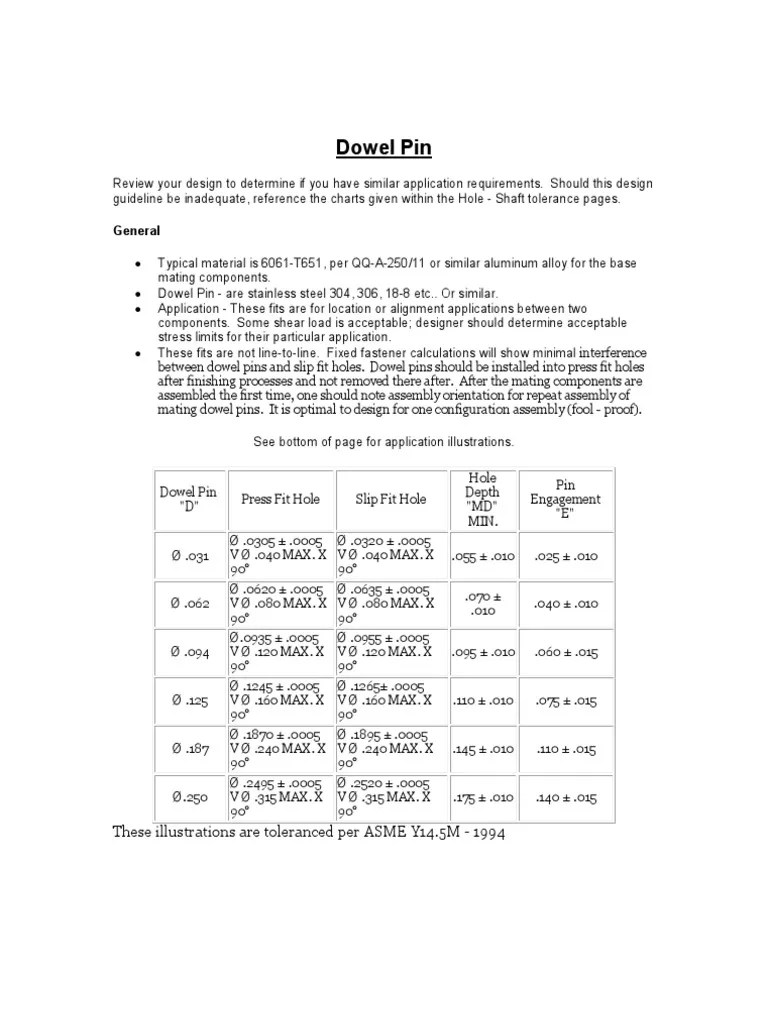

Dowel Pin Installation Design Tolerance Chart. What to note is that the standard series dowel pins have basic diameters of 0.0002 in. Wm berg steel dowel pins are used in a wide range of precision engineering applications and industries, including aerospace, healthcare, motion control, manufacturing and defense. Applications & design ansi hardware design guide. Dowel pin sizes chart (asme b18.8.2) 1. Design for press and slip fit of dowel pins used for alignment of mating parts utilizing gd&t tolerancing methods. Tolerances of the dowel pin and corresponding holes are set in a way that it may be possible to obtain a clearance or interference fit within the specified tolerance. Find the part in the chart above. Verify solid pin with proper end designs. Hardened ground machine dowel pins dimensions. Press fit holes dowel pins design recommendations. Dowel pin ,1978 two abutting members are locked together by reaming a hole entirely through one member and at least partly through the other,. Review your design to determine if you. Dowel pins are made to several national or international standards, each with slight differences in chamfer forms, length tolerances and available.

Verify solid pin with proper end designs. Review your design to determine if you. Tolerances of the dowel pin and corresponding holes are set in a way that it may be possible to obtain a clearance or interference fit within the specified tolerance. Press fit holes dowel pins design recommendations. Applications & design ansi hardware design guide. Design for press and slip fit of dowel pins used for alignment of mating parts utilizing gd&t tolerancing methods. Find the part in the chart above. Dowel pins are made to several national or international standards, each with slight differences in chamfer forms, length tolerances and available. Dowel pin ,1978 two abutting members are locked together by reaming a hole entirely through one member and at least partly through the other,. Wm berg steel dowel pins are used in a wide range of precision engineering applications and industries, including aerospace, healthcare, motion control, manufacturing and defense.
