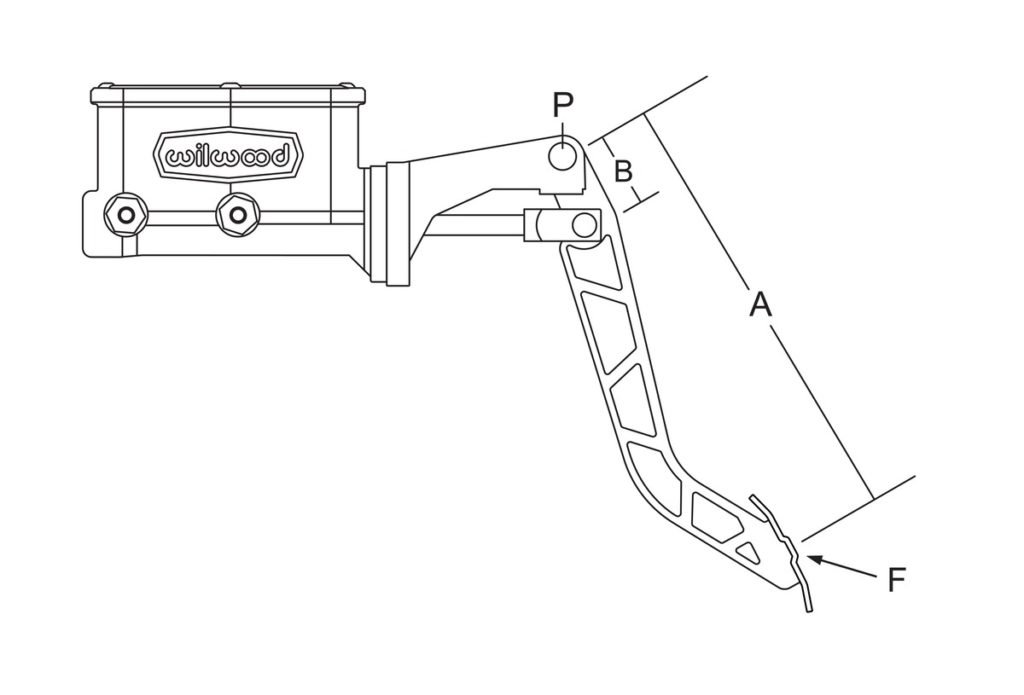

Brake Pedal Leverage Ratio. Below is a diagram to show how to properly figure pedal ratio: A proper pedal ratio is a must when installing and operating a brake system. With the proper brake pedal leverage ratio, adequately sized master cylinder bore, and the right wilwood brakes at each wheel, you should be able to race all day without getting a sore leg. It tells you how the force you apply to the pedal is multiplied and transferred to the master cylinder. Pedal ratio = x divided by y. Pedal ratio is an important but often overlooked part of your braking system. The mechanical advantage or the. To calculate your ratio, measure the distance from the pivot point of the pedal to the center of the pedal pad (measurement a), and then the distance between the pivot point and the master cylinder pushrod hole (measurement b). Leverage ratio of a brake or clutch pedal plays important role in automotive braking system design. Pedal ratio, or mechanical leverage is the ratio calculated from the length from the pivot point of the pedal to the center of the foot pedal (a),. Next, divide measurement a by measurement b. For brake systems with a booster, this ratio. Pedal ratios for brake systems without a booster usually vary between 5 :

Pedal ratio = x divided by y. Next, divide measurement a by measurement b. Pedal ratio is an important but often overlooked part of your braking system. Pedal ratio, or mechanical leverage is the ratio calculated from the length from the pivot point of the pedal to the center of the foot pedal (a),. A proper pedal ratio is a must when installing and operating a brake system. To calculate your ratio, measure the distance from the pivot point of the pedal to the center of the pedal pad (measurement a), and then the distance between the pivot point and the master cylinder pushrod hole (measurement b). With the proper brake pedal leverage ratio, adequately sized master cylinder bore, and the right wilwood brakes at each wheel, you should be able to race all day without getting a sore leg. It tells you how the force you apply to the pedal is multiplied and transferred to the master cylinder. Pedal ratios for brake systems without a booster usually vary between 5 : For brake systems with a booster, this ratio.
