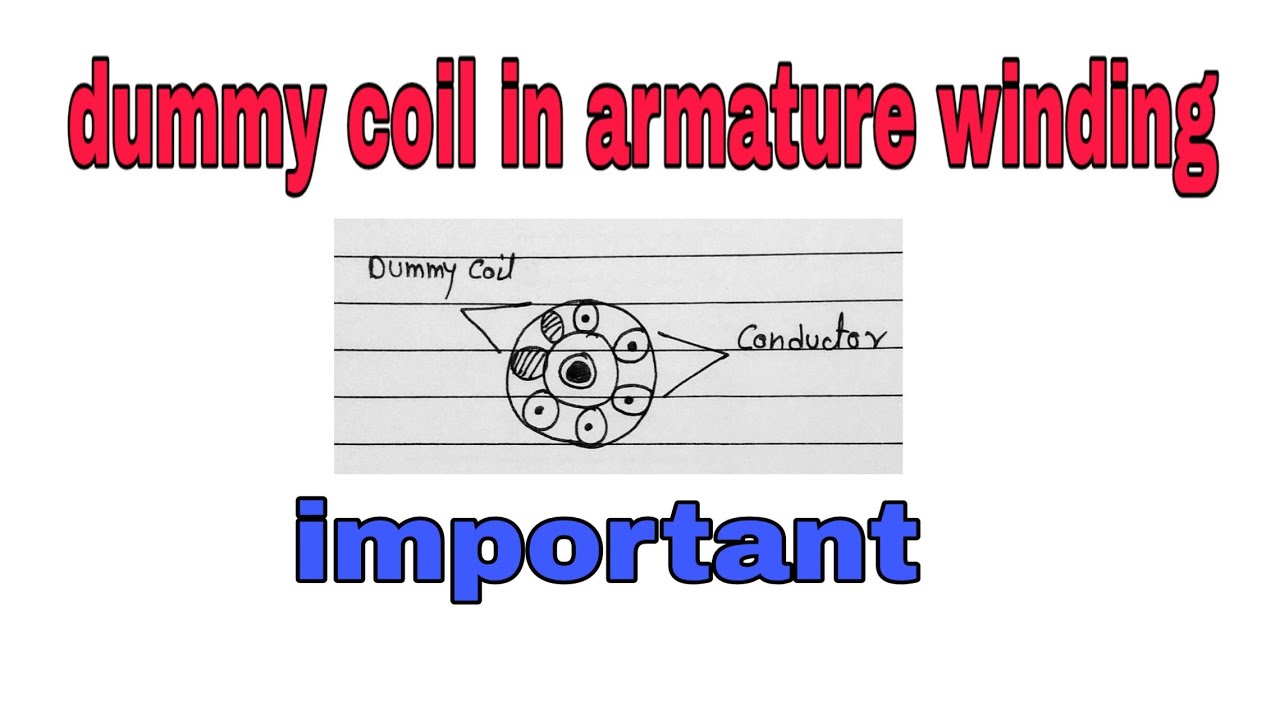

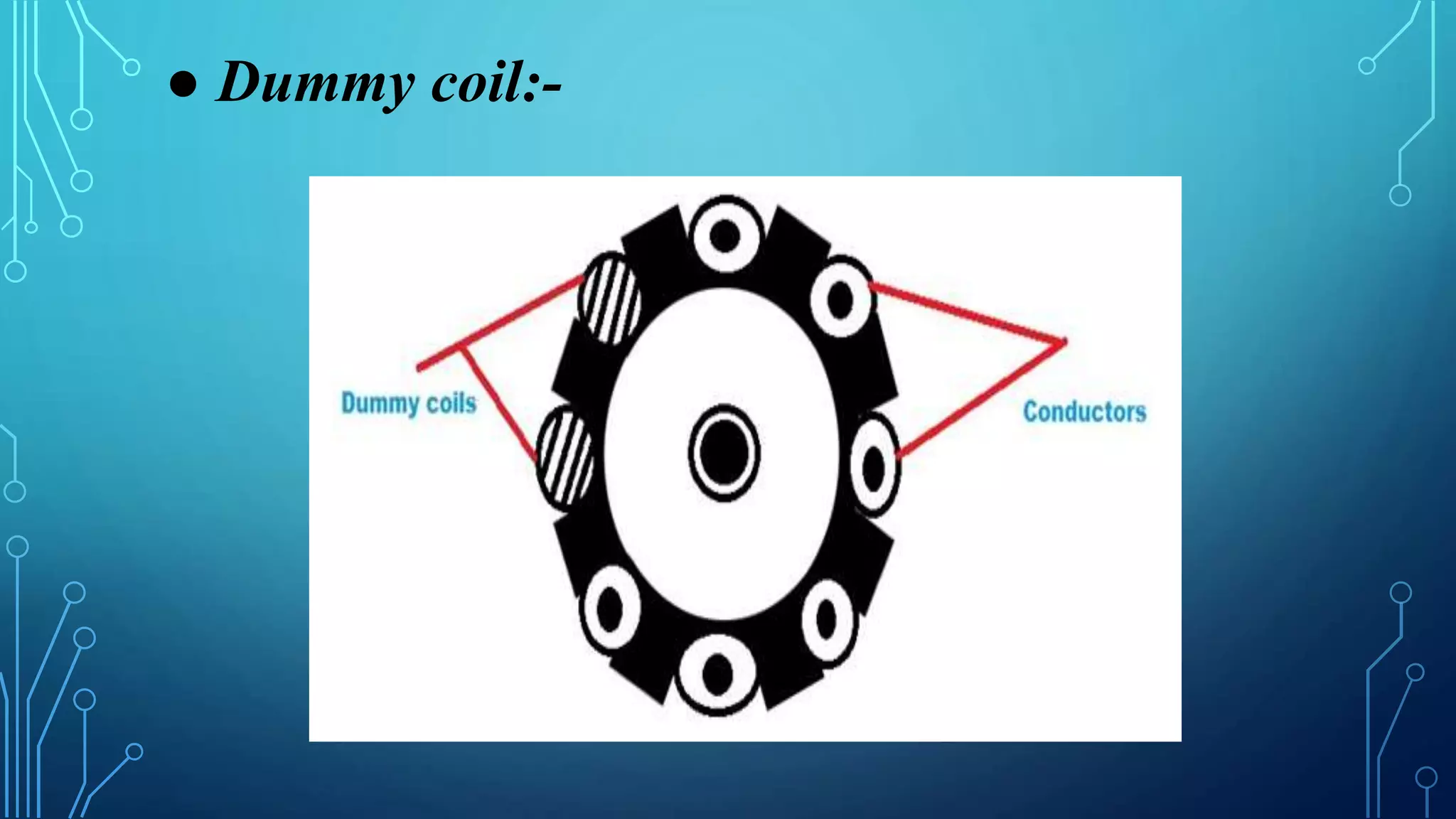

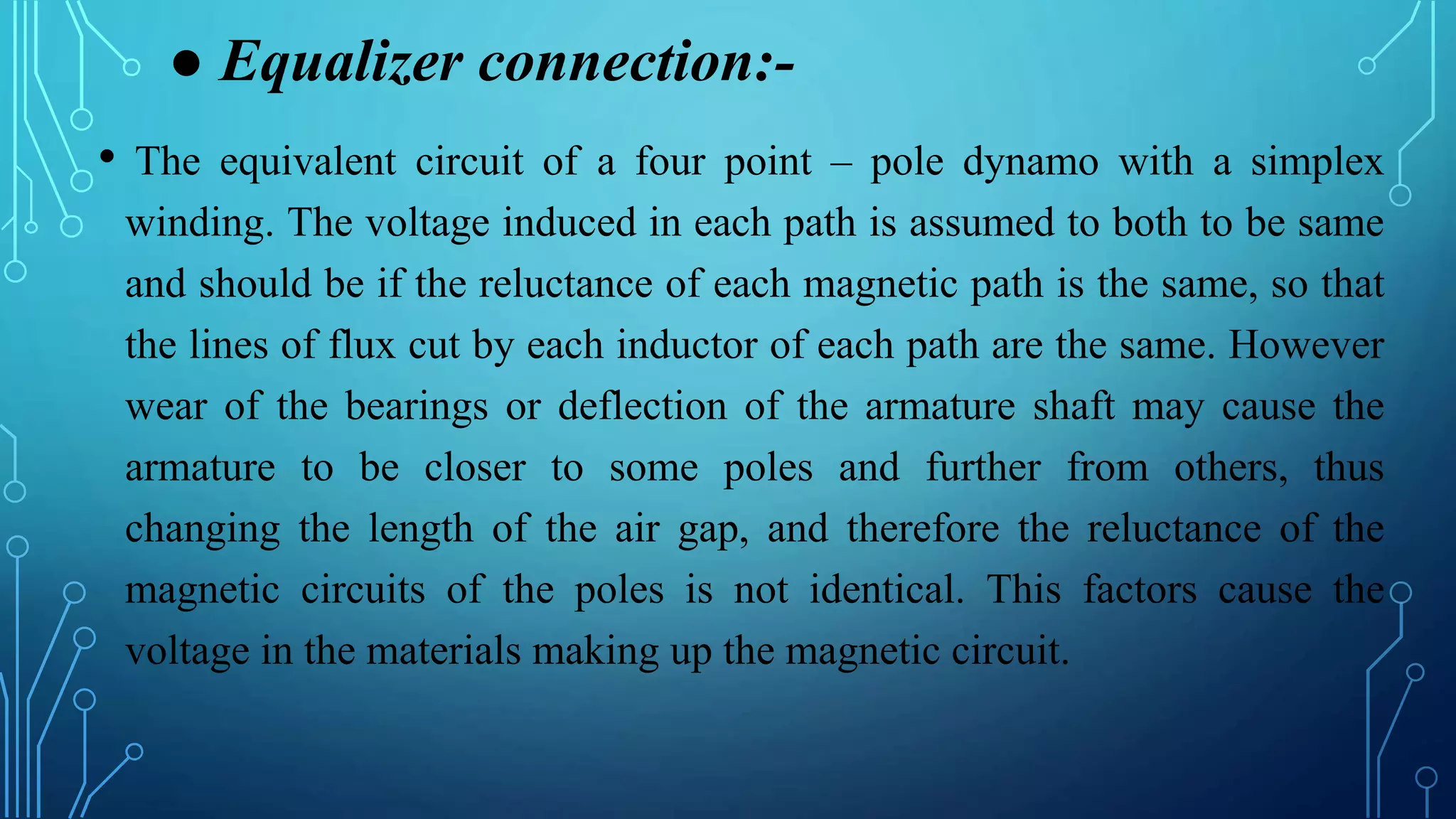

Dummy Coil In Armature Winding. this video explains armature winding of a d.c machine in detail in. dummy coils are used in wave winding only, for increasing mechanical balance. However, the use of such dummy coils is generally avoided because of the dissymmetry they introduce. Learn what terms like pole pitch, coil span, commutator pitch, back pitch, front pitch, and resultant pitch mean. As the e.m.f induced for one turn is very small, each coil of the winding consists of many turns to get the required e.m.f. In the armature and arc, therefore, known as dummy coils. a simple explanation of armature windings. these extra coils obviously do not contribute to the induced e.m.f. We also discuss the formula for. the armature windings are the conductor coils placed in the slots of armature core mounted on the shaft of the rotor of a d.c machine. It is not always possible to. dummy coil !! A wave winding has a specific number of coils needed. the wave winding is possible only with a particular number of conductors and slot combinations.
