Helix Angle For Helical Gear. The majority of calculations for spur gears can be applied to helical gears too. The helix angle of helical gears β is generally selected from the range 6,8,10,12,15,20 degrees. The helix angle (β) of a gear is the angle formed by the helical line of the tooth trace and the generatrix of the cylinder on a cylinder such as. Single helical gears are manufactured with the same equipment as spur gears, but the teeth are cut at an angle to. Spur gears with helicoid teeth are called helical gears. Analyzing helix angles is essential to achieve. The sign of the helix angle. The larger the angle the smoother the motion. Typical set of helical gears. For helical gears, a reference helix is defined by a helix angle, $\beta$, at the theoretical pitch diameter. The helix angle is a critical parameter in the design of helical gears and significantly influences their performance characteristics.

Single helical gears are manufactured with the same equipment as spur gears, but the teeth are cut at an angle to. Analyzing helix angles is essential to achieve. The helix angle is a critical parameter in the design of helical gears and significantly influences their performance characteristics. The sign of the helix angle. The helix angle (β) of a gear is the angle formed by the helical line of the tooth trace and the generatrix of the cylinder on a cylinder such as. Typical set of helical gears. For helical gears, a reference helix is defined by a helix angle, $\beta$, at the theoretical pitch diameter. The majority of calculations for spur gears can be applied to helical gears too. The larger the angle the smoother the motion. Spur gears with helicoid teeth are called helical gears.

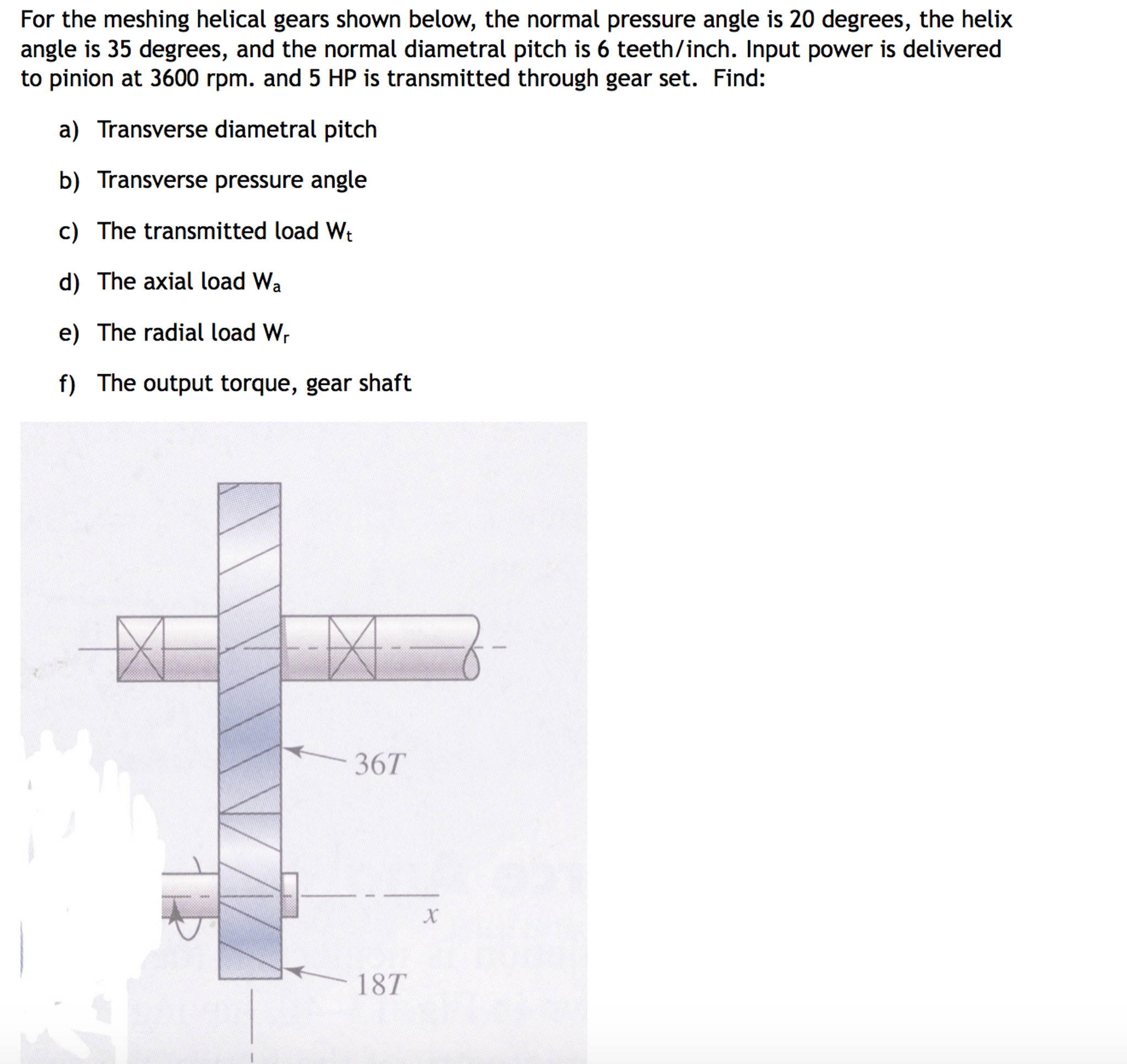

Solved For the meshing helical gears shown below, the normal
