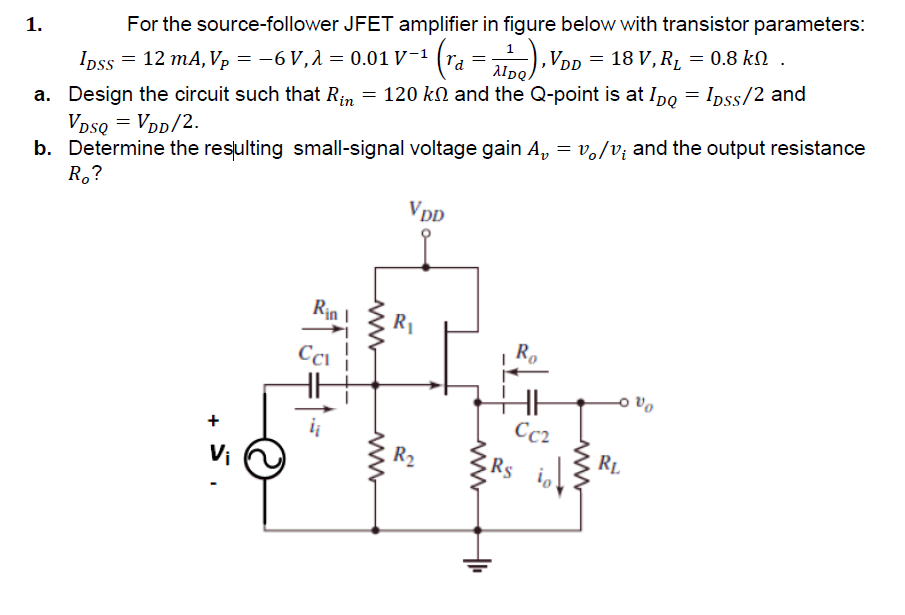

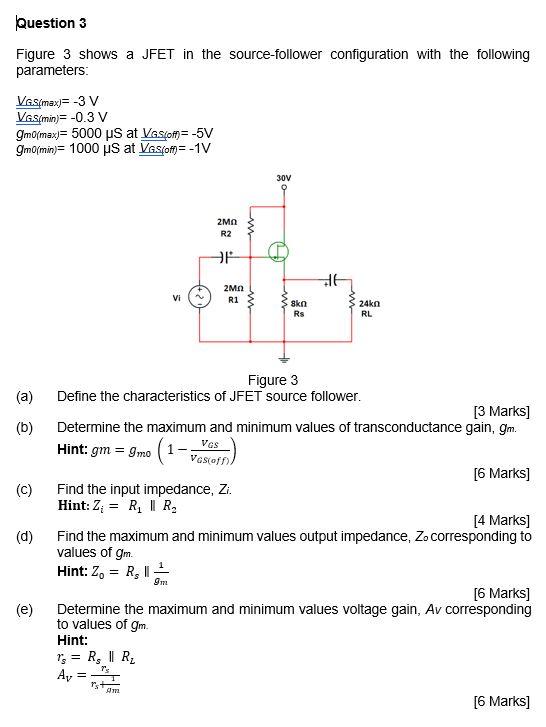

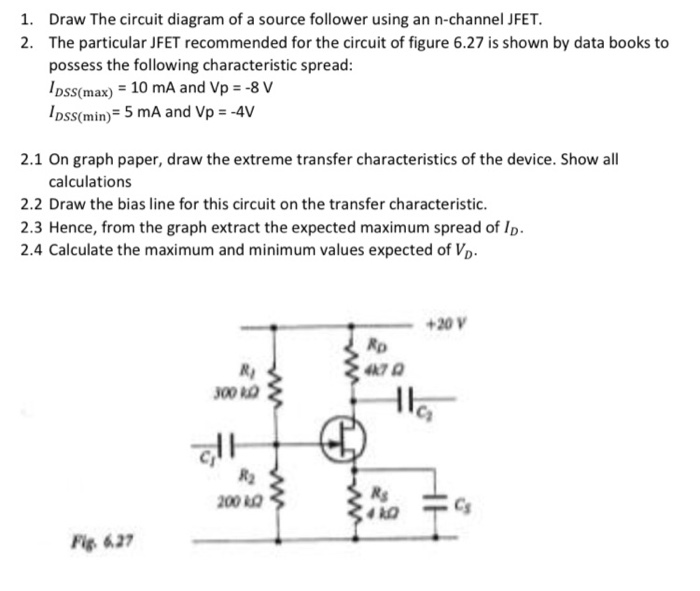

Characteristics Of The Jfet Source Follower. Find v gs(off) & i dss for your device; The dc supply voltage, the load. The basic jfet source follower circuit configuration is shown in fig.3.9.1. In the common drain jfet amplifier circuit (also called the source follower), the output voltage is developed across source resistor r s. In this lab you will explore basic jfet characteristics, circuits and applications. You will build a jfet switch, memory cell, current. In contrast to the bjt emitter follower (with an input. The jfet version is also known as a source follower. The prototype amplifier circuit with device model is shown in figure. External load resistor r l is connected to fet source terminal s through coupling capacitor c 2, and gate bias voltage v g is derived from v dd by means of potential divider r 1 and r 2.
