Transforming Power: Understanding 120V to 24V DC Transformers
In the world of electronics and power systems, voltage transformation is a crucial process that enables us to step up or step down electrical voltage to suit our needs. One such transformation is from 120V AC to 24V DC, which is a common requirement in various applications, from powering low-voltage devices to charging batteries. This article delves into the intricacies of 120V to 24V DC transformers, their working principles, applications, and key considerations when choosing one.
Understanding Voltage Transformation
Before we dive into 120V to 24V DC transformers, let's briefly understand voltage transformation. A transformer is an electrical device that transfers electrical energy from one circuit to another through electromagnetic induction. The voltage in the secondary circuit (output) is proportional to the voltage in the primary circuit (input), with the ratio determined by the turns ratio of the transformer's coils.
How 120V AC to 24V DC Transformers Work
120V AC to 24V DC transformers typically consist of two main parts: an AC transformer and a rectifier circuit. Here's a step-by-step breakdown of their working principle:

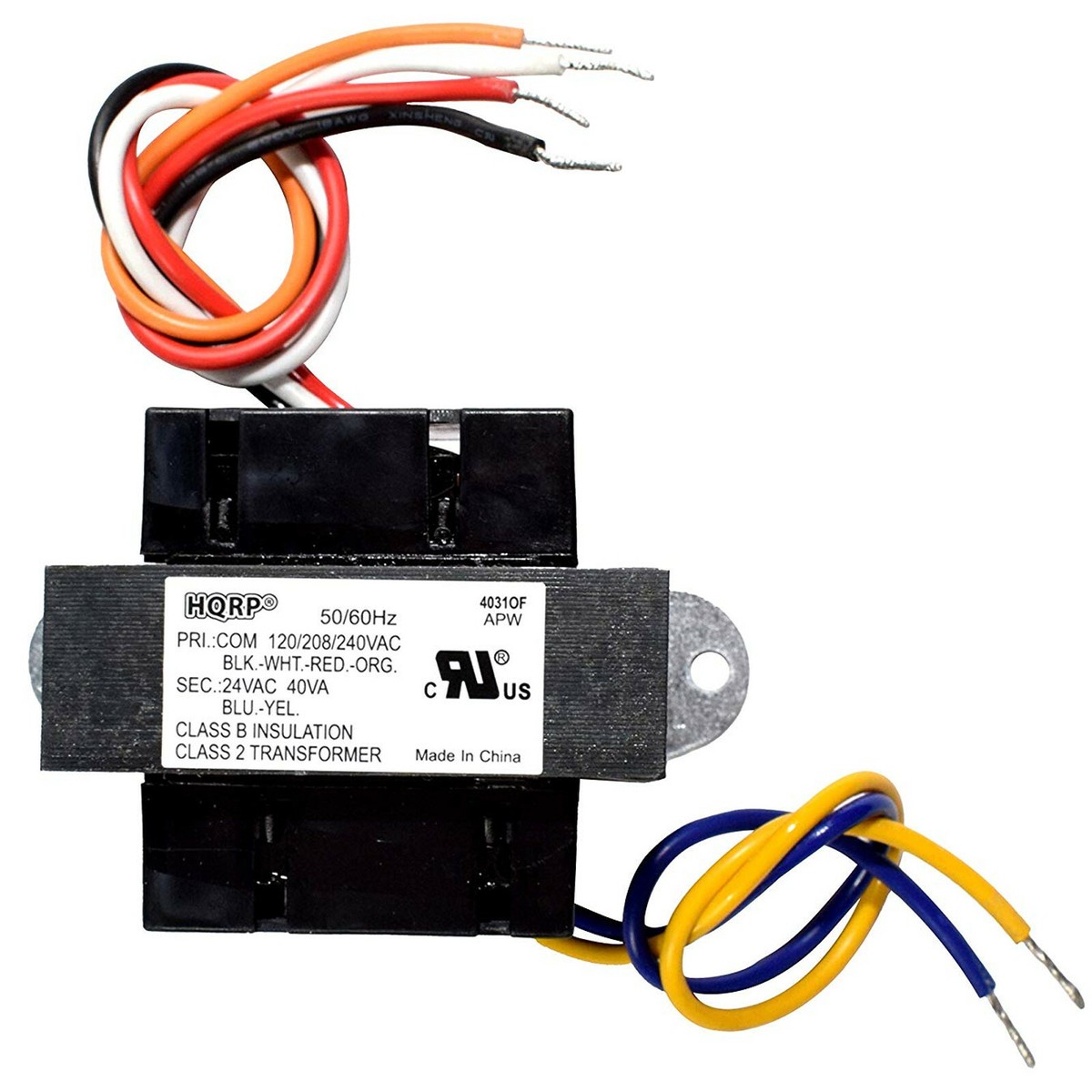

- The AC transformer steps down the 120V AC input to a lower AC voltage, typically around 24V AC.
- The rectifier circuit, usually consisting of diodes, converts the stepped-down AC voltage into DC voltage.
- An optional filter circuit smooths out the DC output to provide a steady, ripple-free DC voltage.
Applications of 120V to 24V DC Transformers
120V to 24V DC transformers find wide-ranging applications in various industries. Some of their key uses include:
- Powering low-voltage devices and equipment in residential, commercial, and industrial settings.
- Charging batteries and powering battery-operated devices, such as electric vehicles, solar systems, and uninterruptible power supplies (UPS).
- Supplying power to sensitive electronic equipment, such as medical devices, laboratory instruments, and data centers, where stable and low-voltage DC power is required.
Key Considerations When Choosing a 120V to 24V DC Transformer
When selecting a 120V to 24V DC transformer, consider the following factors to ensure the best fit for your application:
Power Rating
The power rating, measured in watts or volt-amperes (VA), indicates the transformer's capacity to supply power to the load. Choose a transformer with a power rating that exceeds your load's requirements to accommodate for any fluctuations or additional loads.
Efficiency
Efficiency is a measure of the transformer's ability to convert input power into output power. Higher efficiency translates to lower heat generation and energy losses. Opt for a transformer with an efficiency rating of 85% or higher for better performance and reduced operating costs.
Form Factor and Mounting
Consider the transformer's physical dimensions and form factor to ensure it fits within your available space. Additionally, consider the mounting options, such as wall-mount or DIN-rail mount, to facilitate easy installation.
Input and Output Connections
Ensure that the transformer's input and output connections match your application's requirements. Common input connections include plug-in, hardwired, or terminal block, while output connections may include screw terminals, quick-connects, or wire leads.
Additional Features
Depending on your application, you may require additional features, such as overcurrent protection, short-circuit protection, or a built-in fuse. Some transformers may also offer adjustable output voltage or remote on/off control for added flexibility.
Conclusion
120V to 24V DC transformers play a vital role in powering various low-voltage applications and devices. By understanding their working principles, applications, and key considerations, you can make an informed decision when selecting a transformer for your specific needs. Whether you're powering a low-voltage device, charging a battery, or supplying power to sensitive electronic equipment, a 120V to 24V DC transformer is an essential component in ensuring reliable and efficient operation.
