Removing an ABS Sensor from a Hub: A Step-by-Step Guide
When your vehicle's Anti-lock Braking System (ABS) sensor malfunctions, it can trigger the warning light on your dashboard and potentially affect your vehicle's braking performance. If you're facing this issue, you might need to remove the ABS sensor from the hub for repair or replacement. This guide will walk you through the process, ensuring you understand each step for a safe and successful removal.
Understanding the ABS Sensor and Hub
Before we dive into the removal process, let's briefly discuss the ABS sensor and its location. The ABS sensor is a crucial component of your vehicle's safety system. It's typically located within the wheel hub, where it monitors the speed of the wheel and sends this information to the ABS control module. When the sensor detects a wheel lock-up, it signals the control module to reduce brake force, preventing the wheel from skidding.
Tools Needed for ABS Sensor Removal
- Jack and jack stands
- Wheel wedges
- Socket set (including extensions and a breaker bar)
- Torque wrench
- Pliers
- ABS sensor removal tool (if required, depending on your vehicle's make and model)
- New ABS sensor (if replacing)
Step-by-Step ABS Sensor Removal
Preparation
Before you start, ensure your vehicle is safely supported on jack stands and the wheels are chocked to prevent movement. Always prioritize safety when working on your vehicle.
Removing the Wheel
Using your socket set, loosen the lug nuts on the wheel. Once they're loose, lift the vehicle with a jack and remove the lug nuts and the wheel completely.
Removing the Hub Cap and Dust Shield
If your vehicle has a hub cap, remove it using pliers or a flathead screwdriver. Next, remove the dust shield by prying it off with a flathead screwdriver. Be careful not to damage the shield, as you may reuse it.
Removing the ABS Sensor
Now that you have access to the ABS sensor, you can proceed with its removal. The sensor is typically secured by a retaining clip or a nut. If it's a clip, use a flathead screwdriver or a specialized tool to release it. If it's a nut, use your socket set to remove it. In some cases, you may need to use an ABS sensor removal tool to extract the sensor from the hub.

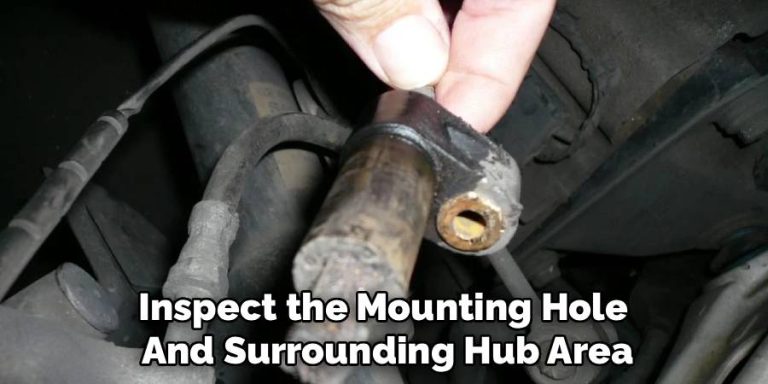

Once the sensor is loose, gently pull it out of the hub. If it's stuck, try wiggling it back and forth to break the seal. Be patient and careful not to damage the sensor or the hub.
Inspecting and Replacing the ABS Sensor
Inspect the removed ABS sensor for any signs of damage or wear. If it's in poor condition, replace it with a new one. Ensure the new sensor is compatible with your vehicle's make and model.
Reinstalling the ABS Sensor
Before reinstalling the ABS sensor, apply a small amount of grease to the O-ring to create a better seal and prevent corrosion. Carefully insert the sensor into the hub, ensuring it's properly aligned. Secure the sensor with the retaining clip or nut, and torque it to the manufacturer's specified value using a torque wrench.
Reassembling the Hub and Wheel
Reinstall the dust shield and hub cap (if applicable). Replace the wheel and tighten the lug nuts by hand. Once the lug nuts are snug, lower the vehicle and use a torque wrench to tighten them to the manufacturer's specified value.
Testing the New ABS Sensor
After reinstalling the wheel, start your vehicle and check the ABS warning light on the dashboard. If the light turns off and doesn't return after a few seconds, your new ABS sensor is working correctly. If the light remains on, there may be an issue with the sensor or the ABS control module, and further diagnosis is needed.
Remember, if you're unsure about any part of the process, consult your vehicle's repair manual or seek professional assistance. Always prioritize safety when working on your vehicle, and never hesitate to ask for help if you need it.
